• Model NO.：DT-M1325AS3
• Certification：CE, ISO
• Customized：Customized
• Condition：New
• Color：Customized
• After-sales Service：Lifetime
• System：Nc Studio
• Spindle：Water Cooling, or as Your Require
• Table：Vacuum Table
• Air Pump：5.5kw or as Your Require
• Drive：Stepper
• Working Area：1300X2500
• Guild Rail：Hiwin Taiwan
• Dust Proof：Xyz
• Transport Package：Standard Exported Plywood Case
• Specification：CE
• Trademark：DONGTONG
• Origin：Shandong China
• HS Code：84609090
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. DT-M1325AS3 Certification CE, ISO Customized Customized Condition New Color Customized After-sales Service Lifetime System Nc Studio Spindle Water Cooling, or as Your Require Table Vacuum Table Air Pump 5.5kw or as Your Require Drive Stepper Working Area 1300X2500 Guild Rail Hiwin Taiwan Dust Proof Xyz Transport Package Standard Exported Plywood Case Specification CE Trademark DONGTONG Origin Shandong China HS Code 84609090 Production Capacity 50 Sets Per Month

Product Description

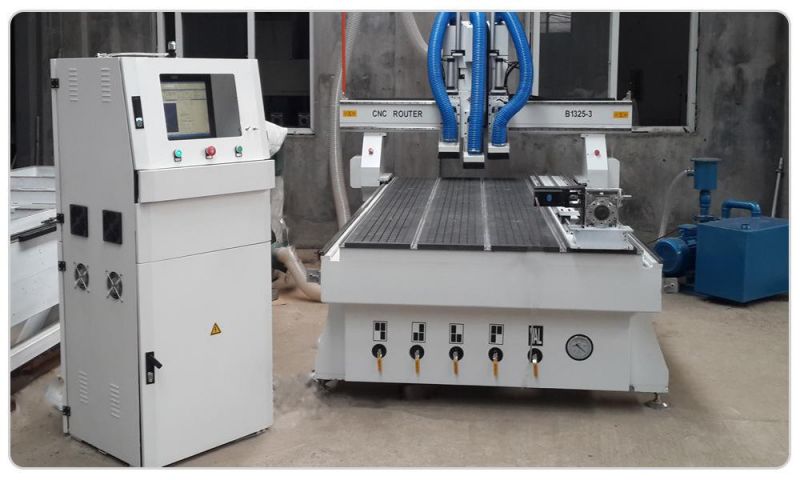

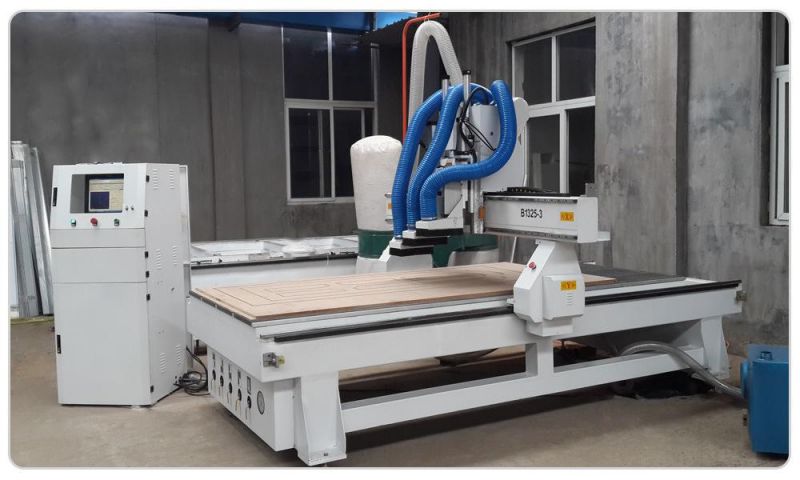

Three workstage ATC wood door CNC router
from professional ATC cnc router manufacturer

ATC multi-head woodworking CNC router machine is customized for changing the tools within 2-4 piece, it's not only economic, also can realize speedy auto tool change, save the time of manual tool change, improve the working speed and precision.

Machine Feature:

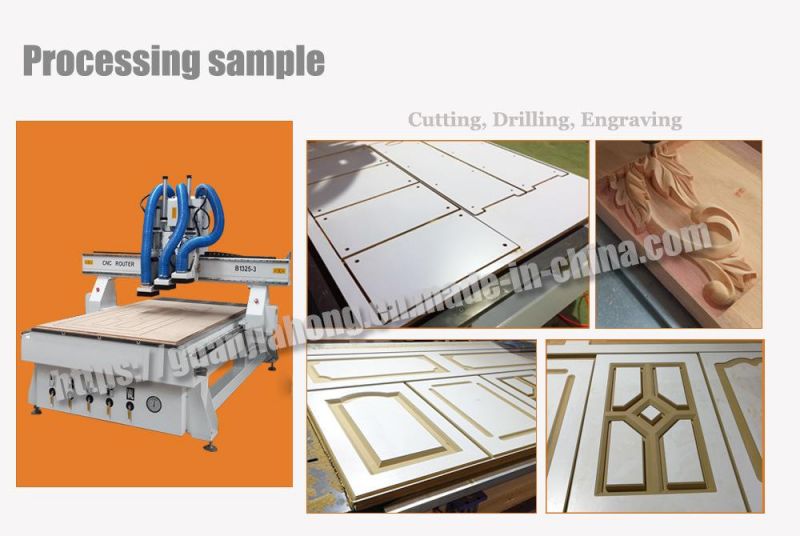

1.  Specially designed for wood door
2.  Vacuum table with 6 vacuum zones or 3 vacuum zones

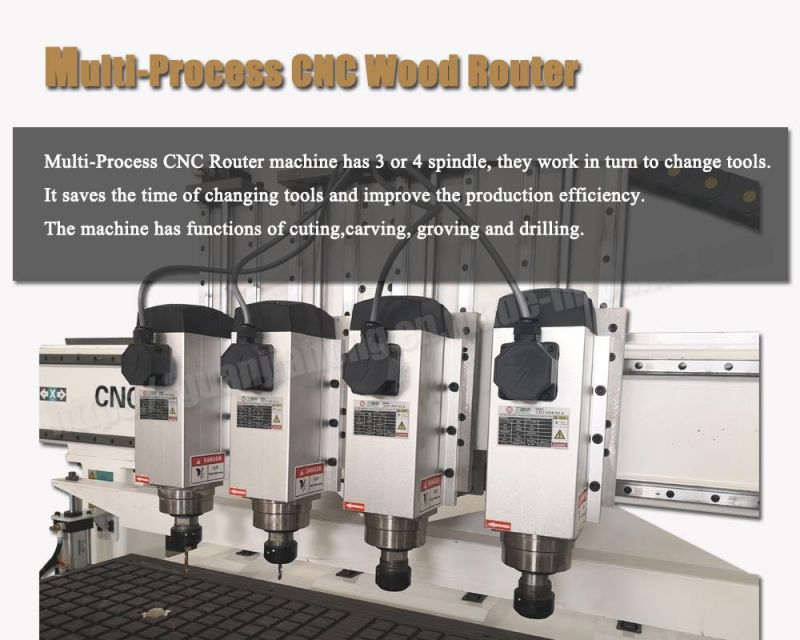

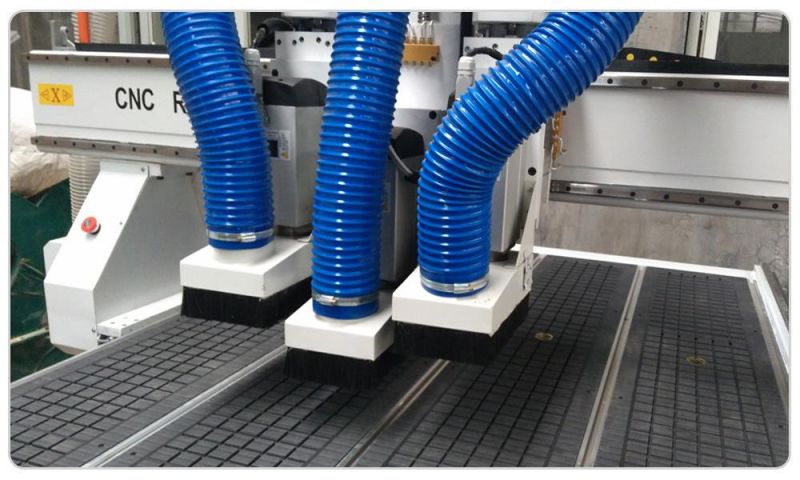

3.  Three different tools,  three spindles work in turn














 Technical Parameter

NO	Performance index	Performance index	Parameter
1	Working area	X axis	1300mm
		Y axis	2500mm
		Z axis	200mm
2	Accuracy	Engraving accuracy	0.05mm
		Repositioning accuracy	0.05mm
3	Drive mode	X axis	Helical rack and pinion
		Y axis	Helical rack and pinion
		Z axis	Ball screw
4	Speed	Max travel speed	30000mm/min
		Max engraving speed	15000mm/min
5	Spindle ( Air-cooling Spindle )	Spindle power	5.5KW
		Spindle speed	0_24000r/min
6	Drive motor		Stepper motor
7	Working voltage		AC220V/380V
8	Command code		G code
9	Operating system		NC studio
10	Gantry		10MM square pipe
11	Guide rail		PMI/HIWIN 20
12	Auto lubrication		Yes
13	Table type		Combined Vacuum table and T-slot

1. One year warranty under normal use and we supply lifelong maintenance.2. 24 hours technical support by Phone, Email, Skype, Msn, or romote.3. Free training to make sure you master the operation of the cnc router.4. Usually, we will manufacturer the machine as our regular design.5. X Y Z Working Area could be custmer-oriented designing.6. Special configuration could be customer-oriented designing.
If you have specific requirement of wood door ATC CNC router, customization is available.
