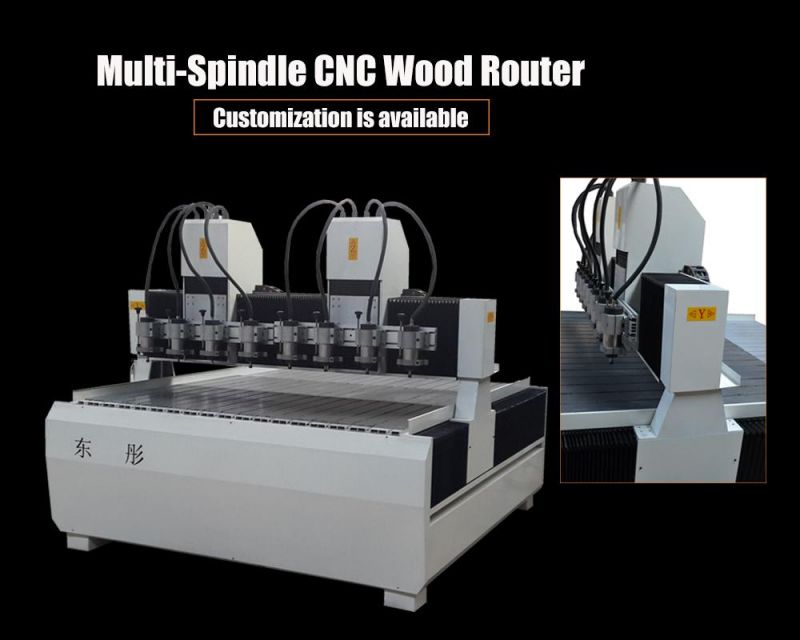

Multi-Spindle Woodworking CNC Engraving Machine, Wood, Metal, Stone, CNC Router Machine
Jinan Guanjiahong CNC Machinery Co., Ltd.- Warranty:1 Year
- Type:Engraving Router
- Spindle Layout:Spindle Over
- Spindle Number:6
- Feed Mode:Manual
- Controlling Mode:CNC
Base Info
- Model NO.:DT1818-2-8
- Certification:CE, ISO
- Customized:Customized
- Condition:New
- Color:Customized
- After-sales Service:Lifetime
- Table Size:1800*1800
- Spindle:6 Spindles
- Control System:Nc Studio, Shanghai

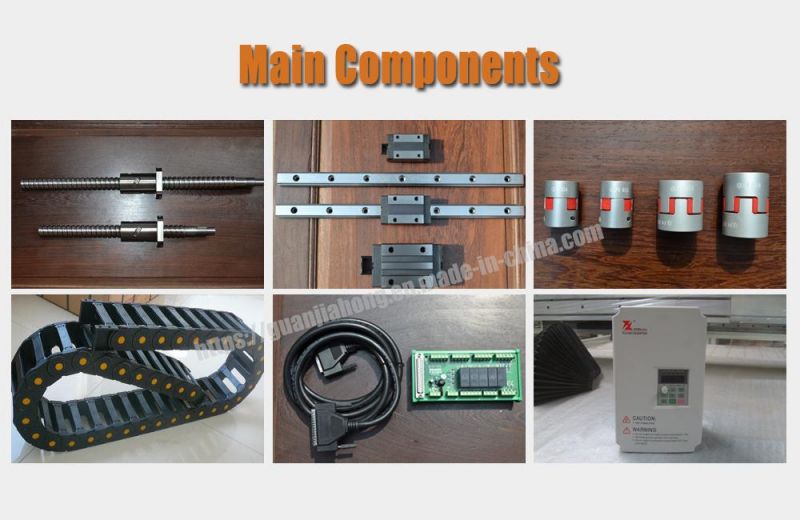

- Guild Rail:Hiwin Square Rail
- Ball Screw:PMI, Taiwan
- Transport Package:Plywood Case
- Specification:CE
- Trademark:DONGTONG
- Origin:Shandong China
- HS Code:84609090
- Production Capacity:50 Sets Per Month
Description
Basic Info.
Model NO. DT1818-2-8 Certification CE, ISO Customized Customized Condition New Color Customized After-sales Service Lifetime Table Size 1800*1800 Spindle 6 Spindles Control System Nc Studio, Shanghai Guild Rail Hiwin Square Rail Ball Screw PMI, Taiwan Transport Package Plywood Case Specification CE Trademark DONGTONG Origin Shandong China HS Code 84609090 Production Capacity 50 Sets Per MonthProduct Description

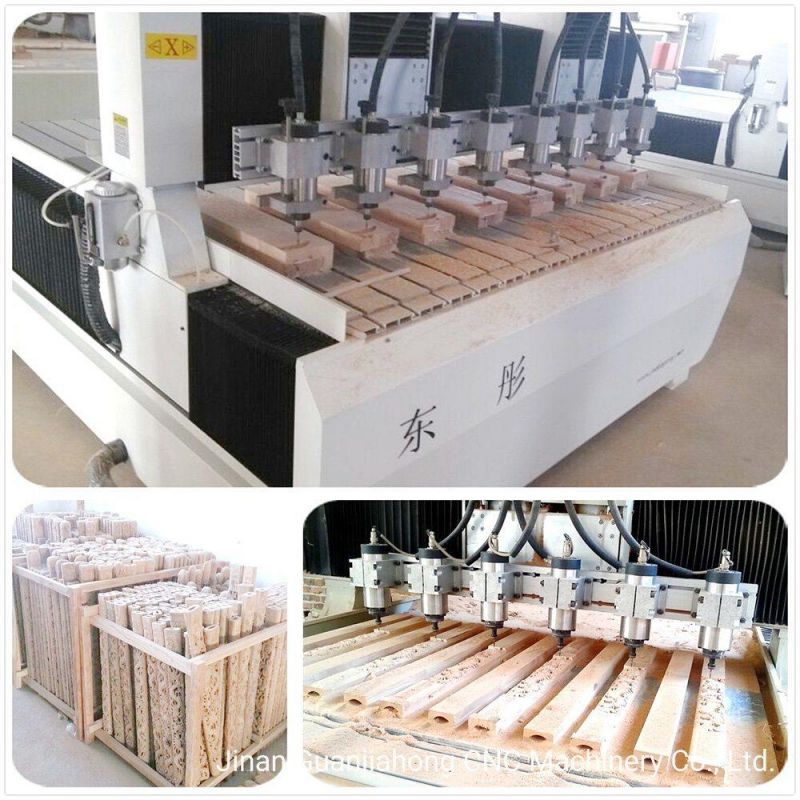

Multi spindle woodworking CNC router machine from professional cnc router manufacturer.1. Mode DT1818-8 machine is designed specially for redwood,classical furniture,three-dimensional sculptures,The high speed and
accuracy fully satisfy all kinds of requirement of engraving.
2. Whole casting machine bed greatly strengthen rigidity and ensure the system operate steady, screw drive guarantee the processing
precision well.
3. Internationally advanced Weihong system which have memory of breakpoint can guarantee resumption of processing in case of
incident (breaking) or of work of the previous day.
1.Woodworking : mainly apply to engraving of redwood and classical furniturewoodcarving,wooden box,jewelry box and processing
of decoration and jewelry.
2.Advertising industry : apply to all kinds of molds. Such as labels architectural molds, badge,engraving plate . exhibition boards,
doorplate. Direction board, decoration and so on.
3.Handcraft industry : apply to engraving patterns and characters on all kinds of materials , such as wood,bamboo, marble ,organic board,
double color board.
4.Other industry: also used in portraits , landscapes, calligraphy lettering,seal carving and other plane surface caving , basso-relievo
Technical Parameter:
NO | Performance index | Performance index | Parameter | Optional |
1 | Working area | X axis | 1800mm | |
Y axis | 1800mm | |||
Z axis | 200mm | |||
2 | Table size | 1800mm*1800mm | ||
3 | Accuracy | Processing precision | 0.05mm | |
Repositioning precision | 0.02mm | |||
4 | Drive mode | X axis | Ball screws | |
Y axis | Ball screws | |||
Z axis | Ball screws | |||
5 | Speed | Max travel speed | 20000mm/min | |
Max processing speed | 10000mm/min | |||
6 | Spindle (Air-cooling) | Spindle power | 2.2KW | 1.5KW_5.5KW |
Spindle speed | 0_24000r/min | |||
7 | Running mode | Servo motor | ||
8 | Operating voltage | AC220V/50HZ | ||
9 | Command code | G code | ||
10 | Operating system | NC STUDIO | ||
11 | Net weight | 1320KG |
1. One year warranty under normal use and we supply lifelong maintenance.2. 24 hours technical support by Phone, Email, Skype, Msn, or romote.3. Free training to make sure you master the operation of the cnc router.4. Usually, we will manufacturer the machine as our regular design.5. X Y Z Working Area could be custmer-oriented designing.6. Special configuration could be customer-oriented designing.
If you have specific requirement for multi spindle woodCNC router machine, please contact with us.
Customization is available.
