• Model NO.：ELECNC-1325
• Customized：Customized
• Condition：New
• Color：Customized
• Voltage：400V, 3pH, 50Hz (220V 380V for Optional)
• Dimension(L*W*H)：1300*2500*400mm
• Spindle Power：2 Sets 4.5kw Hqd Air Cooling Spindle
• Motor & Driver：Yako FL118 Stepper Motor and Yako 2811 Big Driver
• Lubrication System：Manual Lubrication System
• Table Surface：T-Slot and Vacuum Working Table
• X, Y Structure：Rack and Pinion Drive, Taiwan 25# Hiwin Square Lin
• Inverter：5.5kw Fuling Inverter
• Control System：Richauto DSP A15 Control System
• Transport Package：Standard Export Wooden Case
• Specification：CE, ISO, SGS
• Trademark：BLUE ELEPHANT
• Origin：Shandong, China
• Production Capacity：200 Sets Per Month

Basic Info.

Model NO. ELECNC-1325 Customized Customized Condition New Color Customized Voltage 400V, 3pH, 50Hz (220V 380V for Optional) Dimension(L*W*H) 1300*2500*400mm Spindle Power 2 Sets 4.5kw Hqd Air Cooling Spindle Motor & Driver Yako FL118 Stepper Motor and Yako 2811 Big Driver Lubrication System Manual Lubrication System Table Surface T-Slot and Vacuum Working Table X, Y Structure Rack and Pinion Drive, Taiwan 25# Hiwin Square Lin Inverter 5.5kw Fuling Inverter Control System Richauto DSP A15 Control System Transport Package Standard Export Wooden Case Specification CE, ISO, SGS Trademark BLUE ELEPHANT Origin Shandong, China Production Capacity 200 Sets Per Month

Product Description

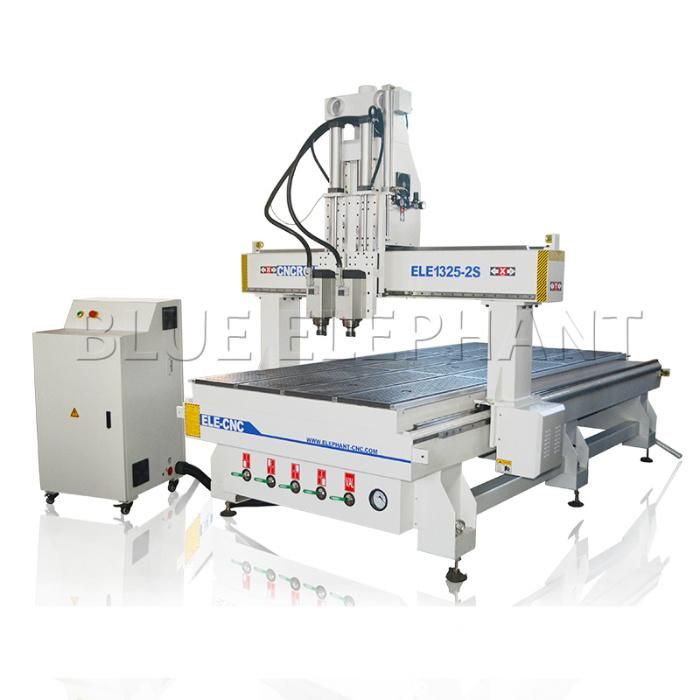

1325 2 spindle cnc carved panel mdf engraving machine cnc router from jinan

Technical Parameter

Descriptions	Parameters
Model	ELE1325-2s
Working area	1300*2500*400mm
Control system	Richauto DSP A15 control system
Working Voltage	400V, 3Ph, 50Hz (220V 380V for optional)
Spindle	2 sets 4.5kw HQD air cooling spindle
Spindle speed	0-18000rpm
Inverter	5.5kw Fuling inverter
Motor and Driver	FL118 stepper motor and Yako 2811 big driver
Table surface	T-slot and vacuum working table
Structure	New type thicker and bigger heavy duty welded frame and gantry
Lubrication system	Manual lubrication system
Transmission	X,Y axis: rack and pinion drive Z axis: Taiwan TBI ball screw X,Y,Z axis: Taiwan PMI linear square rail #25
Vacuum pump	5.5kw water circulation vacuum pump, 400V, 3Ph, 50Hz
Control box	Separate double-sided control box
Software	Artcam
Vacuum Pump	5.5kw Water cycle vacuum pump (415V, 3PH, 50HZ)
Dust collector	1.5kw new type double bag vacuum cleaner (400V, 3Ph, 50Hz)
Others	Japan Omron limit switch Shanghai Cardiff wire



Advantages

This kind of cnc router has 2 spindles, they do different work and work one by one. Multi head/ spindle cnc router is one of hot selling type, it's like simple auto tool changer, price is much more cost-effective than ATC CNC Router.

What's more, this type cnc router is with High Z axis 400mm design, which is very suitable for thicker material process, like thicker hard wood, redwood, wood furniture bed etc. You can try two heads or 3 heads multi spindle cnc router as choice if you are looking for cnc furniture or 3D cnc router.

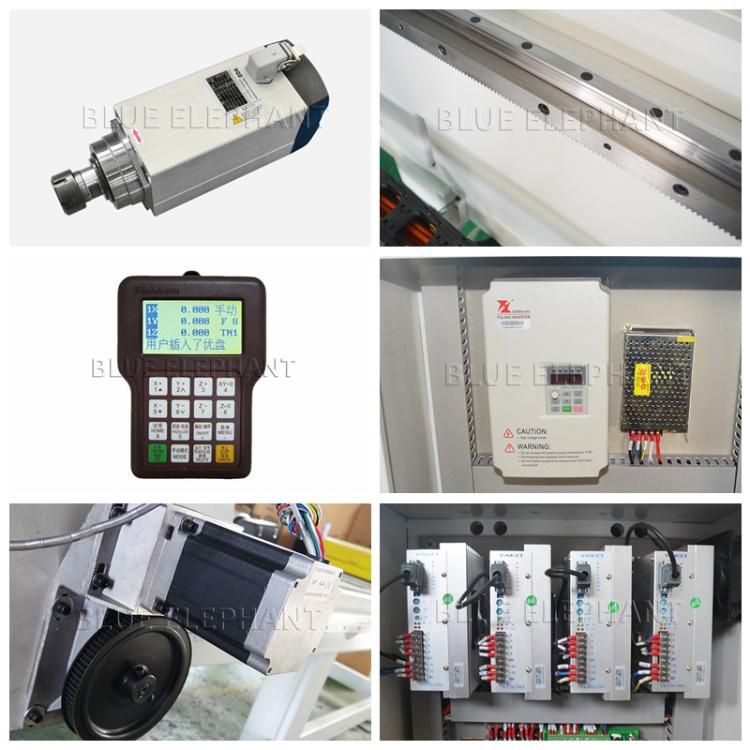

Detailed images





Application:

Ø Furniture industry: folding screen, wave board, big wall hanging, advertising sheet, sign making.

Ø Crafts industry: can be used for most materials like Artificial stone, wood, bamboo, marble, Organic board, Color plates, to do engraving of beautiful patterns and characters.

Ø Materials: wood, MDF, acrylic, PVC, PCB, foam, aluminum, copper etc.



Our service:

1. Guarantee & After-sale Service

12 Months warranty under normal use and lifelong maintenance we supply.

24 hours technical support by phone, email and other online contact.

Free training on machine operation, daily maintenance etc. in seller's factory.



2. Delivery Time

Usually for normal model, within 15 days after get payment; For customized router machine, 15-30 days needed.



3. Payment Terms

T/T in advance

L/C is allowed if the amount is big. Please issue the L/C draft for our configuration first.

Other kinds of payment we can consider if acceptable for us



Packaging Details:

1. Outside package: Standard export plywood case.

2. Inner package: Stretchy film and plastic film for humidity.

We can make package according to your requests.

Delivery Detail:  Shipped in 20 working days after payment.
