• Model NO.：DTMS1815-2-8
• Customized：Customized
• Condition：New
• Color：Customized
• Table Size：2000*1800
• Operating System：Nc Studio
• Spindle：8 Spindles
• Ball Screw and Guild Rail：PMI or Hiwin
• Drive Mode：Servo
• Transport Package：Plywood Case
• Specification：CE
• Trademark：DONGTONG
• Origin：Shandong China
• HS Code：84609090
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. DTMS1815-2-8 Customized Customized Condition New Color Customized Table Size 2000*1800 Operating System Nc Studio Spindle 8 Spindles Ball Screw and Guild Rail PMI or Hiwin Drive Mode Servo Transport Package Plywood Case Specification CE Trademark DONGTONG Origin Shandong China HS Code 84609090 Production Capacity 50 Sets Per Month

Product Description

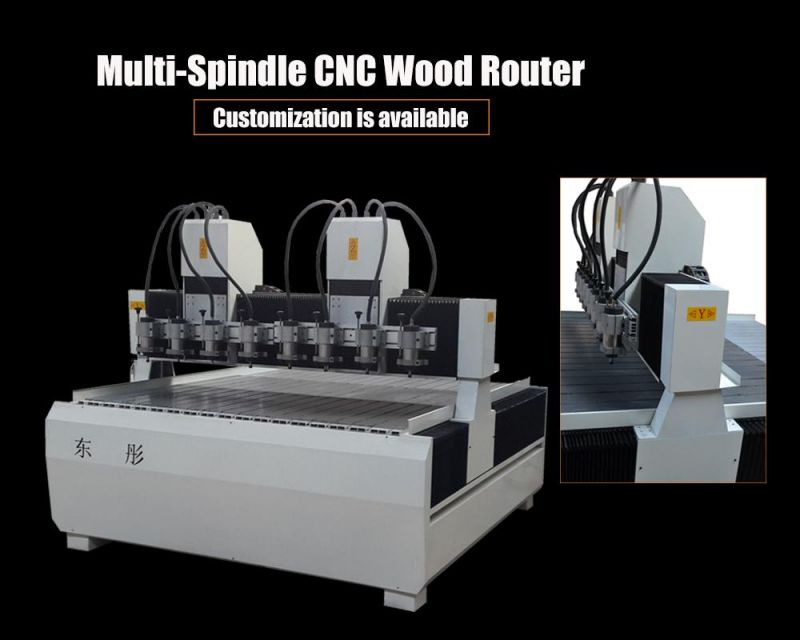

Multi-spindle Wood CNC Router, CNC Wood Carving Machine, Woodworking Engraving Machine
from professional CNC router machine manufacturer in China



1. Mode: DTMS2018-2-8

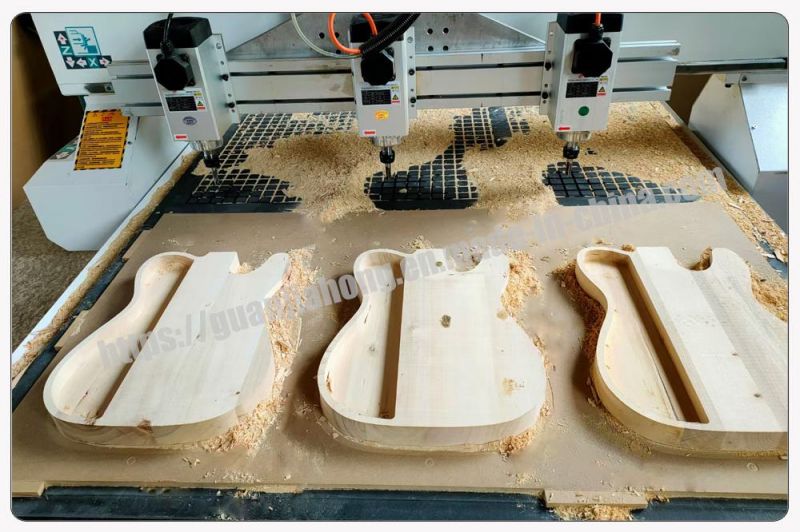

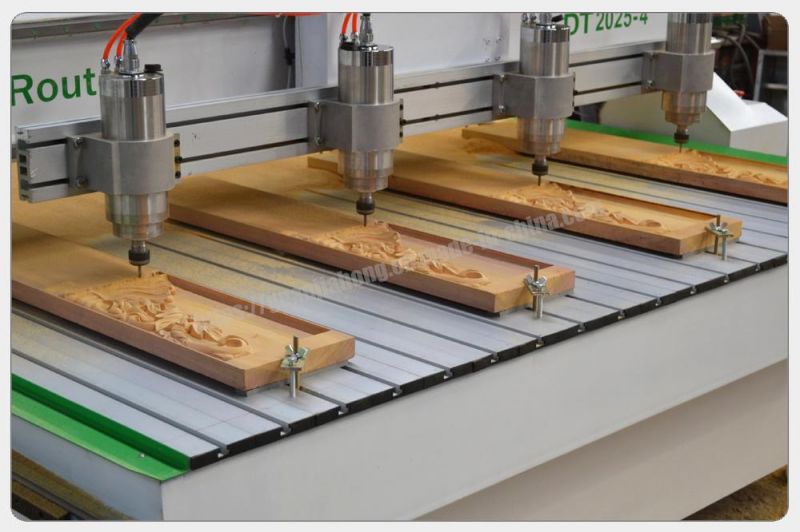

2. Specially designed for small workpiece, mutli spindles work together, high efficiency.
3. Imported ball screws, high precision.
4. The whole welding structure, firm, durable and non-deformation in permanent
5. Adopt advanced professional CNC control system, continued carving on break point  or power off,
    prediction of working time, automatic tool setting etc.
6. All specification can be customized as your request.















 Technical Parameter

NO	Performance index	Performance index	Parameter
1	Working area	X axis	1800mm
		Y axis	1500mm
		Z axis	200mm
2	Table size		2000mm*1800mm
3	Accuracy	Working precision	0.02mm
		Repositioning precision	0.02mm
4	Drive mode	X axis	Ball Screws
		Y axis	Ball Screws
		Z axis	Ball Screws
5	Speed	Max motion speed	20000mm/min
		Max engraving speed	1500mm/min
6	Spindle	Spindle power	2.2KW
		Spindle speed	0_24000r/min
7	Running mode		Servo motor
8	Operating voltage		As your request
9	Command code		G code
10	Operating system		NC studio

1. One year warranty under normal use and we supply lifelong maintenance.2. 24 hours technical support by Phone, Email, Skype, Msn, or romote.3. Free training to make sure you master the operation of the cnc router.4. Usually, we will manufacturer the machine as our regular design.5. X Y Z Working Area could be custmer-oriented designing.6. Special configuration could be customer-oriented designing.
If you have specific requirement for multi-spindle CNC router machine, customization is available.
