• Model NO.：DT1815-1-10
• Customized：Customized
• Condition：New
• Color：Customized
• Table Size：1800*1500
• Motor：Stepper or Servo as Your Requirement
• Motor Brand：Yasakawa, Eston, Panasonic
• Spindle：Air Cooling or Water Cooling as Your Require
• Transport Package：Plywood Case
• Specification：CE
• Trademark：DONGTONG
• Origin：Shandong China
• HS Code：84609090
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. DT1815-1-10 Customized Customized Condition New Color Customized Table Size 1800*1500 Motor Stepper or Servo as Your Requirement Motor Brand Yasakawa, Eston, Panasonic Spindle Air Cooling or Water Cooling as Your Require Transport Package Plywood Case Specification CE Trademark DONGTONG Origin Shandong China HS Code 84609090 Production Capacity 50 Sets Per Month

Product Description

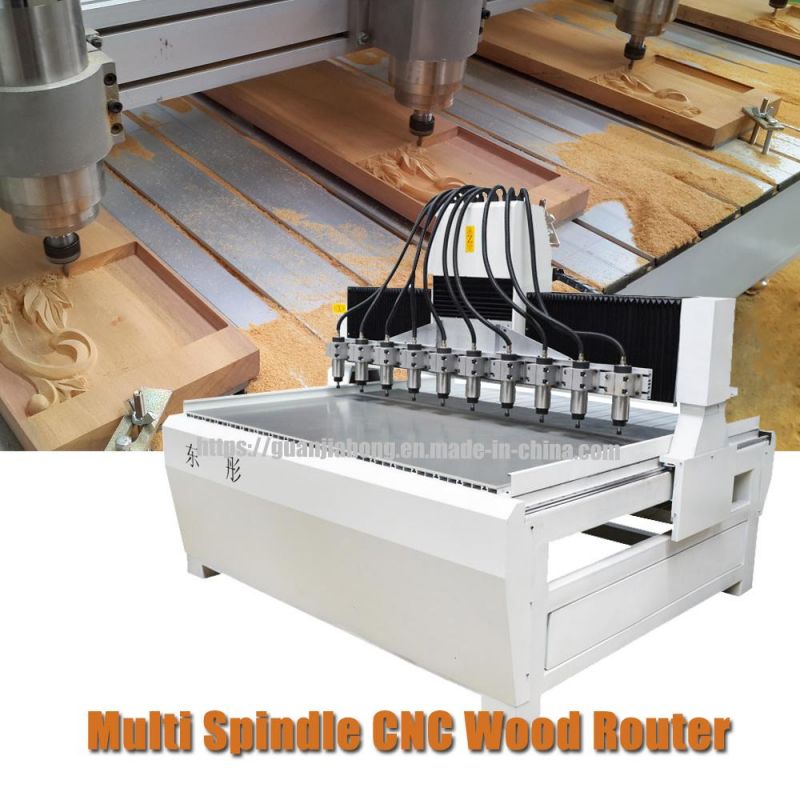

Multi spindle wood CNC Router from professional cnc router manufacturer in China.


1. Multipurpose machine for stone and wood.
2. High precision, fast speed, cost-effective.
2. Seamless welding and vibrating treatment, lathe bed steel structure is firm, durable, strength steel
3. Computer cabinets and Ncstudio control system have good stability and high reliability.
4. Using automatic lubrication system, it's convenient for maintenance.
5. Owns more functions of power-off restoration, continuation on break point, working time anticipation etc.
6. Imported rolling ball screws, original net and imported liner and square rail.


1.  Woodworking industry: apply to door, windows, cabinet, craft door, paint- free door, screen, wave board processing,
3.  Advertisement industry: apply to processing all kinds of design of rich and colorful model, Such as labels. architectural molds,
    badge, engraving plate. exhibition boards, doorplate. Direction board, decoration and so on.
4. Handcraft industry: apply to engraving patterns and characters on all kinds of  materials, such as wood, bamboo, marble, organic
    board, double color board.
5. Other industry: Relief carving, photograph craving, openwork engraving, plane engraving, cutting and milling bottom etc...














NO	Performance index	Performance index	Parameter	Optional
1	Working area	X axis	1800mm
		Y axis	1500mm
		Z axis	150mm
2	Table size		1800mm*1500mm
3	Accuracy	Processing precision	0.02mm
		Repositioning precision	0.02mm
4	Drive mode	X axis	Ball screws
		Y axis	Ball screws
		Z axis	Ball screws
5	Speed	Max travel speed	10000mm/min
		Max engraving speed	8000mm/min
6	Spindle	Spindle power	2.2KW	0.8KW_3KW
		Spindle speed	0_24000r/min
7	Running mode		Servo
8	Operating voltage		AC220V/50HZ
9	Command code		G code
10	Operating system		Nc studio
11	Net weight		1500KG

1. One year warranty under normal use and we supply lifelong maintenance.2. 24 hours technical support by Phone, Email, Skype, Msn, or romote.3. Free training to make sure you master the operation of the cnc router.4. Usually, we will manufacturer the machine as our regular design.5. X Y Z Working Area could be custmer-oriented designing.6. Special configuration could be customer-oriented designing.

Multi Spindle, CNC Engraving Machine,  Wood CNC Router.
 If you have specific requirement for wood CNC router,  please contact with us.
Customization is available.
