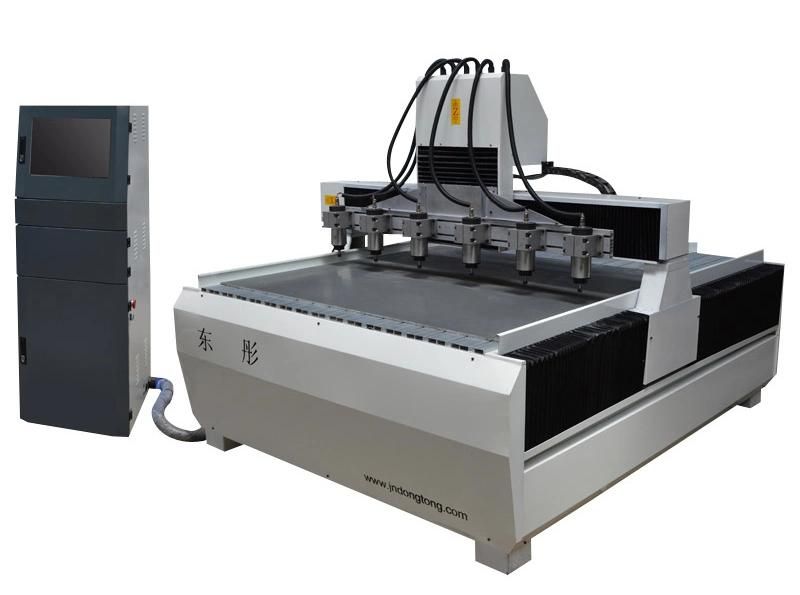

1615-1-6 Multi Spindle, Wood, Acrylic, Plastic, Aluminum, Copper, CNC Router Carving Machine
Jinan Guanjiahong CNC Machinery Co., Ltd.- Warranty:1 Year
- Type:Engraving Router
- Spindle Layout:Spindle Over
- Spindle Number:6
- Feed Mode:Mechanical
- Controlling Mode:CNC
Base Info
- Model NO.:DT1615-1-6
- Certification:CE, ISO
- Customized:Customized
- Condition:New
- Color:Customized
- After-sales Service:Lifetime
- Table Size:1600*1500
- Control System:Nc Studio
- Guild Rail:PMI ,Hiwin Square Rail
- Ball Screw:PMI, Taiwan
- Transport Package:Plywood Case
- Specification:DT1615-6
- Trademark:DONGTONG
- Origin:Shandong China
- HS Code:84609090
- Production Capacity:50 Sets Per Month
Description
Basic Info.
Model NO. DT1615-1-6 Certification CE, ISO Customized Customized Condition New Color Customized After-sales Service Lifetime Table Size 1600*1500 Control System Nc Studio Guild Rail PMI /Hiwin Square Rail Ball Screw PMI, Taiwan Transport Package Plywood Case Specification DT1615-6 Trademark DONGTONG Origin Shandong China HS Code 84609090 Production Capacity 50 Sets Per MonthProduct Description

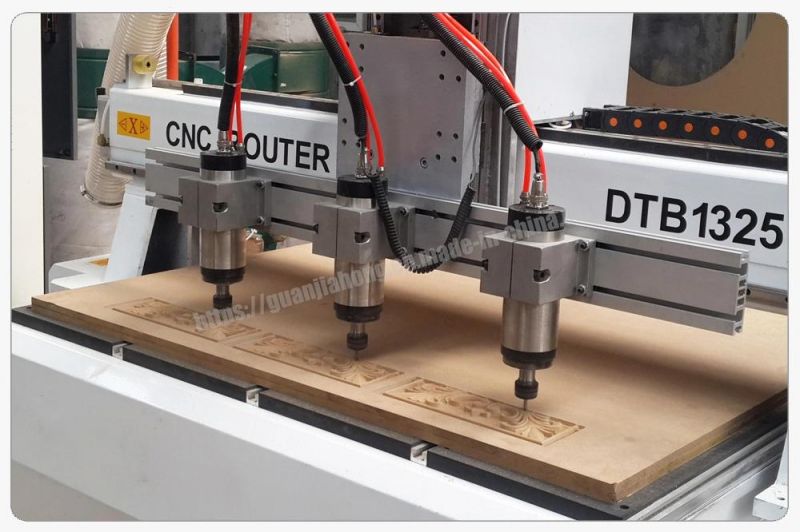

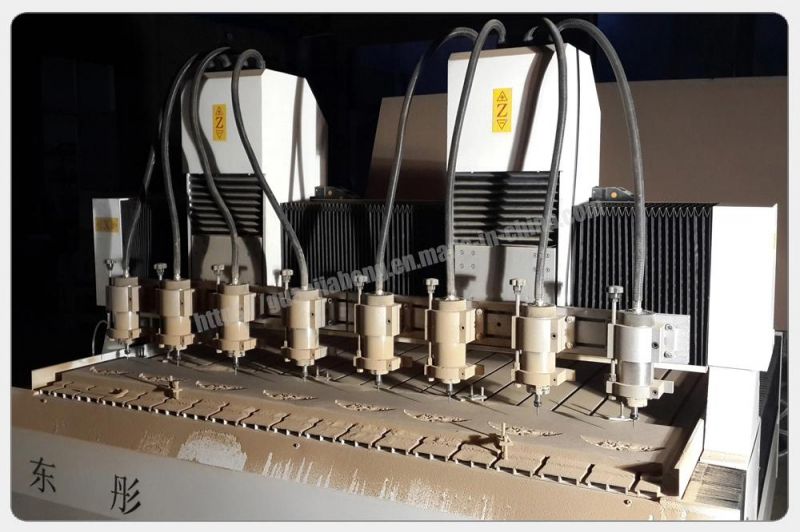

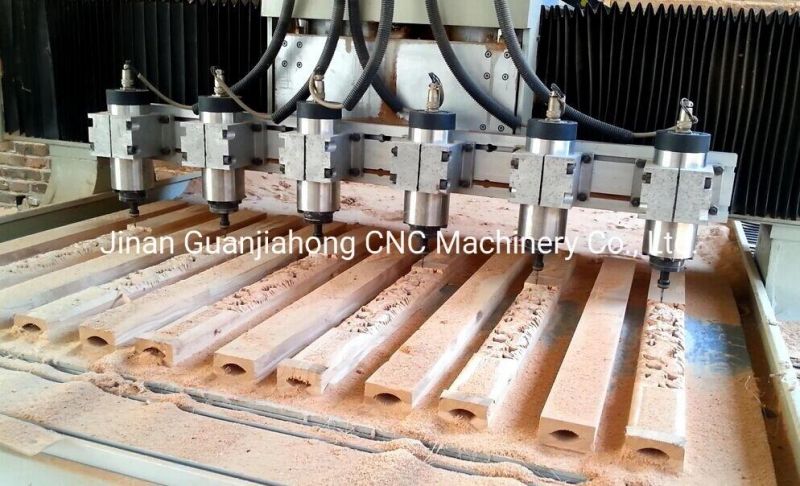

Multi Spindle CNC Wood Router, CNC Woodworking Engraving MachineFrom professional CNC Machine Manufacturer.
Machine Feature:
1. DT1615-6 engraving machine is our company specially developed and designed for
small workpiece but mass production, high precision, high speed and high cost performance.

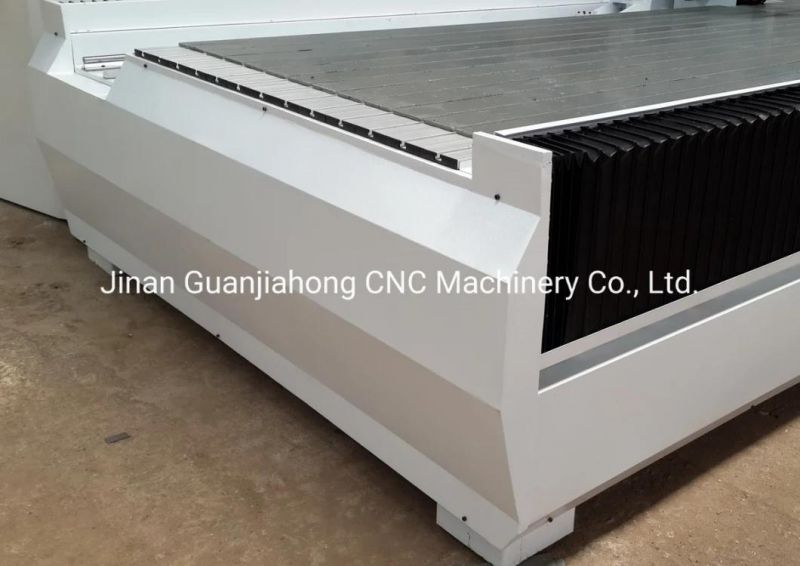

2. The lathe bed is welded by steel structure seamlessly, has good stiffness and non-deformation.
3. Gunuine NC studio control system has stable performance and high reliability .
4. Automatic oil lubrication system, it is more convenient for maintenance.
5. Continued carving when it has breakpoint, power recovery and processing time prediction
6. Imported ball screw rod and round rail, original screw nut, Imported linear and square rail
Application industry:
1. Stone industry: Natural marble, granite, artificial stone, tombstone, milestone, ceramic tile, glass and other materials of 3D relief and line carving,
cutting, edge, drilling and 2D carving.

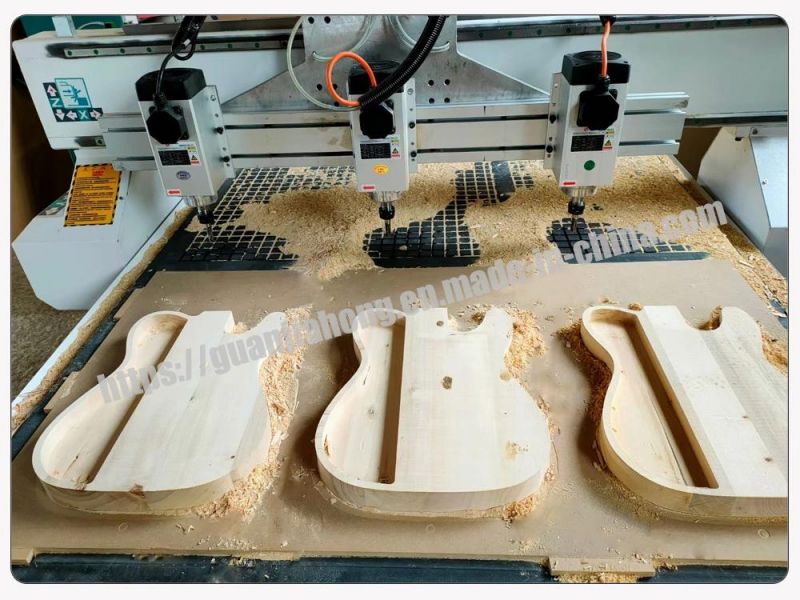

2. Woodworking industry: The furniture of door, window, cabinet, craft wood door, paint free door, folding screen, process window, wave board
processing, including the processing for wood art.
3 . Advertising industry: Suitable for processing various design and colorful mould, just like: Signs, architectural models, badges, badge, name plate,
exhibition board, indicator, craft decoration, furniture decoration, etc.
4. Handcraft industry: Can engrave in wood, bamboo, artificial marble, organic board, double color boards, crystal and other material.
5. Also can carve and achieve all kind of effects for reliefs, movie, hollow and plate engraving, cutting and valuable. such handiwork, graphic engraving,
cutting, the bottom of milling,etc.
Technical Parameter:
NO | Performance index | Performance index | Parameter | Optional |
1 | Working area | X | 1600mm | |
Y | 1500mm | |||
Z | 150mm | |||
2 | Table size | 1600mm*1500mm | ||
3 | Precision | Working precision | 0.05mm | |
Repositioning precision | 0.02mm | |||
4 | Drive mode | X axis | Ball Screws | |
Y axis | Ball Screws | |||
Z axis | Ball Screws | |||
5 | Speed | Max motion speed | 10000mm/min | |
Max engraving speed | 8000mm/min | |||
6 | Spindle | Spindle power | 2.2KW | 0.8KW_3KW |
Spindle speed | 0_24000r/min | |||
7 | Drive mode | Servo motor | Servo | |
8 | Operating voltage | AC220V/50HZ | ||
10 | Operating system | NC Studio | ||
11 | New weight | 1500KG |
Technical support:
1. Technical support by phone, email or MSN/ Skype around the clock
2. Friendly English version manual.
3. Engineer available to service machinery overseas. but the buyer should pay the fee.
After-sale & guarantee service:
1. Under normal usage, 1 year for the whole machine and 6 months for spindle
2. Normal machine is properly adjusted before dispatch.
3. You will be able to get free training advice towards our machine in our factory.
4. You will also get free suggestion and consulting, technical support and service by
email/fax/ tel and lifetime technical support
If you have specific requirement for CNC router engraving machine, customization is available.
