Wood, Acrylic, Plastic, Soft Metal, Plastic, Rubber, Advertising Engraving Machine CNC Router
Jinan Guanjiahong CNC Machinery Co., Ltd.- Warranty:1 Year
- Type:Engraving Router
- Spindle Layout:Spindle Over
- Spindle Number:Single-Spindle
- Feed Mode:Mechanical
- Controlling Mode:CNC
Base Info
- Model NO.:DT1010B
- Certification:CE
- Customized:Customized
- Condition:New
- Color:Customized

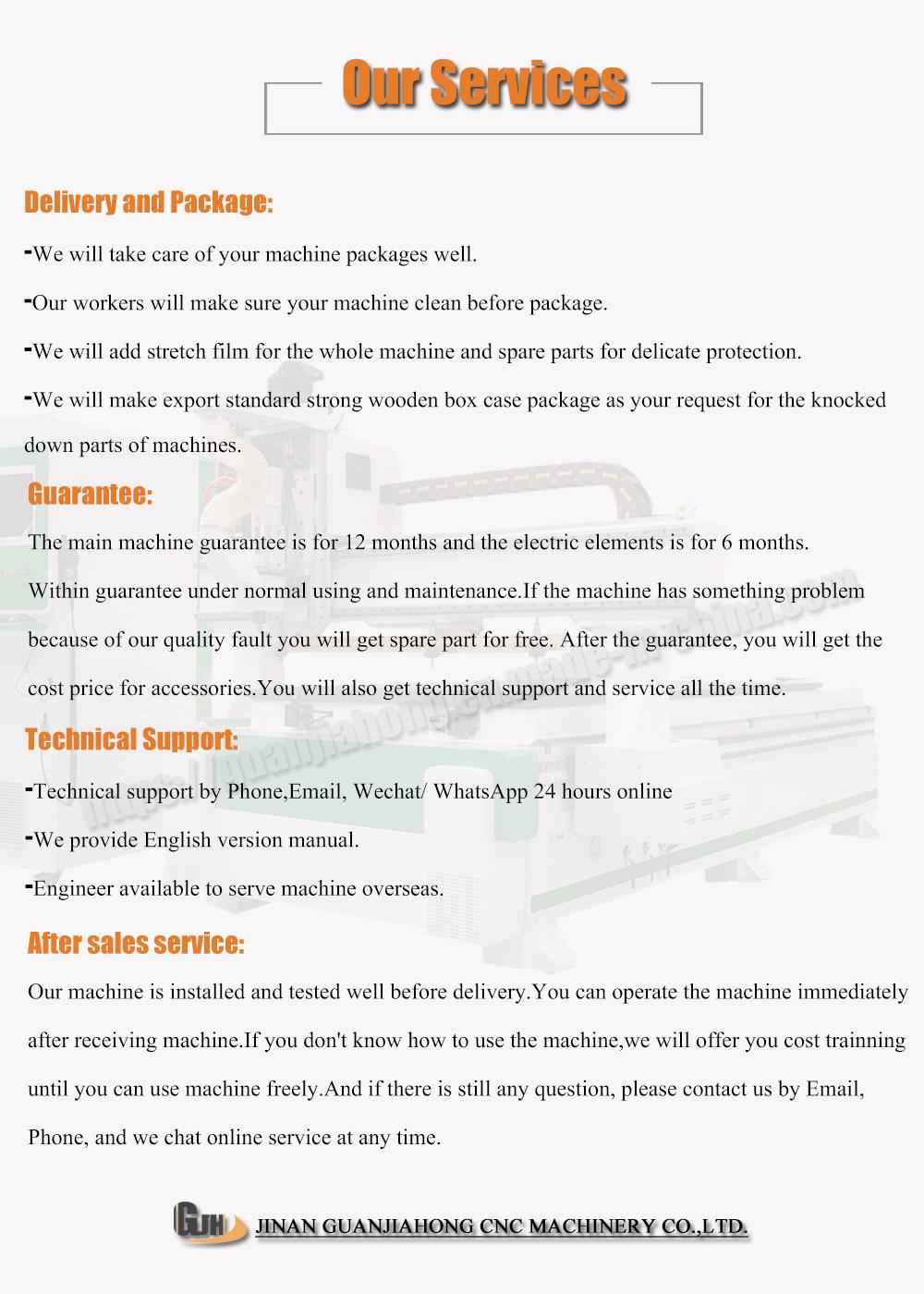

- After-sales Service:Lifetime
- Control System:Nc Studio
- Guild Rail:Hiwin Square Rail
- Ball Screw:PMI
- Drive Mode:Stepper
- Transport Package:Plywood Case
- Specification:CE
- Trademark:DONGTONG
- Origin:Shandong China
- HS Code:84609090
- Production Capacity:50 Sets Per Month
Description
Basic Info.
Model NO. DT1010B Certification CE Customized Customized Condition New Color Customized After-sales Service Lifetime Control System Nc Studio Guild Rail Hiwin Square Rail Ball Screw PMI Drive Mode Stepper Transport Package Plywood Case Specification CE Trademark DONGTONG Origin Shandong China HS Code 84609090 Production Capacity 50 Sets Per MonthProduct Description

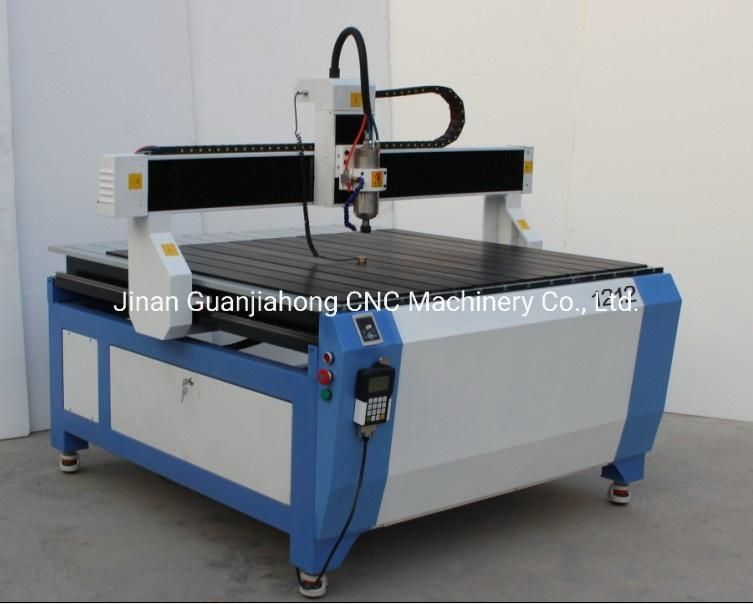

Advertisement engraving machine CNC router from professional engraving machine cnc router manufacturer in China1. Mode DT1010B machine is specially designed for advertisement. It has high precision, fast speed, cost-effective.
2. By the way of seamless welding and vibrating treatment, the lathe bed steel structure is firm, durable, strength steel and non-
deformation.

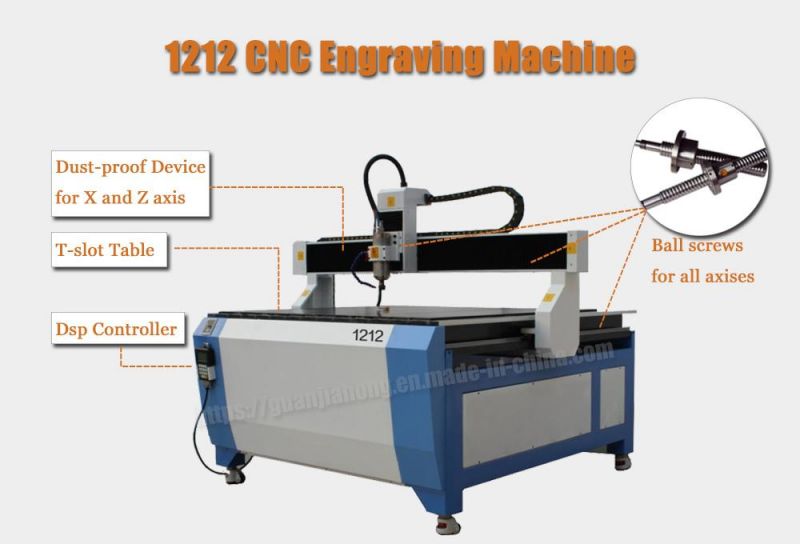

3. Computer cabinets and Weihong control system make the machine have good stability and high reliability.
4. Using automatic lubrication system, it's convenient for maintenance.
5. Owns more functions of power-off restoration, continuation on break point, working time anticipation etc.
6. Imported rolling ball screws, original net and imported liner and square rail.

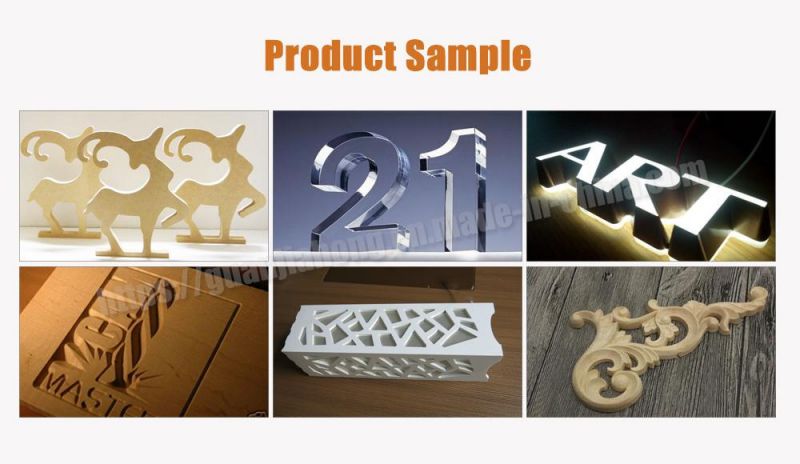

1. Woodworking industry: All kinds of door, windows, cabinet, craft door, paint-free door, screen,
wave board processing,
2. Advertisement industry: suitable for processing all kinds of design of rich and colorful model, Such
as labels. Architectural molds, engraving plate. exhibition boards, doorplate. Direction board,
decoration and so on.
3. Handcraft industry: apply to engraving patterns and characters on all kinds of materials , such as
wood,bamboo, marble , organic board, double color board.
4. Other industry: Relief carving, photograph craving, openwork engraving,
plane engraving, cutting and milling bottom etc.
NO | Performance index | Performance index | Parameter | (optional) |
1 | Working area | X axis | 1000mm | |
Y axis | 1000mm | |||
Z axis | 140mm | |||
2 | Table size | 1000mm*1000mm | ||
3 | Accuracy | processing precision | 0.02mm | |
Repositioning precision | 0.02mm | |||
4 | Drive mode | X axis | Ball Screws | |
Y axis | Ball Screws | |||
Z axis | Ball Screws | |||
5 | Speed | Max travel speed | 10000mm/min | |
Max processing speed | 8000mm/min | |||
6 | Spindle (water-cooling) | Spindle power | 1.5KW | 0.8KW_3KW |
Spindle speed | 0_18000r/min | |||
7 | Running mode | Stepper | servo | |
8 | Operating voltage | AC220V/50HZ | ||
9 | command code | G code | ||
10 | operating system | NC studio | ||
11 | Net weight | 800KG |
If you have specific requirement for advertisement CNC router machine , customization is available.
