• Model NO.：DT1313-1-5
• Certification：CE, ISO
• Customized：Customized
• Condition：New
• Color：Customized
• After-sales Service：Lifetime
• Table Size：1300*1300
• Drive Mode：Stepper (Optional Servo Motor)
• Guild Rail：Hiwin,PMI Square Rail
• Control System：Nc Studio
• Transport Package：Plywood Case
• Specification：CE
• Trademark：DONGTONG
• Origin：Shandong China
• HS Code：84609090
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. DT1313-1-5 Certification CE, ISO Customized Customized Condition New Color Customized After-sales Service Lifetime Table Size 1300*1300 Drive Mode Stepper (Optional Servo Motor) Guild Rail Hiwin/PMI Square Rail Control System Nc Studio Transport Package Plywood Case Specification CE Trademark DONGTONG Origin Shandong China HS Code 84609090 Production Capacity 50 Sets Per Month

Product Description

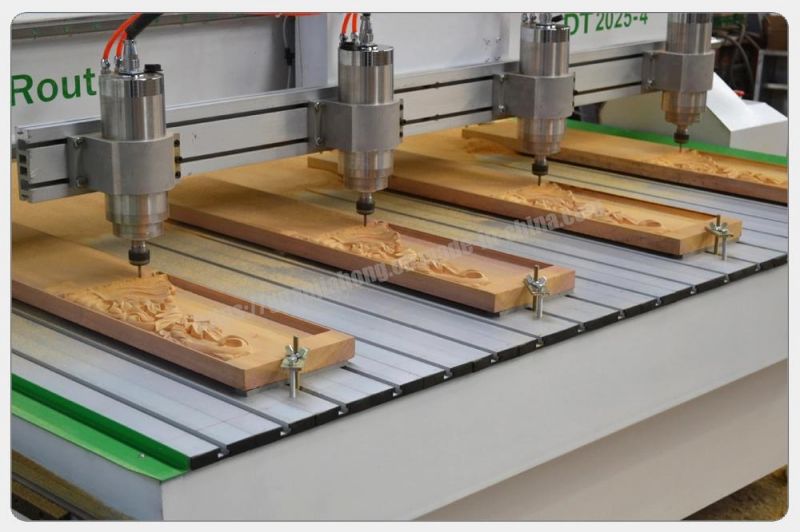

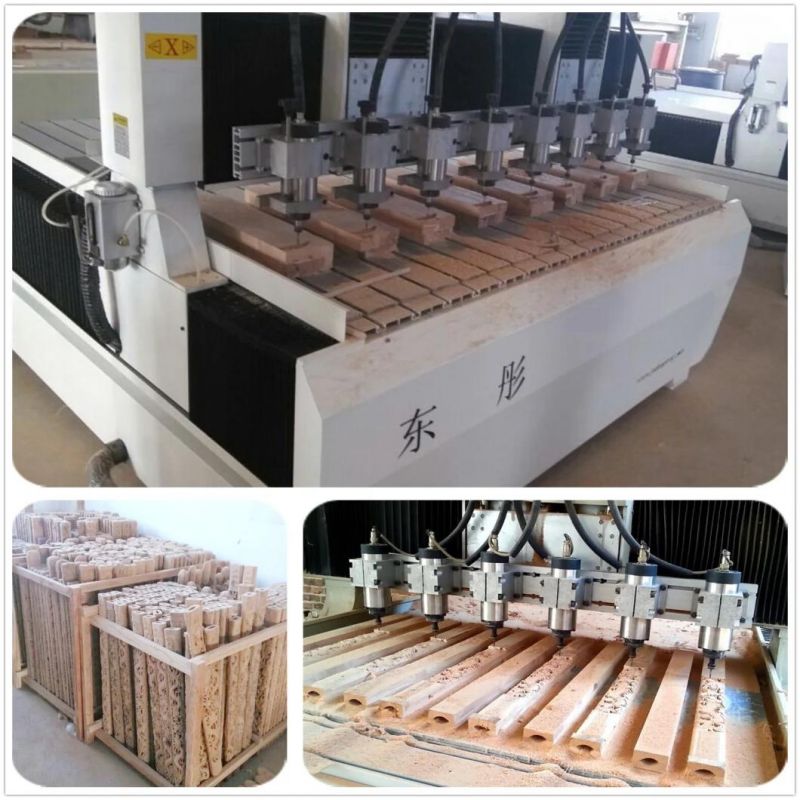

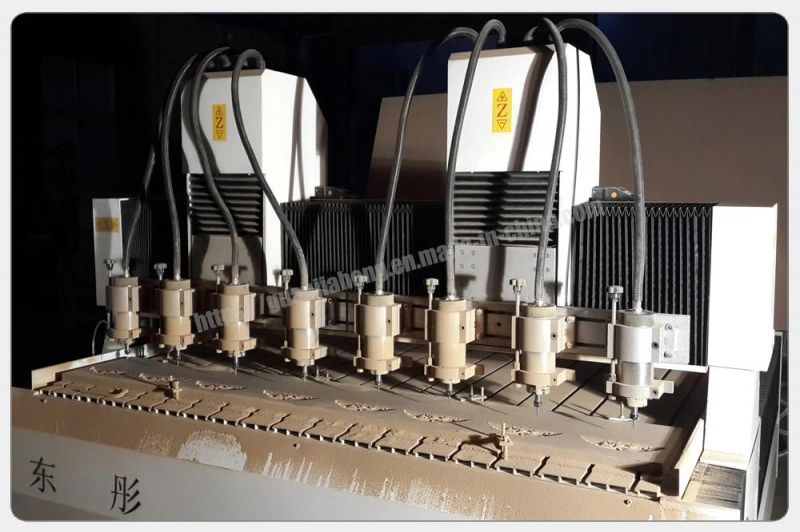

Multi spindle wood CNC carving machine  from professional CNC router manufacturer.


1. Multi spindle machine is designed specially for small workpiece.
2. More workpieces can be processed at the same time.
3. Advanced control system: Taiwan SYNTEC or NC STUDIO
4. Compatible with software such as: TYPE3/ARTCAM/UG/PRO-E/UCANCAM/AUTOCAD/MASTERCAM
5. Excellent components: HIWIN guild rail and ball screws, high power motor and driver, low noise spindle
6. Welding steel structure and 10mm gantry, make machine run steadily


1. Woodworking : mainly apply to engraving of  redwood and classical furniture woodcarving,wooden   box,jewelry box and processing of decoration
2. Advertising industry : apply to all kinds of  molds. Such as labels. architectural molds, badge, engraving plate . exhibition boards, doorplate. direction
    board,decoration and so on.
3. Handcraft industry : apply to engraving patterns and characters on all kinds of materials , such as wood,bamboo, marble , organic board, double
   color board.
4. Other industry: also used in portraits , landscapes, calligraphy lettering, seal carving and other plane surface caving , basso-relievo










NO	Performance index	Performance index	Parameter	Optional
1	Working area	X axis	1300mm
		Y axis	1300mm
		Z axis	200mm
2	Table size		1300mm*1300mm	2200mm*3000mm
3	Accuracy	Working precision	0.05mm
		Repositioning precision	0.02mm
4	Drive mode	X axis	Ball Screws
		Y axis	Ball Screws
		Z axis	Ball Screws
5	Speed	Max motion speed	20000mm/min
		Max engraving speed	8000mm/min
6	Spindle (water-cooling)	Spindle power	2.2	1.5KW_5.5KW
		Spindle speed	0_24000r/min
7	Running mode		Stepper	servo
8	Working voltage		AC220V/50HZ
9	Command code		G code
10	Operation system		NC STUDIO
11	Net weight		1120KG

1. One year warranty under normal use and we supply lifelong maintenance.2. 24 hours technical support by Phone, Email, Skype, Msn, or romote.3. Free training to make sure you master the operation of the cnc router.4. Usually, we will manufacturer the machine as our regular design.5. X Y Z Working Area could be custmer-oriented designing.6. Special configuration could be customer-oriented designing.


Multi Spindle Wood CNC Carving Machine, Engraving Machine, CNC Wood Router
If you have special requirement  about CNC wood carving machine, please contact with us.
Customization is available.
