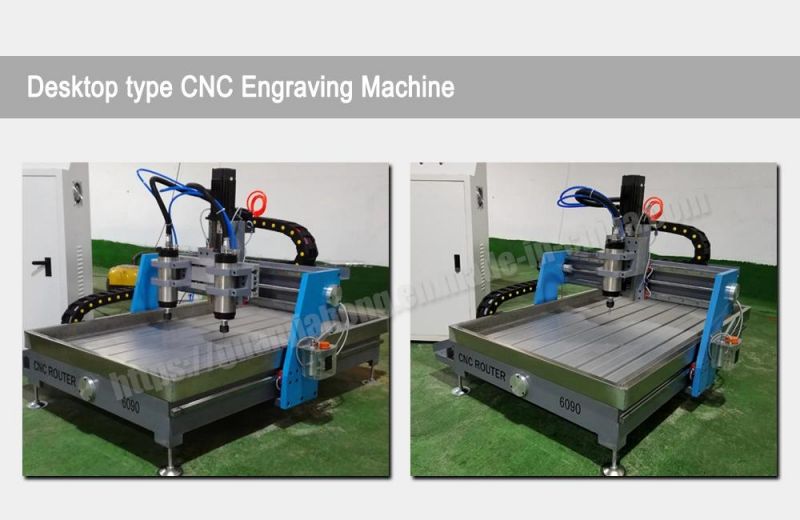

6090 Wood, Acrylic, Aluminum, Stone, Sign Making Machine CNC Router, CNC Engraving Machine

Jinan Guanjiahong CNC Machinery Co., Ltd.
  • Warranty：1 Year
  • Type：Engraving Router
  • Spindle Layout：Spindle Over
  • Spindle Number：Single-Spindle
  • Feed Mode：Mechanical
  • Controlling Mode：CNC

Base Info

  • Model NO.：DT6090
  • Certification：CE, ISO
  • Customized：Customized
  • Condition：New
  • Color：Customized
  • After-sales Service：Lifetime
  • Drive Mode：Stepper
  • Guild Rail：Hiwin Square Rail
  • Ball Screw：PMI
  • Control System：Nc Studio
  • Transport Package：Standard Exported Plywood Case
  • Specification：CE
  • Trademark：DONGTONG
  • Origin：Shandong China
  • HS Code：84609090
  • Production Capacity：300 Sets Per Month

Description

NO Performance Performance Parameter1 Working area X axis600mm   Y axis900mm   Z axis100mm2 Table size 750mm*1300mm3 Accuracy Working accuracy0.02mm   Repostioning accuracy0.02mm4 Drive mode X axisBall screw    Y axisBall screw    Z axisBall screw 5 Speed Max travel speed8000mm/min   Max working speed6000mm/min6Spindle(air-cooling) Spindle power1.5KW   Spindle speed0-24000r/min7 Running mode Stepper 8 Working voltage AC220V/50HZ9 Command code G code10 Operating system Nc studio 11 Invertor  1.5KW12 Guild rail Square rail13 Gantry  Cast aluminum14 Table  Aluminum alloy  T slot15 Total machine power 2300W16 Machine size 1400×1100×1650mm12 Machine weight 300 KGS

6090 Wood, Acrylic, Aluminum, Stone, Sign Making Machine CNC Router, CNC Engraving Machine6090 Wood, Acrylic, Aluminum, Stone, Sign Making Machine CNC Router, CNC Engraving Machine


6090 Wood, Acrylic, Aluminum, Stone, Sign Making Machine CNC Router, CNC Engraving Machine

6090 Wood, Acrylic, Aluminum, Stone, Sign Making Machine CNC Router, CNC Engraving Machine

6090 Wood, Acrylic, Aluminum, Stone, Sign Making Machine CNC Router, CNC Engraving Machine

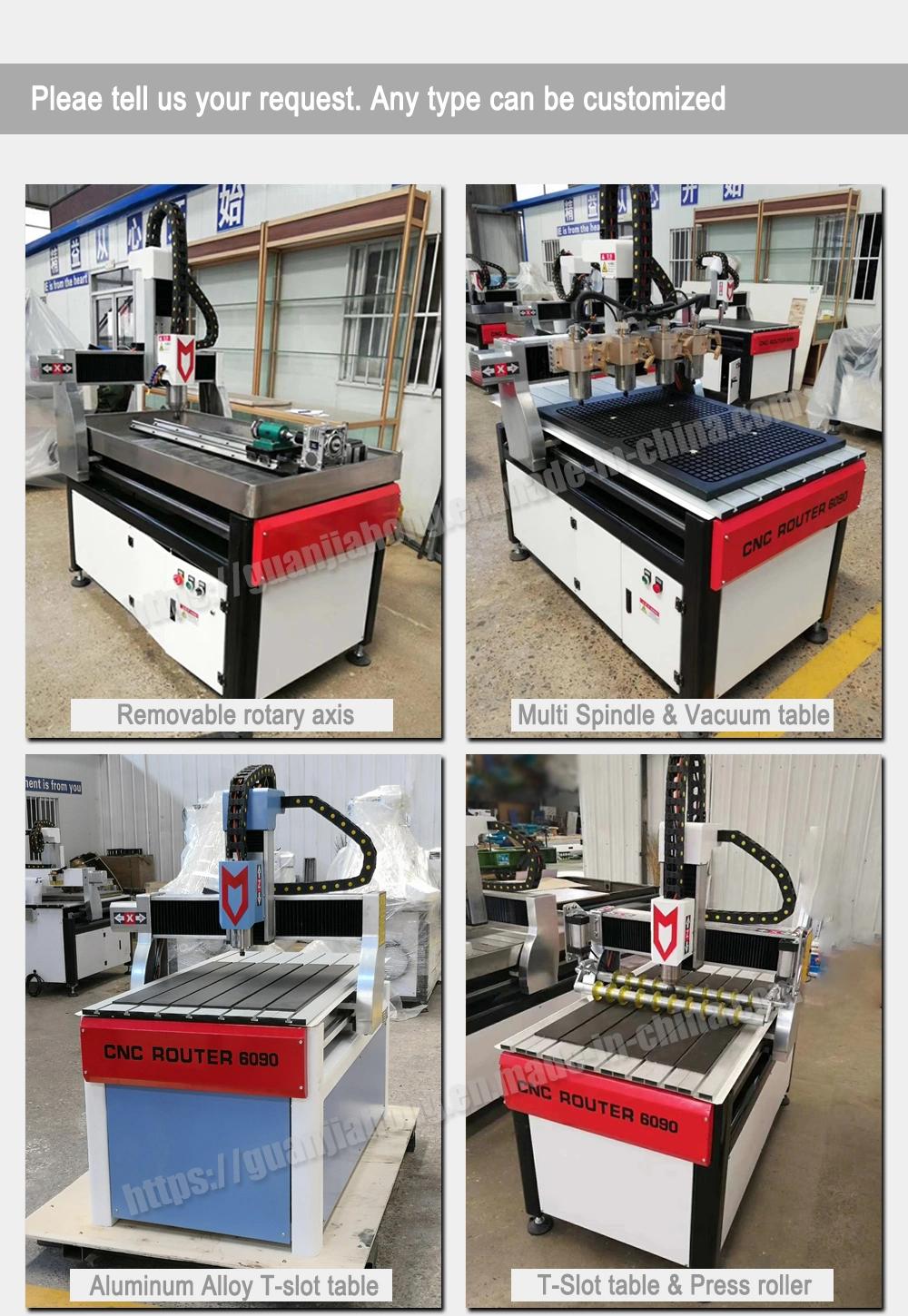

If you have specific requirement of 6090 CNC router, please contact with us. Customization is available.
