1325 4 Spindles Auto Tool Change Atc CNC Router Engraving Machine for Wood Door
Jinan Guanjiahong CNC Machinery Co., Ltd.- Condition：New
- Certification：ISO, CE, SGS
- CNC or Not：CNC
- Table Type：Vacuum Table
- Control System：Nc Studio or Richauto
- Drive Mode：Stepper
Base Info
- Model NO.：1325-4
- Guild Rail：Hiwin Square Rail
- Type：Engraving Router
- Controlling Mode：CNC
- Feed Mode：Mechanical
- Spindle Layout：Spindle Over
- Color：Customized
- Customized：Customized
- Spindle Number：3
- Transport Package：Plywood Case
- Specification：CE
- Trademark：DONGTONG
- Origin：Shandong China
- HS Code：84609090
- Production Capacity：100 PCS,Month
Description
Basic Info.
Model NO. 1325-4 Guild Rail Hiwin Square Rail Type Engraving Router Controlling Mode CNC Feed Mode Mechanical Spindle Layout Spindle Over Color Customized Customized Customized Spindle Number 3 Transport Package Plywood Case Specification CE Trademark DONGTONG Origin Shandong China HS Code 84609090 Production Capacity 100 PCS/MonthProduct Description

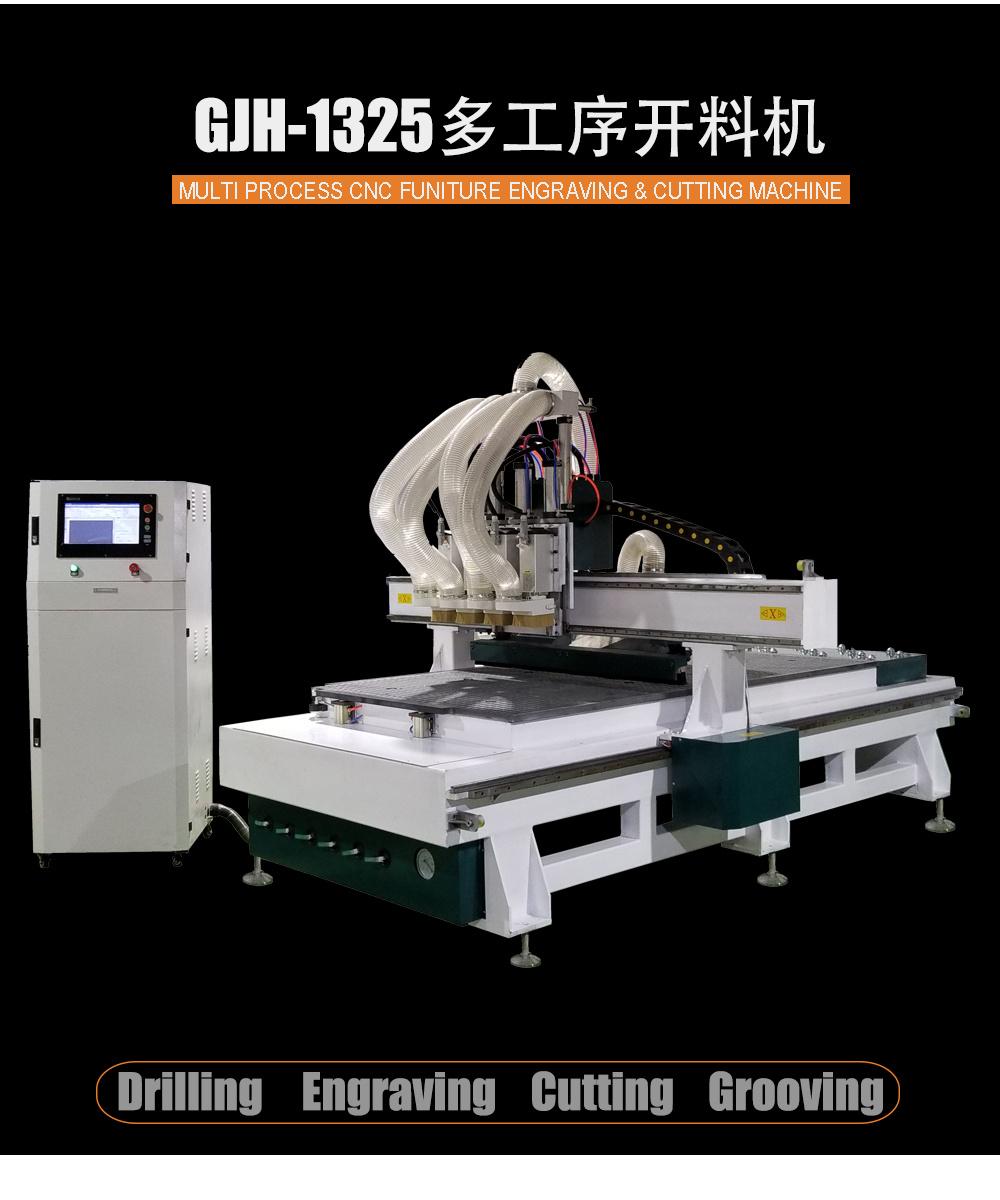

1325-4 4 spindle Atc CNC Router, Auto Tool Change engraving Machine for wood door from professional cnc router manufacturer
1. Multi spindle CNC Router is specially designed for multi-process engraving.2. Spindle works in turn, change tools easily.3. Advanced control system: Taiwan SYNTEC or NC STUDIO
4. Compatible with software such as:
5. TYPE3/ARTCAM/UG/PRO-E/UCANCAM/AUTOCAD/MASTERCAM
6. Functions of power-off recovery, continuation on break point, time anticipation.

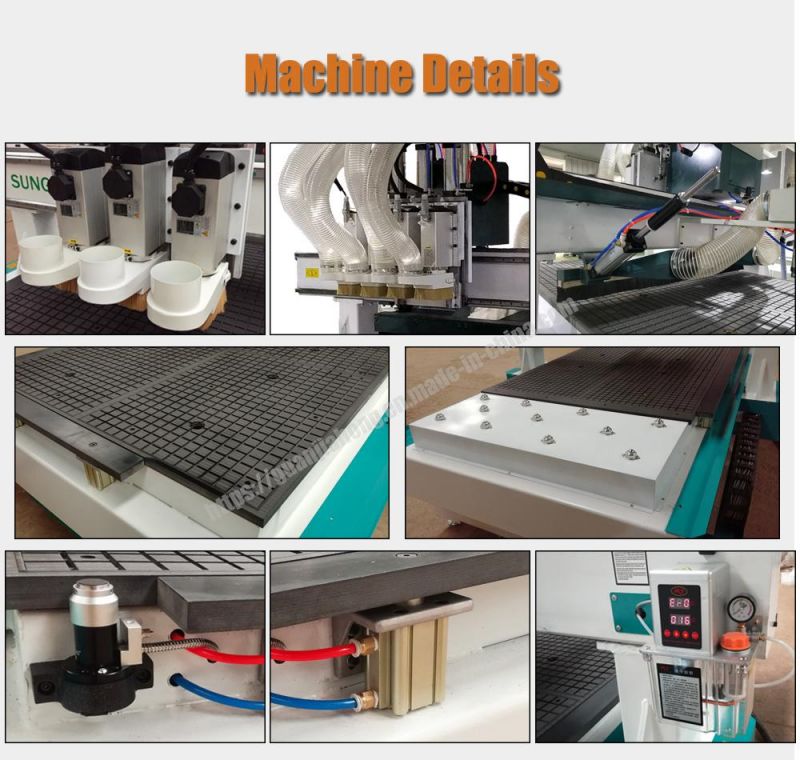

7.Excellent components: HIWIN guild rail and ball screws, low noise spindle
8. Welding steel structure and 10mm gantry
9. Powerful vacuum table divided to 6 zones, can adsorb different size materials
Woodworking industry: Processing all kinds of door, window, cabinet, craft wood door, paint-free door, screen, wave boards
| NO | Performance index | Performance index | Parameter |
| 1 | Working area | X axis | 1300mm |
| Y axis | 2500mm | ||
| Z axis | 200mm | ||
| 2 | Table size | 1300mm*2500mm | |
| 3 | Accuracy | Engraving accuracy | 0.05mm |
| Repositioning accuracy | 0.05mm | ||
| 4 | Drive mode | X axis | Helical rack and pinion |
| Y axis | Helical rack and pinion | ||
| Z axis | Ball screws | ||
| 5 | Speed | Max travel speed | 30000mm/min |
| Max engraving speed | 15000mm/min | ||
| 6 | Spindle | Spindle power | 5.5KW *4 |
| Spindle speed | 0_24000r/min | ||
| 7 | Drive motor | Servo motor | |
| 8 | Working voltage | AC220V/50HZ | |
| 9 | Command code | G code | |
| 10 | Operating system | NC STUDIO | |
| Gantry | 10MM square pipe | ||
| Guide rail | PMI/HIWIN 20 | ||
| Dust proof | X Y Z | ||
| Auto lubrication | Yes | ||
| 11 | Table type | Vacuum table |
Technical support:
1. Technical support by phone, email or MSN/ Skype around the clock
2. Friendly English version manual.
3. Engineer available to service machinery overseas. but the buyer should pay the fee.
After-sale & guarantee service:
1. Under normal usage, 1 year for the whole machine and 6 months for spindle
2. Normal machine is properly adjusted before dispatch.
3. You will be able to get free training advice towards our machine in our factory.
4. Free suggestion and consulting, lifetime technical support and service
1325 wood door automatic tool change cnc router, customizaiton is available.
