1325 Wood Working Atc CNC Router for Wood Furniture and Doors
Jinan Guanjiahong CNC Machinery Co., Ltd.- Type：Engraving Router
- Spindle Layout：Spindle Over
- Spindle Number：3
- Feed Mode：Mechanical
- Controlling Mode：CNC
- Certification：CE, ISO
Base Info
- Model NO.：1325
- Customized：Customized
- Condition：New
- Color：Customized
- Table Type：Vacuum Table
- Control System：Nc Studio or Richauto
- Drive Mode：Servo
- Guild Rail：Hiwin Square Rail
- Transport Package：Plywood Case
- Specification：CE
- Trademark：DONGTONG
- Origin：Shandong China
- HS Code：84609090
- Production Capacity：50 PCS,Month
Description
Basic Info.
Model NO. 1325 Customized Customized Condition New Color Customized Table Type Vacuum Table Control System Nc Studio or Richauto Drive Mode Servo Guild Rail Hiwin Square Rail Transport Package Plywood Case Specification CE Trademark DONGTONG Origin Shandong China HS Code 84609090 Production Capacity 50 PCS/MonthProduct Description
Three workstage ATC wood CNC router from professional cnc router machine manufacturer in China
1. Materials: wood, acrylic, MDF, soft metal, PVC,stone.....2. Industry: woodworking industry, advertisement industry, artwork industry, exhibition industry, decoration industry.
1. Advanced control system: Taiwan SYNTEC or NC STUDIO
2. Compatible with software such as:TYPE3/ARTCAM/UG/PRO- E/UCANCAM/AUTOCAD/MASTERCAM
3. Functions of power-off recovery, continuation on break point, time anticipation.4. Excellent components: HIWIN guild rail and ball screws, low noise spindle
5. Welding steel structure and 10mm gantry6. Powerful vacuum table divided to 6 zones, can adsorb different size materials.7. 3 spindles work in turn as request, save change tool time.
8. Two motors for Y axis, running steadily

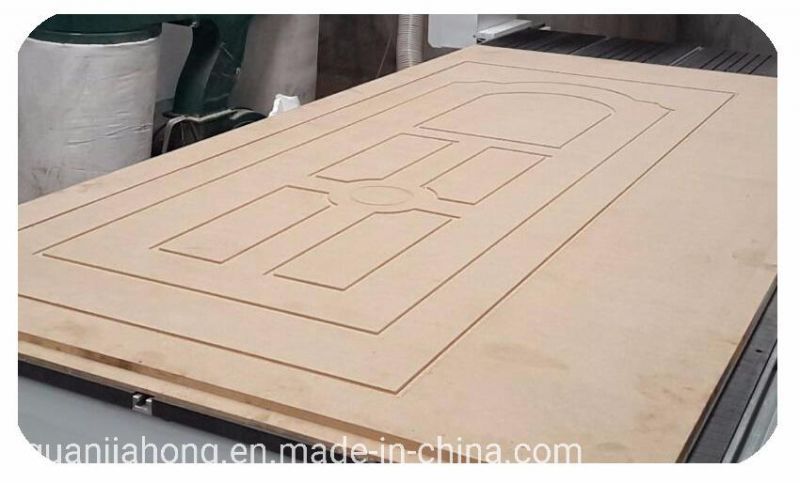

Product Samples
| NO | Performance index | Performance index | Parameter |
| 1 | Working area | X axis | 1300mm |
| Y axis | 2500mm | ||
| Z axis | 200mm | ||
| 2 | Accuracy | Engraving accuracy | 0.05mm |
| Repositioning accuracy | 0.05mm | ||
| 3 | Drive mode | X axis | Helical rack and pinion |
| Y axis | Helical rack and pinion | ||
| Z axis | Ball screws | ||
| 4 | Speed | Max travel speed | 30000mm/min |
| Max engraving speed | 15000mm/min | ||
| 5 | Spindle | Spindle power | 5.5KW *3 |
| Spindle speed | 0_24000r/min | ||
| 6 | Motor | Stepper motor | |
| 7 | Working voltage | AC220V/50HZ as request | |
| 8 | Command code | G code | |
| 9 | Operating system | NC STUDIO | |
| 10 | Gantry | 10MM square pipe | |
| 11 | Guide rail | PMI/HIWIN 20 | |
| 12 | Dust proof | X Y Z | |
| 13 | Auto lubrication | Yes | |
| 11 | Table type | Vacuum table |
Technical support:
1. Technical support by phone, email or MSN/ Skype around the clock
2. Friendly English version manual.
3. Engineer available to service machinery overseas. but the buyer should pay the fee.
After-sale & guarantee service:
1. Under normal usage, 1 year for the whole machine and 6 months for spindle
2. Normal machine is properly adjusted before dispatch.
3. Free training advice towards our machine in our factory.
4. Free suggestion and consulting, lifetime technical support and service
If you have specific requirement about cnc router for wood furniture and doors, customization is available.
