• Model NO.：1325C
• Certification：CE
• Customized：Customized
• Condition：New
• Color：Customized
• Guild Rail：Hiwin Square Rail
• Ball Screw：PMI, Taiwan
• Control System：Syntec
• Drive Mode：Servo Motor
• Transport Package：Standard Exported Packing
• Specification：CE
• Trademark：DONGTONG
• Origin：Shandong China
• HS Code：84609090
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. 1325C Certification CE Customized Customized Condition New Color Customized Guild Rail Hiwin Square Rail Ball Screw PMI, Taiwan Control System Syntec Drive Mode Servo Motor Transport Package Standard Exported Packing Specification CE Trademark DONGTONG Origin Shandong China HS Code 84609090 Production Capacity 50 Sets Per Month

Product Description

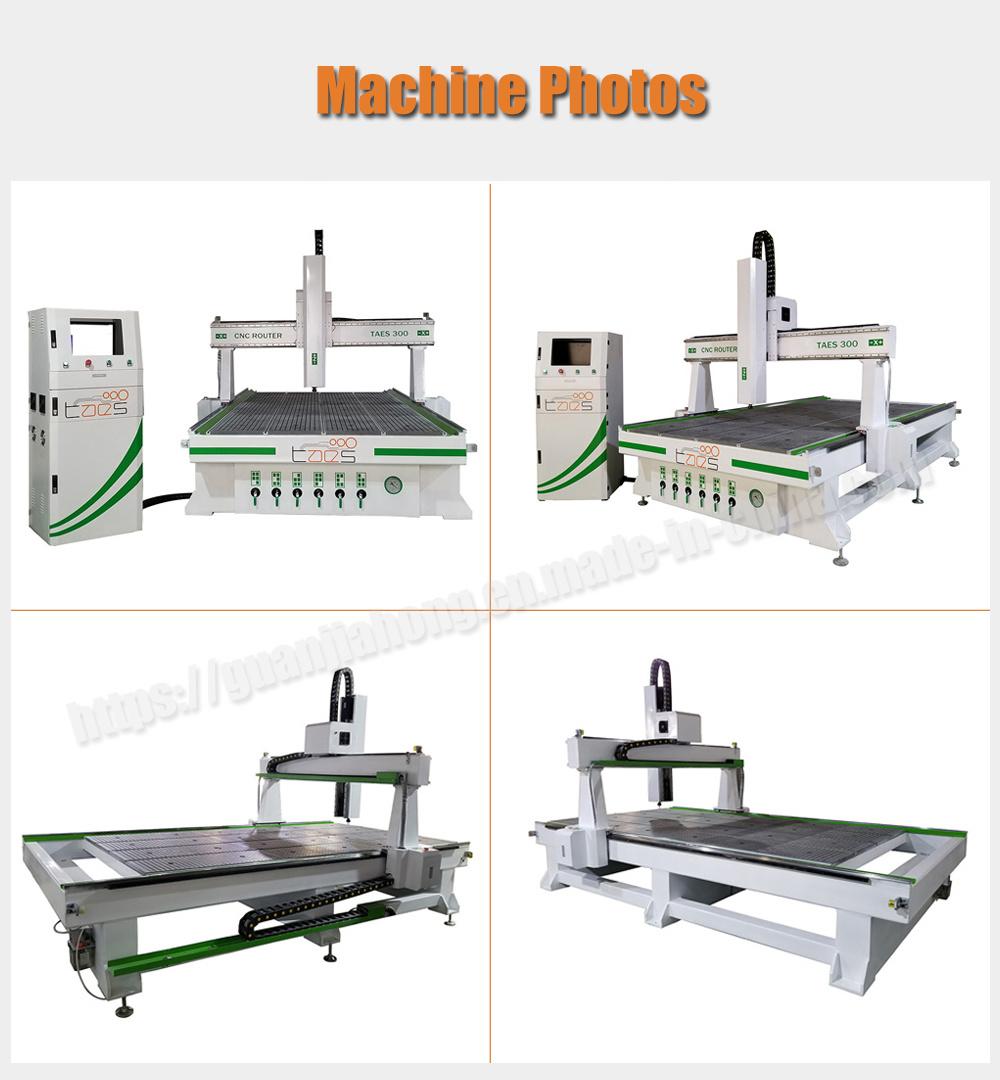

Heighten CNC router for foam and wood from professional cnc router manufacturer.

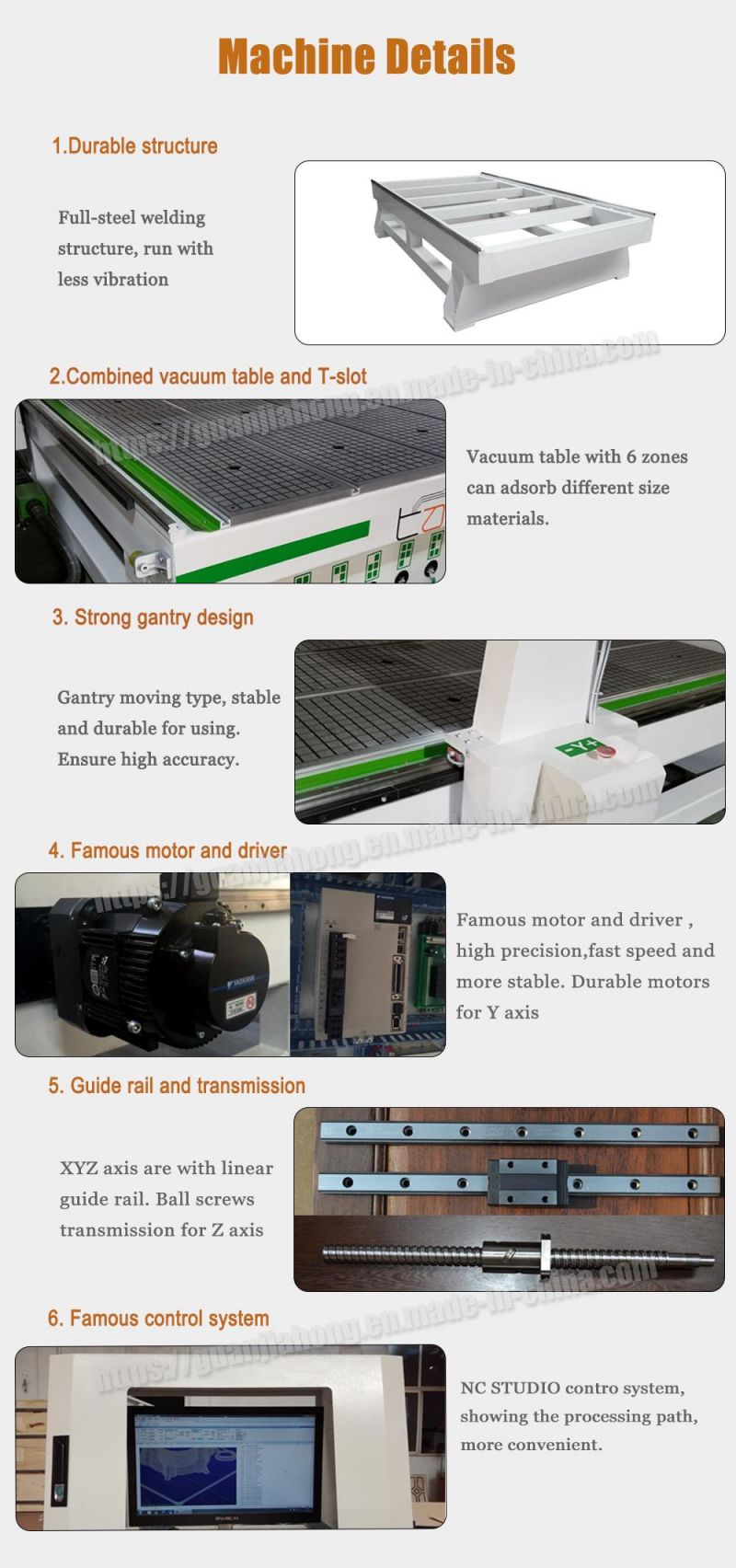

1. Genuine control system, high precision, work quickly
2. Imported widened linear guild rail, self-lubricating block.
3. Large working area, working area of Z axis can raise to 1.15m, apply for large 3D curved surface processing.
4. Separately control engraving speed, travel speed, tool setting speed

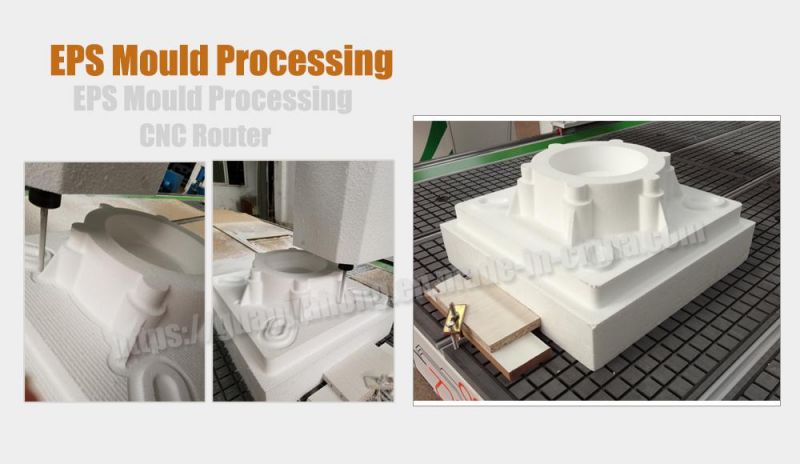

Mould industry: Large non-metal mould, such as auto, boat, train, foam mould, wood mould, food mould. Lost foam mould casting.

Mode	DT-1325C
Working area(mm)	1300*2500mm*600mm
Spindle power	2.2/3/4.5kw
Feeding height	500-600mm
Max working speed(m/min)	45 m/ min
Spindle speed(rpm)	0-18000rpm
Re-positioning accuracy(mm)	±0.05mm
Working accuracy(mm)	±0.05mm
Control system	Nc studio or SYNTEC

If you have specific requirement about CNC router for foam, customization is available.







If you have specific requirement for foam, wood cnc router machine, customization is available.
