1325-3 Wood Door CNC Router. Three-Process Woodworking CNC Engraving Machine for MDF, Wood
Jinan Guanjiahong CNC Machinery Co., Ltd.- Type：Engraving Router
- Spindle Layout：Spindle Over
- Spindle Number：3
- Feed Mode：Mechanical
- Controlling Mode：CNC
- Certification：ISO
Base Info
- Model NO.：B1325-3
- Customized：Customized
- Condition：New
- Color：Customized
- Drive Mode：Stepper
- Control System：Nc Studio or Richauto
- Table Type：Vacuum Table
- Guild Rail：Hiwin Square Rail
- Transport Package：Plywood Case
- Specification：CE
- Trademark：DONGTONG
- Origin：Shandong China
- HS Code：84609090
- Production Capacity：100 PCS,Month
Description
Basic Info.
Model NO. B1325-3 Customized Customized Condition New Color Customized Drive Mode Stepper Control System Nc Studio or Richauto Table Type Vacuum Table Guild Rail Hiwin Square Rail Transport Package Plywood Case Specification CE Trademark DONGTONG Origin Shandong China HS Code 84609090 Production Capacity 100 PCS/MonthProduct Description
Vacuum tabble, three spindle, servo driver, Nc studio system, professional wood
door CNC router machine from professional cnc router manufacturer in China.
1. Advanced control system: Taiwan SYNTEC or NC STUDIO
2. Compatible with software such as:TYPE3/ARTCAM/UG/PRO- E/UCANCAM/AUTOCAD/MASTERCAM
3. Functions of power-off recovery, continuation on break point, time anticipation.
4. Excellent components: HIWIN guild rail and ball screws, low noise spindle
5. Welding steel structure and 10mm gantry
6. Powerful vacuum table divided to 6 zones, can adsorb different size materials.
7. 3 spindles work in turn as request, save change tool time.
8. Two motors for Y axis, running steadily

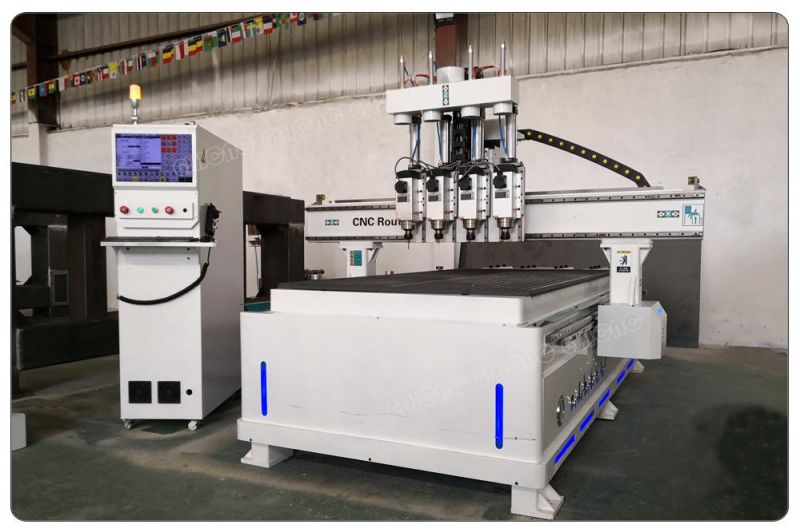

New Type:
3-Process CNC Router
4-Process CNC Router
2-Process CNC Router
| NO | Parameter | ||
| 1 | Working area | X axis | 1300mm |
| Y axis | 2500mm | ||
| Z axis | 200mm | ||
| 2 | Table size | 1300mm*2500mm | |
| 3 | Accuracy | Engraving accuracy | 0.05mm |
| Repositioning accuracy | 0.05mm | ||
| 4 | Drive mode | X axis | Rack gear |
| Y axis | Rack gear, double motor | ||
| Z axis | Ball Screws | ||
| 5 | Speed | Max travel speed | 30000mm/min |
| Max engraving speed | 15000mm/min | ||
| 6 | Spindle ( air-cooling) | Spindle power | 4.5KW*3 |
| Spindle speed | 0_24000r/min | ||
| 7 | Drive motor | Servo motor | Servo motor |
| 8 | Working voltage | AC220V/50HZ | |
| 9 | Command code | G code | |
| 10 | Operating system | 53CNC Studio | |
| 11 | Table type | Vacuum table |
1325-3 Wood Door CNC Router.
Three-Process Woodworking CNC Engraving Machine for MDF,Wood

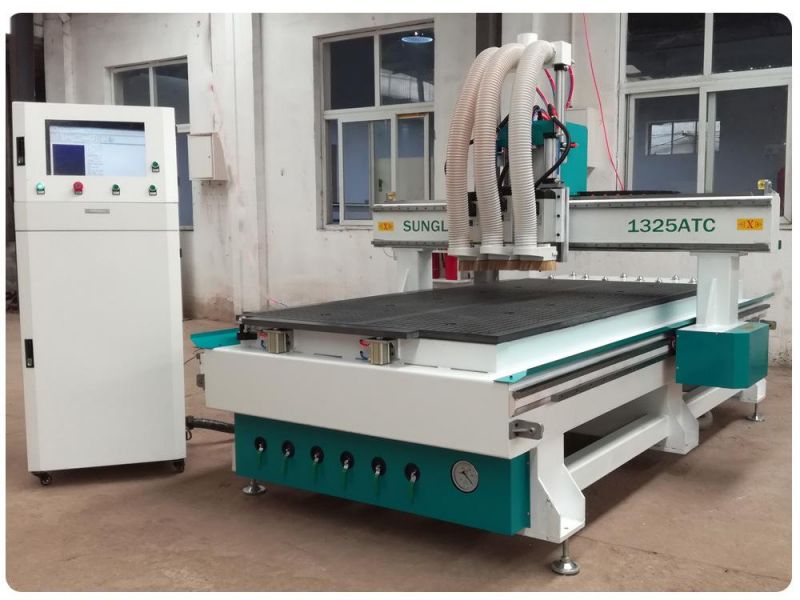

If you have specific requirement for wood door ATC cnc router, customization is available.
