• Model NO.：DT1325-4-R
• Customized：Customized
• Condition：New
• Color：Customized
• Guide Rail：PMI (Imported)
• Screw：PMI (Imported)
• Running Mode：Stepper (Optional Yaskawa Servo)
• Driver：Yako 2811mA (Optional Leadshine 860)
• Motor：Thank 450c (Optional Cw-450b)
• Inverter：Fuling
• Control Systerm：Richauto DSP
• Table：T-Slots
• Oil Lubrication System：Yes
• Rotary Diameter：350mm & 160 Four Jaw Chuck X4PCS
• Transport Package：Plywood Case
• Specification：DT1325-4-R
• Trademark：GUANJIAHONG
• Origin：Shandong China
• HS Code：84609090
• Production Capacity：100 Sets Per Month

Basic Info.

Model NO. DT1325-4-R Customized Customized Condition New Color Customized Guide Rail PMI (Imported) Screw PMI (Imported) Running Mode Stepper (Optional Yaskawa Servo) Driver Yako 2811mA (Optional Leadshine 860) Motor Thank 450c (Optional Cw-450b) Inverter Fuling Control Systerm Richauto DSP Table T-Slots Oil Lubrication System Yes Rotary Diameter 350mm & 160 Four Jaw Chuck X4PCS Transport Package Plywood Case Specification DT1325-4-R Trademark GUANJIAHONG Origin Shandong China HS Code 84609090 Production Capacity 100 Sets Per Month

Product Description

2d&3d, richauto dsp, 4axis, pmi rail guild & screw, 1300x2500, multi- spindles with rotary axis, woodworking cnc router from professional cnc woodworking engraving machine maufacturor.


If  you have specific requirement  for cnc woodworking engraving machine, customized is available.

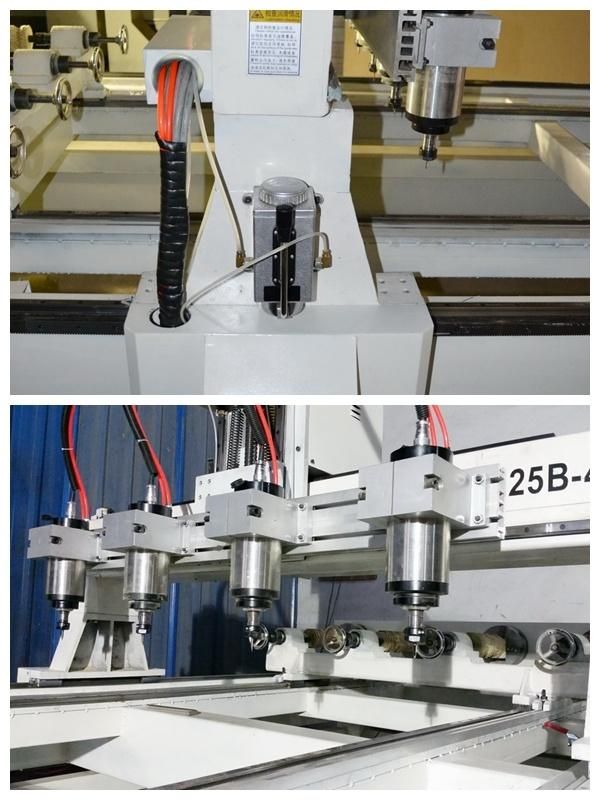

 Real images for our multi function cnc router, that is our reliable quality products.

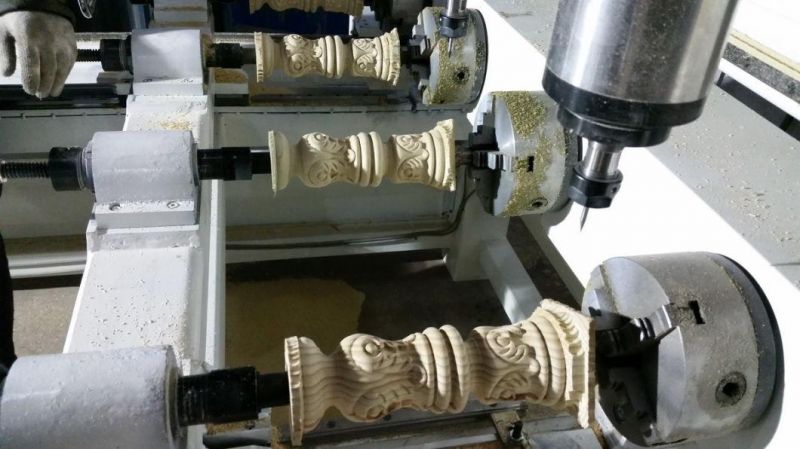

3d engraving on the back of the machine:For example:The table legs.

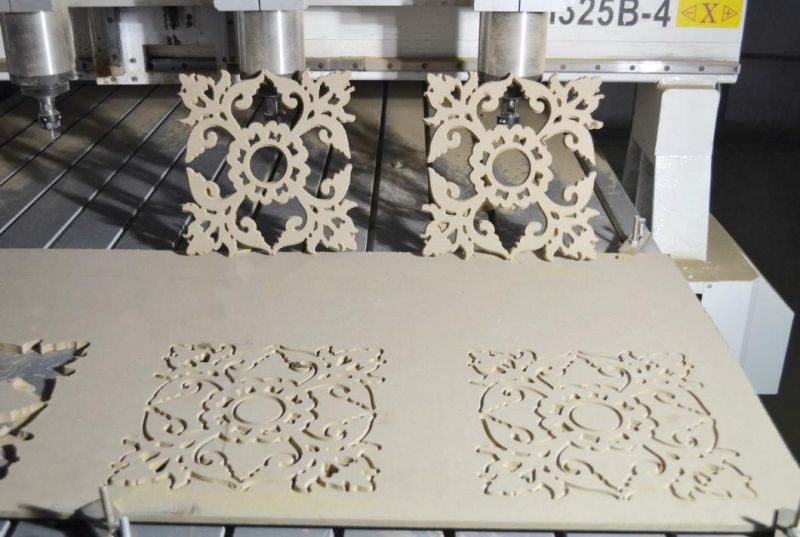

2d engraving, intaglio, basso-relievo, cutting, hollow out, line engraving in front of the machine:


1.Parameter:
Modle:Dt1325-4-r
Machine size:3400x2200x1800mm
Packing size:3600x2000x2000mm
Working area:1300mm×2500mm
Total power:14kw
N.W.:1600kg


2.Configuration:

Transmission	Xy:Rack;Z:Screw
Screw no.	Pmi2510(imported)
Driving mode	Stepper
Driver	Yako2811ma
Motor	Thank  450c
Motor power	400w
Working voltage	380v
Gantry	10mm welded stucture
Guild rail	Pmi 20
Operation system	Richauto dsp 4axis card
Spindle	3kw, water cooling, 4sets
Lubrication	Auto
Dust proof	No
Dust collector	No (optional)
Rotary axis	4pcs
Rotary diameter	350mm & 160 four jaw chuck
Max processing length	2500mm

3.Technical parameter:

No	Index	Index	Parameter
1	Traveling	X axis	1300mm
		Y axis	2500mm
		Z axis	200mm
2	Table size		1400x2500mm
3	Accuracy	Working accuracy	0.02mm
		Reposition accuracy	0.02mm
4	Transmission	X axis	Rack
		Y axis	Rack & double moters
		Z axis	Screw
5	Speed	Max rapid	25000mm/min
		Max working speed	18000mm/min
6	Spindle	Spindle power	3kw
	(water-cooling)	Spindle speed	0-24000r/min
7	Drive mode		Stepper
8	Working voltage		Ac220/50hz
9	Command language		G code
10	Operation system		Richauto dsp 4axis card
11	Rotary axis		Turbine reducer

Sincerely waiting for your any inquiry, and trust that we can provide you professional suggestions.
 Guarantee & after-sale service1.One year warranty under normal use and we supply lifelong maintenance.2.24 hours technical support by phone, email, skype, msn, or romote.3.Free training to make sure you master the operation of the cnc router.Oem service available1.Usually, we will manufacturer the machine as our regular design.2.X y z working area could be custmer-oriented designing.3.Special configuration could be customer-oriented designing.
