• Model NO.：GN1200H
• Energy Saving：Energy Saving
• Warranty：1 Year
• Customized：Customized
• Condition：New
• Control System：Delta Sport 12 Axis Card System
• Spindle：2.2kw Air Cooling Spindle
• Body Structure：Integral De-Stress Aging Treatment of Heavy Duty B
• Gudie Rail：Taiwan PMI Precision Grade
• Servo Motor：Delta 1kw and 0.75kw High Resolution
• Servo Driver：Delta a Series Full Line Mode
• Converter：Delta Converter 2.2kw
• Reducer：Feston, Taiwan
• Power Supply：380V, 50Hz
• Transport Package：Wrapped in Layers of Wrapping Film and Ponchos
• Specification：2450*4800*1900mm
• Trademark：Mars
• Origin：China
• HS Code：8465910000
• Production Capacity：300 Sets,Month

Basic Info.

Model NO. GN1200H Energy Saving Energy Saving Warranty 1 Year Customized Customized Condition New Control System Delta Sport 12 Axis Card System Spindle 2.2kw Air Cooling Spindle Body Structure Integral De-Stress Aging Treatment of Heavy Duty B Gudie Rail Taiwan PMI Precision Grade Servo Motor Delta 1kw and 0.75kw High Resolution Servo Driver Delta a Series Full Line Mode Converter Delta Converter 2.2kw Reducer Feston, Taiwan Power Supply 380V, 50Hz Transport Package Wrapped in Layers of Wrapping Film and Ponchos Specification 2450*4800*1900mm Trademark Mars Origin China HS Code 8465910000 Production Capacity 300 Sets/Month

Product Description

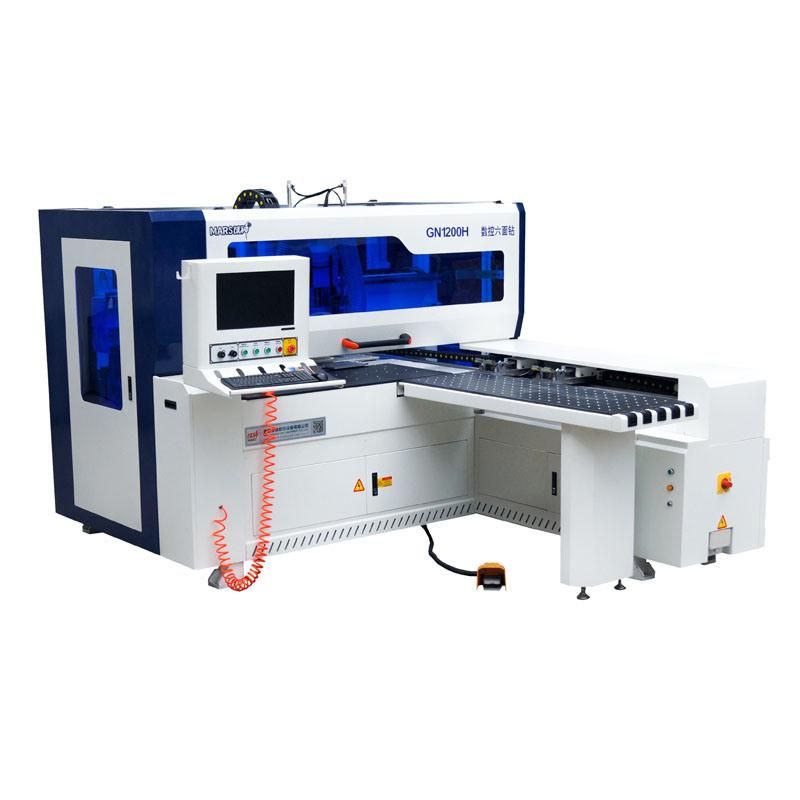

GN900H With Vertical Pressure Roller Qualified by CE Acrylic Board CNC Router for Musical Instruments
 Keywords:15 years experience of production                   ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
                   Three Brand: Mars, Golden Eagle,Borio





Description:
It's a powerful drilling machine,can accomplish all six-sided holes and slots at one processing.It can completely substitute the traditional panel saw and gang drill,and discards the dependence of traditonal punching mode on the technical workers.Combined with processional production design software,it achieves really intelligent production,with high precision and fast speed.

Functions:
The functions of this machine include six-sided drilling,double-sided grooving,scan processing and double clamp feeding.

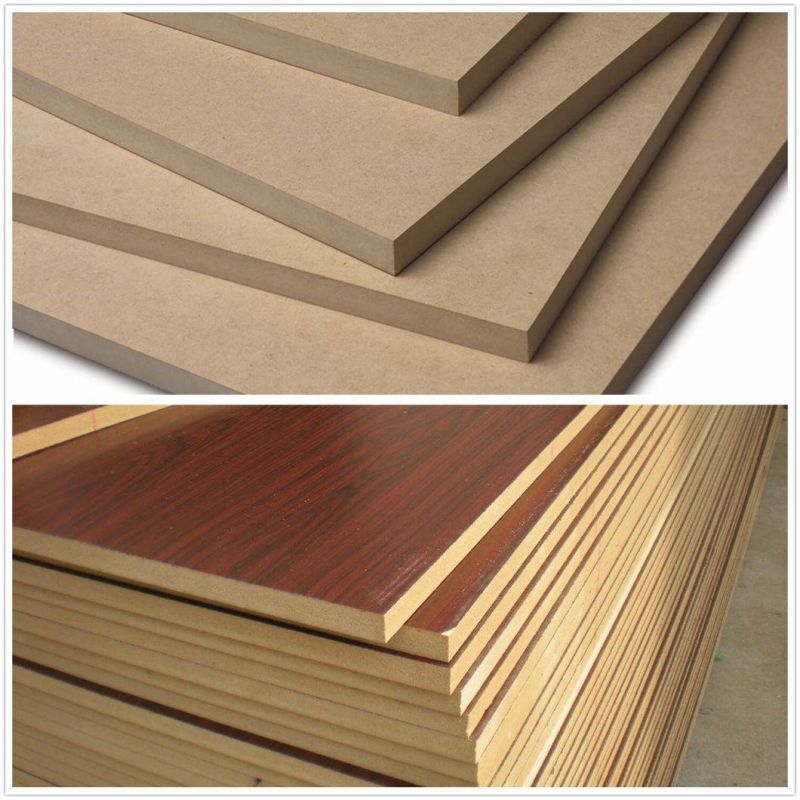

Applicable Materials:
MDF, block board, solid wood board, particleboard, polymer door plates, plywood etc.


Application Scope:
Suitable for six-sided punching and double-sided grooving of panel customized furniture.

Parameters:

Max.width of wood panel	900mm
Min,width of wood panel	50mm
Max.length of wood panel	2700mm
Min.length of wood panel	200mm
Max.thickness of wood panel	48mm
Min.thickness of wood panel	12mm
Upper vertical drilling	10
Downward vertical drilling	9
X-direction horizontal drilling	2*2
Y-direction horizontal drilling	2*2
Drilling set motor speed	4000rmp
Milling spindle	2*2.2kw
Rotational speed of milling spindle	18000r/min
Total power	17kw
Working voltage	380V/50Hz
Net weight	3000kg

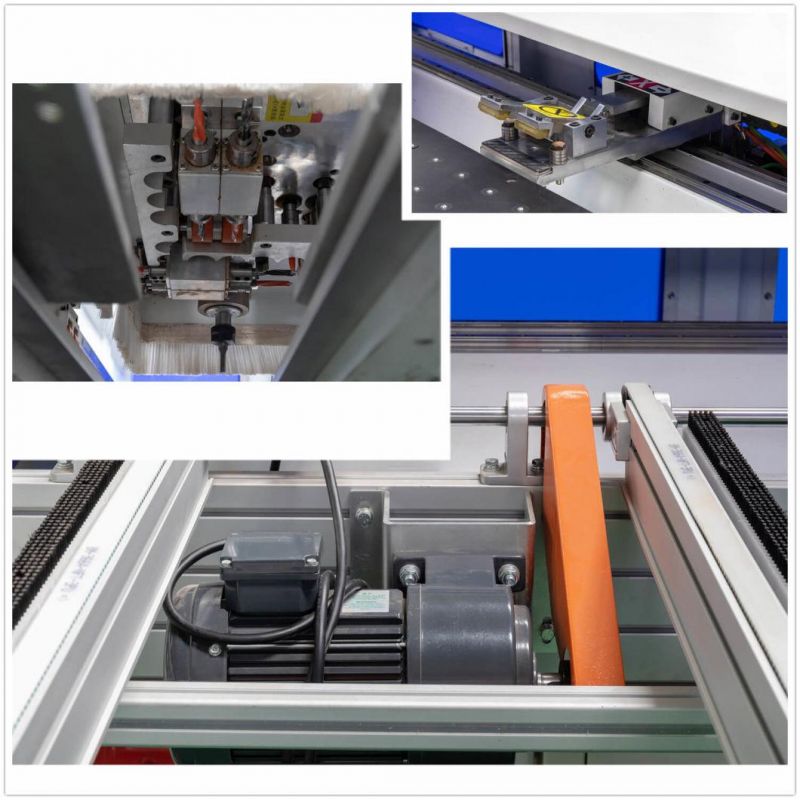

Accessories:



Performance Features:1.Complete 6 surface processing and groove, milling type. Easy to operate, flexible to use, without manual intervention platform tools.2. Very compact dimensions.3. High-efficiency, powerful ZTCAM5.0 software; IOT technology makes it possible to digitally produce this device with other devices online.4. The long X-axis track (3.5m) can reduce the number of times the workpiece is switched when feeding. Improve processing efficiency.5. Equipped with horizontal hole machining auxiliary pressure roller and all-round auxiliary pressure processing to ensure the accuracy of horizontal hole machining during workpiece machining.6. With vertical pressure roller, it can guarantee the machining accuracy of vertical hole and groove.7. Equipped with upper and lower spindles, no need to turn the groove.8. Full chassis vacuum cleaner to reduce dust leakage.9. Remote fault diagnosis.10. CNC and motion control using full line control.11. Adopt absolute encoder.12. Metering solid oil supply system.

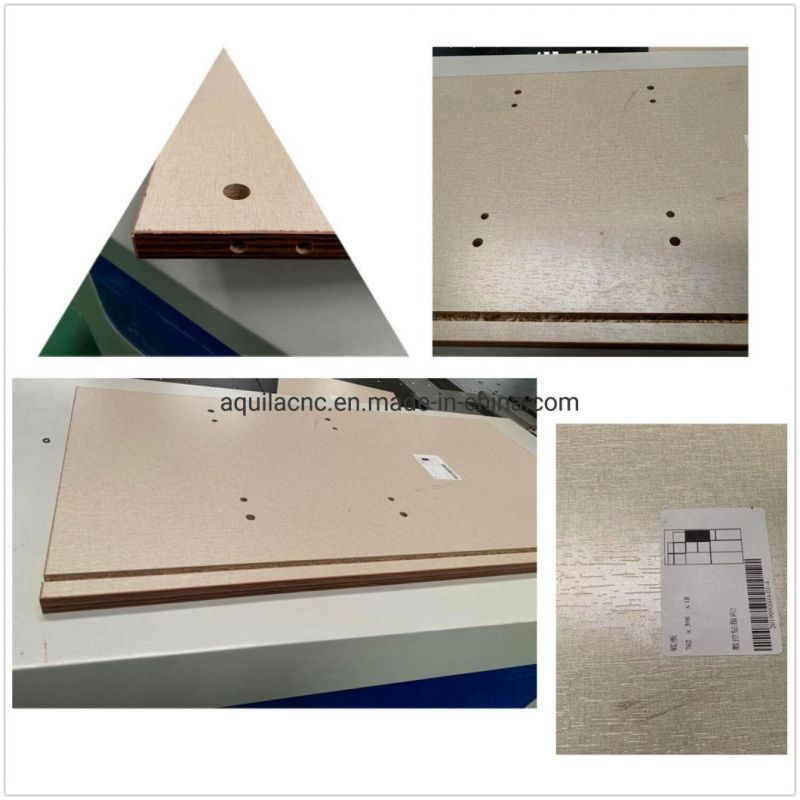

Samples:

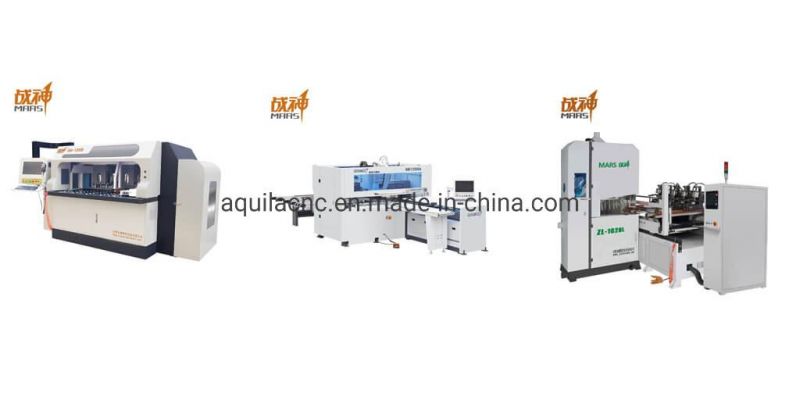

Similar products:
