• Transmission：Imported High Precision 3 Axis Ball Screw Trans
• Table Structure：Thickened Vacuum Adsorption Table
• Drive&Servo Motor：Syntec,Delta
• Max Traveling Speed：80m,Min
• Spindle Rotary Speed：0-24000r,Min
• Working Voltage：AC380V,3 Phase,50Hz
• Control System：Syntec,Delta
• Processing Unit：Power Processing Unit
• Servo Motor：High-Power Servo Motor+Ball Screw Transmission
• Transport Package：Customized Wooden Carton
• Specification：1220X2440X200mm
• Trademark：Mars
• Origin：China
• HS Code：8458110090
• Production Capacity：3000

Basic Info.

Transmission Imported High Precision 3 Axis Ball Screw Trans Table Structure Thickened Vacuum Adsorption Table Drive&Servo Motor Syntec/Delta Max Traveling Speed 80m/Min Spindle Rotary Speed 0-24000r/Min Working Voltage AC380V/3 Phase/50Hz Control System Syntec/Delta Processing Unit Power Processing Unit Servo Motor High-Power Servo Motor+Ball Screw Transmission Transport Package Customized Wooden Carton Specification 1220X2440X200mm Trademark Mars Origin China HS Code 8458110090 Production Capacity 3000

Product Description

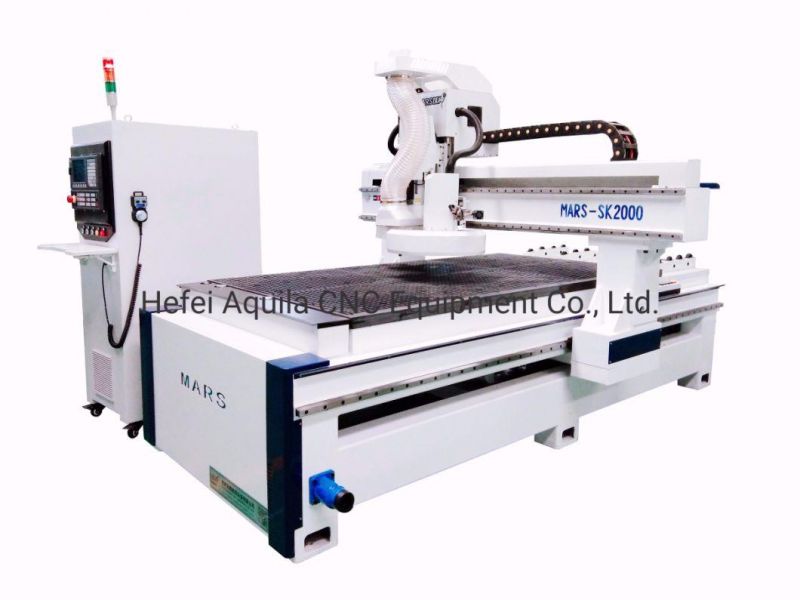

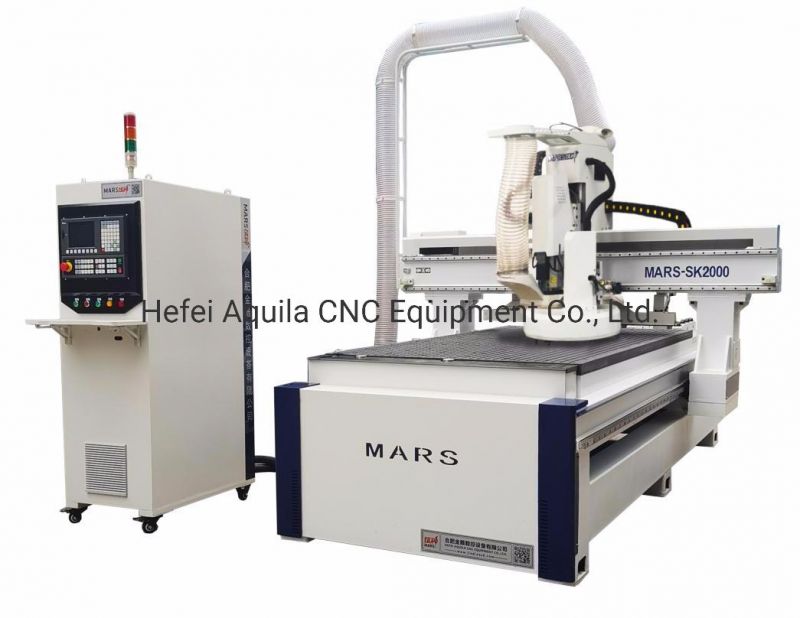

Factory Supply! 3 Axis CNC Wood Center / CNC Router 3 Axis EPS / CNC 3 Axis Router Machine

Keywords:  15 years experience of production
                          ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
                         Three Brand: Mars, Golden Eagle,Borio



Technical Parameters:


Model	MARS-SK2000
Working Area	1220x2440x200mm
Table Size	X1300*Y2500
Table Structure	Thickened vacuum adsorption table
Drive&Servo Motor	SYNTEC/DELTA
Max Working Speed	30m/min
Main Spindle Power	9KW spindle+tracking mode circular servo tools change
Tool library	Disc servo tool magazine(8/12/16 can be change)
Max.Rotating Speed	0-24000rpm.
Vacuun Pump Power	11KW
Trans Mission Mode	Three-axis Taiwan imported large-size high-precision screw
Work Voltage	380V 50Hz
Installation Way	Cavity vacuum adsorption
Pushing device	automatic pushing and vacuuming, can be docked with the unloading platform
Positioning device	L-type cylinder positioning
Automatic tool	Automatic tool setting function
Repeat positioning accuracy	0.05mm

Applicable Materials:

Wood doors, cabinets, panels, office furniture, tables and chairs, doors and windows, speakers, game cabinets, computer desks, sewing machines, musical instruments, acrylic, PVC, density boards, milling, punching, cutting, etc.




Application:SK2000 is MARS new designed machine in 2020, mainly for customized panel furniture industry and one-time processing of high-end molded doors milling
Material:  It suitable for processing Acrylic, PVC, MDF(density board) materials
Strength: Easy operation, high standard and functional processing for furniture production, it's MARS spot products in 2021.

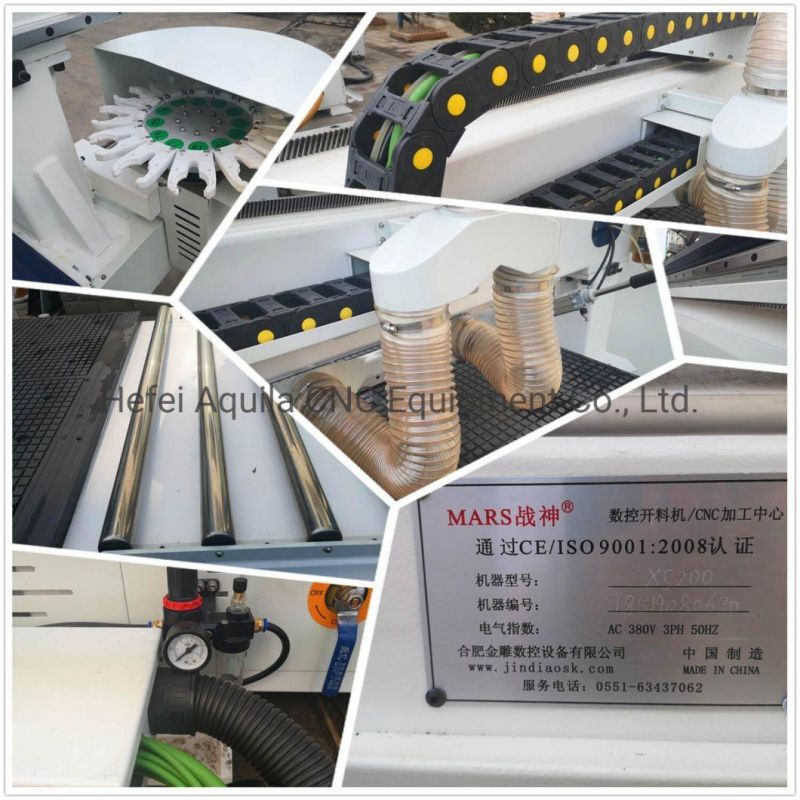

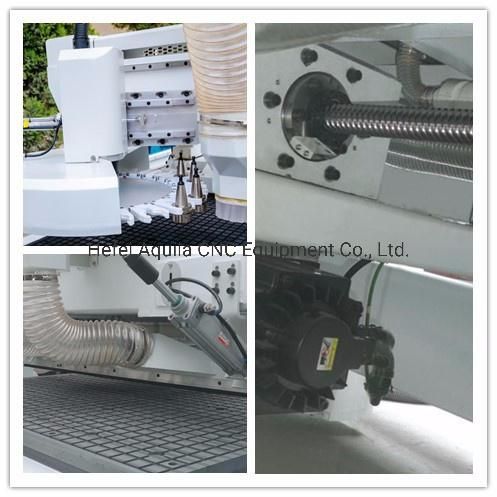

Accessories:

Samples:

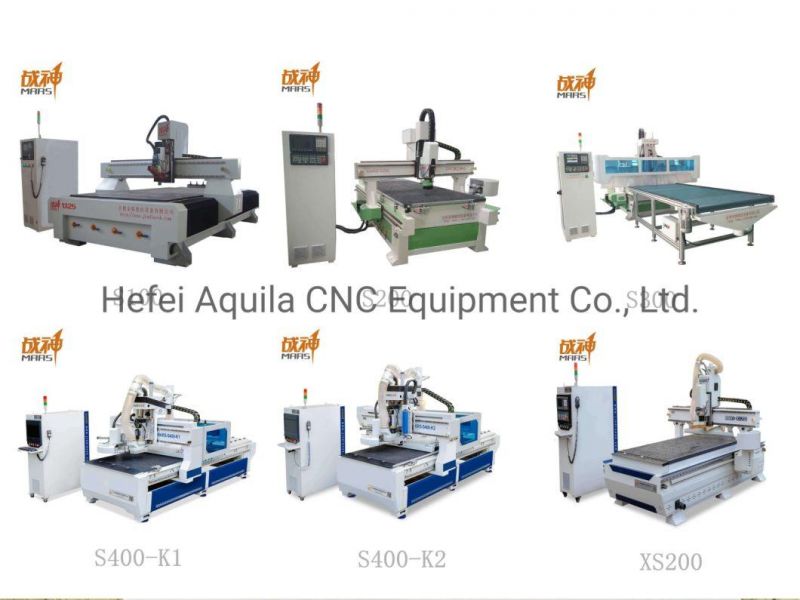

Similar Products :
