Heavy Duty Wide Belt Sander R-RP630 Sanding Machine

Qingdao Zhongding Machinery Co., Ltd.
  • Type：Belt Wood Sander
  • Automatic Grade：Automatic
  • Variable Speed：Variable Speed
  • Certification：CE, ISO
  • Customized：Customized
  • Condition：New

Base Info

  • Model NO.：R-RP630
  • Color：Iron Grey
  • Transport Package：Plywood Case
  • Specification：1700*1100*2050mm
  • Trademark：ZD
  • Origin：China
  • HS Code：84659300
  • Production Capacity：2 Sets,Week

Description

ModelZDR-RP630ZDR-RP1000ZDR-RP1300Max. working width630mm1000mm1300mmMaterial thickness2.5-120mm2.5-120mm (option 2.5-160mm)2.5-120mm (option 2.5-160mm)Min. working length350mm350mm350mmFeeding speed6-30m/min6-30m/min6-30m/min1# sanding belt speed18m/min18m/min18m/min2# sanding belt speed14m/min12m/min12m/minSize of sanding belt650*1900mm1020*2020mm1320*2020mmMain motor power11kw, 7.5kw15kw, 11kw37kw, 22kwTotal power20.74kw28.94kw56.74kwWorking air pressure0.5Mpa0.55Mpa0.55MpaVolume of dust collecting5000m³/h5000m³/h5000m³/hSpeed of dust collecting25-30m/s25-30m/s25-30m/sOverall dimension1700*1100*2050mm1700*1400*2050mm2750*2200*2050mmWeight1300kg2000kg3200kg

Detailed pictures:

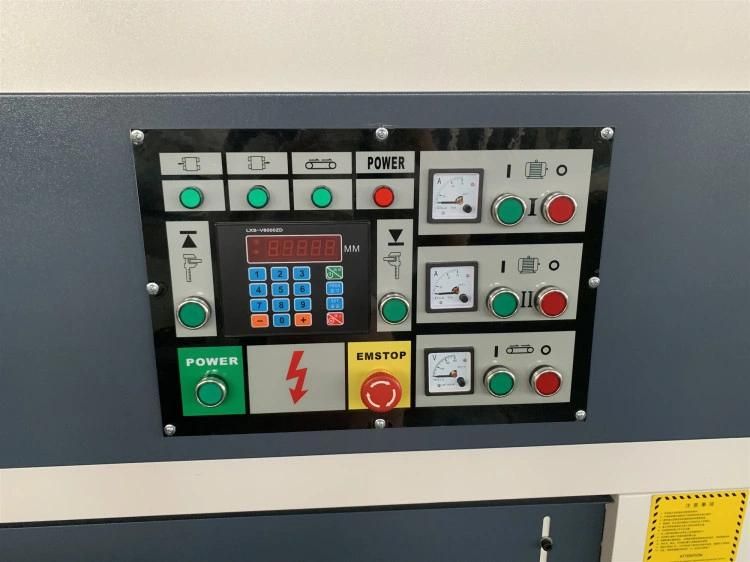

Control panel
Heavy Duty Wide Belt Sander R-RP630 Sanding Machine

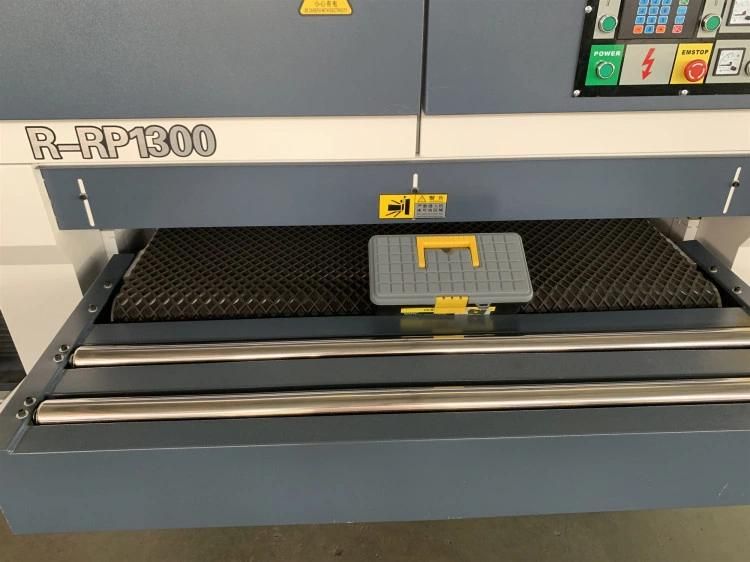

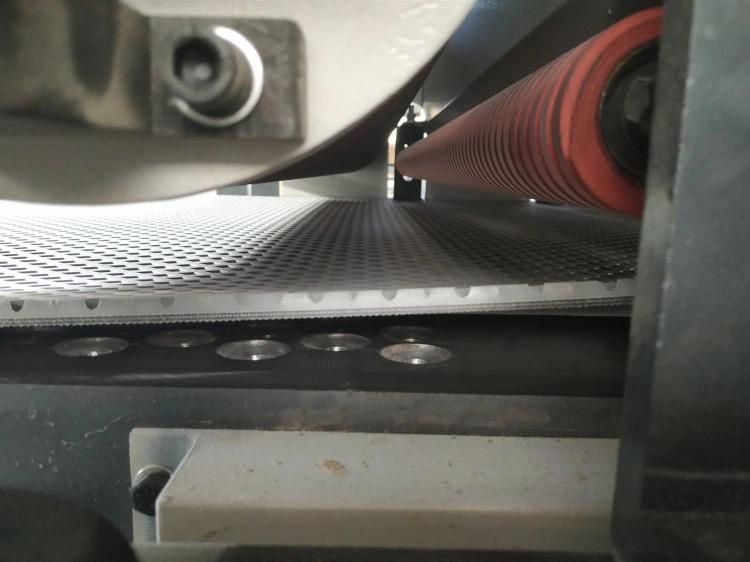

Working table
Heavy Duty Wide Belt Sander R-RP630 Sanding Machine

Vacuum table optional
Heavy Duty Wide Belt Sander R-RP630 Sanding Machine

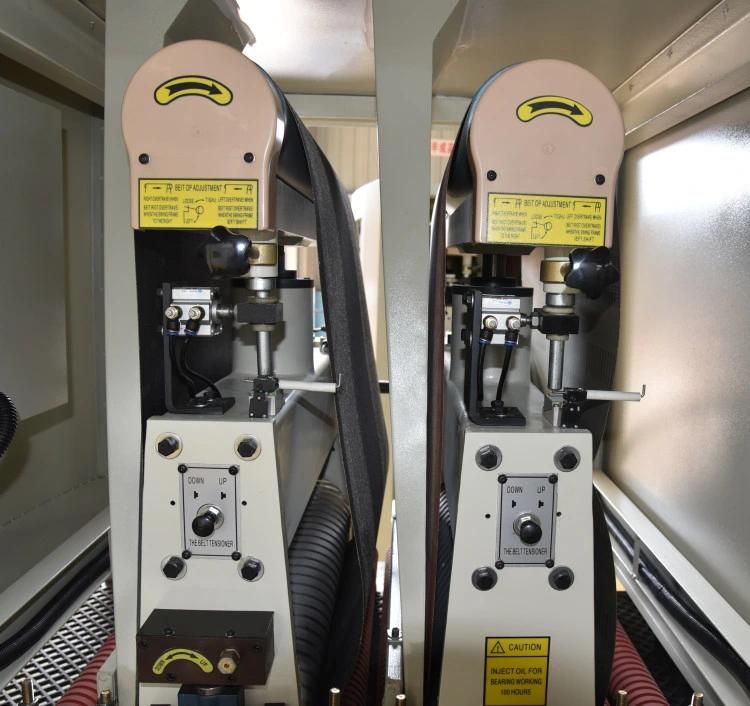

Sanding belt
Heavy Duty Wide Belt Sander R-RP630 Sanding Machine

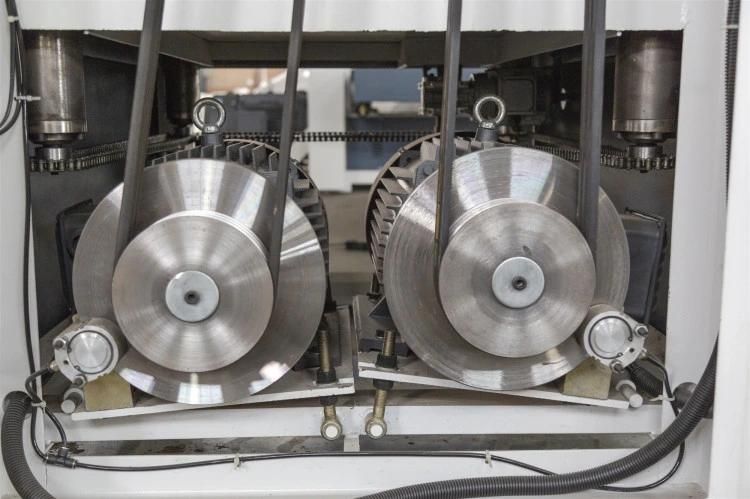

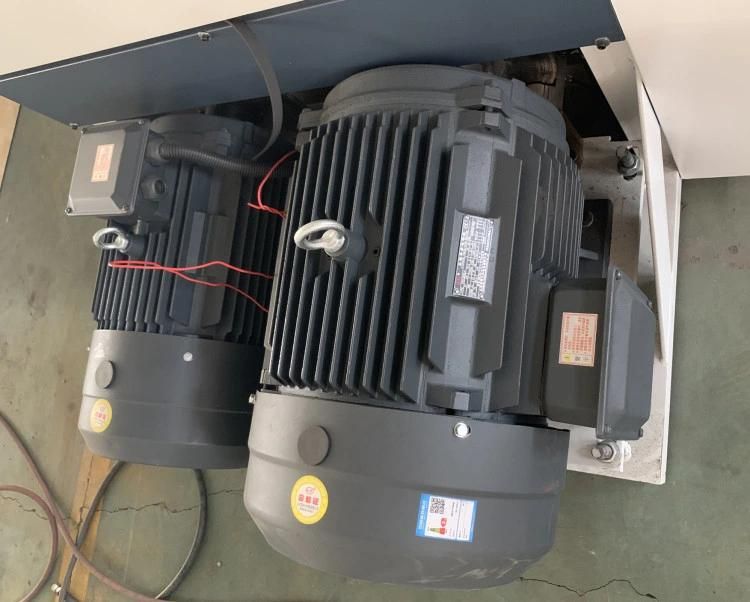

Main Motors
Heavy Duty Wide Belt Sander R-RP630 Sanding Machine

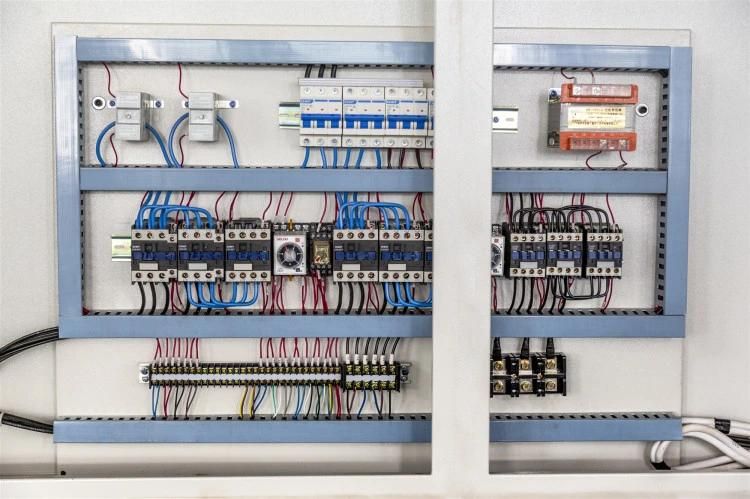

Electric box
Heavy Duty Wide Belt Sander R-RP630 Sanding Machine

Heavy Duty Wide Belt Sander R-RP630 Sanding Machine


Packaging & shipping:

Heavy Duty Wide Belt Sander R-RP630 Sanding Machine
 Company information:

Heavy Duty Wide Belt Sander R-RP630 Sanding Machine
Heavy Duty Wide Belt Sander R-RP630 Sanding Machine
Heavy Duty Wide Belt Sander R-RP630 Sanding Machine

For more details, pls feel free to contact us.
