• Model NO.：ZD450A
• Panel Thinkness：10-60mm
• Min.length panel：100mm
• Min.width panel：50mm
• Manufacturing Principles：Glue Tank Overhead
• Customized：Customized
• Heating Power：1.8kw
• Feeding Motor Power：3.7kw
• Pre-Milling Motor Power：2.2kw*2
• Glue Spreading Motor Power：0.75kw
• End Trimming Motor Power：0.5kw*2
• Rough Trimming Motor Power：0.75kw*2
• Fine Trimming Motor Power：0.75kw*2
• Corner Rounding Motor Power：0.5kw*2
• Polishing Motor Power：0.37kw*2
• Air Pressure：0.8MPa
• Transport Package：Wooden Case
• Specification：9.3CBM
• Trademark：QDZD
• Origin：Qingdao
• HS Code：84659400
• Production Capacity：500sets,Year

Basic Info.

Model NO. ZD450A Panel Thinkness 10-60mm Min.length panel 100mm Min.width panel 50mm Manufacturing Principles Glue Tank Overhead Customized Customized Heating Power 1.8kw Feeding Motor Power 3.7kw Pre-Milling Motor Power 2.2kw*2 Glue Spreading Motor Power 0.75kw End Trimming Motor Power 0.5kw*2 Rough Trimming Motor Power 0.75kw*2 Fine Trimming Motor Power 0.75kw*2 Corner Rounding Motor Power 0.5kw*2 Polishing Motor Power 0.37kw*2 Air Pressure 0.8MPa Transport Package Wooden Case Specification 9.3CBM Trademark QDZD Origin Qingdao HS Code 84659400 Production Capacity 500sets/Year

Product Description

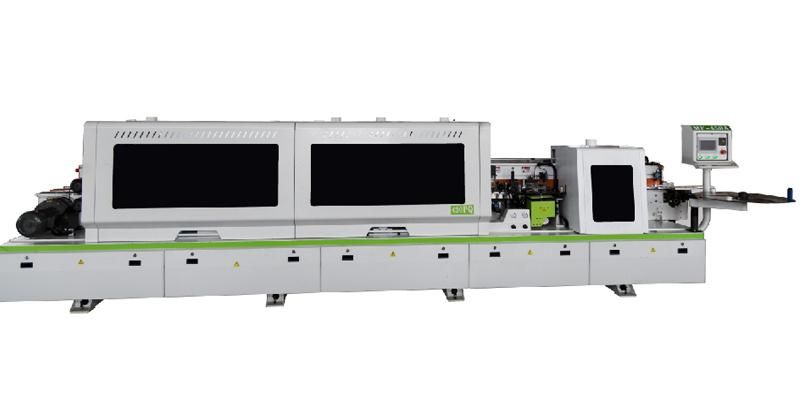

ZD450A FULLY AUTOMATIC EDGE BANDING MACHINE WITH CORNER ROUNDING FUNCTION

Technical Specification:


Type	ZD450A
Banding tape thickness	0.4-3 mm
Banding tape width	12-65 mm
Work piece thickness	10-60 mm
Work piece length	>=100 mm
Work piece width	>=50 mm
Heating power	1.8 KW
Feeding motor power	3.7 KW
Pre-milling motor power	2.2 KW x 2
Glue spreading power	0.75 KW
End trimming power	0.5 KW x 2
Rough trimming motor power	0.75 KW x 2
Fine trimming power	0.75 KW x 2
Corner rounding motor power	0.5 KW x 2
Polishing motor power	0.37 KW x 2
Feeding speed	10-23 m/min
Air pressure	0.8 Mpa
Overall dimension	6700x850x1520 mm
Packing size	6730x880x1580 mm
N.W.	2800 KGS
G.W.	2950 KGS

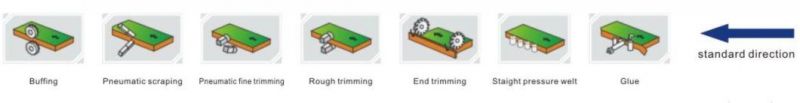

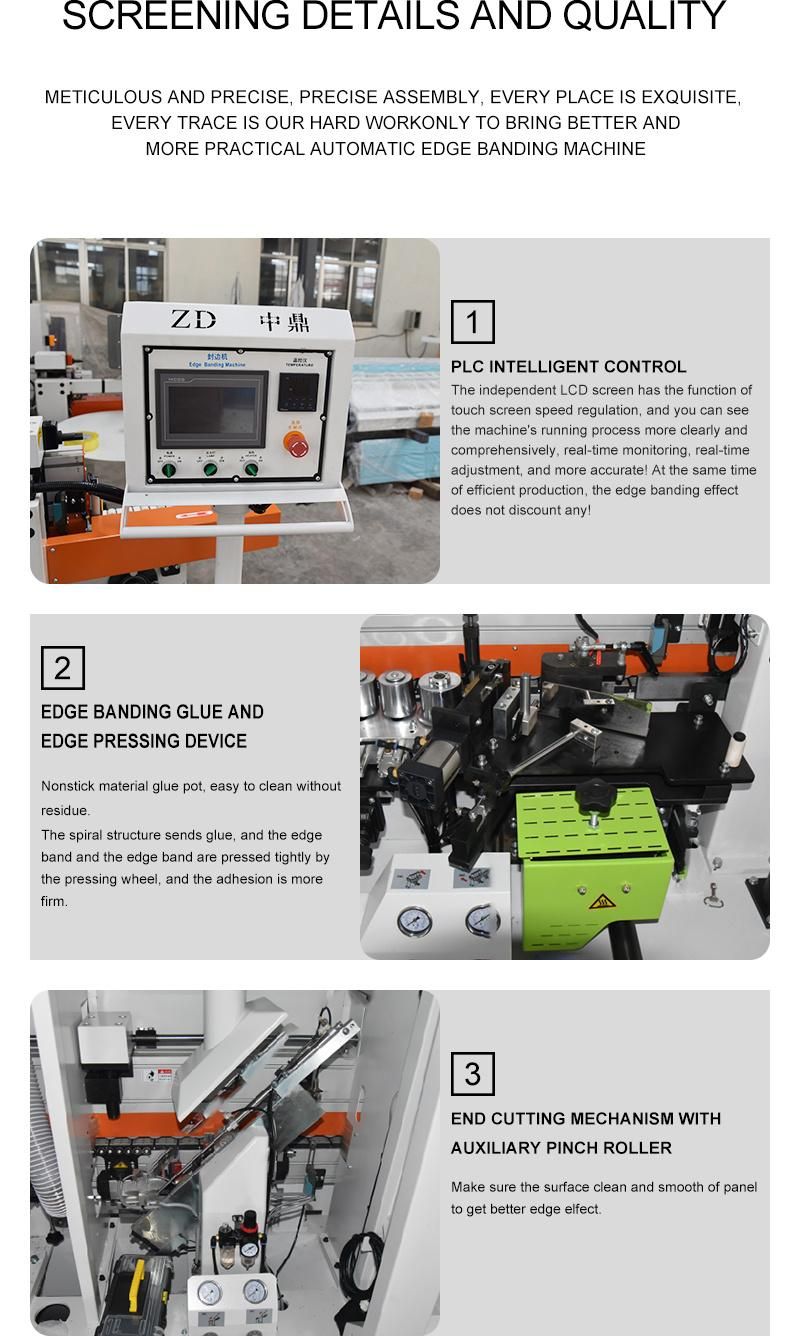

Feature:

1. Pre-milling equipment with double trimming blades works on the waved effect that is caused by precise sliding table saw.
2. The glue mechanism adopts a special structure to gelatinize the plates and costing materials uniformly, ensure a more solid conglutination.
3. End trimming mechanism through a precise guide track movement; adopt automatic tracking and high frequency motor fast cutting structure to ensure the cutting surface smoothly.
4. Rough/fine trimming mechanism is used for repairing the excess edge materials, adopt automatic tracking and high frequency motor fast cutting structure to ensure the trimming plates smoothly.
5. Profiling unit is to make the board ending more smooth and aesthetic.
6. Scraping unit is for a perfect finishing of the applied edge.
7. The buffing device adopts the board processed by cotton polishing wheel, by end polishing to make a smoother surface.
