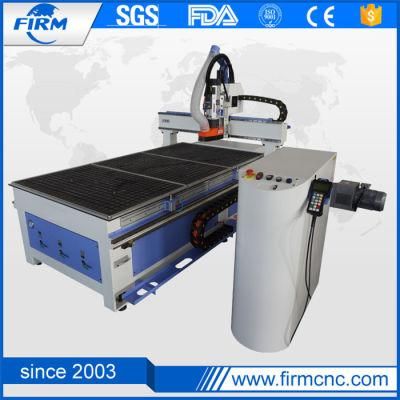

Top Quality Furniture Art Craft Engraving Carving Wood CNC Router
Jinan Firm CNC Equipment Co., Ltd.- Type：Engraving Router
- Spindle Layout：Spindle Over
- Spindle Number：Single-Spindle
- Feed Mode：Mechanical
- Controlling Mode：CNC
- Certification：CE, ISO
Base Info
- Model NO.：FM1325
- Customized：Customized
- Condition：New
- Color：Customized
- Name：CNC Router
- Model：FM1325
- Working Area：1300*2500*200mm
- Control System：March3,DSP,Ncstudio Control System
- Spindle：3kw China Changsheng Water Cooling Spindle
- Inverter：Fuling Inverter,Delta Inverter
- Motor and Driver：Leadshine Stepper Motor and Driver
- Table：T-Slot, Vacuum Table
- Structure：6mm Steel Tube Structure
- X Y Z Aixs：Hwin Square Rail, Xinyue Helial Rack, Tbi Ball SCR
- Transport Package：Wooden Box
- Specification：CE ISO SGS
- Trademark：FIRMCNC
- Origin：Jinan, China
- HS Code：8465990000
- Production Capacity：30 Sets,Month
Description
Basic Info.
Model NO. FM1325 Customized Customized Condition New Color Customized Name CNC Router Model FM1325 Working Area 1300*2500*200mm Control System March3/DSP/Ncstudio Control System Spindle 3kw China Changsheng Water Cooling Spindle Inverter Fuling Inverter/Delta Inverter Motor and Driver Leadshine Stepper Motor and Driver Table T-Slot/ Vacuum Table Structure 6mm Steel Tube Structure X Y Z Aixs Hwin Square Rail, Xinyue Helial Rack, Tbi Ball SCR Transport Package Wooden Box Specification CE ISO SGS Trademark FIRMCNC Origin Jinan, China HS Code 8465990000 Production Capacity 30 Sets/MonthProduct Description
Top Quality Furniture Art Craft Engraving Carving Wood CNC Router
Advantages:
1. Free samples(I can help you process samples for free.)
2.Advertising/artwork/woodworking
3.CE, SGS,ISO
4.High precision
5.High sensitivity
6.High efficiency
7. Warranty: 1 year
8.Door-to-door technical service and 24 hours technology online support
Technical Parameters:
No. | Description | Parameter |
1 | Working Area | 1300mmx2500mmx200mm |
2 | Dimension(L*W*H) | 1620mm×3300mm×1500mm |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.02/300mm |
4 | X,Y,Z Repositioning Accuracy | ±0.02mm |
5 | Table Surface | T-slot and vacuum combined table |
6 | Table Size | 1420mm×3000mm |
7 | Inverter: | Chinese Fuling Inverter/Taiwan Delta Inverter |
8 | Spindle | 3KW Chinese Hanqi water colling spindle |
9 | Limit switch | Japan Omron limit switch |
10 | Oil LubricationSystem | Manual |
11 | X, Y,Z Transmission | Taiwan Hiwin Square Rail and TBI Ball Screw |
12 | Max. Power Consumption | 6KW |
13 | Max. Rapid Travel Rate | 33000mm/min |
14 | Max. Working Speed | 25000mm/min |
15 | Spindle Power | 3KW(optional:2.2KW/3KW) |
16 | Spindle Speed | 0-24000RPM |
17 | Motors | 450B stepper |
18 | Working Voltage | 220V/380V |
19 | Command Language | G Code |
20 | Operating System | DSP System/NC-studio |
21 | Computer Interface | USB |
22 | Collet | ER25 |
23 | X,Y Resolution | <0.03mm |
24 | Software Compatibility | Artcam Software/Type3 Software |
25 | Running Environment Temperature | 0 - 45 Centigrade |
26 | Relative Humidity | 30% - 75% |
27 | Packing Size | 2120mmX3700mmX1900mm |
28 | N.W. | 1500KG |
29 | G.W. | 1600KG |

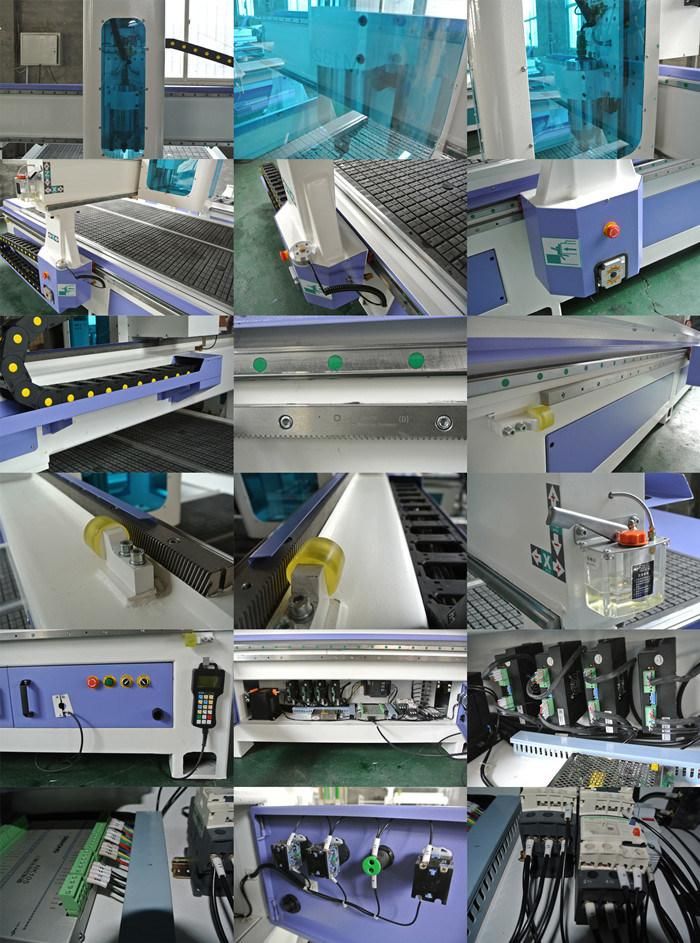

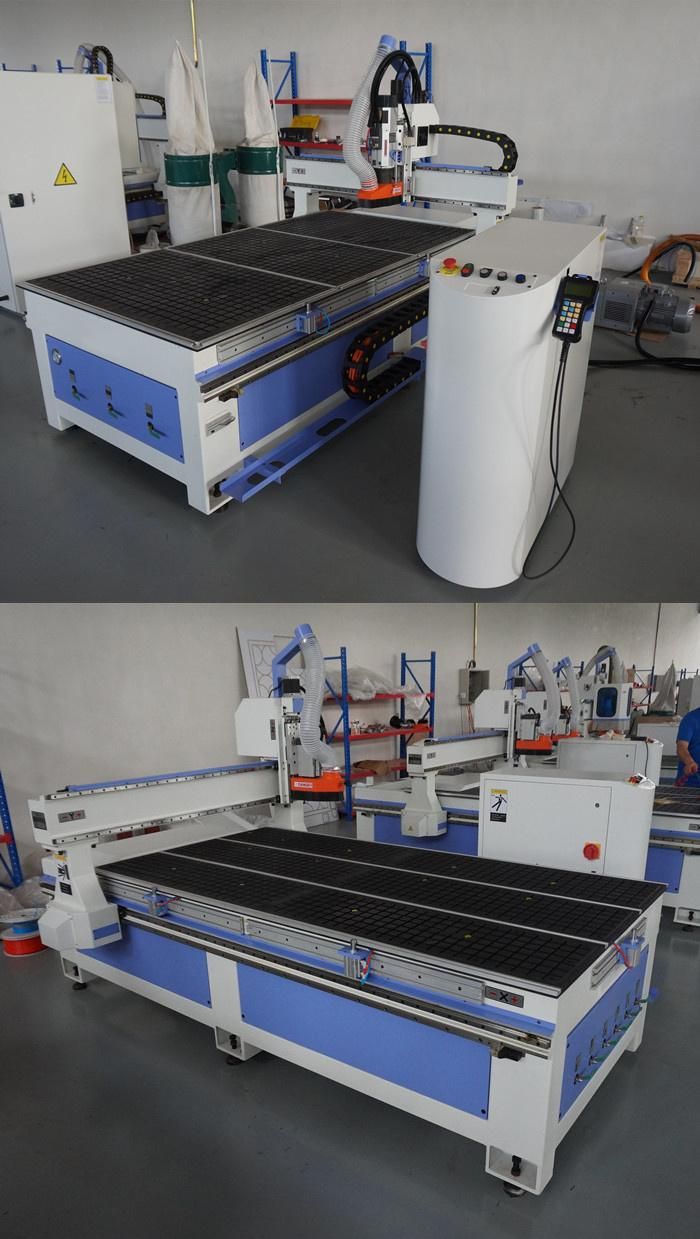

Details of Hot Sale 3-Axis CNC Router Machine
Application Industry and Materials:
Advertising industury:Cnc router can engrave all kinds of signage,logo products,trademarks,nameplates,badges,decorative gift,embossed
medals,certificates,souvenirs,photo frames,furniture decoration,PVC plates, PCB boards
(drilling and engraving),Double color boards,acrylic etc.
Woodworking Industry:Cnc router can be used for solid wood furniture,mahogany furniture,
MDF paint doors,solid wood doors,composite doors,cupboard doors and windows,beside
cabinets,folding screen etc.
Artwork industry: in the wood, bamboo, organic board, double color plate, crystal and other materials on a variety of exquisite patterns and text engraving.

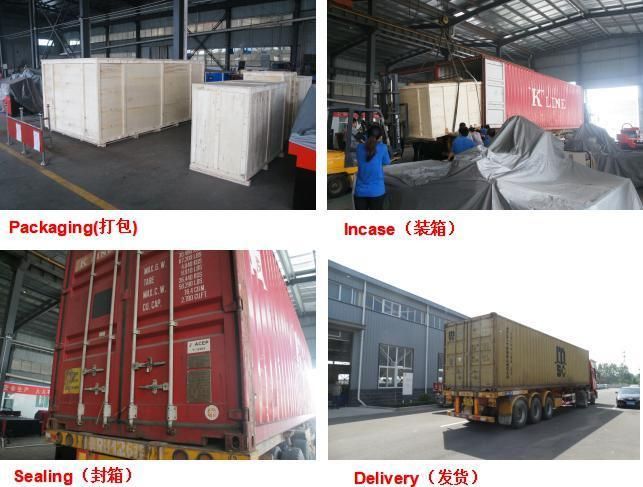

Packing & shipment :
Save space as much as possible for container loading.
- Inside:Water-proof Plastic Film Package With Foam Protection
- Outside:Solid Seaworthy Wood Box Package
- Below: Steel Tube
Our partners:
Certificates:
FAQ:
1.How long about the machine's guarantee?
1 year
2.How about your after-sales service ?
Technical support by phone, WhatApp,Skype,e-mail or QQ around the clock.
3.How can we install the machine?
English version manual and operation video CD disk.
4.How about the payment terms?
30% T/T for deposit, 70%T/T paid before shipping. T/T, West Union, Paypal
5.Do you Arrange Shipment For The Machines?
Yes, dear customers, for FOB or CIF price, we will arrange shipment for you.
For EXW price, clients need to arrange shipment by themselves or their agents.
