• Model NO.：FM1325
• Spindle Power：3.0kw Water Cooling Spindle
• Control System：DSP or Ncstudio Control
• Motor：Step Motor , Servo Motor
• Working Speed：8-15m, MIM
• Guide Rail：Taiwan Hiwin Square Rail
• Table Structure：Vacuum and T-Slot Table
• Transport Package：Wooden Box
• Specification：CE SGS ISO
• Trademark：FIRMCNC
• Origin：Jinan, China
• HS Code：8456100090
• Production Capacity：30 Sets,Month

Basic Info.

Model NO. FM1325 Spindle Power 3.0kw Water Cooling Spindle Control System DSP or Ncstudio Control Motor Step Motor / Servo Motor Working Speed 8-15m/ MIM Guide Rail Taiwan Hiwin Square Rail Table Structure Vacuum and T-Slot Table Transport Package Wooden Box Specification CE SGS ISO Trademark FIRMCNC Origin Jinan, China HS Code 8456100090 Production Capacity 30 Sets/Month

Product Description

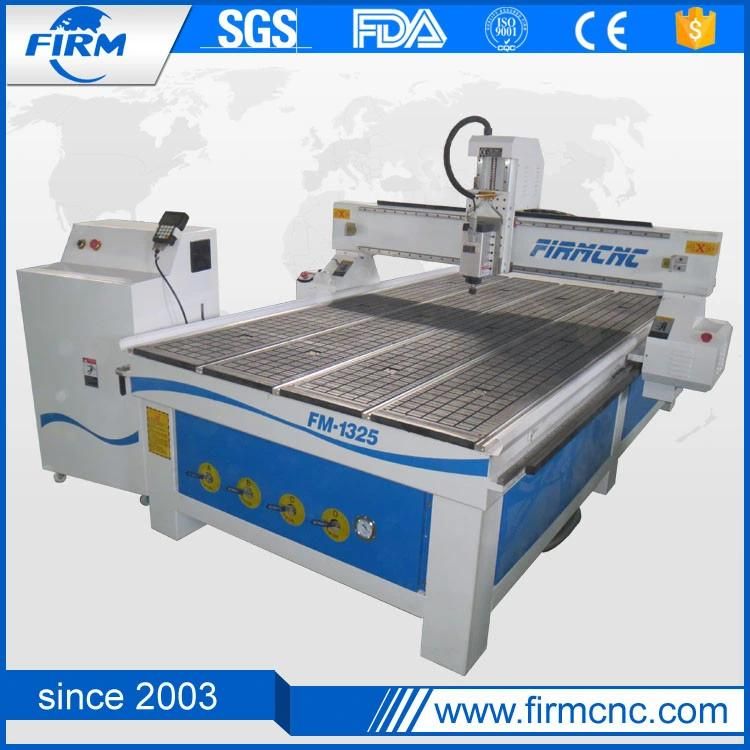

Wood Engraving Machine aluminium cnc machine


Features:

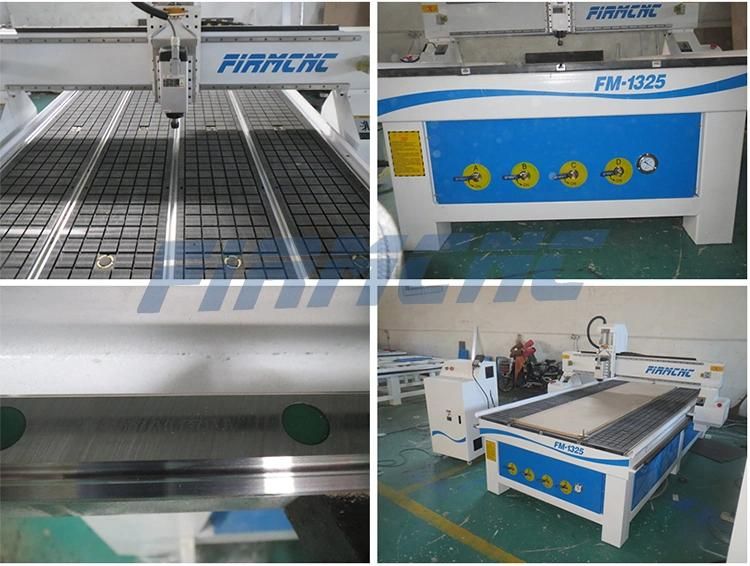

1. Robust square steel machinery body, stiff not deforming and tempering aging treatment, reasonable & advanced welding procedure, ensure stability of machine.
2. The special instruments to eliminate welding stress, high precision machining planer ensure the precision and no deformation.
3. The major machine body makes stability and no shacking high speed.
4. XYZ all apply imported screw, high precision gear frame and linear square guide, ensure the high accuracy.
5. The professional mechanical design, scientific a structure and generous appearance, gantry height 200MM can ensure Z axis working size...
6. XYZ axis use anti-dust system, prevent dust working, make sure the long lifespan of spare parts.
7. High quality drive motors, spindle motors, cables inverters, etc.
8. Powerful dust extraction system to prevent no dust In the process of machining.
9. Strong adsorption system to ensure the efficiency is greatly improved in the process of machining.
10. The advanced professional control system compatible with many instructions
Formats, may achieve process function in interruption of power supply, breakpoint
And next day which is more convenient and save labor.
11. Professional CNC control system, can compatible with many kinds CAM software, such as: TYPE3/ARTCAM/UG/PRO-E/MASTERCAM.


Technical specification

Brand	Firm
Model	F-1325A
Machine Size (mm)(W*L*thickness)	1900*3100*1800
Table size(mm)	1600*3100
Engraving area (W*L*thickness)(mm)	1300*2500*200
Working Form	Full-automatic
Spindle Power	3.0KW water cooling spindle
Spindle Rotate(rpm)	6000~24000
Motor Driver	Stepper motor (Chinese servo motor or imported servo motor is optional)
Tool Diameter(mm)	Ø3.175,Ø4,Ø6, Ø12.7mm
Machine Structure	Industry square tube structure
Transmission System	Imported ball screw or high accuracy gear rack
X,Y,Z Rail	Imported square rail
Mechanical Accuracy	<0.03/300mm
Engraving Speed(mm/min)	8000~12000mm/min
Feeding Speed	manual
Data Transmission	PC connect
Support Format	G code or HPGL
Working Voltage	AC220V/50Hz or 380V/50Hz
Support Format	G Code or HPGL

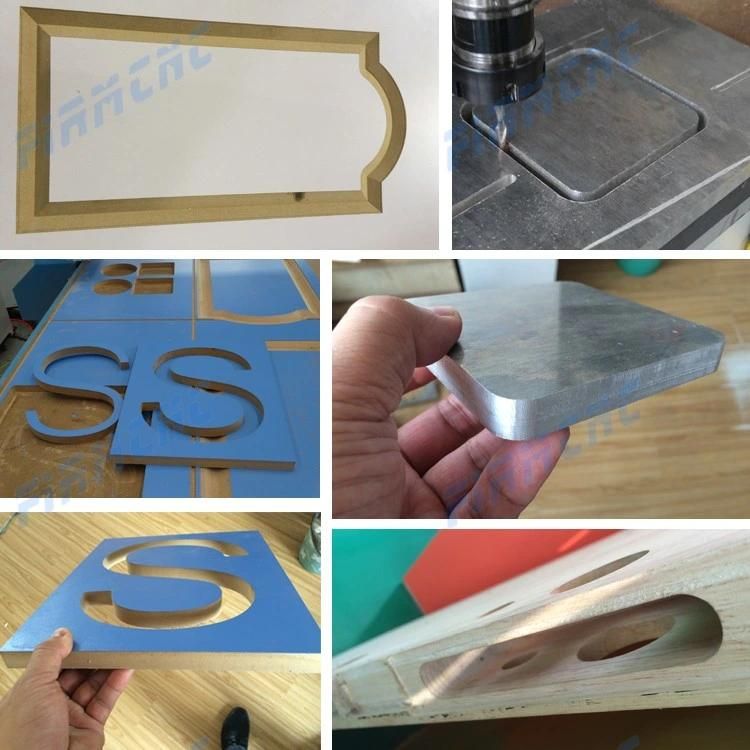

Range of Application	Woodworking relief engrave ,Cutting , Hollow
Machine Net Weight	1200Kg

Packaging & Shipping
Water-proof plastic film package with foam protection in each corner.
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading.

Our Services
# One year warranty for the machine
# Replacing all parts for free during warranty
# If nessessary, provide door to door service to your country
# 24 hours on line service
# Replying your email and offer tecnical service within 24 hours

Company Information
Jinan Firm CNC Equipment Co., Ltd is situated in Jinan city, Shandong province. We are a professional and good reputation manufacturer of CNC router (router cnc, cnc wood router), laser engraving machine, CNC plasma cutter, laser cutting machine, laser marking machine in China to the new and existing customers that are spread throughout the South America, Middle East, Southeast Asia, Africa, Europe and other counties of the world and the machines has passed the EU CE certificate.

FAQ
Question 1: How long about the machine's guarantee?
Answer: 1 year
Question 2: How about your after service?
Answer: Technical support by phone, e-mail or MSN around the clock.
Question 3: How can we install the machine?
Answer: Friendly English version manual and operation video CD disk.
Question 4: How about the payment terms?
Answer: 30% T/T for deposit, 70%T/T paid before shipping.
T/T, West Union, Paypal
Question: Do You Arrange Shipment For The Machines?
Answer: Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
