• Model NO.：FM1325ATC
• Customized：Customized
• Condition：New
• Color：Customized
• Table Size：1540*2640
• Working Size：1300×2500×300mm
• Spindle Power：Italy 7.5kw Atc Spindle Motor Cooling by Fan
• Spindle Rotate：6000~18000rpm
• Motion Speed：50m,Min
• Dictate Format：G-Code
• Tools Change Mode：Circular Auto Tool Change System
• Table Surface：Vacuum and Tslot Combined
• Frame：Welded Steel Tube Structure
• Operating System：Syntec Control System
• Transport Package：Wooden Box
• Specification：2500*1300mm
• Trademark：FIRMCNC
• Origin：Jinan Shandong China
• HS Code：8465990000
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. FM1325ATC Customized Customized Condition New Color Customized Table Size 1540*2640 Working Size 1300×2500×300mm Spindle Power Italy 7.5kw Atc Spindle Motor Cooling by Fan Spindle Rotate 6000~18000rpm Motion Speed 50m/Min Dictate Format G-Code Tools Change Mode Circular Auto Tool Change System Table Surface Vacuum and Tslot Combined Frame Welded Steel Tube Structure Operating System Syntec Control System Transport Package Wooden Box Specification 2500*1300mm Trademark FIRMCNC Origin Jinan Shandong China HS Code 8465990000 Production Capacity 100 Sets/Month

Product Description

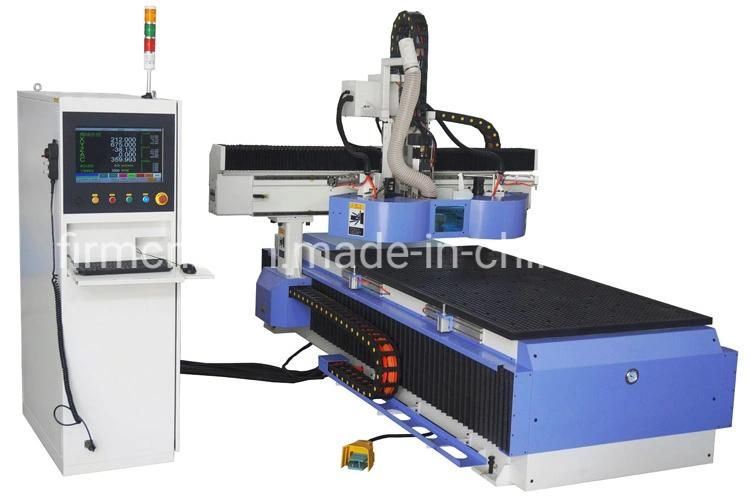

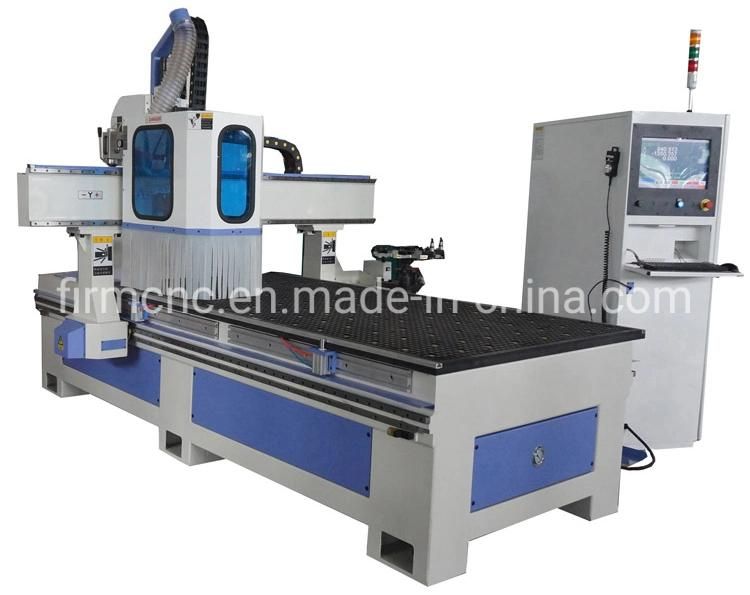

Automatic Tool Change Woodworking CNC Engraving Machine


Features:
1. Industrial frame, much solid rigidity.
2. Imported advance controlling system, split keyboard control more function to meet your various requirement.
3. Support all G-code to dictate format, compatible with international CAD/CAM software like castmate/UG/ Proe, etc
4. Taiwan Hiwin liner rail.
5. Imported high speed, mute rolling ball screw transmitting system, ensure processing in high accuracy, and the running speed up to 50m/min.
6. Imported AC power supply servo driving system from Japan.
7. Italy high power ATC spindle motor, high efficiency, long lifetime, easy to complete processing kinds of complex work piece.
8. RH model configured with circular auto tool change system standard configure with 8 pcs tools, 10 and 12pcs tools is optional.
9. LH model configured with liner auto tool change system, standard configure with 6 pcs and 10 pcs tool is optional.
Technical specification:

No.	Description	parameter
1	XYZ working area	1300mm*2500mm*200mm
2	Table size	1450mm*2940mm
3	XYZ travel positioning accuracy	±0.03/300
4	XYZ Repositioning positioning accury	±0.03mm
5	Table surface	Vacuum and Tslot combined
6	frame	Welded steel tube structure
7	drive system X-Y axis	Rack and pinion,Hiwin linear rail bearing
8	drive system Z axis	Hiwin linear rail and bearing Ball screw
9	Max power consumption	3.5KW without spindle
10	Max velocity	30000mm/min
11	Max working speed	25000mm/min
12	Spindle speed	24000RPM
13	Drive mode	850w Yaskawa servo system
14	Working voltage	AC380V/50/60Hz,3Phs(Options;220V,3Phs)
15	Command language	G code
16	Interface	USB
17	Operating system	Syntec control system
18	Flash memory	128M
19	X-Y resolution	<0.03mm
20	Software environment	Wentai, type3, artcam
21	Running environment	Temperature:0-45
22	Paking size	3300mm*1900mm*1800mm
23	Net weight	1750KG
24	Gross weight	1980KG

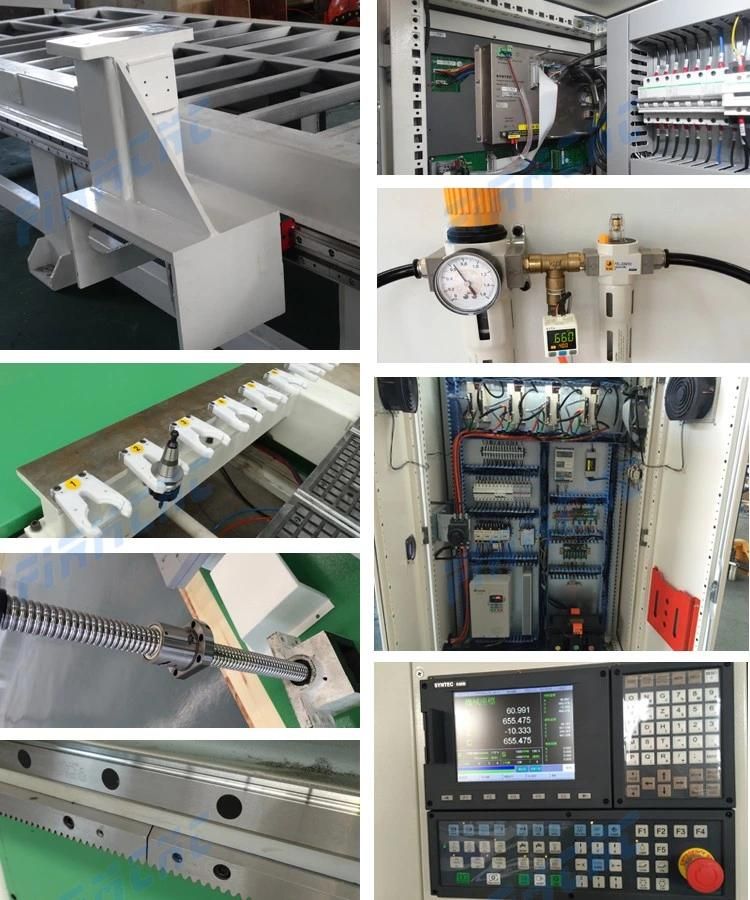

Main parts:

Application:
Applicable to process various Wooden products, Like solid wood furniture and solid wood door, decorative panel,
computer desk, office furniture, sign plates, acrylic cutting, , Vacuum plastic moulds, as well as many metal or non-metal materials as copper, aluminum plates.

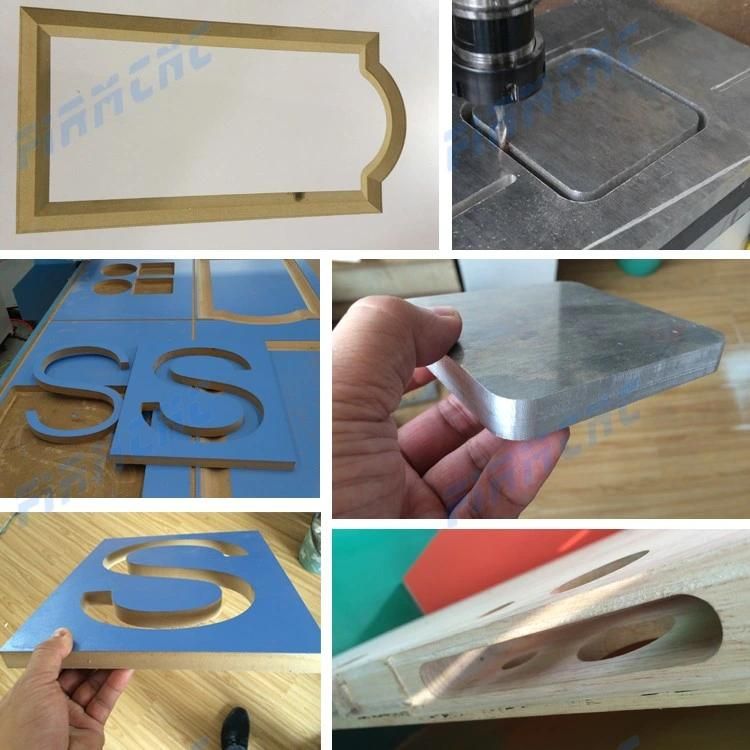

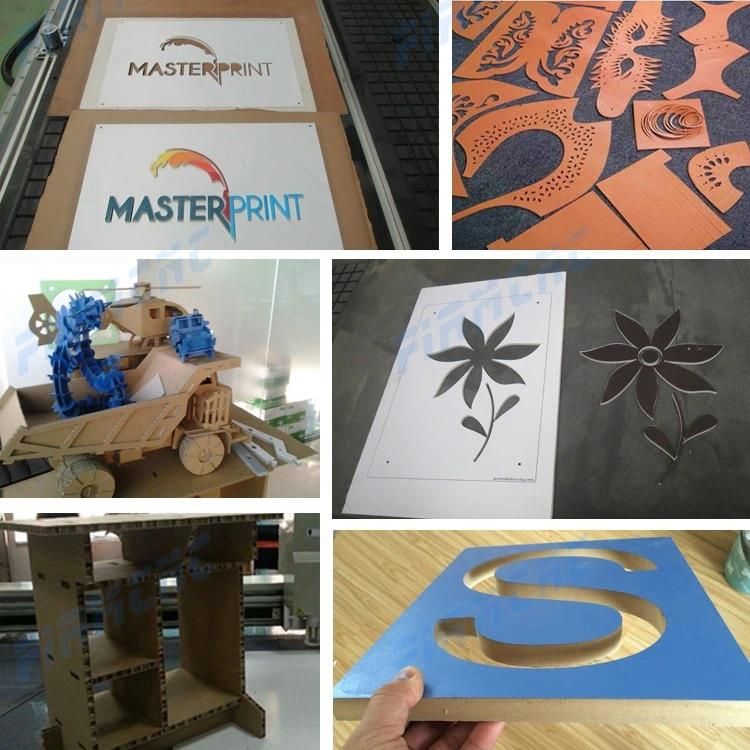

Samples:


Company Information
Jinan Firm CNC Equipment Co., Ltd is situated in Jinan city, Shandong province. We are a professional and good reputation manufacturer of CNC router (router cnc, cnc wood router), laser engraving machine, CNC plasma cutter, laser cutting machine, laser marking machine in China to the new and existing customers that are spread throughout the South America, Middle East, Southeast Asia, Africa, Europe and other counties of the world and the machines has passed the EU CE certificate.

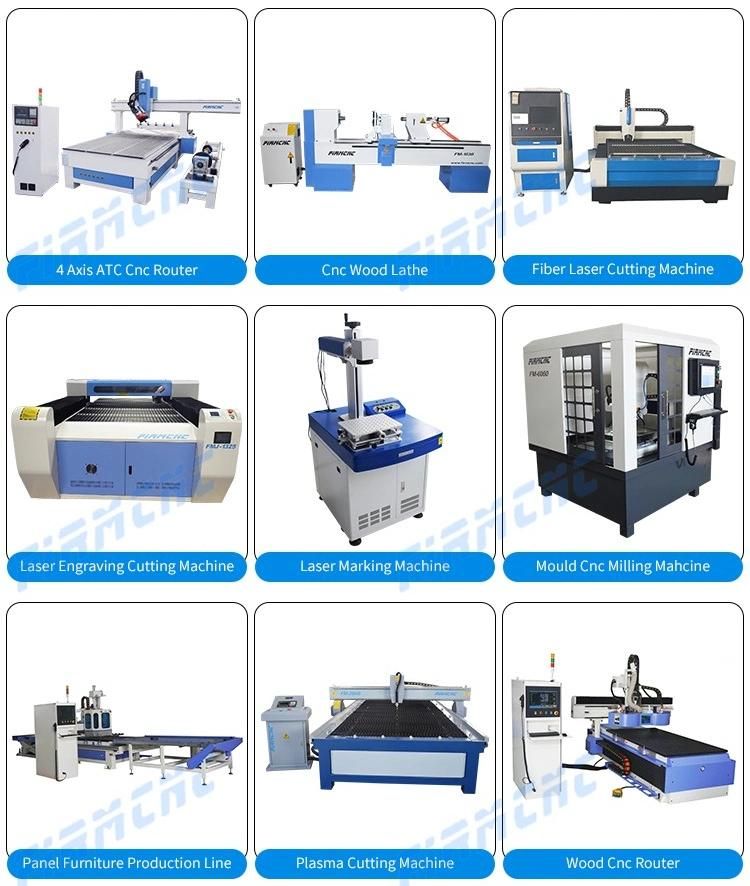

Other different type cnc machines for your reference
Packaging & Shipping
CNC Woodworking Machine
Water-proof plastic film package with foam protection in each corner.
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading.

After sale serives
# Two year warranty for the machine
# Replacing all parts for free during warranty
# If nessessary, provide door to door service to your country
# 24 hours on line service
# Replying your email and offer tecnical service within 24 hours

FAQ
Question 1: How long about the machine's guarantee?
Answer: 2 year
Question 2: How about your after service?
Answer: Technical support by phone, e-mail or MSN around the clock.
Question 3: How can we install the machine?
Answer: Friendly English version manual and operation video CD disk.
Question 4: How about the payment terms?
Answer: 30% T/T for deposit, 70%T/T paid before shipping.
T/T, West Union, Paypal
Question: Do You Arrange Shipment For The Machines?
Answer: Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price,
clients need to arrange shipment by themselves or their agents.
