• Model NO.：FM1325 4 axis
• Customized：Customized
• Condition：New
• Color：Customized
• Spindle：Hsd Air Cooled Spindle
• Motor：AC Yaskawa Servo Motor
• Controlling System：Taiwan Syntec Control System
• Rail：Hiwin Rail Linear Guide Rail
• Inverter：Fuling Inverter or Delta Inverter
• Structure：Welded Steel
• Lubrication：Automatic Lubrication System
• Transmission：Rack and Pinion Drive
• Table Structure：Vacuum Combined T-Slot
• Transport Package：Standard Export Woode Case
• Specification：1300* 2500mm *400mm
• Trademark：FIRMCNC
• Origin：Shandong, China
• HS Code：8465990000
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. FM1325 4 axis Customized Customized Condition New Color Customized Spindle Hsd Air Cooled Spindle Motor AC Yaskawa Servo Motor Controlling System Taiwan Syntec Control System Rail Hiwin Rail Linear Guide Rail Inverter Fuling Inverter or Delta Inverter Structure Welded Steel Lubrication Automatic Lubrication System Transmission Rack and Pinion Drive Table Structure Vacuum Combined T-Slot Transport Package Standard Export Woode Case Specification 1300* 2500mm *400mm Trademark FIRMCNC Origin Shandong, China HS Code 8465990000 Production Capacity 100 Sets/Month

Product Description

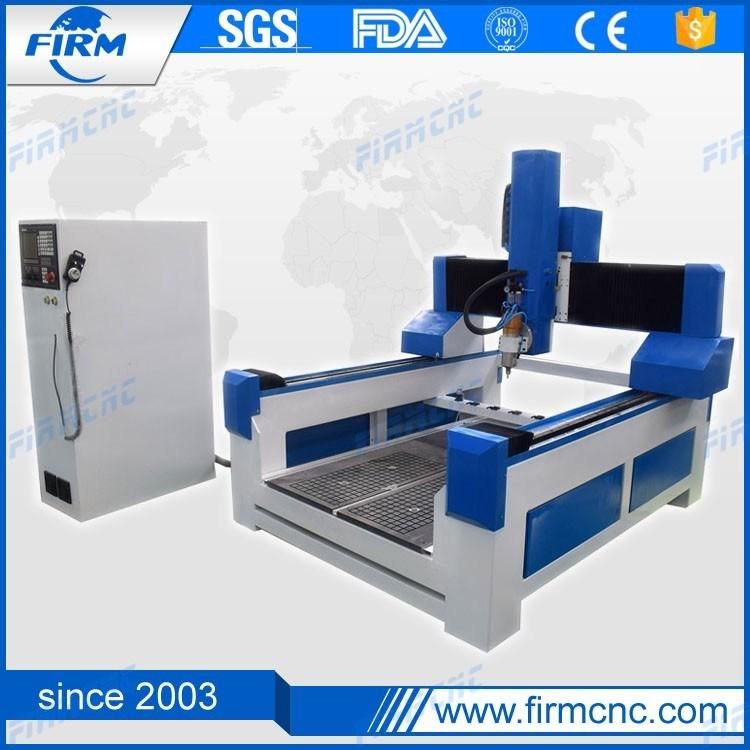

Atc CNC Wood Router Grooved acoustic panels cutting machine
Application of 4 axis cnc router
Ideal for panel furniture, solid wood furniture, office furniture, wooden door productions, as well as other non-metal and soft metal applications.

Brief Introduction of 4 axis cnc router
♦ The spindle can rotated 180 degree, specially designed for curve surface cabinet,doors and indoor decoration. and also for some mold prcessing.
♦ It can be used for mass-processing with Vacuum holding way and dust collector.
♦ Equipped with top quality components for the machine, such as HSD ATC spindle, and the spindle Yaskawa servo motor & Taiwan Delta Inverter, Becker Vacuum pump,
Hiwin linear square guide rails, SYNTEC control system and so on, to keep the machine in the best condition even after working for many years.


Technical parameters of 4 axis cnc router


Description	Parameter
X,Y,Z axis working area	1300* 2500*400mm
Table size	1450 *2940mm
X,Y,Z Traveling Positioning Accuracy	±0.03/300mm
X,Y,Z Repositioning Accuracy	±0.03mm
Table surface	Vacuum Combined T-slot
Frame	Big steel tube structure
Control system	Taiwan Syntec control system
Spindle Power	9.0KW HSD air cooled spindle
spindle rotating speed	24000r/min
Tool type	Linear type
Guide rail	HIWIN square guide rail
Motor	AC Yaskawa servo motor
Max. Power Consumption	(Without Spindle) 4.5Kw
Max. Rapid Travel Rate	50000mm/min
Max. Working Speed	30000mm/min
working voltage	AC380V/3PH/50HZ
Command Language	G Code
Computer Interface	USB
Operational System Software	Type 3/Artcam
Gross Weight	1900KG

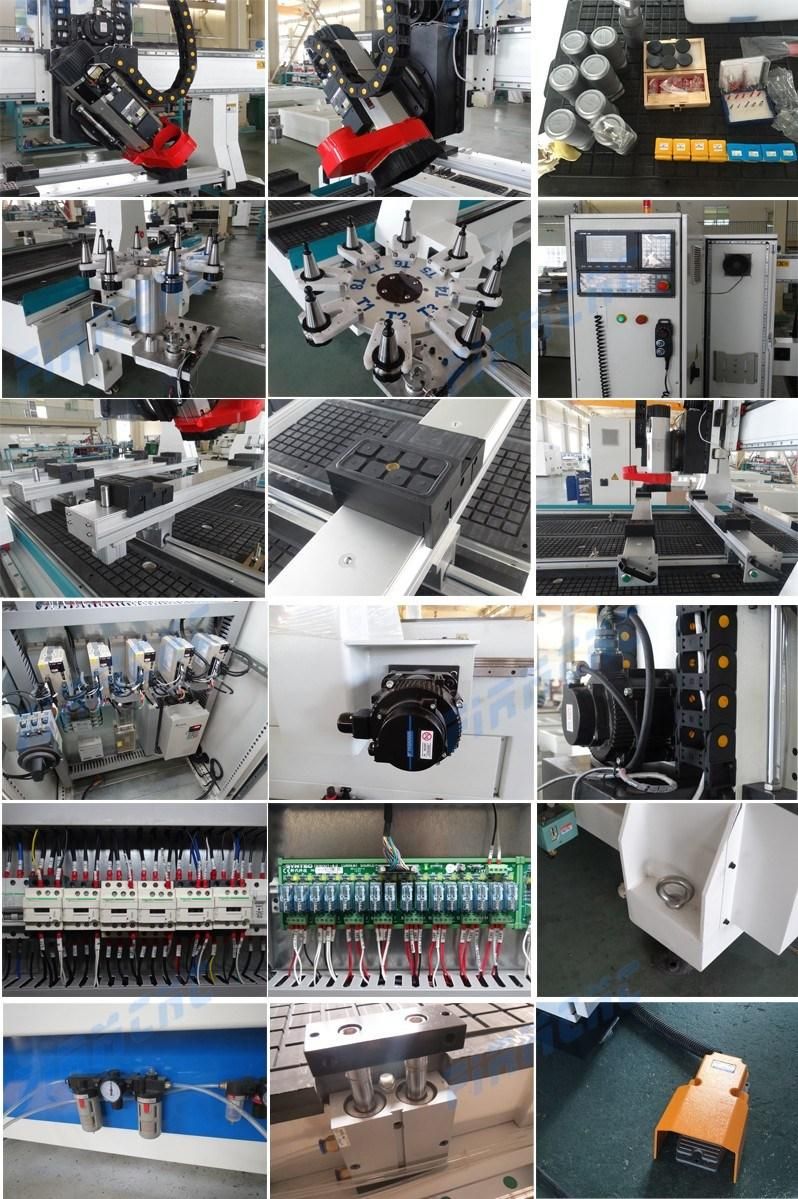

Main allocation and parts pictures of 4 axis cnc router
Taiwan SYNETC control system
Taiwan Delta inverter
Italy 9KW HSD air cooling spindle
Japan YASKAWA servo motor and driver
Taiwan TBI ball screw tansmission
Turntable tool changer
Gear reducer
5.5KW vacuum pump
Tool setting gauge
Centre automatic lubrecation system
Control box
Germany Schneider electrical component


Samples of 4 axis cnc router

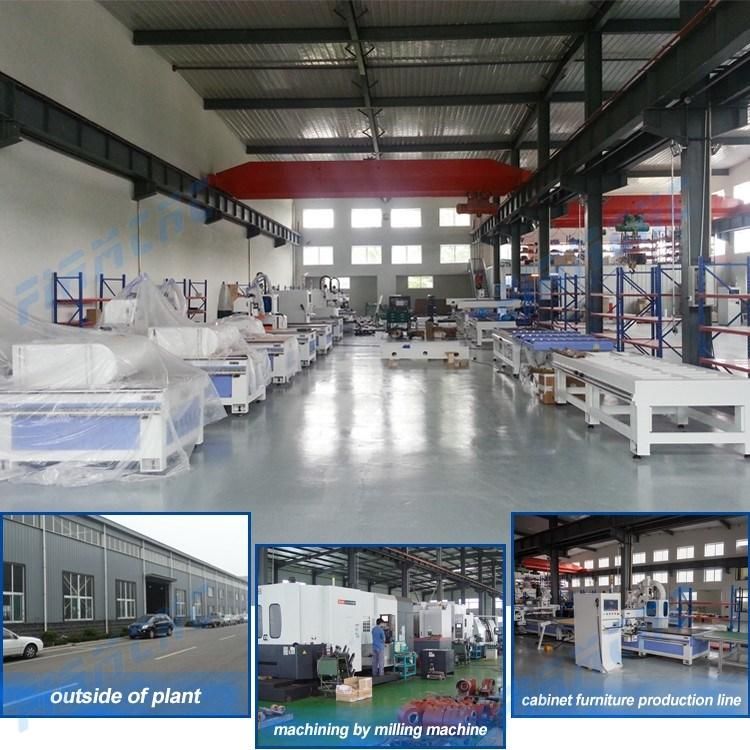

Company Information
FIRMCNC Group located in Jinan,Shandong PR, Founded in 2003. Leader of cnc router appliance manufacture.
We are an all-round enterprice,which is comprehensive in R&D, manufacture, and sales on cnc router appliances.

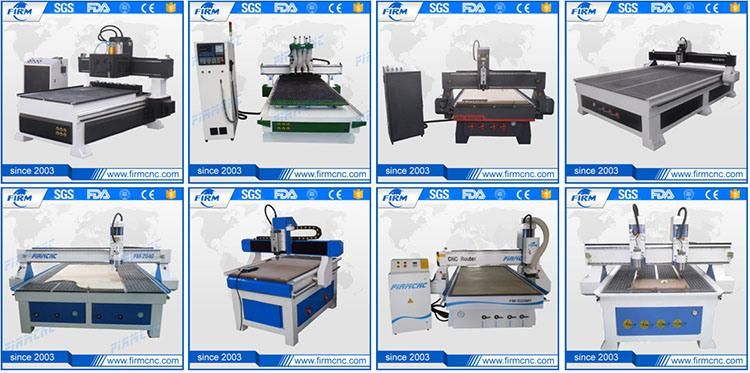

Other type wood cnc router machines for your refence
# Linear or Circular type ATC wood cnc router
# Pneumatic 4 head ATC cnc router
# Wood cnc router with air cooling spindle
# Wood cnc router with water cooling spindle
# Mini cnc router for wood advertising
# Double heads wood cnc router

Packaging & Shipping
1) Foam and wrapping film on the surface of the machine inside. Rain-proof, Dust proof.
2)Standard export plywood case. Upwards, moistureproof shipping marks. Safety guaranteed.
3) fumigation-free
4)With shipping mark if you like.
5)Outside: Marked packing size, model, weight and other information

Perfect after Services
Before sale:
We would always be here to provide any information you need at the first time,and give professional suggestions according to your real needs for free;
During sale:
We would deal with all the production and shipping affairs,after everything is ready,we would tell you everything goes well here;
After sale:
We would provide English Version working manual.

If you have any questions during using and maintaining,our engineers who could speak very good english would answer you online or by calls.
Machine warranty is two years.So if your machine has any unintentional damages,we would provide parts for free.
If your machine has big problems if by any chance,our engineers would arrive there to debug and fix.


FAQ
Q1: How to get the most suitable model with competitive price?
Please tell me what's material you want to cutting or engraving ?
 And what's MAX size of carved material ? Do you mainly engrave or cut? If cut,What is your Max.cutting thickness? would you mind showing me your sample pictures?
Q2: How about your company's control system?
We set up a special QUALITY CONTROL DEPARTMENT inside of the factory.Therefore there is a strict control for each process,
and we have regulated the standards for welding process, machining process, assembly process, manufacturing process and packaging process,etc.
Q3:  Does machine comes with software?
We offer Type3, ArtCAM software with machine.
