• Model NO.：FM1325
• Customized：Customized
• Condition：New
• Color：Customized
• Item：Woodworking Machinery
• Working Area：1300*2500*200mm
• Spindle Power：3.0kw Water Cooling Spindle
• Table：T-Slot and Vacuum Table Combined
• Transmission：X Y : Gear Z : Ball Screw
• Guid Rail：Taiwan Hiwin Guid Rail
• Drive System：Stepper Motor and Drivers
• Inverter：Fuling,Delta Inverter
• Control System：Nk105 DSP , Ncstudio Controller
• Software：Artcut,Artcam
• Transport Package：Wooden Box
• Specification：CE, SGS, ISO
• Trademark：FIRMCNC
• Origin：Jinan, China
• HS Code：8465990000
• Production Capacity：30 Sets,Month

Basic Info.

Model NO. FM1325 Customized Customized Condition New Color Customized Item Woodworking Machinery Working Area 1300*2500*200mm Spindle Power 3.0kw Water Cooling Spindle Table T-Slot and Vacuum Table Combined Transmission X Y : Gear Z : Ball Screw Guid Rail Taiwan Hiwin Guid Rail Drive System Stepper Motor and Drivers Inverter Fuling/Delta Inverter Control System Nk105 DSP / Ncstudio Controller Software Artcut/Artcam Transport Package Wooden Box Specification CE, SGS, ISO Trademark FIRMCNC Origin Jinan, China HS Code 8465990000 Production Capacity 30 Sets/Month

Product Description

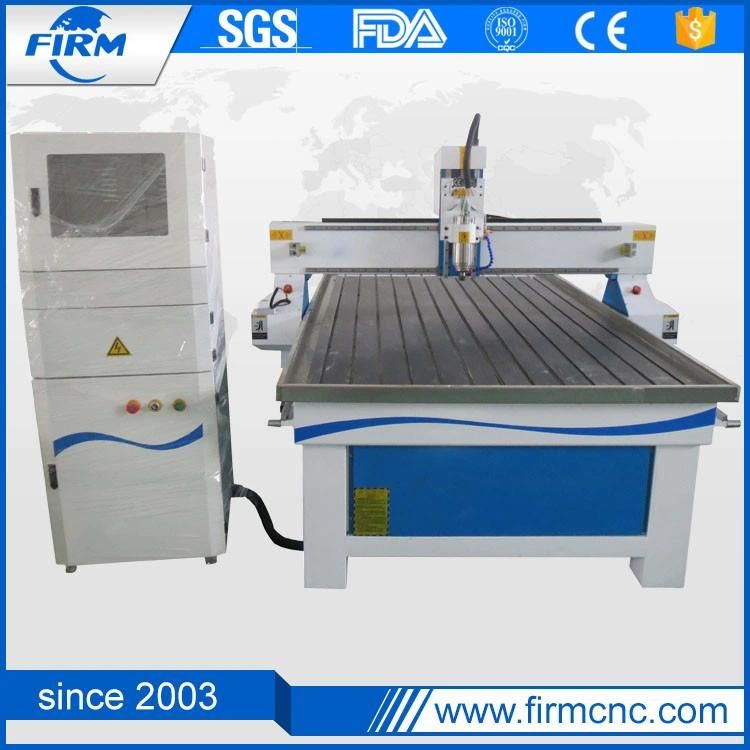

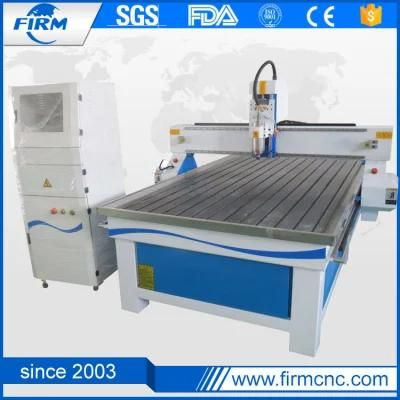

CE Standard wood engraving cutting cnc router woodworking machinery



1.Machine Features
1) Heavy duty structure can keep a good stability.
2)Taiwan TBI balls screws, HIWIN square guide rails, high precision, large load bearing and stable running.
3) Gantry-travelling, sturdy, reliable and stable, non-deforming, high locating accuracy.
4) Y axis use servo/stepper motor drive, select matching to ensure smooth movement.
5) DSP control system, with U disk available and not need computer ( can be completely off-line operation. ), provides high independence and great convenience for operation.
6) Unique ability to save several point of origin on several workpieces.
7) No engraving saw-tooth, smooth undersurface, legible contour, by high-power spindle.
8) Auto seeking original point system, a good way to improve the working effeciency.
9) Large compatibility of drawing software, such as Type3, artcam and some other CAD or CAM.

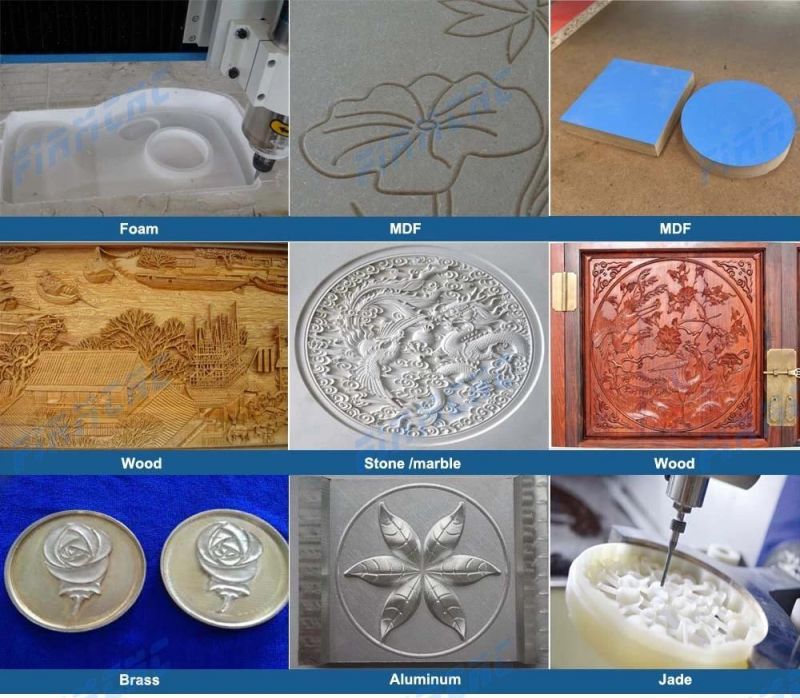

2.Application Industry and Materials:
Wood cnc router is widely used in furniture industry, furniture decoration industry, woodworking decoration industry, musical instrument industry, wooden crafts industry, etc. And this machine is suitable for large area plate engraving, solid wood furniture engraving, solid wood art murals carving, MDF carving and cutting, etc.
---Woodworking Industry: stereo wave board processing, wooden door, various furniture product auxiliary processing.
---Advertising Industry: Advertising label, PVC plate, PCB board (drilling and engraving), Double color boards, logo production, acrylic cutting, plastic suction for making advertising dedication, word cutting, sign making, crystal word, LED display screen, kinds of doorplate, nameplate and so on.
---Mold Industry: Apply for carving various molds, wood pattern, Foam mould, and metal mold, etc.
---Musical instrument industry: instrument 3D surface engraving, shape cutting
---Wooden crafts.
---Exhibition industry: showcase, etc.


3.Parameter

Brand	Firm
Model	FM-1325
Engraving area (W*L*thickness)(mm)	1300*2500*200
Working Form	Full-automatic
Spindle Power	3.0KW water cooling spindle/Italy HSD air cooling spindle
Spindle Rotate(rpm)	0~24000
Motor Driver	Stepper motor (Chinese servo motor or Yaskawa  servo motor is optional)
Tool Diameter(mm)	Ø3.175,Ø4,Ø6, Ø12.7mm
Machine Structure	Industry square tube structure
Transmission System	Taiwan TBI ball screw or high accuracy gear rack
X,Y,Z Rail	Taiwan HIWIN square rail
Mechanical Accuracy	<0.03/300mm
Engraving Speed(mm/min)	8000~12000mm/min
Feeding Speed	manual
Data Transmission	USB or PC connect
Support Format	G code or HPGL
Working Voltage	AC220V/50Hz or 380V/50Hz
Support Format	G Code or HPGL
Range of Application	Woodworking relief engrave ,Cutting , Hollow
Machine Net Weight	1200Kg

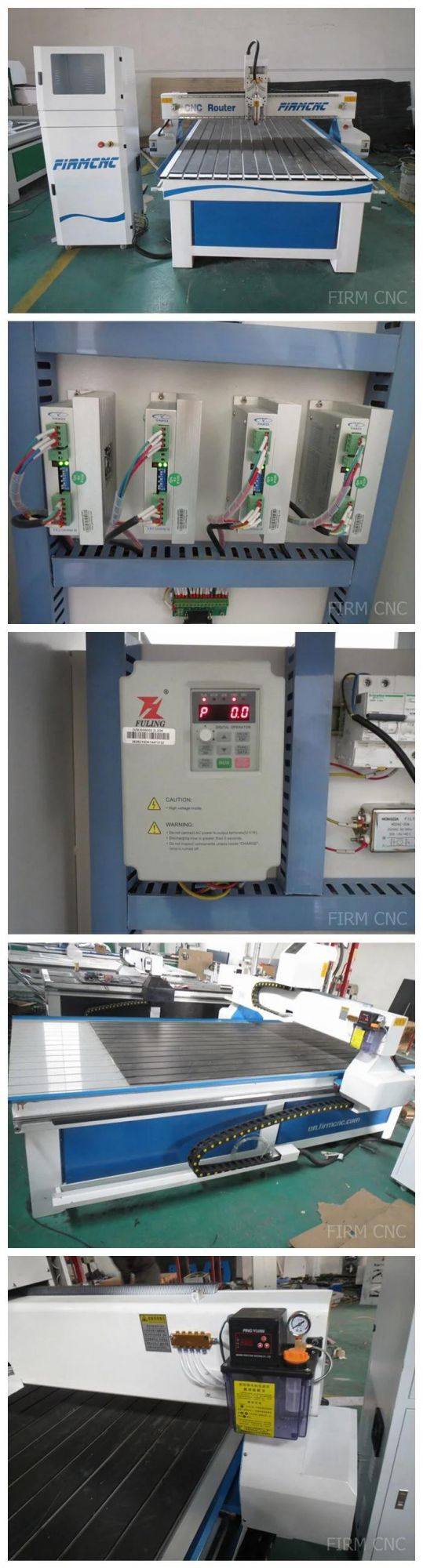

4.The detail parts of our wood machinery:

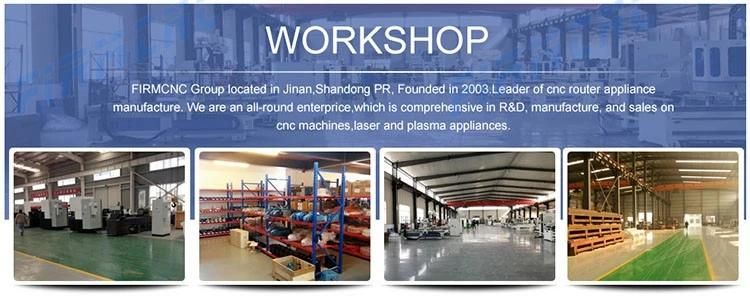

5.Woshop and factory show:

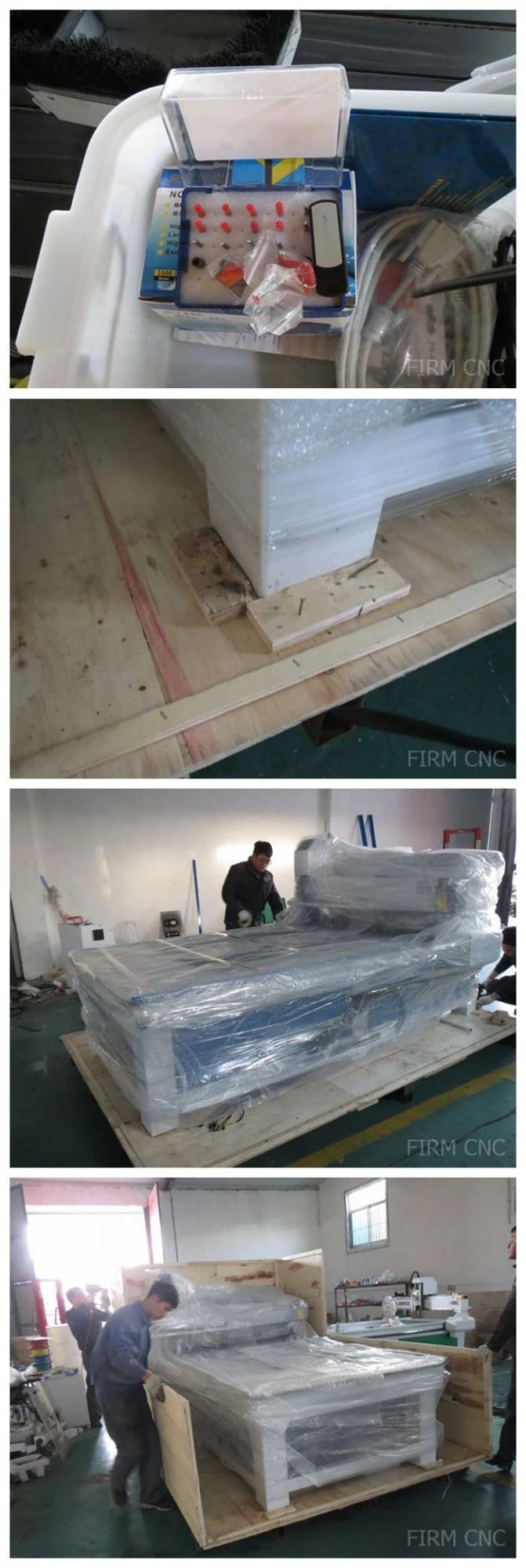

6.Packages  Water-proof plastic film package with foam protection in each corner.
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading.
