• Model NO.：YFK550
• Warranty：1 Year
• Customized：Customized
• Condition：New
• Color：Multi Color
• Pellet Size：4-12mm
• Inner Dia：450-880mm
• Production：0.3-4t,H
• Weight：3-14.5t
• Power：55kw-315kw
• Model：Ring Die
• Machine with：Fan Blower, Bag Dust Collector, Auto-Librication
• Raw Material：Sawdust, Rice Husk, Pine Wood, Palm Wire
• Application：Make Biomass Pellets
• Transport Package：20′gp,40′gp,40′hq & Standard Export Packing
• Specification：According to different models
• Trademark：Yufchina
• Origin：Henan, China (Mainland)
• HS Code：8474802000
• Production Capacity：60 Sets Per Month

Basic Info.

Model NO. YFK550 Warranty 1 Year Customized Customized Condition New Color Multi Color Pellet Size 4-12mm Inner Dia 450-880mm Production 0.3-4t/H Weight 3-14.5t Power 55kw-315kw Model Ring Die Machine with Fan Blower, Bag Dust Collector, Auto-Librication Raw Material Sawdust, Rice Husk, Pine Wood, Palm Wire Application Make Biomass Pellets Transport Package 20′gp/40′gp/40′hq & Standard Export Packing Specification According to different models Trademark Yufchina Origin Henan, China (Mainland) HS Code 8474802000 Production Capacity 60 Sets Per Month

Product Description

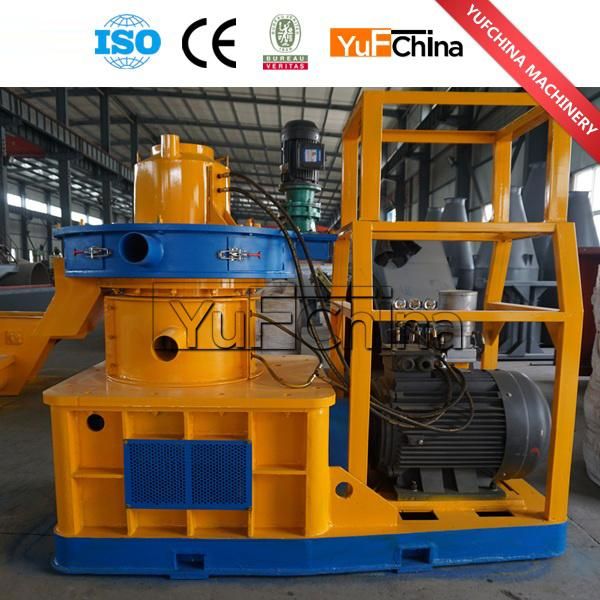

YUFENG factory price YFK550 Vertical Ring Die Pellet Machine


 Application:
Wood pellet making line is the process of making waste materials into solid fuel for burning purposes.YFK series efficient centrifugal pellet mill is our initiative patented product in China through meticulous research and development. It is widely used for the recycling usage of wastes and tailings in biomass fuel plant,wood processing plant ,fertilizer plant,chemical factory,foctory,foodstuffs factory and brewery.

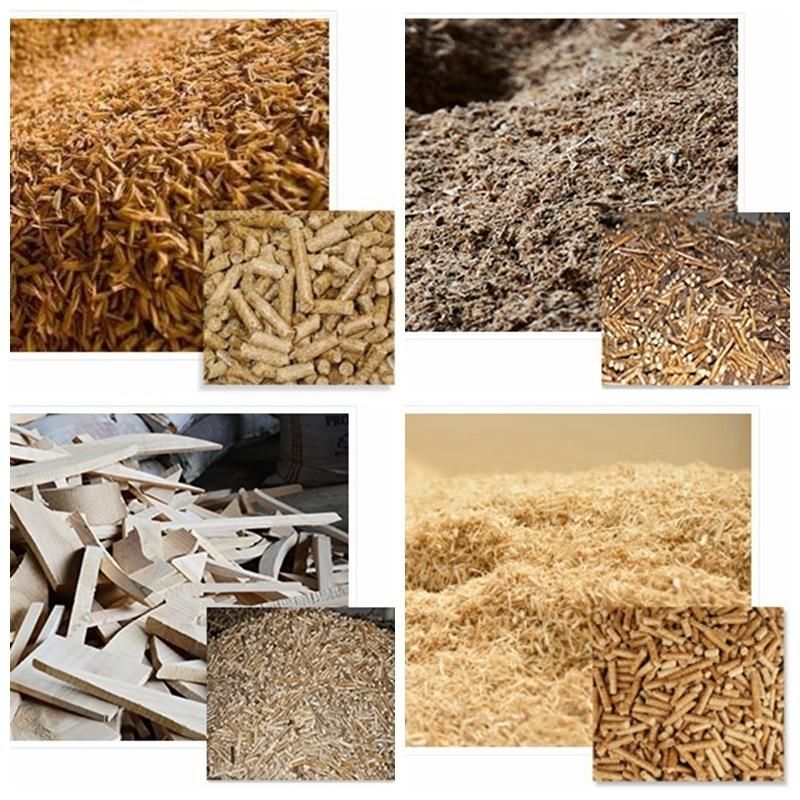

Raw material:

Yufchina biomass wood pellet mill is able to produce cylindrical pellet, and thus be widely used in pelletizing wood, sawdust, crop straw (rice straw, wheat straw, corn stalks, sorghum stalk, soybean stalk, cotton stalk, grape straw, peanut seedlings, and sunflower stalk), rice husk, grass, shrubs, branches, wood cut-off head, bamboo debris, bagasse, etc.

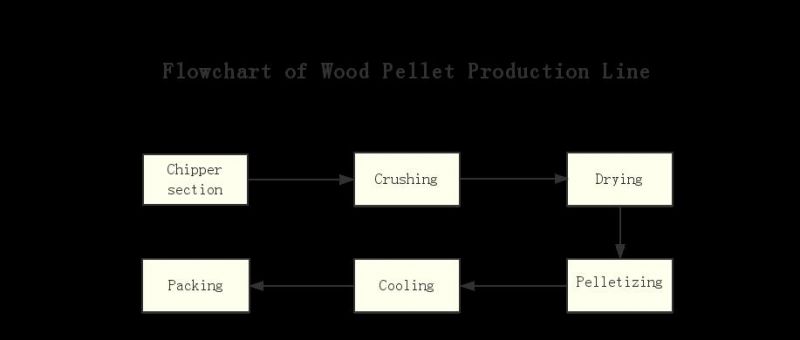

Process:

1.Crushing Process:
1) removing the barks from fresh logs, decrease the ash content of wood pellets;
2) crushing the logs, waste wood, wood branch, wood bark into wood chips whose length is less than 8mm .

2.Drying Process:
1) raw materials: wet wood dust;
2) dried wood dust: 8-15% moisture;
3) capacity: adjustable.

3.Pelletizing Process:
1) raw mterials requirement:
     moisture : 8-15%
     feeding length size: less than 8mm

2) service life:
     ring die (alloy steel): 800-1200hrs;
     ring die (stainless steel): 1200-1800hrs;
     roller assembly: 700-800hrs.                                                           4.Cooling Process:
1) hot wood pellet from pellet machine: 60-80 degree, soft and easy-crack;
2) after cooling:close to room temperature, and very hard.

5.Packing Process:
1)25-50kg/bag;
2) heat sealing.

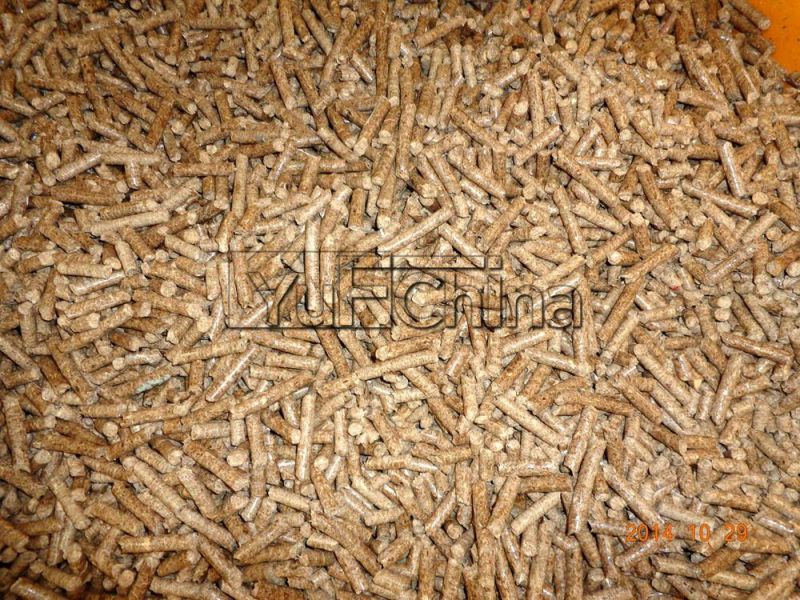

Final Product:



Technical parameters:


Model	Power  (kw)	Pellet size  (mm)	Inner dia (mm)	Production (t/h)	Dimension (mm)	Weight (t)
YFK450	55	Φ4-Φ12	450	0.3-1	2200x900x1600	3
YFK550	75	Φ4-Φ12	550	0.7-1	2300x1000x1780	5
YFK560	90	Φ4-Φ12	560	1-1.5	2600x1300x2300	6.3
YFK580	160	Φ4-Φ12	580	1.5-2	2900x1300x2400	7.5
YFK680	160	Φ4-Φ12	680	2-2.5	3200x1400x2400	8.5
YFK850	220	Φ4-Φ12	850	2-3	3750x1650x3250	12.6
YFK880	315	Φ4-Φ12	880	3-4	4300x1900x3600	14.5

Features:

1. Vertical die,feeding vertically;No arching of raw materials,easy for heating dissipation.
2. Die fixed,rollers rotating,materials centrifugal,evenly distributed around.
3. Double-layer dies,up and down dual-use,high capacity,saving energy.
4. Separate discharge device to ensure the forming rate of pellets, reasonable design.
5. Main parts adopt high alloy wearable materials, and doubled lifetime.
6. 24 hours working with automatic lubrication system.

After-sale service:

1. Provide engineer to wok site guiding install, debugging and commissioning.
2. Test equipment after installation, training operators for free, remind notice in operating.
3.  Regularly return visit to the customers.
4. Within warranty period, we take charge of everything if any quality problems. After the warranty period, we still focus on the plant running and services.
5. Response customer's questions within 1 working day, give effective solutions within 3 working days, go into action with 5 working day.


About us

Yufchina Heavy Machinery Co.,LTD is founded in 2004, the production of R&D located in China. From 2004 on, Yufchina has offered the equipment with high-quality and reasonable price for over 200 customers in global, which helps them get $ 800,000 income annually.
Yufchina is devoted to offer the complete pellet line solution, which can meet the huge biomass pellet market demand in rencent years.






If you have any question, please feel free to contact us.

   Zhengzhou Yufeng Heavy Machinery CO.,LTD

    Website: yufengzg.en.made-in-china.com
