• Model NO.：FM1325 4 axis
• Customized：Customized
• Condition：New
• Color：Customized
• Table：T-Slot and Vacuum Table
• Spindle：Italy Hsd Air Cooling Spindle
• Control System：Syntec 6MB
• Motor and Driver：Japan Yaskawa Servo Motor and Driver
• Inverter：Taiwan Delta
• Guide Rail：Taiwan Hiwin
• Ball-Screw：German Ball-Screw
• Working Speed：25-20m,Min
• Software：Artcam
• Transport Package：Standard Export Woode Case
• Specification：2500* 1300mm
• Trademark：FIRMCNC
• Origin：Jinan, China
• HS Code：8465990000
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. FM1325 4 axis Customized Customized Condition New Color Customized Table T-Slot and Vacuum Table Spindle Italy Hsd Air Cooling Spindle Control System Syntec 6MB Motor and Driver Japan Yaskawa Servo Motor and Driver Inverter Taiwan Delta Guide Rail Taiwan Hiwin Ball-Screw German Ball-Screw Working Speed 25-20m/Min Software Artcam Transport Package Standard Export Woode Case Specification 2500* 1300mm Trademark FIRMCNC Origin Jinan, China HS Code 8465990000 Production Capacity 100 Sets/Month

Product Description

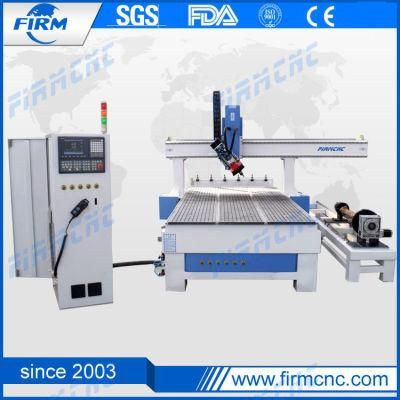

1530 Woodworking Machinery Engraving Cutting 4 Axis CNC Router Machine

4 Axis CNC Machine Configuration
Working Area 3000*1500*400mm *±90 degree
# March3/ Syntec control system
# 9kw HSD spindle(the spindle can rotated ±90 degree)
# 7.5kw Delta VFD B Inverter
# Japan 850W YASKAWA servo motor and driver
# 10mm Steel tube structure
# 25mm Taiwan Hiwin square linear rails
# Taiwan TBI ball screw
# XINYUE helical gear
# T-slot and vacuum table
# Automatic lubrication
# France Schneider contactor and leakage protector



4 Axis CNC Machine Top quality components
1). The machine's body is strong, high-precision, reliable and durable.
2). Imported high precision ball screw, which moving smoothly, to ensure the machine's high precision.
3). Well-known HSD Auto Tools Changer spindle, strong cutting ability, low noise, to ensure the machine working for long time.
4). High-performance driven motor to ensure the machine's high speed and accuracy.
5). Breakpoint specific memory to keep the carving status when power off, processing time forecast and other functions in case of the accidental power outages
6). Auto lubrication system and separated control system, easy to operate.
7). Perfect design, top quality accessories, to minimize the machine's failure rate
4 Axis CNC Machine Technical Parameter

Number	Description	Parameter
1	X, Y, Z Working Area	3000X1500X400mm
2	Table Size	3000×1500mm
3	X, Y, Z Traveling Positioning Accuracy	±0.03/300mm
4	X, Y, Z Repositioning Accuracy:	±0.03mm
5	Table Surface	Vacuum and T-slot Combined (Option: T-slot Table)
6	Frame	Big Steel Tube Structure
7	X, Y Structure	Rack and Pinion Drive,  Hiwin Rail Linear Bearings
8	Z Structure	Hiwin Rail Linear Bearings and Ball Screw
9	Max. Power Consumption	(Without Spindle) 4.5Kw
10	Max. Rapid Travel Rate	40000mm/min
11	Max. Working Speed	30000mm/min
12	Spindle Power	9.0KW
13	Spindle Speed	0-24000RPM
14	Drive Motors	850W Yaskawa Motors
15	Working Voltage	AC380V/50/60Hz, 3pH (Option: 220V))
16	Command Language	G Code
17	Operating System	Syntec Control System
18	Computer Interface	USB
19	Flash Memory	512M
20	Collet	ER32
21	X, Y Resolution	<0.03mm
22	Software Compatibility	Type3/UcancameV9 software (Option: Artcam software)
23	Running Environment Temperature	0 - 45 Centigrade
24	Relative Humidity	30% - 75%
25	Packing Size	3300X2100X2300mm
26	N. W.	1750KG
27	G. W.	2150KG
28	Optional Parts	Dust Collector/ Dust Hoods for three Axis
		Vacuum Pump
		Rotary System
		Mist-cooling System
		Delta/ Panasonic Servo Motors
		Colombo Spindle

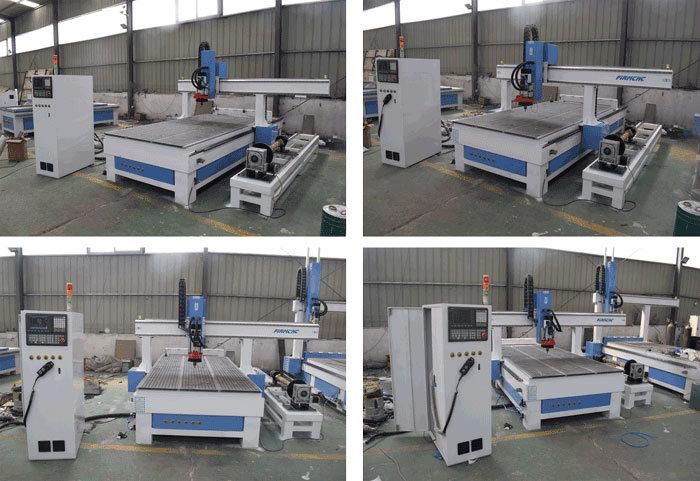

4 Axis CNC Machine Main parts

4 Axis CNC Machine application
Ideal for panel furniture, solid wood furniture, office furniture, wooden door productions, as well as other non-metal and soft metal applications.

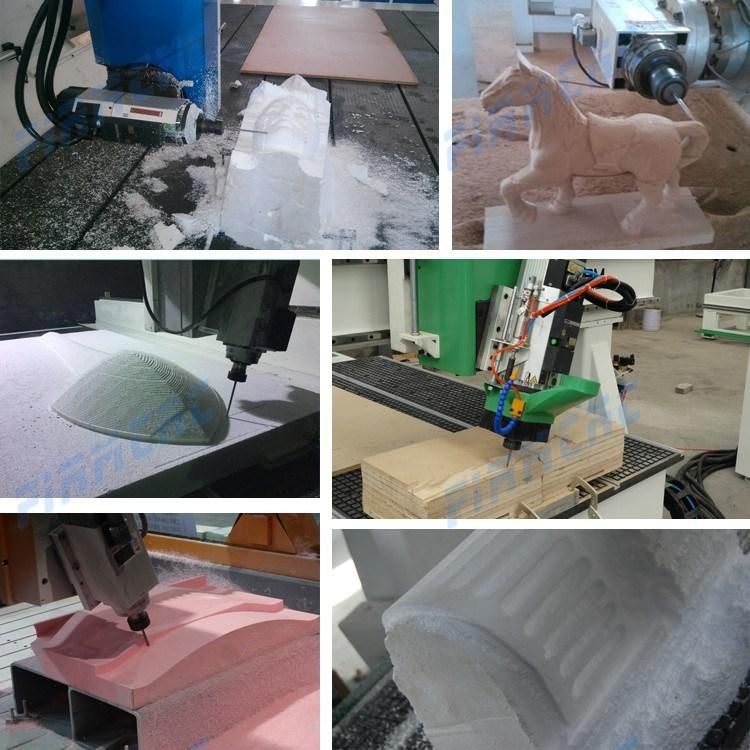

4 Axis CNC Machine samples



Our company
Jinan FIRM CNC Equipment Co., Ltd is situated in Jinan city, Shandong province. We are a professional and good reputation manufacturer of CNC router, laser engraving machine, CNC plasma cutter, laser cutting machine, laser marking machine in China to the new and existing customers that are spread throughout the South America, Middle East, Southeast Asia, Africa, Europe and other counties of the world and the machines has passed the EU CE certificate. The aim of Jinan Firm CNC Router is to continuously upgrade the technique, to help our customers produce the best quality and high precision products.

Customer visit factory

4 Axis CNC Machine Packing and shipping
Water-proof plastic film package with foam protection in each corner.
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading.
4 Axis CNC Machine Aftersale service
Before sale:
We would always be here to provide any information you need at the first time, and give professional suggestions according to your real needs for free;
During sale:
We would deal with all the production and shipping affairs, after everything is ready, we would tell you everything goes well here;
After sale:
We would provide English Version working manual.
If you have any questions during using and maintaining, our engineers who could speak very good English would answer you online or by calls.
Machine warranty is one year. So if your machine has any unintentional damages, we would provide parts for free.
If your machine has big problems if by any chance, our engineers would arrive there to debug and fix.
Our professional after sale service team which are selected by very strict examinations, would pay their 100% time and energy to solve your problems!

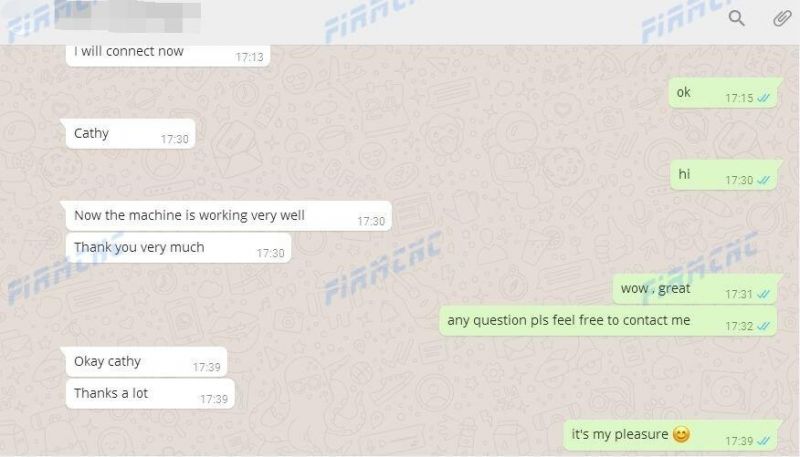

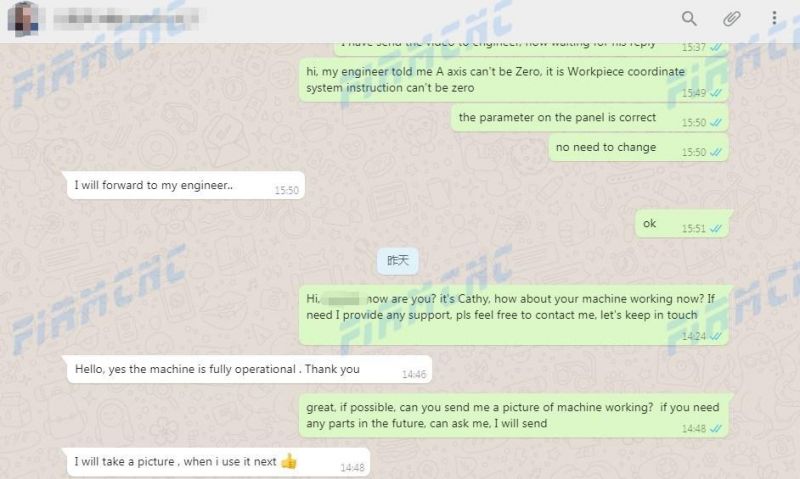

Customer feedback




FAQ
Q1: How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
Q2: How about the payment terms?
30% T/T for deposit, 70%T/T paid before shipping.
T/T, West Union, Paypal
Q3: Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
Q4: How about Guarantee & After Sales Service?
1) The machine guarantee is 12 months.
2) 24 hours technical support by phone, email or MSN, skype etc.
Q5: If some problems happened to this machine during warranty period, what should I do?
We will supply free parts in machine warranty period if machine have some problem. While we also supply free after-service forever, so any doubts, just let us know, we will give you solutions in 24 hours.
Q6: What is the MOQ?
MOQ for our products is 1 set machine, we could send it to your country port if you tell detail information about your country port.
