• Model NO.：FMS1325E
• Customized：Customized
• Condition：New
• Color：Customized
• Item：CNC Router Machine
• Working Area：1300*2500*200mm
• Table Structure：Vacuum Combined
• Spindle：9kw Air Cooling Spindle
• Inverter：Delta Inverter
• Motor：Yaskawa Servo
• Driver：Yaskawa Servo
• Details：Omron Limit & Schneider AC Unit
• Warranty：1 Year
• Transport Package：Wooden Case
• Specification：CE, SGS, ISO
• Trademark：FIRMCNC
• Origin：Jinan, China
• HS Code：8465990000
• Production Capacity：30 Sets,Month

Basic Info.

Model NO. FMS1325E Customized Customized Condition New Color Customized Item CNC Router Machine Working Area 1300*2500*200mm Table Structure Vacuum Combined Spindle 9kw Air Cooling Spindle Inverter Delta Inverter Motor Yaskawa Servo Driver Yaskawa Servo Details Omron Limit & Schneider AC Unit Warranty 1 Year Transport Package Wooden Case Specification CE, SGS, ISO Trademark FIRMCNC Origin Jinan, China HS Code 8465990000 Production Capacity 30 Sets/Month

Product Description

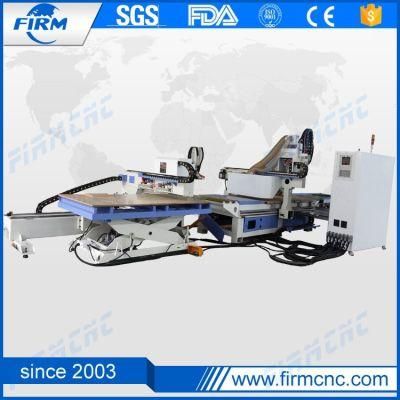

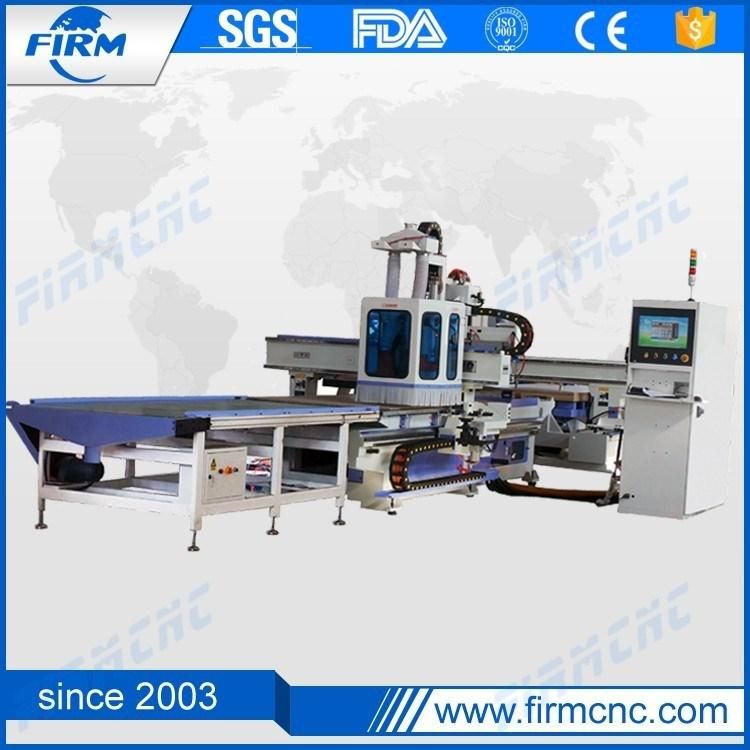

Auto loading and unloading ATC cnc router machine




Configurations:
1. Machine structure
#Frame:8mm thickness heavy duty structure
#Working area: 1300 x 2500 x 250mm
#Automatic loading and unloading system with the best quality.
2. Spindle: 9.0KW ATC HSD air-cooling spindle
#Carousel type 8pcs Automatic Tool Changer
#HSK-63F Tool Magazine
  Drilling bank:Italy Hiteco drilling bank 7Vertical and 2Horizontal drilling (7V2H)
3. Control system:
#Taiwan Syntec control system 20MA + Handle wheel
#Industrial Central Air condition for the control cabinet
4. Guide and rail:
#Dust protected Taiwan PMI 30mm square linear guiding system
    Transmission:
#X,Y axis by Germany Herion-M2 rack and gear transmission
#Z axis G grade Taiwan TBI Ball screw transmission(diameter:40mm)
#Three group moveable positioning cylinder    Table: Double-deck vacuum chamber table
#7.5KW-250m3/h vacuum pump6. Drive system:
#X,Y axis by Japanese 850W Yaskawa Servo Motor and Drivers
#Z axis by Japanese 850W Yaskawa Servo Motor and Drivers with Brake
    system
#X,Y axis Japanese Shimpo reducers
7. Inverter: Taiwan Delta 11KW VFD-B inverter
8. Exhaust system: 7.5KW double pipes exhaust collector
9. Electronic Parts : France Schneider Electronic Spare Parts
10.Automatic lubrecation system
11.Tool setting gauge
12.Hydraulic load feeding system and Belter conveyor unload system
etc.

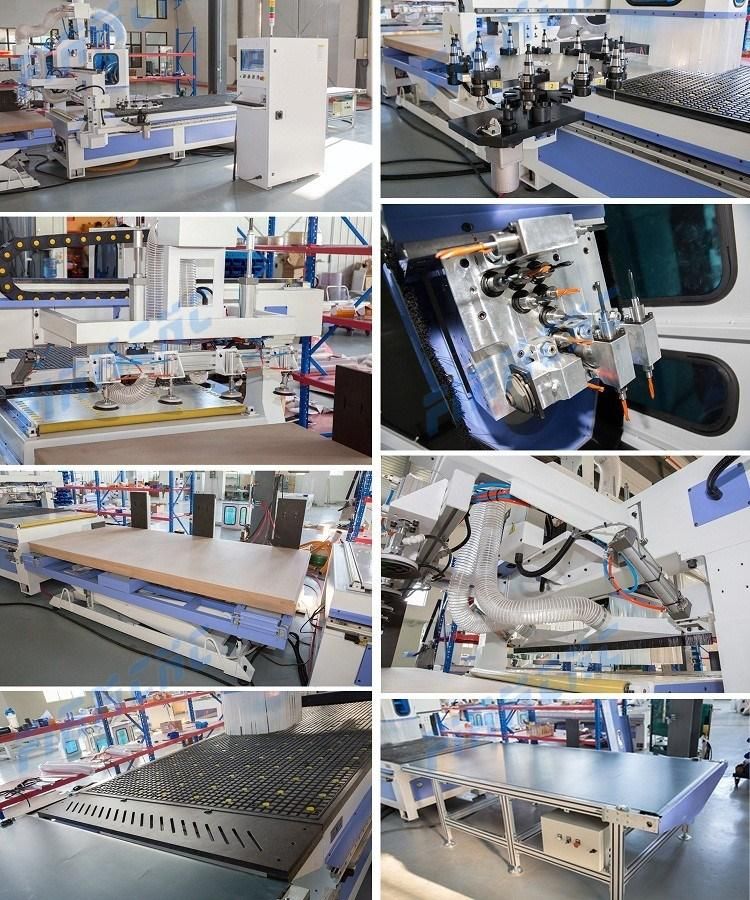

Details:


Technical parameters:

Working area	1300*2500*200mm
Traveling speed	70m/min
Cutting speed	25m/min
Spindle parameters	9.0kw air cooling spindle, 24000rpm
Controller	Taiwan Syntec control system 20MA
Driving	Japanese Yaskawa servo motor and drive 850W
Working voltage	AC380v/3Ph/50Hz
Electrical accessories	France Schneider low voltage components
N.W./G.W.	4200KG/4500KG
Table structure	Double-deck of Multi-point high vacuum adsorbable countertop

Samples:

Packing & shipment :

Save space as much as possible for container loading.

• Inside:Water-proof Plastic Film Package With Foam Protection
• Outside:Solid Seaworthy Wood Box Package
• Below: Steel Tube

FAQ:

1.How long about the machine's guarantee?

1 year

2.How about your after-sales service ?

Technical support by phone, WhatApp,Skype,e-mail or QQ around the clock.

3.How can we install the machine?

English version manual and operation video CD disk.

4.How about the payment terms?

30% T/T for deposit, 70%T/T paid before shipping. T/T, West Union, Paypal

5.Do you Arrange Shipment For The Machines?

Yes, dear customers, for FOB or CIF price, we will arrange shipment for you.

For EXW price, clients need to arrange shipment by themselves or their agents.
