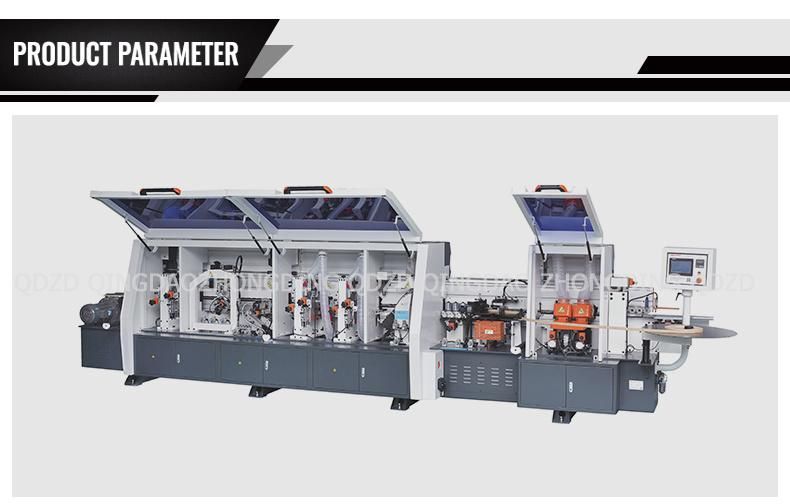

Woodworking Europe Standard High Speed Full Automatic Edge Banding Machine
Qingdao Zhongding Machinery Co., Ltd.- Function：Pre Milling, Gluing, End Trimming, Rough Trimming, Fine Trimming, Contour Tracking, Scraping, Buffing
- Type：Linear Edge Banding Machine
- Edging thickness：0.4-3mm
- Automatic Grade：Automatic
- Panel Feeding Speed：10-23m,Min
- Certification：CE, ISO
Base Info
- Model NO.：ZD450A
- Panel Thinkness：10-60mm
- Min.length panel：100mm
- Min.width panel：50mm
- Manufacturing Principles：Glue Tank Overhead
- Customized：Customized
- Heating Power：1.8kw
- Feeding Motor Power：3.7kw
- Pre-Milling Motor Power：2.2kw*2
- Glue Spreading Motor Power：0.75kw
- End Trimming Motor Power：0.5kw*2
- Rough Trimming Motor Power：0.75kw*2
- Fine Trimming Motor Power：0.75kw*2
- Corner Rounding Motor Power：0.5kw*2
- Polishing Motor Power：0.37kw*2
- Air Pressure：0.8MPa
- Transport Package：Wooden Case
- Specification：12CBM
- Trademark：QDZD
- Origin：Qingdao
- HS Code：84659400
- Production Capacity：500sets
Description
| Type | ZD450A |
| Banding tape thickness | 0.4-3 mm |
| Banding tape width | 12-65 mm |
| Work piece thickness | 10-60 mm |
| Work piece length | >=100 mm |
| Work piece width | >=50 mm |
| Heating power | 1.8 KW |
| Feeding motor power | 3.7 KW |
| Pre-milling | 0.75 KW x 2 |
| Glue spreading power | 0.75 KW |
| End trimming power | 0.5 KW x 2 |
| Rough trimming motor power | 0.75 KW x 2 |
| Fine trimming power | 0.75 KW x 2 |
| Corner rounding motor power | 0.5 KW x 2 |
| Polishing motor power | 0.37 KW x 2 |
| Feeding speed | 10-23 m/min |
| Air pressure | 0.8 Mpa |
| Overall dimension | 6200x850x1520 mm |
| Packing size | 6300x880x1580 mm |
| N.W. | 2300 KGS |
| G.W. | 2450 KGS |
This edge banding machine can work on material of MDF, blockboard, solid wood board, particleboard, polymer door plates, plywood, etc.

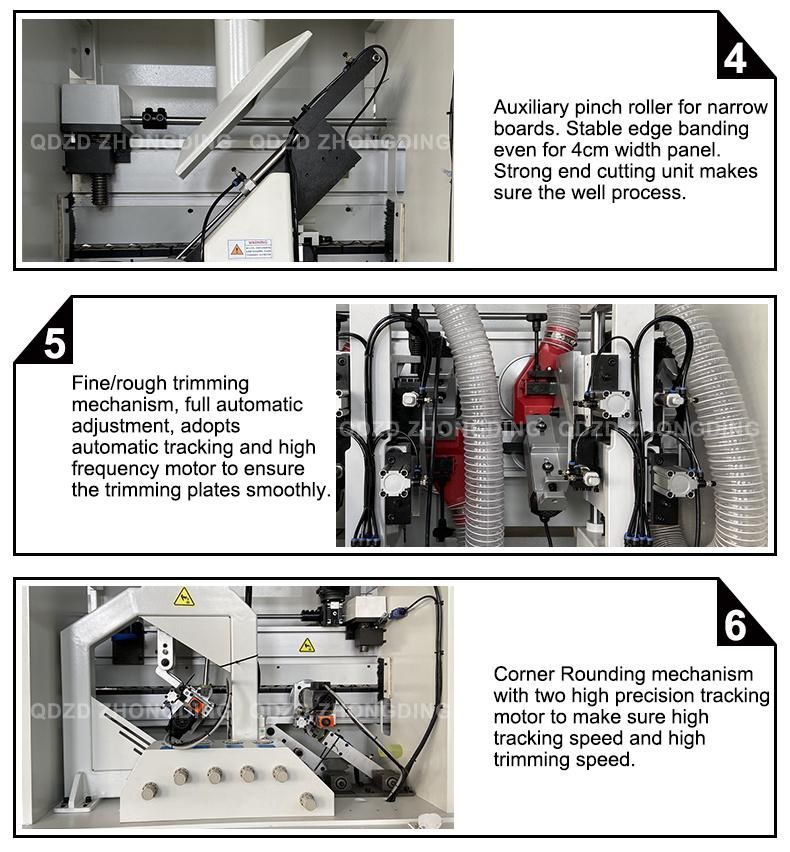

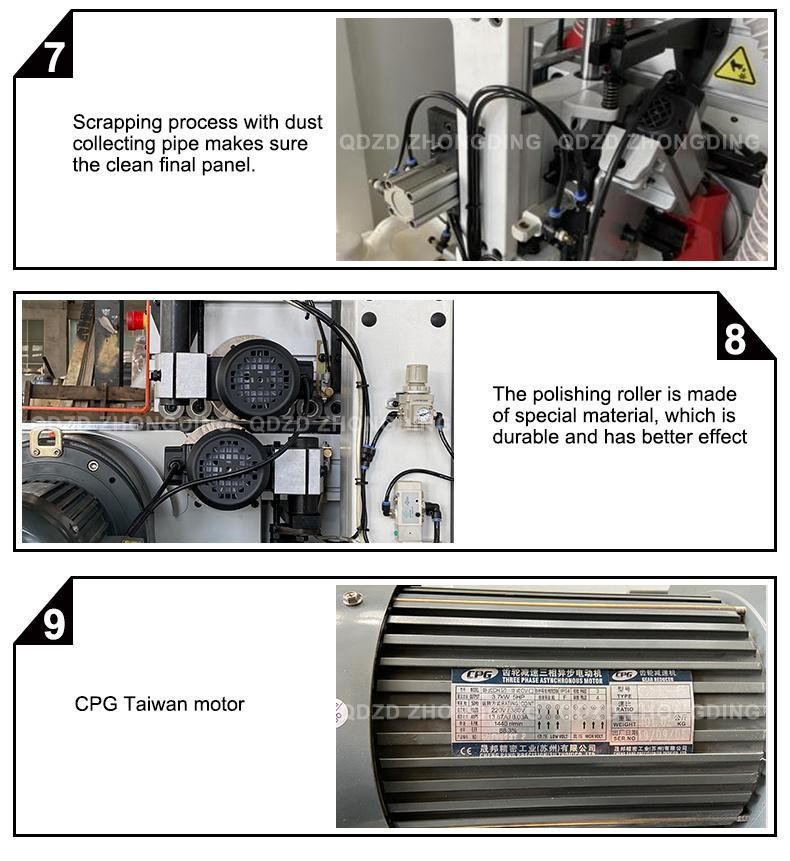

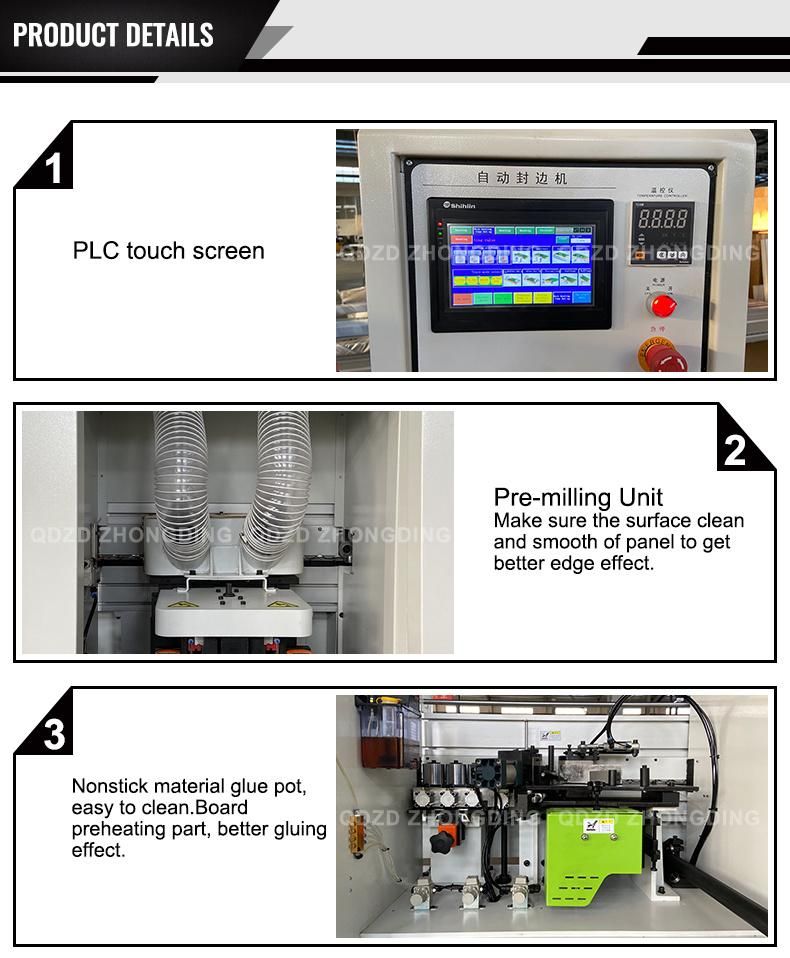

With the functions of pre-milling gluing, end cutting, rough trimming, fine trimming, corner trimming, scraping, and buffing, it can achieve a smooth and fine working finish.
With better parts, it is stable, reliable, and durable It is especially suitable for medium and large furniture manufacturing factories.
Qingdao Zhongding Machinery Co., Ltd. has been engaged in woodworking machinery business for more than 15 years. We are a manufacturer specializing in the production of woodworking machinery.
The company integrates R&D and production into export, and has our own brand of machinery.
Mainly produce panel saws, edge banding machines, polishing machines, sanding machines, engraving machines and other mainstream machines required by panel furniture production lines.

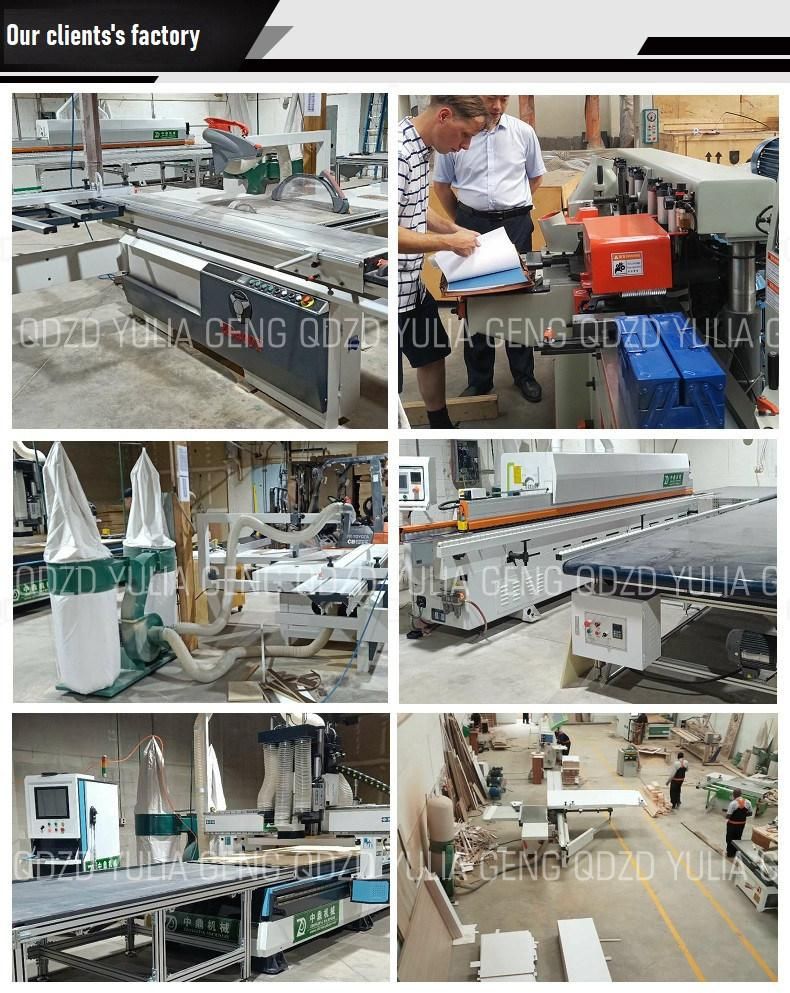

Today, customers have spread all over the world and won unanimous praise from customers.

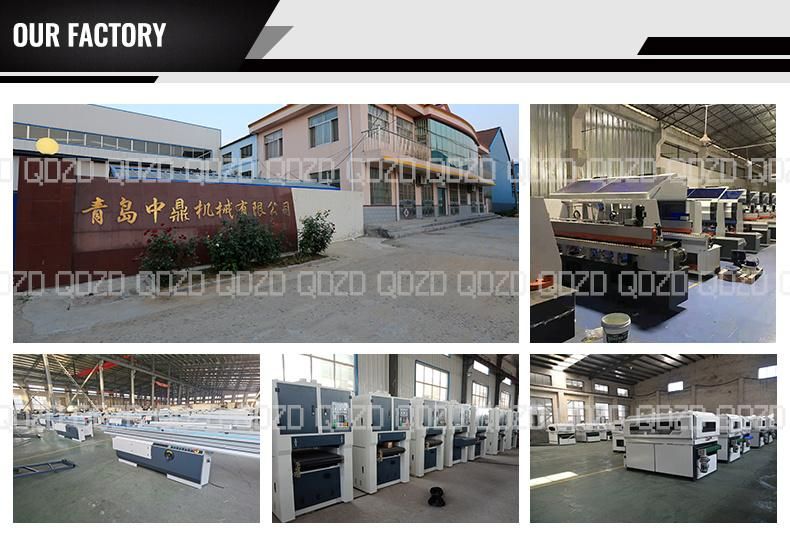

The factory covers an area of ??10,000 square meters, 3 production lines, more than 50 skilled workers, 3 national patents, ISO9001: 2000, CE certification, and high-tech enterprise certification.
One-stop service to meet the individual needs of all kinds of customers from individuals to international companies. Professional customized services.
Our company has more than 10 sales staff to provide one-to-one comprehensive services to customers.
Also has an experienced and knowledgeable technical team that can solve various after-sales problems for customers.
Zhongding Machinery is committed to providing quality services, competitive prices and high standard products.
We are here to welcome your arrival, your joining will make us more strict with ourselves and improve our service level!
