• Model NO.：LT-6090
• Table Type：Aluminum T-Slot Table with PVC
• Guide Rail：Round Guide Rail
• Transmission：X, Y, Z Axis by Tbi Ball Screw
• Motor and Driver：Stepper
• Spindle：1.5kw Water Cooling Spindle
• Collet：Er16
• Control System：Nc Studio,Mach3 with USB
• Inverter：Fuling
• Warranty：2 Years
• Transport Package：Plywood Case with Water-Proof Material
• Specification：1600x1300x1730mm
• Trademark：LINTCNC
• Origin：China
• HS Code：8465990000
• Production Capacity：300 Pieces,Month

Basic Info.

Model NO. LT-6090 Table Type Aluminum T-Slot Table with PVC Guide Rail Round Guide Rail Transmission X, Y, Z Axis by Tbi Ball Screw Motor and Driver Stepper Spindle 1.5kw Water Cooling Spindle Collet Er16 Control System Nc Studio/Mach3 with USB Inverter Fuling Warranty 2 Years Transport Package Plywood Case with Water-Proof Material Specification 1600x1300x1730mm Trademark LINTCNC Origin China HS Code 8465990000 Production Capacity 300 Pieces/Month

Product Description

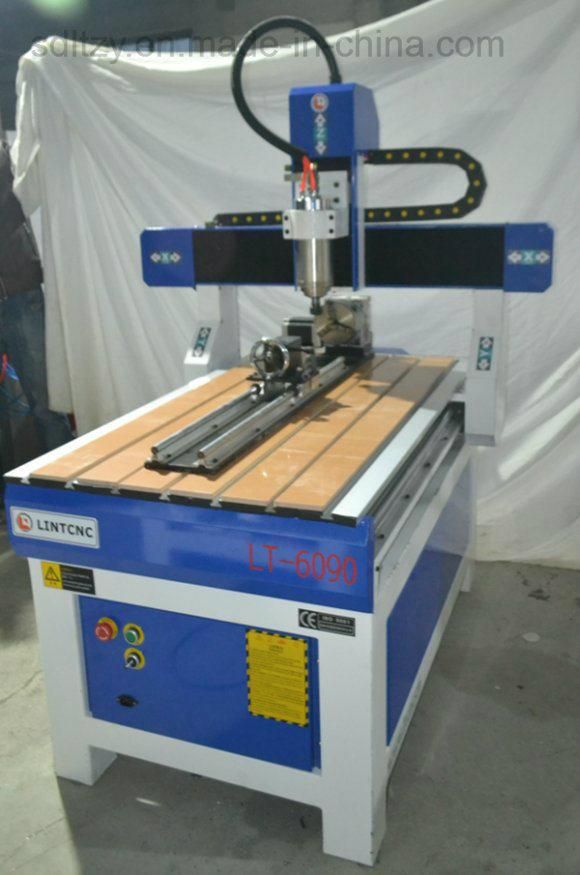

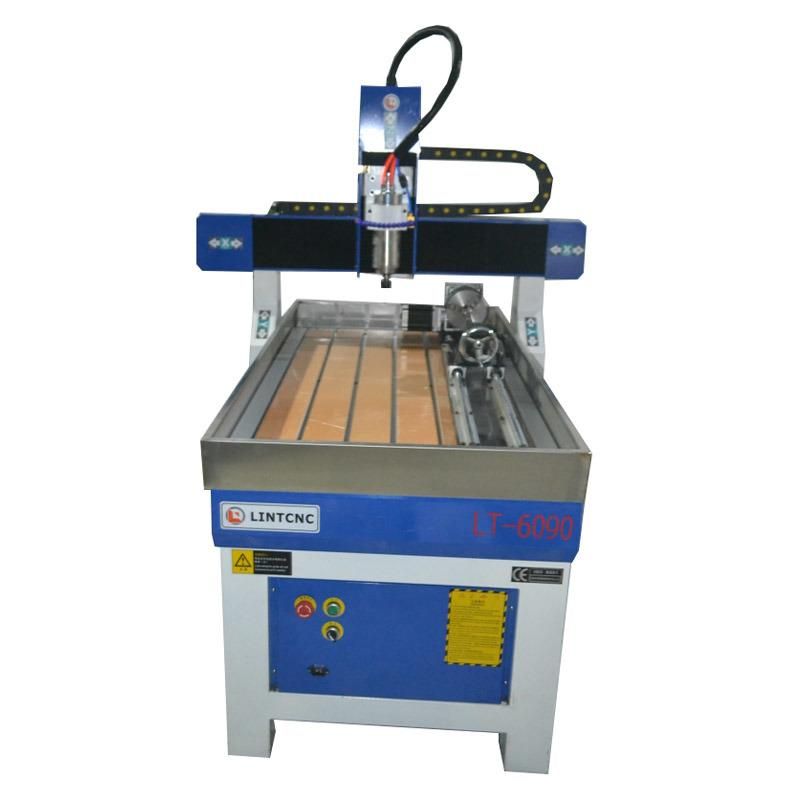

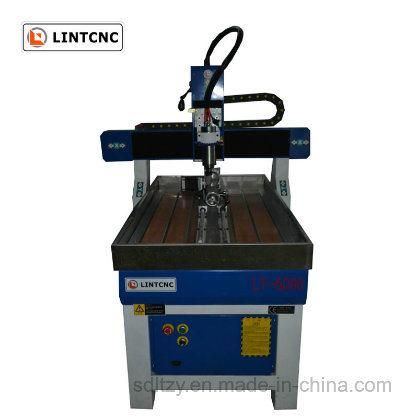

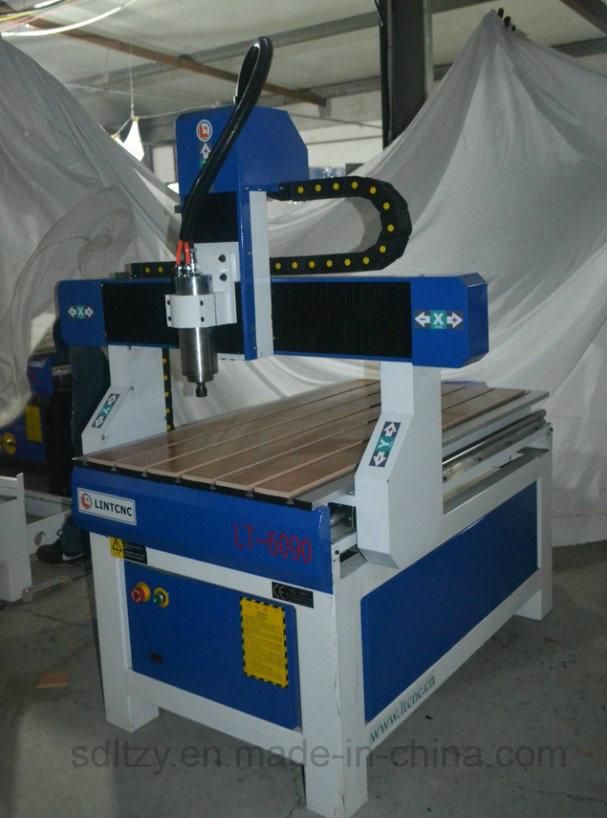

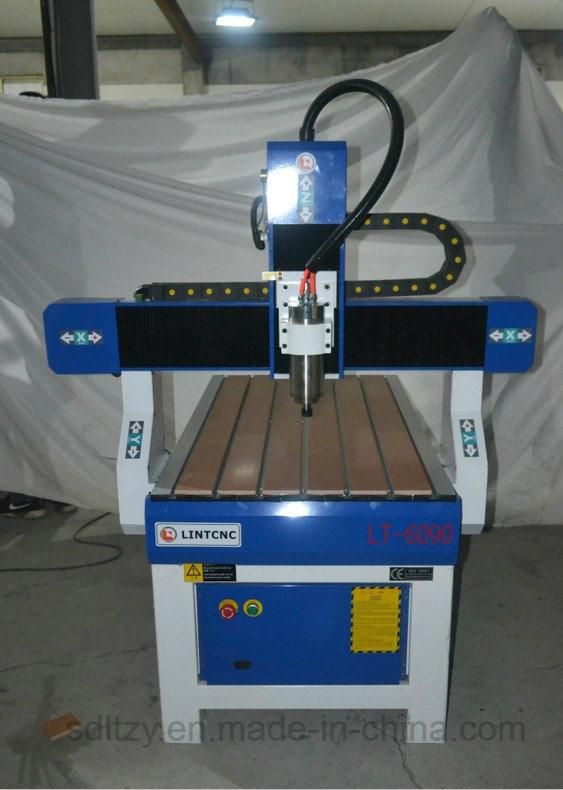

mini metal engraving machine cnc router 6090 wood 4 axis with rotary axis




Standard LT-6090 Machine details:

1). Working area: 600*900*200mm Aluminum T-slot table with PVC;

2). Machine structure Cast-iron structure;

3). Guide rail: Round guide rail;

4). Driving method: Taiwan TBI Ball screw for X,Y,Z axis;

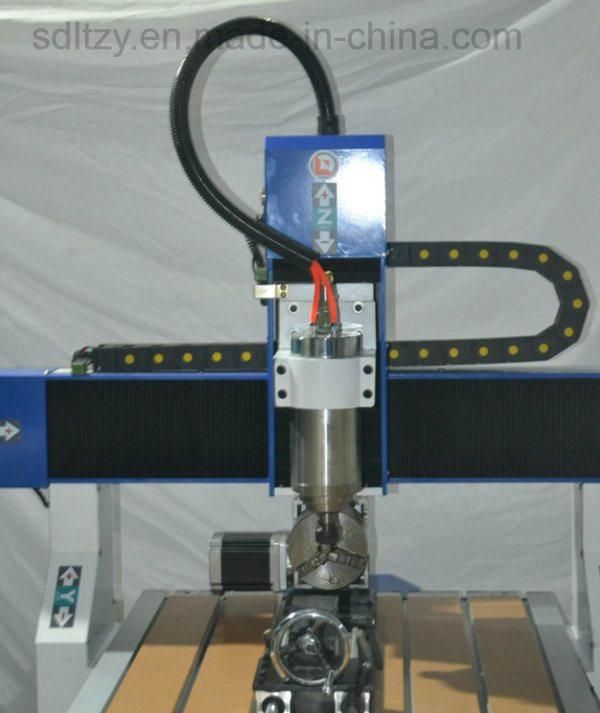

5). Spindle: 1.5KW water cooling spindle(ER16)

6). Motors and drivers: 86BYG-450B stepper motors and MA860H Leadshine Driver;

7). Control system: Mach 3 control system with USB

8). Software: Artcam;

9). Tool box;

10). Tool sensor;

Packing details: one plywood case with water-proof materials; 1600mm*1300mm*1730 mm; 400KGS ;

Optional:

1). Water tank(work for metal and stone), it can cooling tools, extand the tools lifetime

2). Rotary axis(engraver round wood): 80mm, 100mm and 150mm diameter.

3). Mach3 or DSP control system

4). Hiwin square guide rail

Any other optional items, please let me know.



Parameter

Model No.	LT-6090 Wood CNC Router
Table Size	600mm*900mm
Max. feeding height of Z axis	200mm
Table Structure	Aluminum table with T-slot
Machine body	Cast-iron
X Y Z axis Transmission	TBI Ball Screw
X Y Z Guide rail	Round Guide Rail
Spindle Power	1.5kw water cooling spindle
Max.Spindle Speed	24000 rpm/min
Max. Traveling Speed	7000mm/min
Max. Working Speed	7000mm/min
Processing Accuracy	±0.025mm
Reposition Accuracy	≤0.025mm
Driving System	Leadshine drivers
Command Language	HPGL, G Code
Control System	NCSTUDIO/MACH3/DSP
Working Voltage	AC110/220V, 50/60HZ
Net Weight/Gross Weight	400KGS
Package Dimension	1600*1300*1730mm

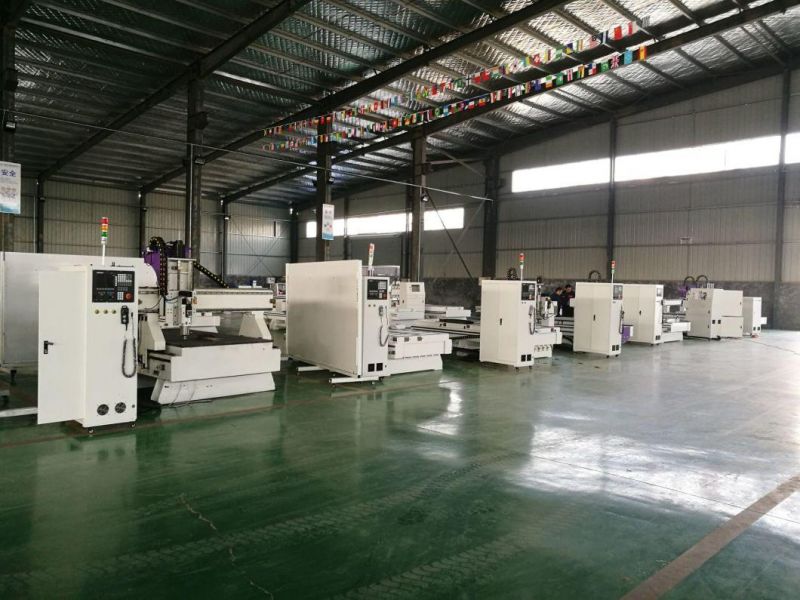

Our company
Shandong Lintianzhiyuan CNC Equipment Co., Ltd. is famous in CNC and laser equipment, located in Jinan, Shandong. Our company integrates the R&D, production, sale and maintenance services. We depend on high-tech and high-quality products to build the world brand.Our main products: large-scale (automatic tool change) CNC woodworking engraving machine, CNC advertising engraving machine, CNC marble engraving machine, CNC plasma cutting machine, CNC glass engraving machine, CNC jade engraving machine, CNC metal mold machine, laser cutting machine, laser cutting bed, laser seal engraving machine and computer cutting plotter product.

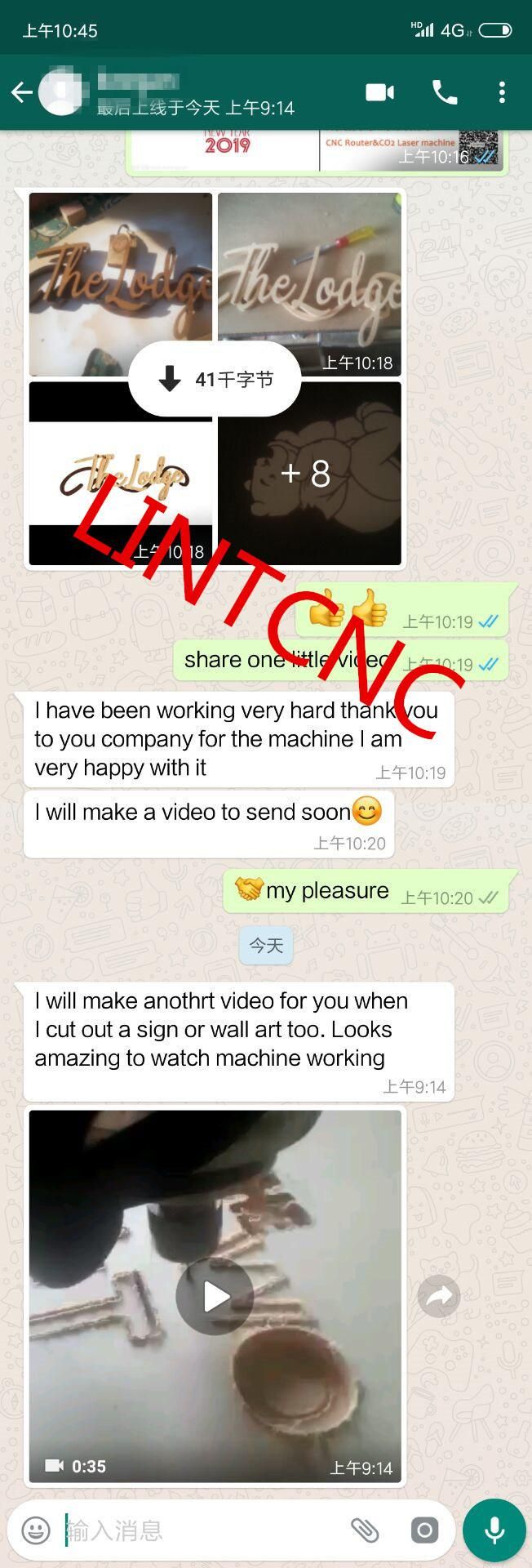

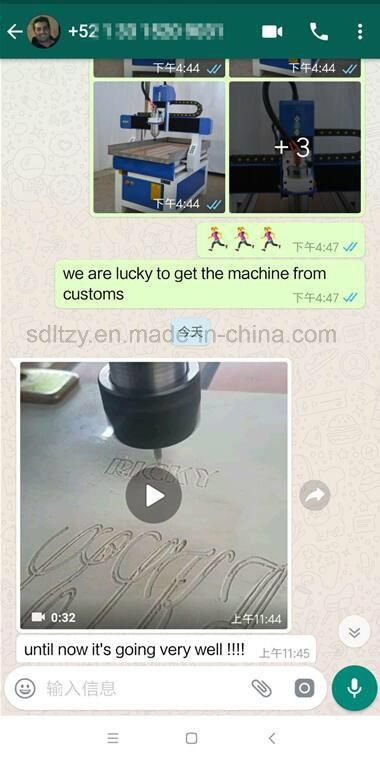

Good Feedback


Contact information:
