• Model NO.：FX2060ATC
• Customized：Customized
• Condition：New
• Color：Customized
• Working Area：2000*6000mm
• Control：Syntec Controller
• Table：Vacuum Table+T-Slot Table+ Vacuum Pump
• Spindle Power：6kw,9kw
• Transport Package：Plywood
• Specification：CE
• Trademark：FLYING
• Origin：China
• HS Code：84649090
• Production Capacity：100PC,Month

Basic Info.

Model NO. FX2060ATC Customized Customized Condition New Color Customized Working Area 2000*6000mm Control Syntec Controller Table Vacuum Table+T-Slot Table+ Vacuum Pump Spindle Power 6kw/9kw Transport Package Plywood Specification CE Trademark FLYING Origin China HS Code 84649090 Production Capacity 100PC/Month

Product Description

wood cnc router engraving machine ATC2060 large format

Features:

FX1325 Carrousel type ATC CNC router is one of the bestsellers with its high performance and affordable price. It is easy to use and easy to maintain. Available in popular table sizes FX1325-1300*2500mm (4' x 8') provides opportunities for a wide variety of application needs, particulaFLCy in volume oriented enterprises, needing to process a variety of sheet sizes, individual parts and solid wood products. This ATC router qualifies with above average "up-times", low maintenance requirements and ease of operation.

Applicable Industries:

1. woodworking industries:

Three-dimensional wave plate processing, cupboard doors, wooden doors,window  processing,video game cabinets and panels, computer table and Plate furniture auxiliary processing.



2. the advertising industry:

Advertising signs, logo production, acrylic cutting, forming system module, a variety of materials  advertising the production of decorative products.



3. the die-board industry:

A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting,  PVC pipe, wooden planks and other non-metallic mold.



4. other industries:

A variety of large-scale relief sculpture, video carving, widely used in gift processing industry.



Applicable Materials:

Wood: Plywood, Soft Wood, Hard Wood, MDF, Chipboard

Plastic: Acrylic, ABS, HDPE, PVC, UHMW, HDPE

Stone: Granite, Marble, Slate, Basalt, Pebbles, Natural Stone, Ceramic, Porcelain

Metal: Aluminium, Brass, Copper, Mild Steel, Stainless Steel

Composite: Aluminium Composite, Copper Composite, Titanium Composite, Zinc Composite.

Specifications:


Machine model	FX2060 ATC CNC router with 8 tools + vacuum pump and dust collector

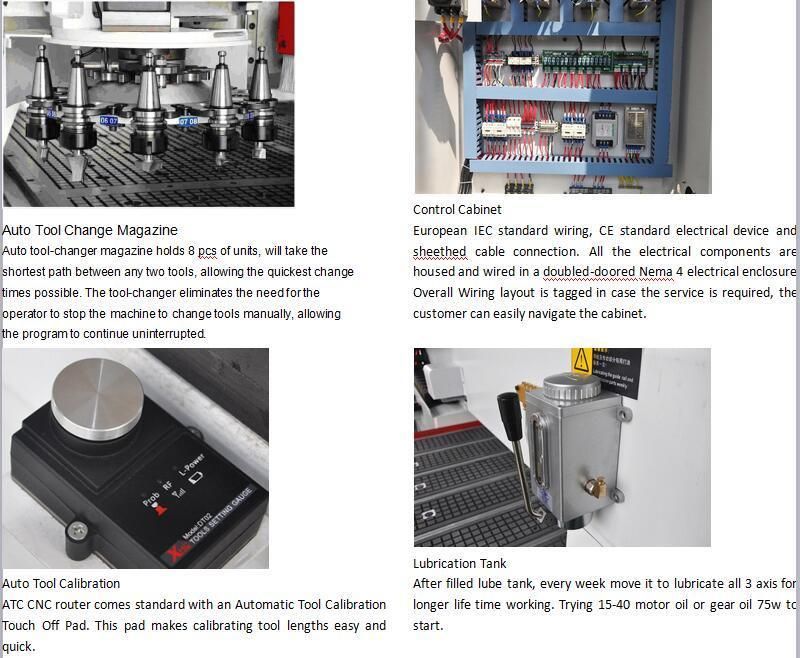

ATC type	Carrousel with 8 tool magazines(with 8 pcs ISO30-ER32 tool holders)
X,Y,Z working area	2000*6000*300mm (2060)
Table size	2000*6540mm
Inverter	Taiwan Delta frequency inverter 11kw from Taiwan

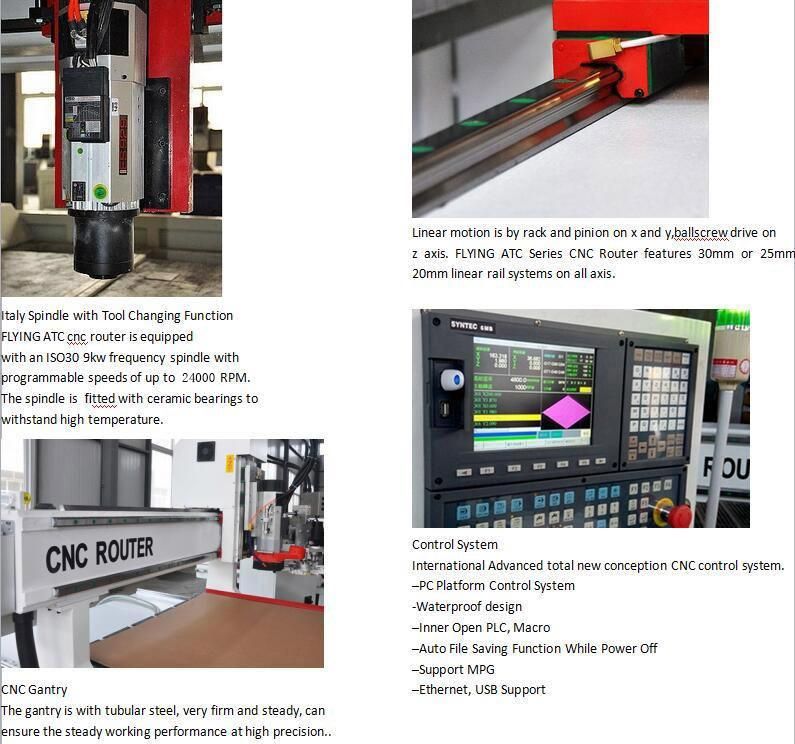

Spindle	Italy HSD Auto tool changer spindle 9kw

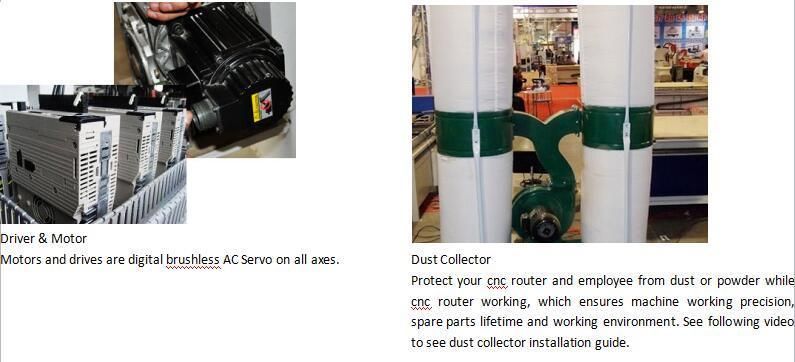

X Y Z axis drive and motor(1+2+1 motors)	Japan YASKAWA Servo drive and motor
Vacuum System	Vacuum table+T-slot table+ vacuum pump
X, Y, Z Travelling Potioning Accuracy	±0.03mm
Auto positioning	Pop up pins for auto positioning
Frame	Big thickened Square Steel Square Tubes, thickness is 8mm
X, Y structure	Helical Rack and pinion drive, Taiwan Hiwin rail linear bearing 25mm(HGR25)
Z axis structure	Taiwan TBI ballscrew 25mm , Taiwan Hiwin linear rail 25mm(HGR25)
Max Rapid Travel Rate	50,000mm/min
Max working speed	36,000mm/min
Working voltage	AC220V/60Hz/ 3 phase
Delivery time	20 Days
Command languages	G code
Control system	Syntec control system 6MB from Taiwan
Software	Artcam / Ucancam English version
Switch and emergency stop	SCHNERDER switch, Omron emergency stop from Japan
