• Model NO.：FM1325
• Customized：Customized
• Condition：New
• Color：Customized
• Engraving Area：1300* 2500* 200mm
• Spindle Power：3.5kw Air Cooling Spindle
• X,Y,Z Rail：Imported Taiwan Hiwin Square Rail
• Support Format：G Code or Hpgl
• Working Voltage：AC220V,50Hz or 380V,50Hz
• Feeding Speed：Manual
• Data Transmission：PC Connect
• Motor Driver：Stepper Motor
• Drive Motor：Stepper System
• Transport Package：Standard Export Wooden Case
• Specification：CE, SGS, ISO
• Trademark：FIRMCNC
• Origin：Jinan Shandong China
• HS Code：8465990000
• Production Capacity：30 Sets,Month

Basic Info.

Model NO. FM1325 Customized Customized Condition New Color Customized Engraving Area 1300* 2500* 200mm Spindle Power 3.5kw Air Cooling Spindle X,Y,Z Rail Imported Taiwan Hiwin Square Rail Support Format G Code or Hpgl Working Voltage AC220V/50Hz or 380V/50Hz Feeding Speed Manual Data Transmission PC Connect Motor Driver Stepper Motor Drive Motor Stepper System Transport Package Standard Export Wooden Case Specification CE, SGS, ISO Trademark FIRMCNC Origin Jinan Shandong China HS Code 8465990000 Production Capacity 30 Sets/Month

Product Description

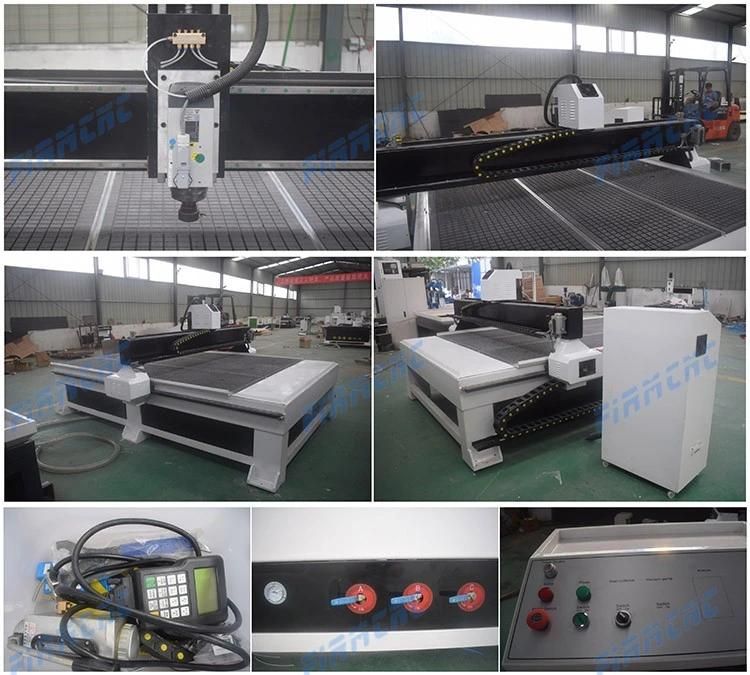

Wood Working advertising acrylic cutting machine

Main Feature
1.3.5KW air cooling spindle(optional HQD or HSD spindle), high precision, long life time, steady working, easy to start up.
2.Thicken square pipe structure, well welded,no distortion for whole structure.
3.Adopt Taiwan square orbit, double slippers. Bearing heavy,
working steadily high precision, and long life time.
4.DSP controller system with USB interface, working without connecting
with computer during working and easy to control.
5.This machine can engrave any design,support scanners,direct support ,
Art CAM,Type3,Wen tai,carving and many other G-code format generated by CAD/CAM
6.Adopt high speed Yaskawa servo motor Max speed is 30M/MIN.
7.Dust collector (contain dust collector pump and dust collector pipes), for sucking away the dusts, such as wood dusks and so on.

Technical Date

Brand	FIRMCNC
Model	FM-1325
Engraving area	1300*2500*200
Working Form	Full-automatic
Spindle Power	3.5kw constant air cooled spindle
Spindle Rotate (rpm)	18000rpm/min
Motor Driver	Yaskawa servo motor (optional step motor )
Transmission System	Imported ball screw or high accuracy gear rack
Guide rail	Imported square rail
Mechanical Accuracy	<0.03/300mm
EngravingSpeed (mm/min)	10-20m/min
Contorl system	DSP CONTROL
Tool Diameter (mm)	Ø3.175,Ø4,Ø6, Ø12.7mm
Machine Structure	Industry square tube structure
Data Transmission	PC connect
Support Format	G code or HPGL
Working Voltage	AC220V/50Hz or 380V/50Hz
Range of Application	Woodworking relief engrave ,Cutting , Hollow
Machine Net Weight	1500Kg

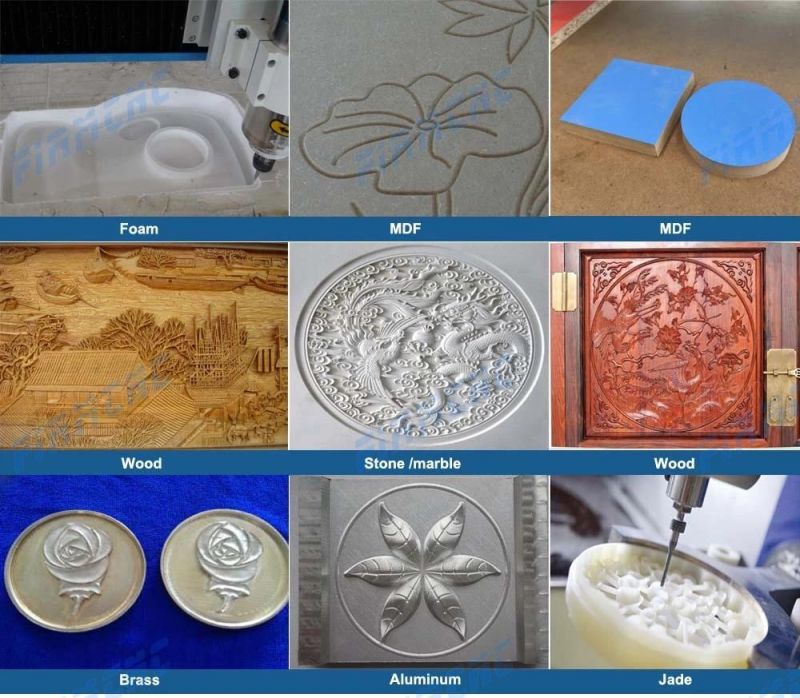

Application
1.Wood working :Solid wave board process,door of cabinet,wooden door,artistic wooden door ,no-paint door,avoid wind,process of the artistic window,
shoes cleaning machine,the cabinet of the playing machine and the board, mahjong table,computer table .
2 Advertising:Advertising board,Label design,Acrylic cutting,model, of the multi material decoration products.
3.Model industry:It can engrave on the steal materials such as copper, aluminum ,iron etc and  non-mental materials such as man-made marble,
sand, plastic board PVC materials, wood board etc.
4.Other field:It can engrave many image, embossment,and widely used in artistic industry.

Our Services
1. 24 hour Technical support by phone, e-mail or MSN around the clock.
2. Friendly English version manual and operation video CD disk.
3.7-15 working days after down payment or full payment.
4. Machine will be adjusted before it is delivered; operation disk/CD was included.
5. Our technician can give you remote guide online (Skype or MSN) if you have any question.
6. Engineers available to service machinery overseas, seller and buyer discuss the charges.

Packaging & Shipping
1) Foam and wrapping film on the surface of the machine inside. Rain-proof, Dust proof.
2)Standard export plywood case. Upwards, moistureproof shipping marks. Safety guaranteed.
3) fumigation-free
4)With shipping mark if you like.
5)Outside: Marked packing size, model, weight and other information

Company Information
FIRMCNC Group located in Jinan,Shandong PR, Founded in 2003. Leader of cnc router appliance manufacture.
We are an all-round enterprice,which is comprehensive in R&D, manufacture, and sales on cnc router appliances.



FAQ
1.How to choose a suitable model ? processing materials? max cutting thickness?
2.Do you have operation manual and working video?
3.Does your company can processing my samples?
4.If I bought machine, but don't know how to operation, what I can do?
5.How am I going to work on service parts on the machine? Example what if parts need to be replaced?
6.Does your engineer do aftersale service at abroad? how much cost?
