• Model NO.：2412
• Diamond Boring Machine Layout：Multiple-Sided
• Diamond Boring Machine Spindle Configuration：Horizontal
• Diamond Boring Machine Spindle Number：Multiple-Spindle
• Certification：CE, ISO, FDA
• Machine Item：Infrared Laser CNC Side Hole Machine Panel Furnit
• Machine Painting Color：Be Made According to Your Need
• Package：Safe Wooden Box or Plastic Film Wrapping
• Price：Our Most Favorable Price for You
• Delivery Time：5-7 Days
• Warranty：Offer Free Spare Parts and Service Within 12 Month
• Working Experience：Twenty Years′ Experience
• Voltage：380V,50Hz 3phase Can Be Customized
• Speed：120 M,|Min
• Net Weight：30000 RMB
• Transport Package：Standard Package, Be Made According Cutomer Need
• Specification：3000*800*1400mm
• Trademark：XINLIHUI Semi-automatic Wood multi spindle drilli
• Origin：Qingdao City
• HS Code：84659100
• Production Capacity：100,Week

Basic Info.

Model NO. 2412 Diamond Boring Machine Layout Multiple-Sided Diamond Boring Machine Spindle Configuration Horizontal Diamond Boring Machine Spindle Number Multiple-Spindle Certification CE, ISO, FDA Machine Item Infrared Laser CNC Side Hole Machine Panel Furnit Machine Painting Color Be Made According to Your Need Package Safe Wooden Box or Plastic Film Wrapping Price Our Most Favorable Price for You Delivery Time 5-7 Days Warranty Offer Free Spare Parts and Service Within 12 Month Working Experience Twenty Years′ Experience Voltage 380V/50Hz 3phase Can Be Customized Speed 120 M/|Min Net Weight 30000 RMB Transport Package Standard Package, Be Made According Cutomer Need Specification 3000*800*1400mm Trademark XINLIHUI Semi-automatic Wood multi spindle drilli Origin Qingdao City HS Code 84659100 Production Capacity 100/Week

Product Description

1 Introduction:
automatic side hole drilling machine is specially designed for woodworking industria for Various Wooden products,like Solid Wood Furniture and Solid Wood Door, Decorative Panel, Computer Desk, Office Furniture.
Also we have other type of drilling machine, as picture showed, bench drilling machine, portable driller and hinge drilling machine

CNC horizontal drilling is an economical and practical horizontal drilling equipment for plate furniture, which is combined with a numerical control cutting machine to form a plate furniture production line, instead of traditional sliding table saws and row drills. This machine can complete the production by scanning the code, do not need to find a special drill master, greatly reducing the labor costs.

The two-dimensional code scanning label can accurately and quickly import data, so that the plate can be quickly positioned to complete the hole surface processing of the plate.

1. Scanning function: After fixing the workpiece, if the infrared scanning probe detects a vertical hole on the front surface, it will create a horizontal hole in the side position. You can also adjust the position of the sawdust hole on the control side of the device.

2. Scan code function: This device can be docked with most departments' cutting software. The device is equipped with a scan code gun. After scanning the code, the horizontal hole position and the wood chip hole will be set.

Applicable Scope:
1. Furniture Industry: wooden doors, cabinets, panel furniture, office furniture, solid wood furniture, windows, tables and chairs, custom furniture, etc..
2. Wood Products: stereo box, game cabinets, computer desks, sewing machines, musical instruments.

2, Main Technical Parameter

Machine bed	Five face milling The cross beam, the rack and the machine head are all dealt with sand
System	XinJie  PLC
Principal axis	Shun 2.2kW spindle
Frequency converter	Beishide
Motor supporting reducer	Stable, high precision, fast speed
Sheet metal	With guardrail
Guide	Taiwan CSK
Laser sensor	Bonner, USA
Motor drive	MIG servo
Head piece	Processing center processing
Machining precision	Positive and negative 0.05 mm
Speed	120 m/|min
Other	Both cylinders and wires use well-known domestic brands
Surface paint	Famous brands in China can't use paint for a long time without changing color.
Anchor	6 pieces
Machine size	3000*800*1400mm
Net weight	850Kg

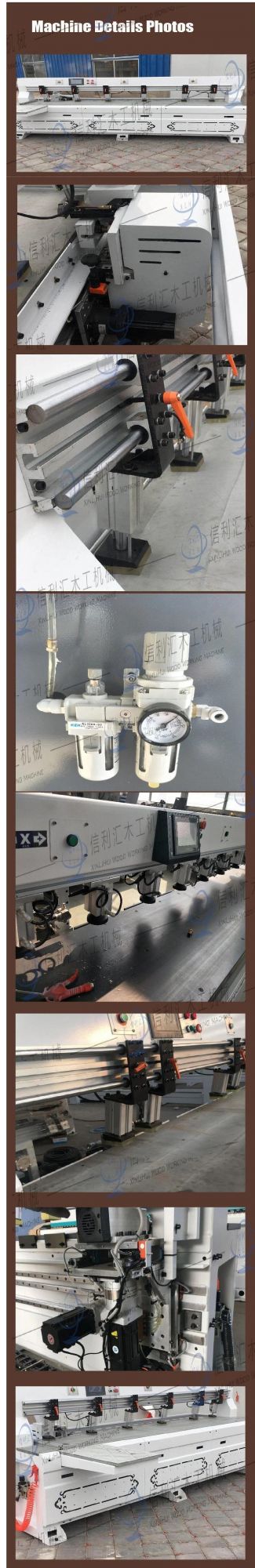

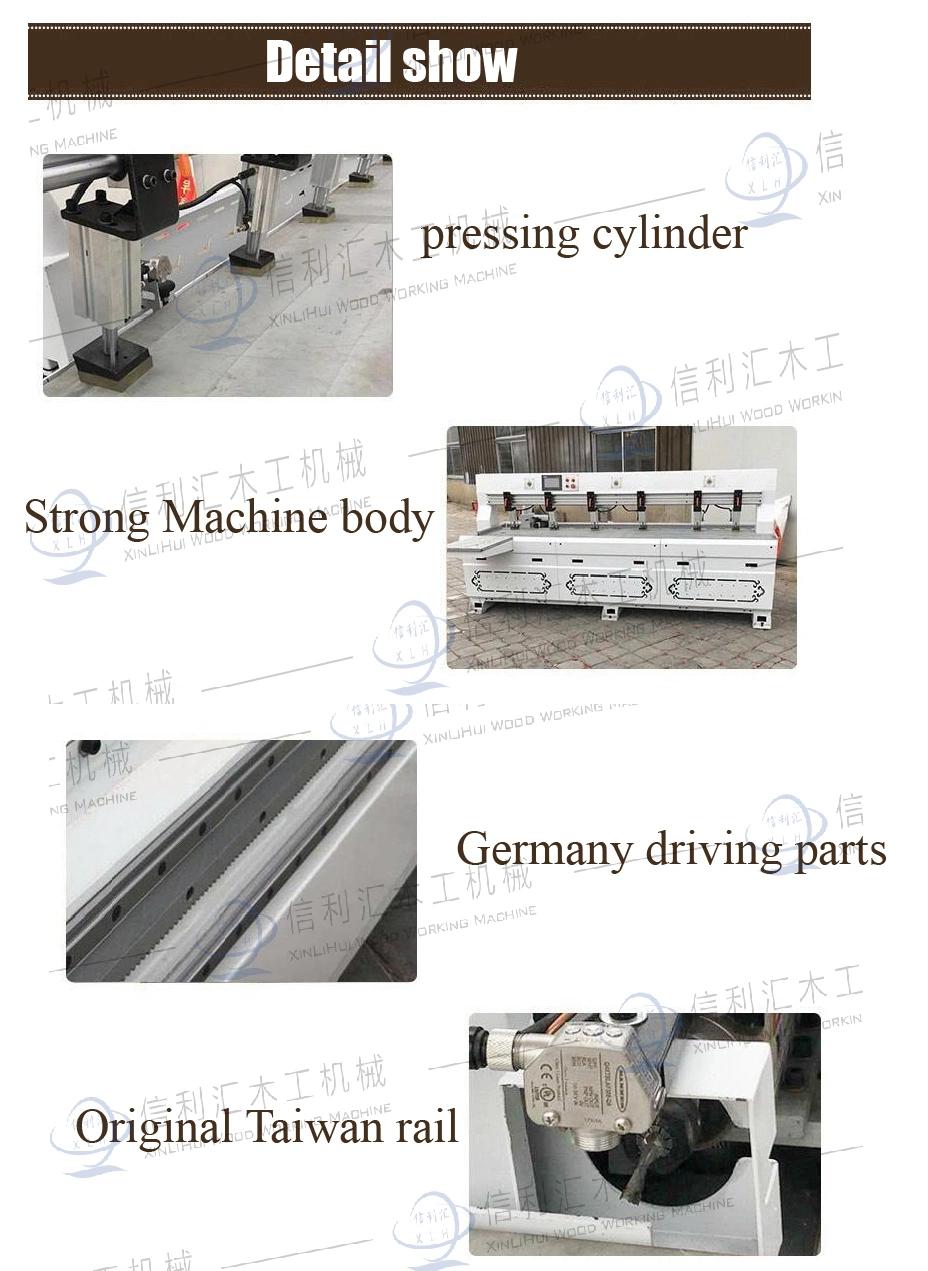

3, Detail machine pictures, all photoes are for 100% real shooting !




4, Its main advantage:

1.Automatic side drilling machine used for horizontal perforated plate custom furniture.Completely replace the traditional drill, to get rid of the traditional punching mode.Dependence on skilled workers, scan code processing directly.Through the production with special design software.

2.Good parts: adopt Taiwan linear guide domestic ball screw; Taiwan reducer.

3.Reasonable design: independent computer control: operation and maintenance more convenient.

4.Three working areas:processing three different size plates at the same time with high efficiency

5.Automatic oil lubrication system:prolong the service life of the machine.
