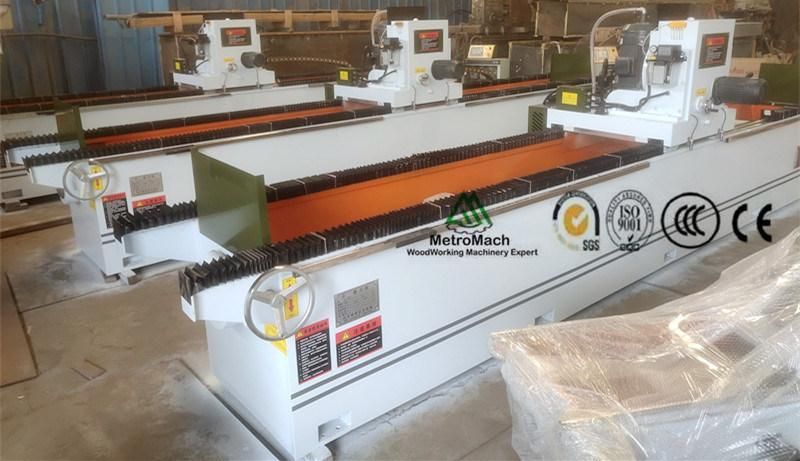

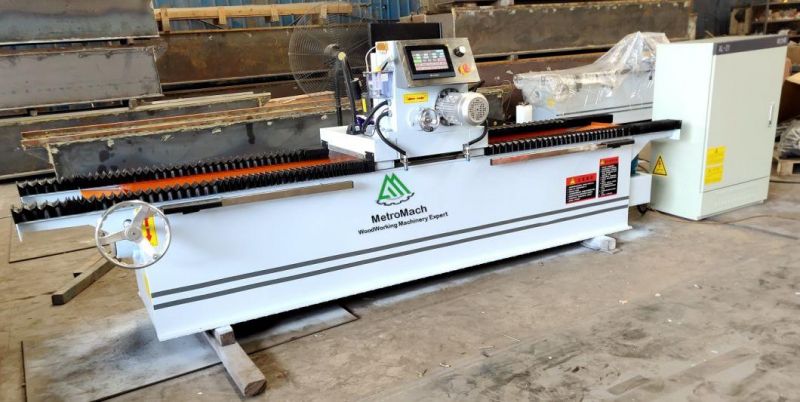

Automatic Plywood Peeling Knife Grinder for Peeling Machine and Debarker Machine
Linyi Sin San Lin Smart Machinery Co., Ltd.- Certification:CE, ISO, GS
- Transport Package:Standard Packing
- Specification:3300 x 1400 x 1400mm
- Trademark:Metro
- Origin:China
Base Info
- Model NO.:DM1815
- HS Code:84603900
- Production Capacity:200set,Month
Description
Basic Info.
Model NO. DM1815 HS Code 84603900 Production Capacity 200set/MonthProduct Description
Automatic Plywood Knife Grinder Machine for Veneer Peeling and Debarker Machine1.This machine can work types: straight knife, knife like peeling knife, knife granulator, slicing knife, knife, scissors and so on.
2 Longmen frame design, combined with high quality steel welding, the elimination of internal stress, the elimination of internal stress. The body has a high strength and good rigidity.

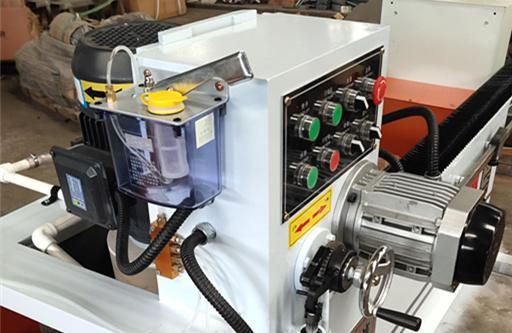

3.grinding head with special motor. It can adjust the direction of axial clearance, stable transmission, long service life, high precision.
4 the vertical motion of the ball screw is used to ensure the accuracy.
5 the working platform adopts electromagnetic chuck, and it is very convenient to use a knife. The working table is easy to adjust the angle of the worm wheel and worm.
6 rail with linear guide rail to ensure the stability of the horizontal motion of the grinding head. Taiwan HIWIN linear guide rail imports.
7 use of transducer. Easy to adjust grinding head horizontal and vertical speed.
8 the working accuracy of the machine is 0.01mm
Parameters:
Machine name | Automatic knife grinder |
Machine model | DM1815 |
Max. Grinding length | 1500mm |
Working platform width | 200mm |
Working platform angle | ±90° |
Grinding motor power | 4Kw |
Linear speed of grinding wheel | 15m/s |
Sliding plate speed | CVT |
Machine size | 3300 x 1400 x 1400mm |
Machine weight | 198Kgs |
