• Model NO.：MQS1813,380S
• Origin：Shandong, China
• Production Capacity：55m,Min

Basic Info.

Model NO. MQS1813/380S Origin Shandong, China Production Capacity 55m/Min

Product Description

The thickness of peeling veneer can adjust  from 0.5mm to  3.6 mm
The diameter of remaining wood core is less than 30 mm

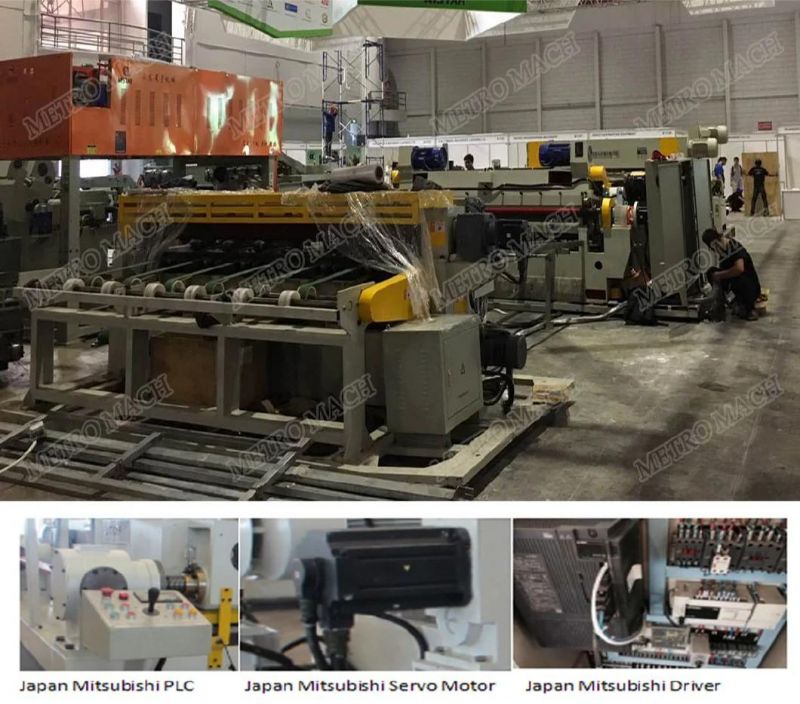

English language PLC is easy to operate
Bigger power invert
Best Cast steel body

Model	MQS1813/300	MQS1813/380	MQS1813/380S
Grade	A	AA	AAA
Max.Working length	1400mm	1400mm	1400mm
Max .Diameter	Φ300mm	Φ380mm	Φ380mm
Diameter of Left wood	Φ30mm	Φ32mm	Φ32mm
Working speed range	45m/min	50m/min	55m/min
Thickness of veneer	0.5-3mm	0.5-3.2mm	0.5-3.6mm
Main motor power	2X11kw China motor	2X11kw China motor	2X15kw China motor
Servo motor Power	7kw CTB servo China	7kw Mitsubishi Japan	11kw Mitsubishi Japan
Body	Cast steel body	Fine cast steel body	Fine cast steel body
Automatic hydraulic knife clamping system	N/normal mechanical change knife	N/automatic hydraulic options	Automatic hydraulic 4kw change knife
Double roller driver	By gear	By gear	By gear
Total power	29kw	29kw	45kw
Machine weight	4100kg	4900kgs	5500kgs

OUR SERVICE:

Pre-sale services:
1) Provide the free consultation of the equipment
2) Provide the standard device and the flow chart
3) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.
4) Welcome to visit our factory

Services during the sales:
1) Inspect the machine before leaving the factory.
2) Oversea install and debug the equipment
3) Train the first-line operator.

After-sale services:
1) 24 hours online service
2) Provide the video  with Install and debug the equipment
3) Provide technical exchanging



RFQ:
1.Q:Qulity Control?
A:Each machine will be test 3 times before delivery.

2.Q:Delivery time?
A:30-60 days after receipt of deposit.

3.Q:Factory layout design?
A:Our engineers will  accord your plan design specially .

4.Q:Warranty?
A:12 months.And we will supply machine parts all the time.

5.Q:Payment terms?
A:TT / LC are accepted.
