Hydraulic Wood Panels Press 50t Cold Press Machine for Wooden Door Desk

Qingdao Zhongding Machinery Co., Ltd.
  • Work Forms：Hydraulic Pressure
  • Processing Technics：Cold Press
  • Structure：Box Type
  • Pressing Shape：Flat Press
  • Platen Surface Pressure：High Pressure
  • Pressing Layer：Single Layer

Base Info

  • Model NO.：80T
  • Work Mode：Period
  • Controlling Mode：CNC
  • Automatic Grade：Automatic
  • Certification：CE, ISO
  • Max.Pressure：80t
  • Dimension of Platen：1250*2500mm
  • Working Speed：180mm,Min
  • Total Power：5.5kw
  • Overall Dimension：2860*1300*3400mm
  • Net Weight：3300kg
  • Stroke：1000mm
  • Transport Package：Wooden Case
  • Specification：10CBM
  • Trademark：QDZD
  • Origin：Qingdao
  • HS Code：84659400
  • Production Capacity：500sets,Year

Description

Basic Info.

Model NO. 80T Work Mode Period Controlling Mode CNC Automatic Grade Automatic Certification CE, ISO Max.Pressure 80t Dimension of Platen 1250*2500mm Working Speed 180mm/Min Total Power 5.5kw Overall Dimension 2860*1300*3400mm Net Weight 3300kg Stroke 1000mm Transport Package Wooden Case Specification 10CBM Trademark QDZD Origin Qingdao HS Code 84659400 Production Capacity 500sets/Year

Product Description

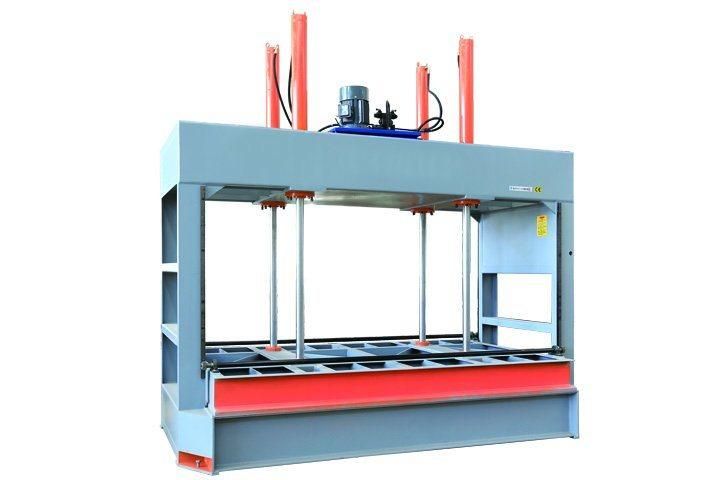

MJ80T Cold Press Machine
 Technical Specification:

Max. pressure80 T
Dimension of the platen1250*2500 mm
Working speed180 mm/min
Total power5.5 kw
Overall dimension2860*1300*3400 mm
Net weight3300 kg
Stroke1000 mm



Feature:

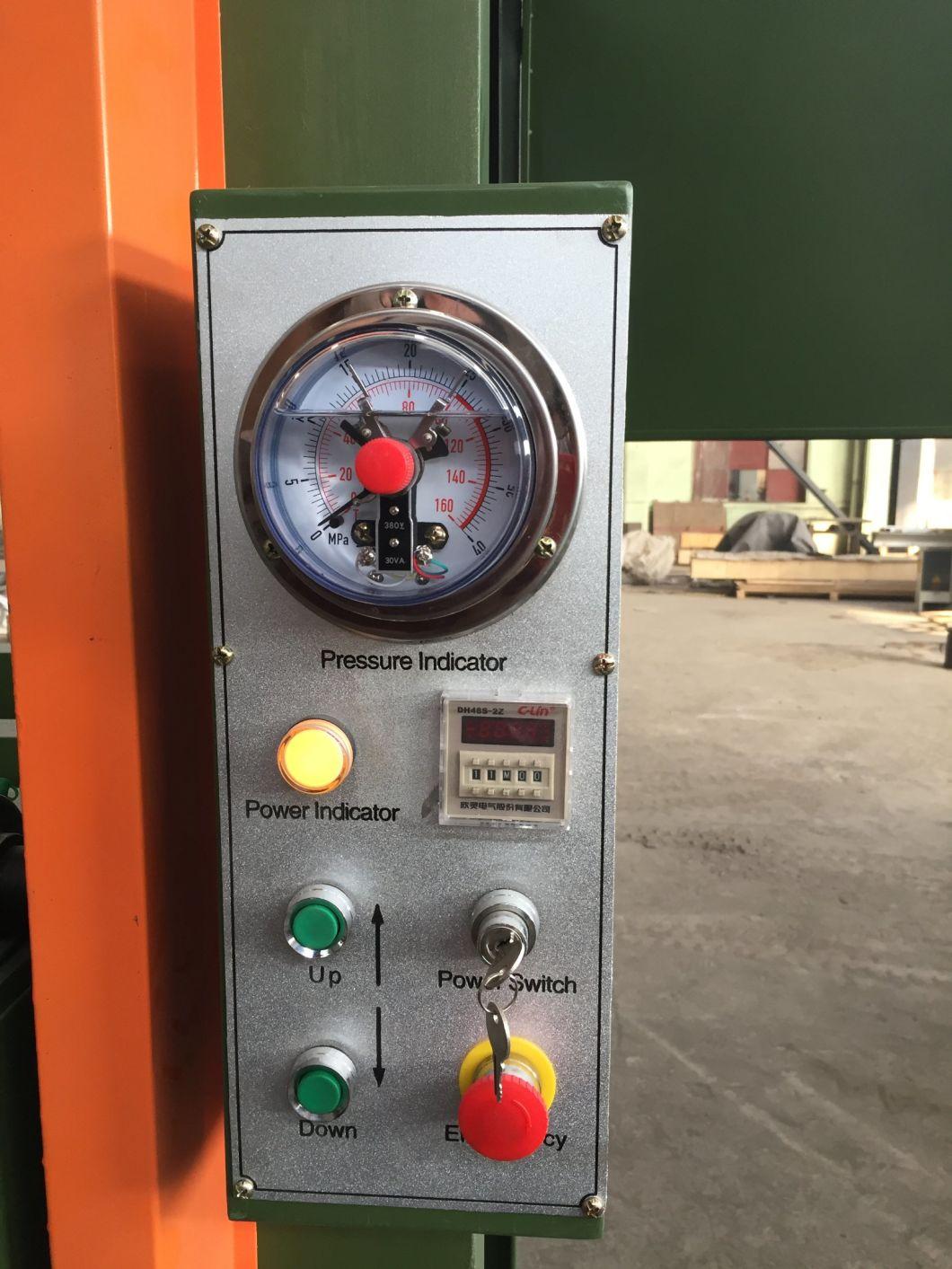

1. The machine is set with a pressure maintaining circuit and short-oil protector, which makes the machine stop working to protect products when it is short of oil and avoid engine burnout caused by over pressing.
2. It is widely used by manufacturers who produce doors, furniture, sound boxes, woodworking, upholstery, advertising boards, plastics, veneers, plywood, shaving boards, laminated boards and any other woodworking casting dies.



Product Details:
    Hydraulic Wood Panels Press 50t Cold Press Machine for Wooden Door Desk
    Hydraulic Wood Panels Press 50t Cold Press Machine for Wooden Door DeskHydraulic Wood Panels Press 50t Cold Press Machine for Wooden Door Desk
    Hydraulic Wood Panels Press 50t Cold Press Machine for Wooden Door DeskHydraulic Wood Panels Press 50t Cold Press Machine for Wooden Door Desk



    Certificate:
    Hydraulic Wood Panels Press 50t Cold Press Machine for Wooden Door Desk




    Our company:

          Qingdao Zhongding Machinery Co., Ltd is professional at manufacturing woodworking machines. Our main products includes: sliding table saw(panel saw), edge banding machine, hydraulic cold press, hot press, carpenter drilling machine ( boring machine), etc. We are factory, we provide the machine with reasonable price and high quality, and welcome to visit our factory and our products.
