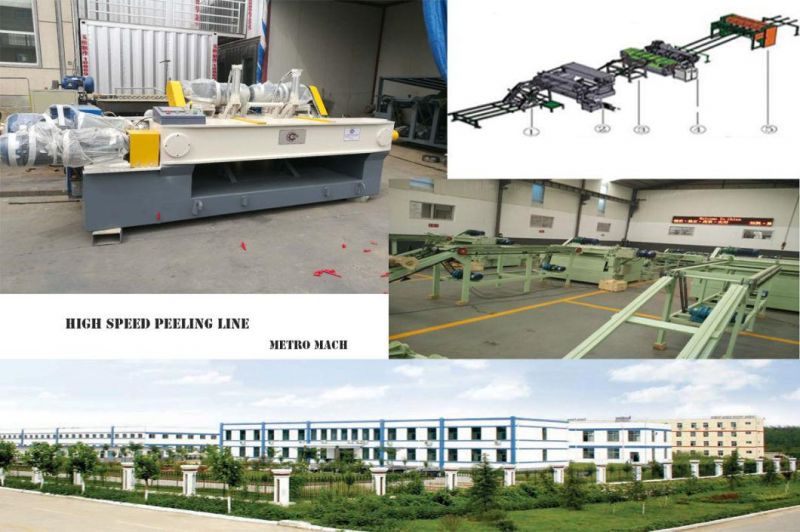

4 Feet Automatic Veneer Peeling Line / Plywood Line Machine
Linyi Sin San Lin Smart Machinery Co., Ltd.- Certification：CE, ISO
- Transport Package：Stand
- Specification：Cast Iron Body
- Trademark：METRO MACH
- Origin：Shandong, China
Base Info
- Production Capacity：90m,Min
Description
Veneer Peeling Machine
| ITEM | Parameters |
| Max. working length | 1400mm |
| Working diameter range | 22mm - 500mm |
| Working speed range | 20-82m/min |
| Veneer thickness | 0.5-7.0mm |
| Peeling knife size | 1500x180x16mm |
| Clipping knife size | 1400x100x12mm |
| Total motor power | 36.5Kw |
| Inverter power | 39.7Kw |
| Machine overall dimension | 4900x1900x1550mm |
| Machine weight | 6300Kgs |
Pre-sale services:
1) provide the free consultation of the equipment
2) provide the standard device and the flow chart
3) according to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.
4) welcome to visit our factory
Services during the sales:
1) inspect the machine before leaving the factory.
2) oversea install and debug the equipment
3) train the first-line operator.
After sale services:
1) 24 hours online service
2) provide the video with install and debug the equipment
3) provide technical exchanging
