Hot Sale Ring Die Pellet Machine to Make Wood Pellets
ZHENGZHOU YUFENG HEAVY MACHINERY CO., LTD.- Type:Ring Die Pellet Machine
- Voltage:380V
- Automatic Grade:Automatic
- Controlling Mode:CNC
- Energy Saving:Energy Saving
- Certification:CE, ISO
Base Info
- Model NO.:YFK560
- Warranty:1 Year
- Customized:Customized
- Condition:New
- Color:Multi Color
- Power:90kw
- Weight:6.3t
- Capacity:1-1.5t,H
- Material Applies:Husk,Straw,Sawdust,etc
- Material Moisture:8-15%
- Pellet Size:6-12mm
- Mold Structure:Double Layer Mold,Vertical Structure
- Transport Package:Standard Container
- Specification:2.6*1.3*2.3m 6.3t
- Trademark:Yufchina company
- Origin:Henan, China (Mainland)
- HS Code:8474802000
- Production Capacity:20 Sets Per Month
Description
Basic Info.
Model NO. YFK560 Warranty 1 Year Customized Customized Condition New Color Multi Color Power 90kw Weight 6.3t Capacity 1-1.5t/H Material Applies Husk,Straw,Sawdust,etc Material Moisture 8-15% Pellet Size 6-12mm Mold Structure Double Layer Mold,Vertical Structure Transport Package Standard Container Specification 2.6*1.3*2.3m 6.3t Trademark Yufchina company Origin Henan, China (Mainland) HS Code 8474802000 Production Capacity 20 Sets Per MonthProduct Description
Hot Sale Stable Ring Die Pellet Machine to Make Wood Pellets

Application and usage
The vertical ring die pellet machine is suitable for the materials with low adhesive and formation rate,which are difficult to pressing molding,such as rice husk,sunflower seed husk,peanut hull,a variety of wood waste like beanch,trunk,bark,various of crop straw,eucalyptus,palm fiber(EFB),coffee shell,sawdust and so on.This machine is widely used for the recycling usage of wastes and tailings in biomass fuel plant,power plant,wood processing plant,fertilizer plant,chemical factory,foodstuffs factory and brewery.
Our company supplies vertical ring die pellet machine. It has the features of
--enhancing the transportation and storage capacity of biomass material,
--improving the combustion performance,
--improving the efficiency,
--and reducing the harmful substances when combustion.

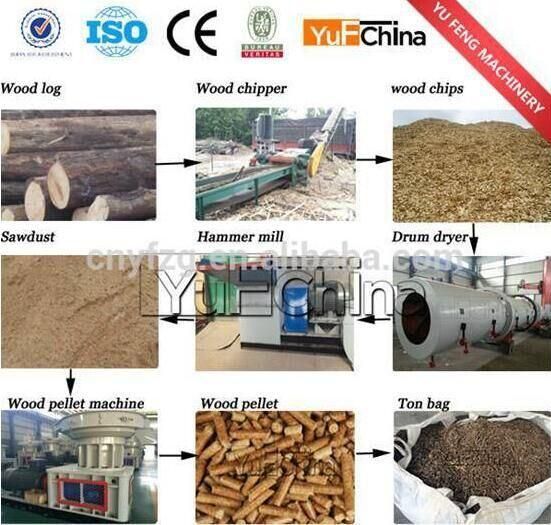

Biomass pellet production line flow
1.Chipping process---------Wood log need to be chipped by wood chipper
2.Drying process -----------Wood chips need dried by drum dryer ,if chips are dry ,We don't need dryer.
3.Further crushing----------The dried wood chips should be crushed by the hammer mill to 1-5mm ,prepared for pellet process.
4.Wood pellet production line processing---------Sawdust go to the pellet machine make pellet directly or big silo which divide material to each pellet machine when have machine more than ones .
5.Cooling process------------30-60mins cooling by nature ,or cooled bywood pellet cooler.
6.Packing process------------You can choose packed by small bag or ton bag .We have packing machine.

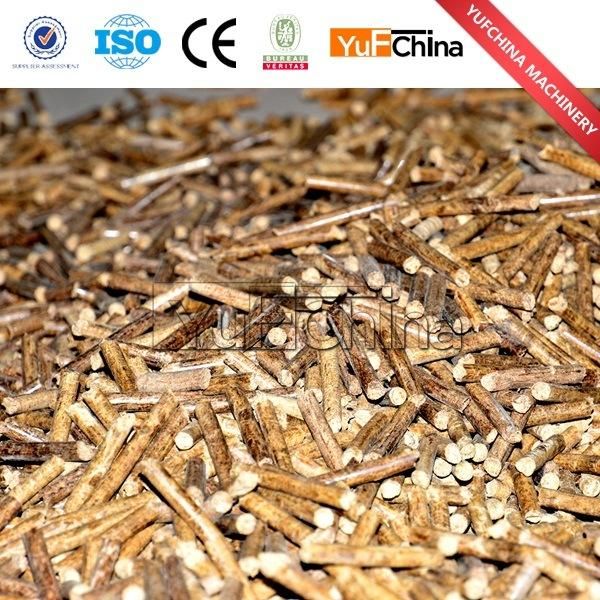

Final products
--Diameter:8mm
--Length:10-50mm
--Humidity:max.8%
--Ash:1.5%max
--Calorific:4600kcal/kg
--Fuel pellet use in hotel ,bath place,factory,electric generator ,cabinet,stove,boiler.
Main technical parameters
|
| Pellet size | Inner dia.(mm) | Production(t/h) | Dimension(mm) | Weight(t) |
YFK450 | 55 | Φ4-Φ12 | 450 | 0.3-1 | 2200x900x1600 | 3 |
YFK550 | 75 | Φ4-Φ12 | 550 | 0.7-1 | 2300x1000x1780 | 5 |
YFK560 | 90 | Φ4-Φ12 | 560 | 1-1.5 | 2600x1300x2300 | 6.3 |
YFK580 | 160 | Φ4-Φ12 | 580 | 1.5-2 | 2900x1300x2400 | 7.5 |
YFK680 | 160 | Φ4-Φ12 | 680 | 2-2.5 | 3200x1400x2400 | 8.5 |
YFK850 | 220 | Φ4-Φ12 | 850 | 2-3 | 3750x1650x3250 | 12.6 |
YFK880 | 315 | Φ4-Φ12 | 880 | 3-4 | 4300x1900x3600 | 14.5 |


After-Sale Service
- 2 year warranty ,if the machine break is by quality detect not personal reason or natural disaster .
- Easy break spare parts not include .
- Engineer installation abroad and teach you master the skill to produce wood pellet.
- Supply you the spare parts with favarable price all the machine life time.
