• Model NO.：YFK series
• Warranty：1 Year
• Customized：Customized
• Condition：New
• Color：Multi Color
• Power：55kw-315kw
• Weight：3.5-14.5t
• Machine Capacity：0.8-4t,H
• Model：Ring Die
• Inner Dia：450-880mm
• Pellet Size：4-12mm
• Raw Material：Wood,Biomass,Straw,Rice Husk
• Material Moisture：8%-15%
• Material Size：<8mm
• Transport Package：20′gp,40′gp,40′hq & Standard Export Packing
• Specification：According to different models
• Trademark：Yufchina Brand
• Origin：Henan, China (Mainland)
• HS Code：8474802000
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. YFK series Warranty 1 Year Customized Customized Condition New Color Multi Color Power 55kw-315kw Weight 3.5-14.5t Machine Capacity 0.8-4t/H Model Ring Die Inner Dia 450-880mm Pellet Size 4-12mm Raw Material Wood,Biomass,Straw,Rice Husk Material Moisture 8%-15% Material Size <8mm Transport Package 20′gp/40′gp/40′hq & Standard Export Packing Specification According to different models Trademark Yufchina Brand Origin Henan, China (Mainland) HS Code 8474802000 Production Capacity 50 Sets Per Month

Product Description

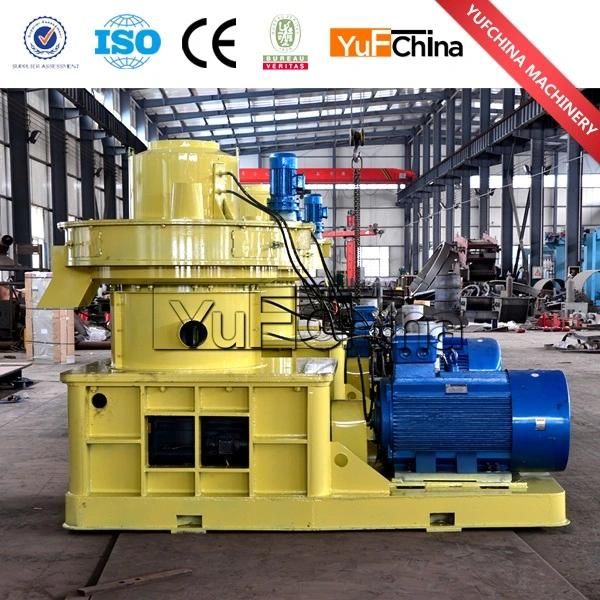

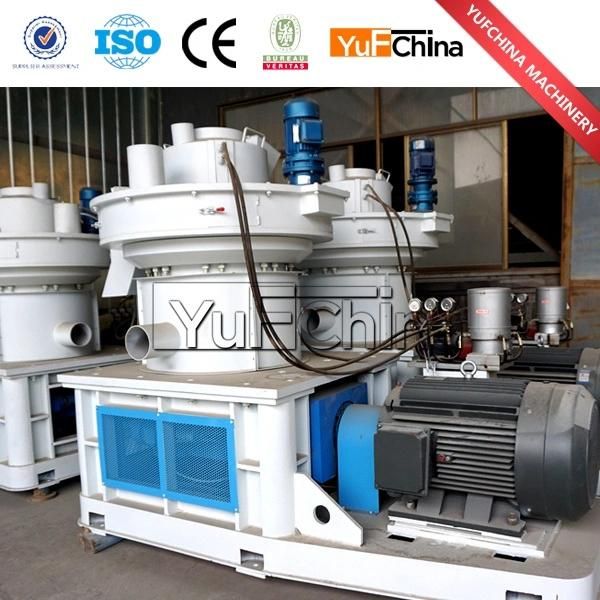

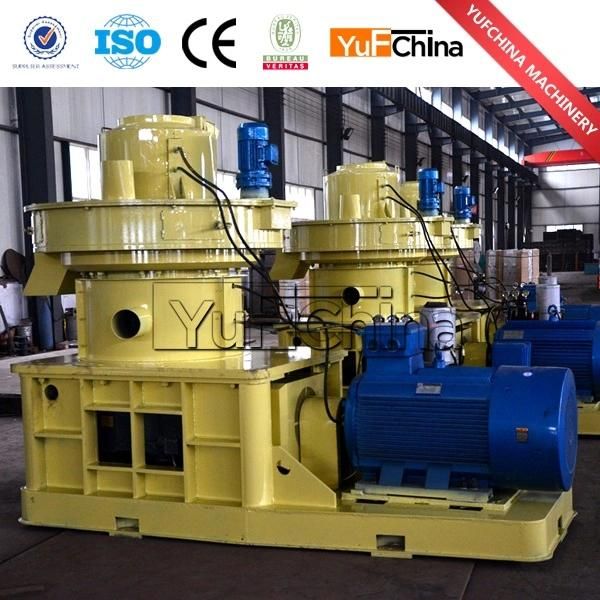

CE Approved 0.8-4 T/H Pellet Machine







Introduction of pellet machine

1.Vertical ring die wood pellets machine is used for produce biomass pellet ,pellet size  4-12mm diameter.
2.Pellet forming area :Ring die, vertical structure, cooling easily. Die double layer, two life time .Die static, two roller rotating, and material centrifugal, evenly around. Roller assembly adopt high alloy wear resistant material
3.Automatic lubrication pump, lubricate two roller and main shaft automatically with set time ,make sure wood pellet machine can work continuously more than 20hours.
4.Accuracy gear reducer drive ,reducer all sealed ,save power 15%-20% than belt drive,which are more stable and with big strength.

Specification of pellet machine


Model	Main Power (kw)	Pellet size (mm)	Capacity(t/h)	Dimension(mm)	Weight(t)
YFK450	55	¢4-¢12	0.8-1.2	2300*1100*1600	3.5
YFK560	90	¢4-¢12	1-1.5	2700*1300*2300	6.3
YFK580	132	¢4-¢12	1.5-2	2900*1300*2400	7.5
YFK680	160	¢4-¢12	2-2.5	3200*1400*2400	8.5
YFK850	220	¢4-¢12	2.5-3	3750*1650*3250	12.6
YFK880	315	¢4-¢12	3.5-4	4300*1900*3600	14.5











Raw material application

1.Wood log:First use wood chipper convert wood log to wood chips ,if wood chips moisture >20%,We should add a dryer to dry the wood chip until moisture <20% .
2.Wood chips: Wood chips with moisture >15%,We should add one dryer to dry wood chips until <20%. If Wood chips are dry ,moisture <15%,it can be crushed by hammer mill directly,then it comes out as sawdust ,sawdust can make pellet directly;
3.Sawdust: Moisture >20%,need dry until moisture <15-20%,if sawdust size <8mm,then make pellet directly.
4.Palm fiber and EFB:Further crushed until size <8mm,dried until moisture <20%.
5.Rice husk :Without hammer mill,when moisture <30% can make pellet directly.
6.Straw:Need further crushed by hammer mill







After-sale service:

1) Training how to instal the machine, training how to use the machine.
2) Engineers available to offer service machinery overseas.

Welcome to know more about our wood pellet machine.
