• Model NO.：YFK series
• Warranty：1 Year
• Customized：Customized
• Condition：New
• Color：Multi Color
• Power：55kw-315kw
• Weight：3-14.5t
• Production：0.3-4t,H
• Pellet Size：4-12mm
• Inner Dia：450-880mm
• Model Type：Ring Die
• Raw Material：Wood,Biomass,Straw,Rice Husk
• Material Moisture：8%-15%
• Material Size：<8mm
• Transport Package：20′gp,40′gp,40′hq & Standard Export Packing
• Specification：According to different models
• Trademark：Yufchina Brand
• Origin：Henan, China (Mainland)
• HS Code：8474802000
• Production Capacity：60 Sets Per Month

Basic Info.

Model NO. YFK series Warranty 1 Year Customized Customized Condition New Color Multi Color Power 55kw-315kw Weight 3-14.5t Production 0.3-4t/H Pellet Size 4-12mm Inner Dia 450-880mm Model Type Ring Die Raw Material Wood,Biomass,Straw,Rice Husk Material Moisture 8%-15% Material Size <8mm Transport Package 20′gp/40′gp/40′hq & Standard Export Packing Specification According to different models Trademark Yufchina Brand Origin Henan, China (Mainland) HS Code 8474802000 Production Capacity 60 Sets Per Month

Product Description

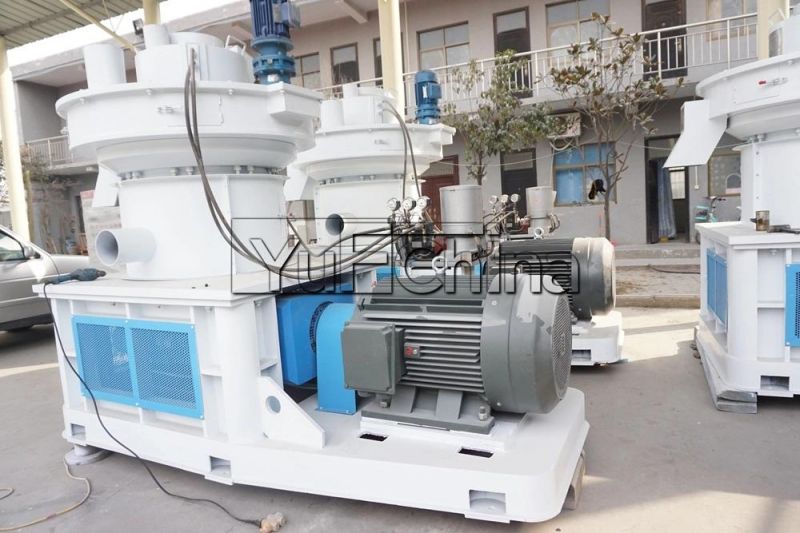

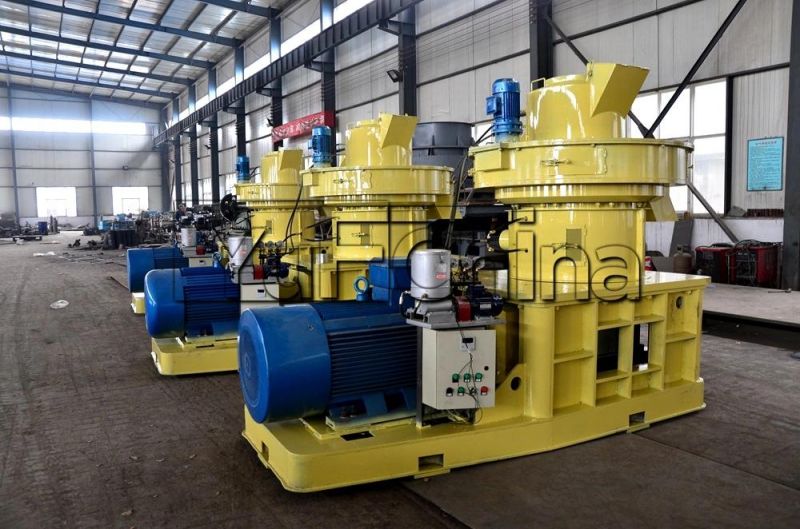

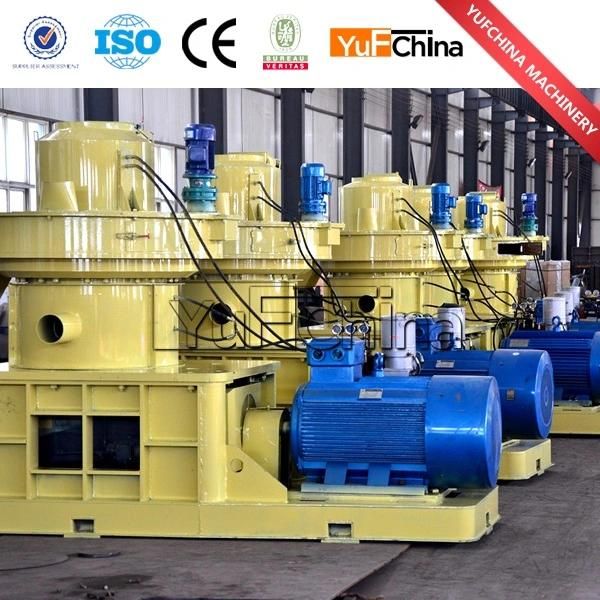

High Ratings Automatic Lubrication Wood Pellets Machine





Application:

Wood pellet making line is the process of making waste materials into solid fuel for burning purposes.It is widely used for the recycling usage of wastes and tailings in biomass fuel plant,wood processing plant ,fertilizer plant,chemical factory,foctory,foodstuffs factory and brewery.


Raw material:

Yufchina biomass wood pellet mill is able to produce cylindrical pellet, and thus be widely used in pelletizing wood, sawdust, crop straw (rice straw, wheat straw, corn stalks, sorghum stalk, soybean stalk, cotton stalk, grape straw, peanut seedlings, and sunflower stalk), rice husk, grass, shrubs, branches, wood cut-off head, bamboo debris, bagasse, etc.






Wood pellet production line flow:

1.Chipping process---------Wood log need to be chipped by wood chipper
2.Drying process -----------Wood chips need dried by drum dryer ,if chips are dry ,We don't need dryer.
3.Further crushing----------The dried wood chips should be crushed by the hammer mill to 1-5mm ,prepared for pellet process.
4.Wood pellet production line processing---------Sawdust go to the pellet machine make pellet directly or big silo which divide material to each pellet machine when have machine more than ones .
5.Cooling process------------30-60mins cooling by nature ,or cooled bywood pellet cooler.
6.Packing process------------You can choose packed by small bag or ton bag .We have packing machine.


Technical parameters:


Model	Power  (kw)	Pellet size  (mm)	Inner dia (mm)	Production (t/h)	Dimension (mm)	Weight (t)
YFK450	55	Φ4-Φ12	450	0.3-1	2200x900x1600	3
YFK550	75	Φ4-Φ12	550	0.7-1	2300x1000x1780	5
YFK560	90	Φ4-Φ12	560	1-1.5	2600x1300x2300	6.3
YFK580	160	Φ4-Φ12	580	1.5-2	2900x1300x2400	7.5
YFK680	160	Φ4-Φ12	680	2-2.5	3200x1400x2400	8.5
YFK850	220	Φ4-Φ12	850	2-3	3750x1650x3250	12.6
YFK880	315	Φ4-Φ12	880	3-4	4300x1900x3600	14.5

Features:

1. Vertical die,feeding vertically; No arching of raw materials, easy for heating dissipation.
2. Die fixed,rollers rotating, materials centrifugal, evenly distributed around.
3. Doulble-layer dies, up and down dual-use, high capacity,saving energy.
4. Main parts adopt high alloy wearable materials, and double lifetime.


After-sale service:


1.Provide engineer to wok site guiding install, debugging and commissioning.
2.Test equipment after installation, training operators for free, remind notice in operating.
3.Regularly return visit to the customers.
4.Response customer's qustions within 1 working day, give effective solutions within 3 working days, go into action with 5 working day.


If you have any questions, please feel free to contact us.
