• Model NO.：ZBJ-50 (B)
• Customized：Non-Customized
• Condition：New
• Color：Multi Color
• Product Name：Wood Briquette Machine
• Model：Zbj-50 (a)
• Capacity (Kg/H)：250~300
• Motor (Kw)：15
• Diameter of Briquettes (mm)：30,40,50
• Dimension (M)：1.6*0.65*1.4
• Weight (Kg)：800
• Keyword：Briquette Plant
• Keyword1：Briquette Pressing Machine
• Keyword2：Biomass Briquettes
• Transport Package：Wooden Case
• Specification：CE, SGS
• Trademark：AG
• Origin：China
• Production Capacity：10 Sets Per Month

Basic Info.

Model NO. ZBJ-50 (B) Customized Non-Customized Condition New Color Multi Color Product Name Wood Briquette Machine Model Zbj-50 (a) Capacity (Kg/H) 250~300 Motor (Kw) 15 Diameter of Briquettes (mm) 30,40,50 Dimension (M) 1.6*0.65*1.4 Weight (Kg) 800 Keyword Briquette Plant Keyword1 Briquette Pressing Machine Keyword2 Biomass Briquettes Transport Package Wooden Case Specification CE, SGS Trademark AG Origin China Production Capacity 10 Sets Per Month

Product Description

China Factory Supply Biomass CE Wood Briquette Machine Automatic Briquette Machine



Introduction of Screw Briquette Machine:

Briquettes are made by grinding Biomass and sawdust into a homogeneous pulp and forming this into a briquette under
very high pressure. High pressure & pressing releases one of the natural components of wood - lignin which has the
property of becoming liquid at high pressure (temperature) and, as it subsequently cools, it binds the wood together in
its new form Briquettes.

Technical Parameter:

Model	Capacity (kg/h)	Motor (kw)	Diameter of briquettes (mm)	Dimension (m)	Weight (kg)
ZBJ-50 (A)	250~300	15	Ø 30,40,50	1.6*0.65*1.4	800
ZBJ-50 (B)	300~320	18.5	Ø 30,40,50	1.7*0.65*1.4	900
ZBJ-50 (C)	320~350	22	Ø 30,40,50	1.9*0.7*1.45	950

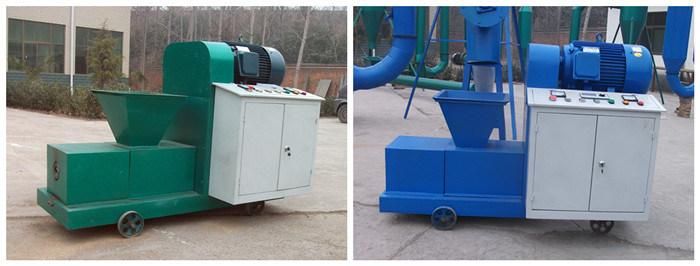

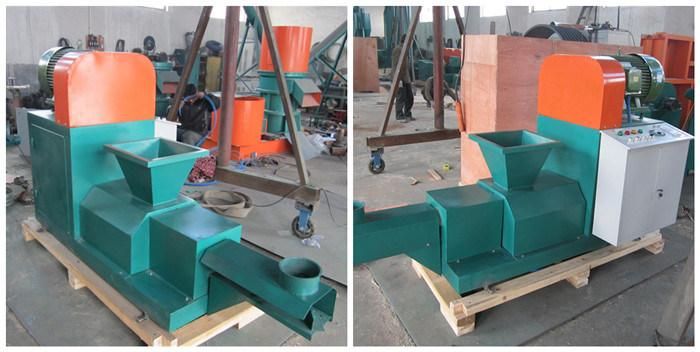

Screw Type Biomass Wood Sawdust Briquette Machine

This machine is used to make rice husk, coconut shell, Oliver waste, sawdust into briquette as fuel or can make them
to charcoal, it is equipped with the auto controlling heating system. The product of this machine can be used to heat boiler,
fireplace and etc for warm in house.
After the processing of drying, compressing under the high pressure and temperature, the biomass briquette is characterized
by high density, small in size, better combustion, capable as the substitute for the superior coal or firewood. This bio-fuel
briquette is 45-80mm in diameter, occurs in the hollow quadrangular or hexagonal cylinder or hollow hexagonal with a
15-20mm hole through the body. The bio-fuel carbon maintains the cleanliness and hygiene, and is suitable for family
heating and barbecuing.


Description:

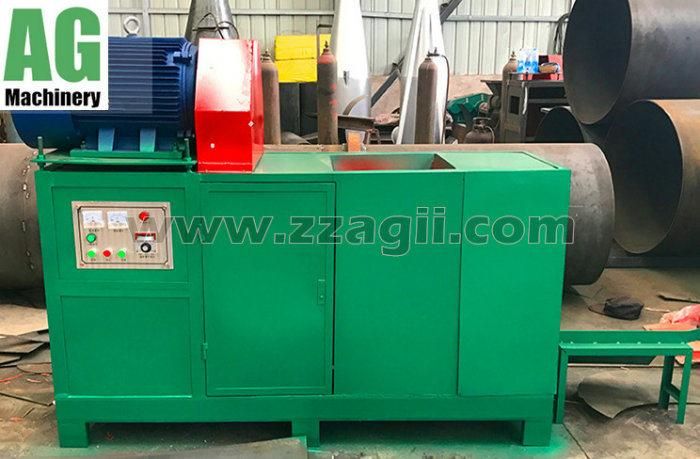

Wood Briquette Machine is advanced biomass machinery which turns wood wastes materials into charcoal briquettes,
which is one kind of green biomass fuel. It is good substitute of raw wood or excellent coal, the final briquettes is smokeless
and longer burning time. It can be can be used for warming, heating, drying fuel, etc.

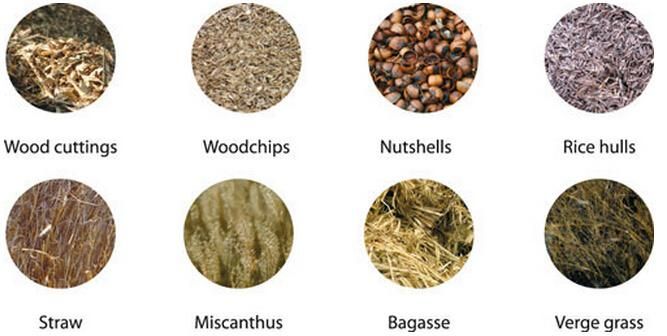

Raw material could be:



Any types of Agro-forestry waste and forest waste can be used for make briquettes Such as maize stalks, soybean stalks,
broomcorn stalks, cotton stalks, rape stalks, peanut plants, sunflower stalks, bamboo sawdust, bagasse , wood chips,
rice husk, coffee husk, coir pith, jute sticks, groundnut shells, Bamboo, wood, straw dust, Mustard stalk and cotton stalks,
nutshell, coconut shell ,etc

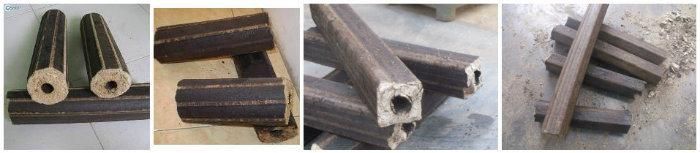

Wood Briquettes:



1)   This bio-fuel briquette is 45-80mm in diameter, occurs in the hollow quadrangular or
hexagonal cylinder or hollow hexagonal with a 15-20mm inner-hole.
2)   The available shape: square, hexagonal, pentagon, pentagon with edge, hexagon with edge
3)    The available diameter could be: 50mm,55mm.60mm,65mm.70mm.80mm and so on
4)    The available length could be: 20cm,30cm, 40cm, 50cm
5)    Final Briquette : Specific gravity: 1300-1900kg/m   Calorific value: 4500-5000kcal/kg

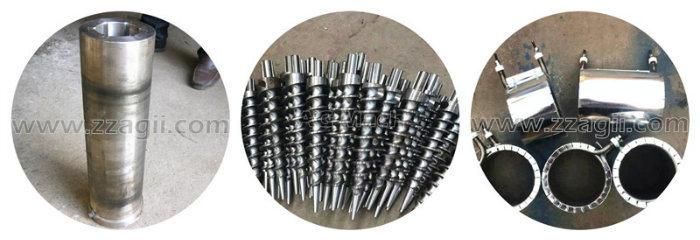

spare parts of briquette machine:
