• Model NO.：6GT-1000
• Color：Customizable
• MOQ：1set
• Output Moisture：8%-12%
• Keywords：Drum Dryer
• Keywords1：Industrial Dryer
• Transport Package：Container
• Specification：CE, SGS
• Trademark：AG
• Origin：China
• Production Capacity：10sets Per Month

Basic Info.

Model NO. 6GT-1000 Color Customizable MOQ 1set Output Moisture 8%-12% Keywords Drum Dryer Keywords1 Industrial Dryer Transport Package Container Specification CE, SGS Trademark AG Origin China Production Capacity 10sets Per Month

Product Description

Hot sale factory direct price drying machine and rotary dryer for wood shaving sawdust

Product Description:



Introduction:

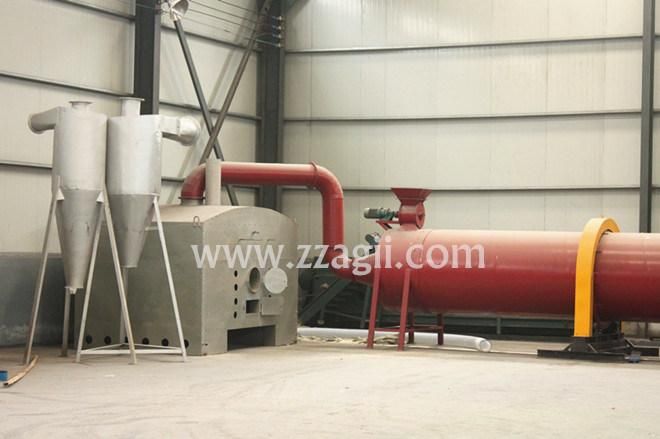

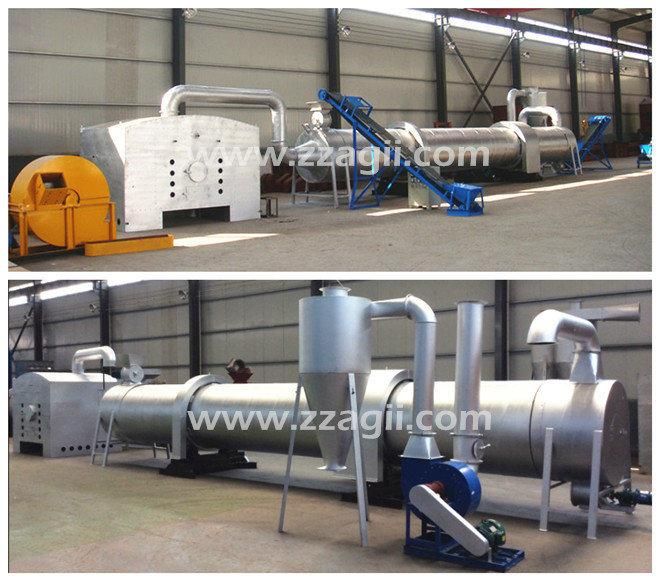

The rotary dryer is composed of stove, main rotary body, which can reduce moisture from 50% to 10%. The moisture evaporating capacity of our rotary drum dryer can reach to (250kg per hour to 8000kg) per hour. Different density materials, the final product are not the same; also for different moisture of raw materials, which could get the different final capacity.

Specification:

Model	Roller Diameter (m)	Roller Length (m)	Output (T/H)	Temperature of feeding air (ºC)	Input Size (mm)	Input Moisture (%)	Output Moisture (%)
6GT-800	0.8	10	0.5	270±30ºC	3-8mm	20-40	8-12
6GT-1000	1.0	10	0.6-0.8	270±30ºC	3-8mm	20-40	8-12
6GT-1200	1.2	10	1-1.2	270±30ºC	3-8mm	30-45	8-12
6GT-1500	1.5	10	1.5-1.8	270±30ºC	3-8mm	35-50	8-12

product details

Features:

1.  Air heating system is able to allow highly efficient removal of water from fresh harvested forage, and the maximum durability of dehydrated forage.

2. Non-pollution to the target materials guarantees minimal loss of their color, favor, and nutritional ingredients;

3. Smoke collector working with the air heating system adopts water-recycled wet-type collecting method, and ensures the exhausted gas to satisfy the environmental protection requirement as well as the lowest water consumption.



Application of Rotary Dryer:

1. The rotary dryer can be widely used in the following industries: straw press briquettes fuel, charcoal machinery, wood chip granule fuel, sawdust press blocks, farming and animal husbandry

2. engineering industry; it is able to dry agricultural cellulosic-based materials such as: corn straw, soybean straw, cotton straw, wheat straw, sorghum straw, wood chips, wood shaving, sawdust drying, ginkgo leaf drying and mulberry leaves drying, etc.



Working principle of Rotary Dryer:

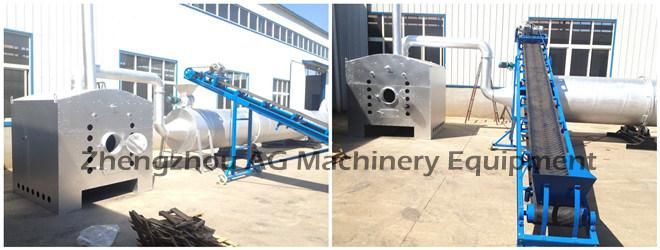

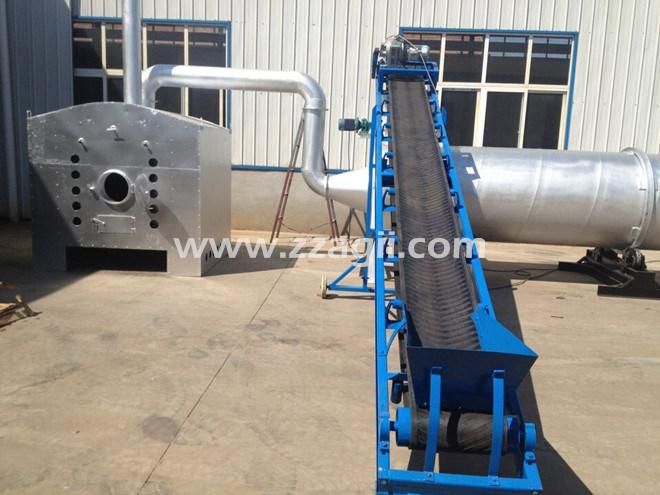

The wet materials are conveyed to the hopper through the belt conveyor or bucket elevator, and then enter into the feed end through the hopper charger and the feeding pipe in sequence. The inclination of the feeding pipe must be greater than the natural inclination of materials in order to make the materials flow into the dryer smoothly. The dryer cylinder with slight inclination with the horizontal line. The materials enter from the higher end, and the heat carrier enters from the lower ender; the two contact each other from opposite directions, but there are also circumstances that the heat carrier flows into the dryer body together with the material. Along with the rotation of cylinder, the materials run to the lower end due to gravity. In the forward movement of wet materials in the dryer body, the wet materials are heated directly or indirectly by the heat carrier to dry the wet materials, and then the materials are discharged from the discharge end through the belt conveyor or screw conveyor.
