• Model NO.：FM1530
• Customized：Customized
• Condition：New
• Color：Customized
• OEM：Yes
• Controller：DSP Controller
• Drive Motor：Stepper
• Spindle：Water Cooling Spindle
• Spindle Speed：0-24000rpm
• Command：G Code
• Transport Package：Standard Export Woode Case
• Specification：1500*3000mm
• Trademark：FIRMCNC
• Origin：Jinan, China
• HS Code：8465990000
• Production Capacity：30 Sets,Month

Basic Info.

Model NO. FM1530 Customized Customized Condition New Color Customized OEM Yes Controller DSP Controller Drive Motor Stepper Spindle Water Cooling Spindle Spindle Speed 0-24000rpm Command G Code Transport Package Standard Export Woode Case Specification 1500*3000mm Trademark FIRMCNC Origin Jinan, China HS Code 8465990000 Production Capacity 30 Sets/Month

Product Description

Woodworking CNC router machine wood working industry

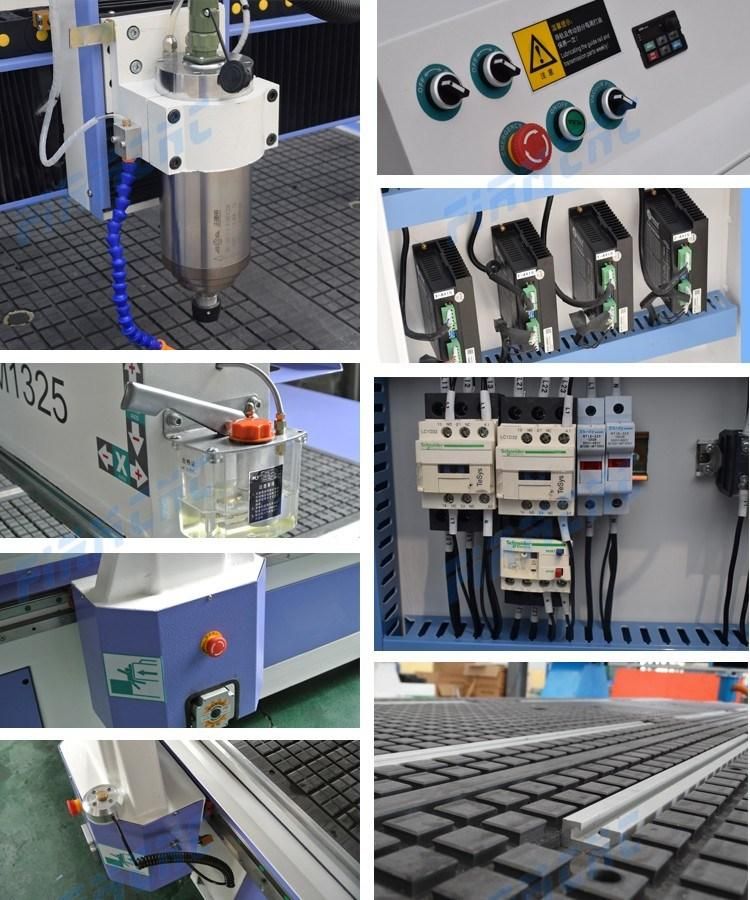

Features:
1. Robust square steel machinery body, stiff not deforming and tempering aging treatment,Reasonable & advanced welding procedure, ensure stability of machine.
2. The special instruments to eliminate welding stress, high precision machining planer Ensure the precision and no deformation.
3. The major machine body makes stability and no shacking high speed.
4. XYZ all apply imported screw, high precision gear frame and linear square guide, ensure The high accuracy.
5. The professional mechanical design, scientific a structure and generous appearance,Gantry height 200MM can ensure Z axis working size.
6. XYZ axis use anti-dust system, prevent dust working, make sure the long lifespanOf spare parts.
7. High quality drive motors, spindle motors, cables inverters, etc.
8. Powerful dust extraction system to prevent no dust In the process of machining.
9. Strong adsorption system to ensure the efficiency is greatly improved in the process of machining.
10. The advanced professional control system compatible with many instructions formats, May achieve process function in interruption of power supply, breakpoint and next day
Which is more convenient and save labor.
11. Professional CNC control system, can compatible with many kinds CAM software,Such as: TYPE3/ARTCAM/UG/PRO-E/MASTERCAM.
12. We can produce the machine as your requirements.

Techncial specification

Brand	Firm
Model	FM-1530
Engraving area (W*L*thickness)(mm)	1500*3000*200
Working Form	Full-automatic
Spindle Power	3.0KW water cooling spindle
Spindle Rotate(rpm)	6000~24000
Motor Driver	Stepper motor (Chinese servo motor or imported  servo motor is optional)
Tool Diameter(mm)	Ø3.175,Ø4,Ø6, Ø12.7mm
Machine Structure	Industry square tube structure
Transmission System	Imported ball screw or high accuracy gear rack
X,Y,Z Rail	Imported square rail
Mechanical Accuracy	<0.03/300mm
Engraving Speed(mm/min)	8000~12000mm/min
Feeding Speed	manual
Data Transmission	PC connect
Support Format	G code or HPGL
Working Voltage	AC220V/50Hz or 380V/50Hz
Support Format	G Code or HPGL
Range of Application	Woodworking relief engrave ,Cutting , Hollow
Machine Net Weight	1200Kg

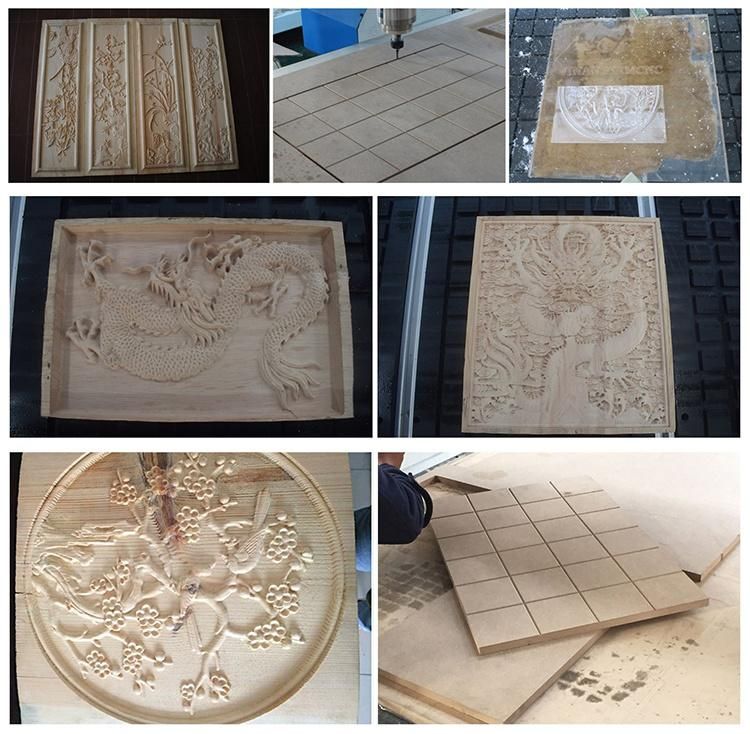

Applications:
Widely used in antique furniture with relief carving, wood carving, furniture- processing, in
Struments making 3D light box making, making, aluminum composite panel, funding mound
Decorative doors and windows processing etc.

Special configurations;
It can be customized more large format and special models, and it can be optional standard configuration spindle or importing, auto-change tool system, oil lubrication system,
Vacuum inhaling and dust collect etc.

Guarantee & After Sales Service:
1. One year quality guaranty, the machine with main parts (excluding the consumables) shall be changed free of charge when problems happened during the warranty period.
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
4. We will provide the consumable parts at an agency price when you need replacement.
5.12 hours on line service each day, free technical support.
