• Model NO.：FM1325
• Customized：Customized
• Condition：New
• Color：Customized
• Engraving Area：1300*2500*200mm
• Spindle Power：3.0kw Water Cooling Spindle
• Spindle Rotate(Rpm)：6000~24000
• Drive Motor：Stepper
• Controller：DSP Controller
• OEM：Yes
• Transport Package：Standard Export Wooden Case
• Specification：CE, SGS, ISO
• Trademark：FIRMCNC
• Origin：Jinan, China
• HS Code：84649012
• Production Capacity：30 Sets,Month

Basic Info.

Model NO. FM1325 Customized Customized Condition New Color Customized Engraving Area 1300*2500*200mm Spindle Power 3.0kw Water Cooling Spindle Spindle Rotate(Rpm) 6000~24000 Drive Motor Stepper Controller DSP Controller OEM Yes Transport Package Standard Export Wooden Case Specification CE, SGS, ISO Trademark FIRMCNC Origin Jinan, China HS Code 84649012 Production Capacity 30 Sets/Month

Product Description

Wood Woodworking Processing CNC router machine

Quality assurance shangdong cnc wood engraving router machine for aluminum

Machine in workshop show

Main features
1. HIWIN square orbit, double slippers, bearing heavy, working steadily, high precision, and long life time, import ball screw, high precision for cutting.
2. High speed stepper motor and drivers, and tow motors for Y axis. Max speed is 25M/MIN. With water cooling spindle highly upgrade the processing speed.
3.The optional equipment for spindle is Japan imported high power water cooling motor (Japan NSK bearing) high speed spindle, stable capability.
4. Unique intelligent budget principle, fully develops the potential of the motor and lead to high processing speed, the synchronization of curves and straight lines, smooth curves.
5. Well compatibility: CAD/CAM designing software e.g. Type3/Artcam/Castmate/Ucancam etc.

Technical specification

Description	Parameter
X,Y,Z working area	1300x2500x200mm
Model	FM1325
Resolution	±0.03/300mm
Repeatability	±0.03mm
Table Structure	Vacuum table
Lathe Structure	Welding steel structure
X,Y structure	Rack pinion, Hiwin linear rails
Z structure	TBI Ball screw, Hiwin square rails
Rated power	3Kw (without spindle)
Max. rapid	32000mm/min
Max. Working speed	25000mm/min
Spindle power	3.0kw warter cooling spindle
Spindle speed	0-24000RPM
Working mode	Stepper or servo
Working voltage	AC380V/50/60Hz,3Ph(Option 220V,3Ph)
Command code	G code
Operating system	Mach3 system (Ncstudio, Syntec,DSP )
Interface	USB
Memory	128M
Tool holder	ER25
X,Y working accuracy	<0.03mm
Software	Artcam, Type3 UcancameV9
Working temperature	Temperature:0 degree-45 degree Humidity:30%-75% (No Condensation)
Packing size	3300X2100X2300mm
Net weight	1200KG
Gross weight	1500KG
Optional Spare Parts	Air-cooling spindle
	Double bag dust collection,vacuum pump
	rotary

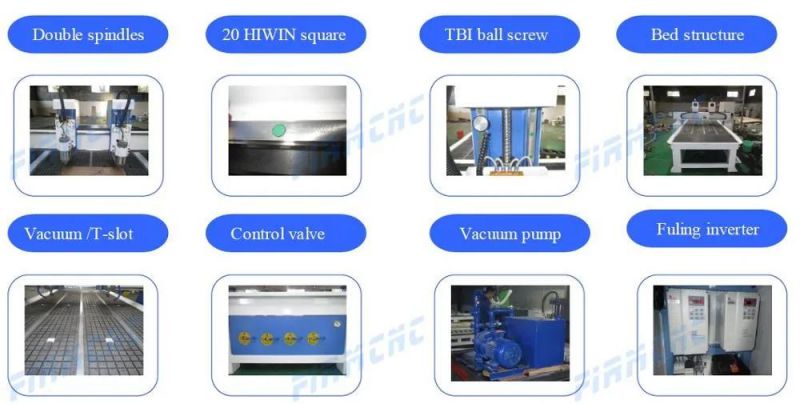

Advantage
1.Double heads 3.0KW Spindle, high efficiency, time saving.
2. DSP Control System, not need connect to PC,be easily operate and learned
3.Transmission, X Y gear and rack transmission, Z Taiwan TBI ball screw transmisson.
4.Guide Rail for X Y Z,TAIWAN HIWIN Square Rail
5.Stepper motor and Leadshine drivers, high positioning accuracy;good reliability;save power consumption

Application
Furniture industry: wooden doors, windows, folding screens, tables, chairs, and many other materials such as plastic board, PVC sheet, dual color board, aluminum, etc.
Mainly for the production of cupboard door, real wooed, the furniture and so on, also can be used in the production of MDF cutting.

Other type wood cnc router machines for your refence
# Linear or Circular type ATC wood cnc router
# Pneumatic 4 head ATC cnc router
# Wood cnc router with air cooling spindle
# Wood cnc router with water cooling spindle
# Mini cnc router for wood advertising
# Double heads wood cnc router

Quality control
Inner control system
1. In the process of production, our professional technical engineers inspect the process to ensure the quality of products.
2. Each link is strictly controlled to ensure the machine clean and beautiful.
3. 48 hours continuous working test before the machine leaving factory, ensure the high quality of each machine.
Every step strict test, make sure high precision, best quality

Our Services
1. 24 hour Technical support by phone, e-mail or MSN around the clock.
2. Friendly English version manual and operation video CD disk.
3.7-15 working days after down payment or full payment.
4. Machine will be adjusted before it is delivered; operation disk/CD was included.
5. Our technician can give you remote guide online (Skype or MSN) if you have any question.
6. Engineers available to service machinery overseas, seller and buyer discuss the charges.

Packaging & Shipping
1) Foam and wrapping film on the surface of the machine inside. Rain-proof, Dust proof.
2)Standard export plywood case. Upwards, moistureproof shipping marks. Safety guaranteed.
3) fumigation-free
4)With shipping mark if you like.
5)Outside: Marked packing size, model, weight and other information

FAQ
Q1.how to get the most suitable machine and best price
please tell the  material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What's the MAX size of these material ?( length ? Width ? Thickness ?)
Q2: Do you have the manual of machine.
Yes,we have
Q3.If we donot know how to use the machine,can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if you are busy ,
we will have the special engineer to your country,but you need to bear some fee,like tickets and hotel and meal.

Company Information
FIRMCNC Group located in Jinan,Shandong PR, Founded in 2003. Leader of cnc router appliance manufacture.
We are an all-round enterprice,which is comprehensive in R&D, manufacture, and sales on cnc router appliances.

JINAN FIRM CNC EQUIPMENT CO.,LTD
A-505Jingliu Road, Huaiyin District, Jinan City, Shandong Province, China.
Tel: 0086-0531-69986330        Fax : 0086-0531-69986330
Website: http://firmcnc.en.made-in-china.com
firmcnc.en.made-in-china.com
Cell phone: +86-13954117091

If you have any ineterest pls feel free to contact me ,suitable model and best  prce will be provided after get your early reply.
