• Model NO.：FM1325
• Working Speed：8-15m, Min
• Motor Type：Stepper , Servo
• Controller：DSP or Ncstudio or Tk10
• Command：G Code
• Guide：Twaiwan Hiwn Linear Guide
• Transmission：Rack Gear
• Table Structure：Vacuum and T-Slot Table
• Software：Artcam , Type3
• Transport Package：Standard Export Wooden Case
• Specification：CE, SGS, ISO
• Trademark：FIRMCNC
• Origin：Jinan, China
• HS Code：8465990000
• Production Capacity：30 Sets,Month

Basic Info.

Model NO. FM1325 Working Speed 8-15m/ Min Motor Type Stepper / Servo Controller DSP or Ncstudio or Tk10 Command G Code Guide Twaiwan Hiwn Linear Guide Transmission Rack Gear Table Structure Vacuum and T-Slot Table Software Artcam / Type3 Transport Package Standard Export Wooden Case Specification CE, SGS, ISO Trademark FIRMCNC Origin Jinan, China HS Code 8465990000 Production Capacity 30 Sets/Month

Product Description

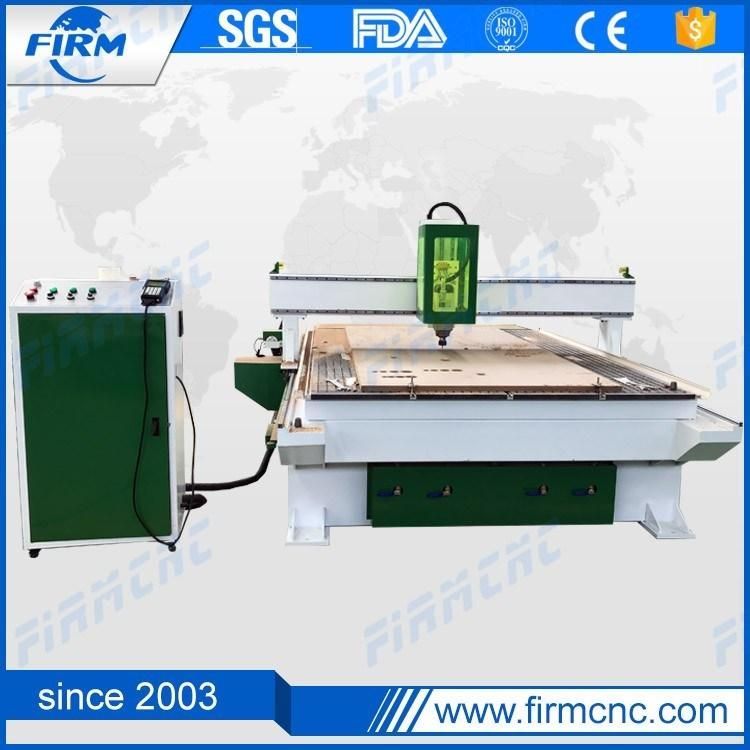

Woodworking CNC Router Wood Door Engraving Carving Machine

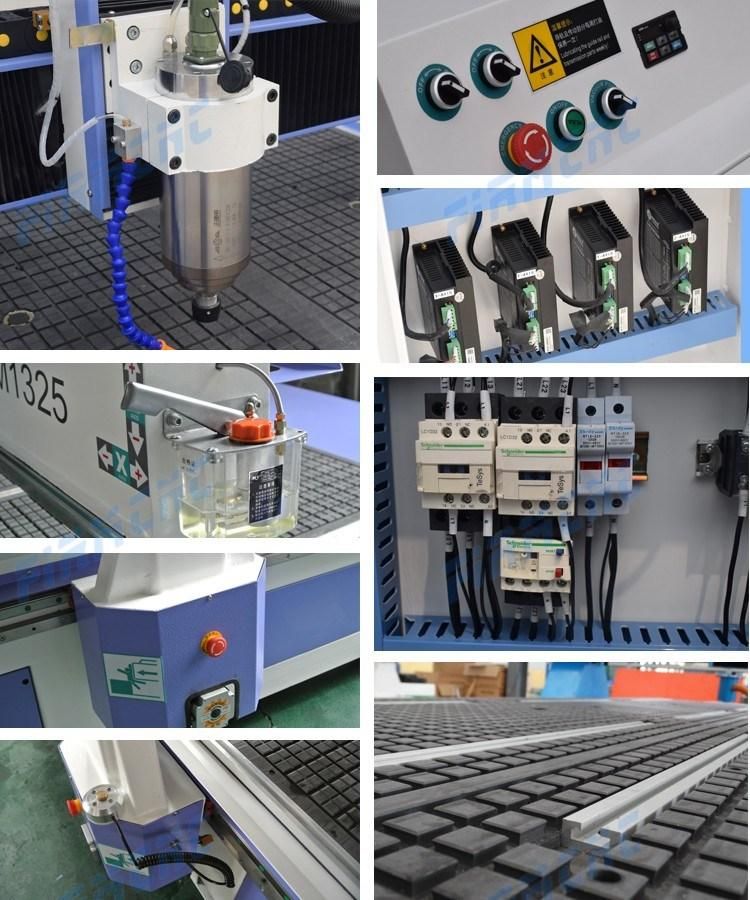

Features:
1. Robust square steel machinery body, stiff not deforming and tempering aging treatment, reasonable & advanced welding procedure, ensure stability of machine.
2. The special instruments to eliminate welding stress, high precision machining planer ensure the precision and no deformation.
3. The major machine body makes stability and no shacking high speed.
4. XYZ all apply imported screw, high precision gear frame and linear square guide, ensure the high accuracy.
5. The professional mechanical design, scientific a structure and generous appearance, gantry height 200MM can ensure Z axis working size...
6. XYZ axis use anti-dust system, prevent dust working, make sure the long lifespan of spare parts.
7. High quality drive motors, spindle motors, cables inverters, etc.
8. Powerful dust extraction system to prevent no dust In the process of machining.
9. Strong adsorption system to ensure the efficiency is greatly improved in the process of machining.
10. The advanced professional control system compatible with manyinstructions
Formats, may achieve process function in interruption of power supply, breakpoint
And next day which is more convenient and save labor.
11. Professional CNC control system, can compatible with many kinds CAM software, such as: TYPE3/ARTCAM/UG/PRO-E/MASTERCAM.

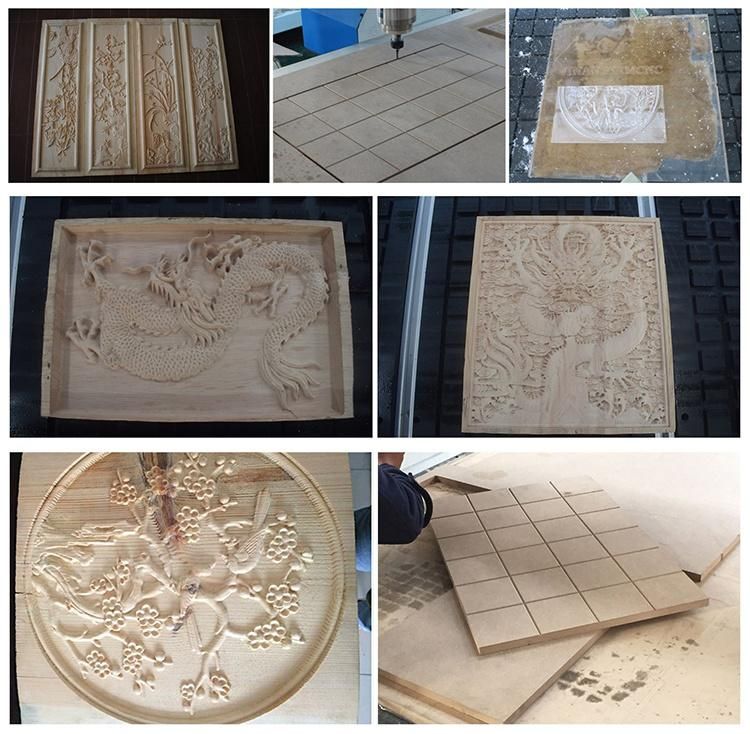

Applications:
It is widely used in the Small-scale woodworking industry, such as solid wood door engraving, MDF paint door carving, furniture processing.
In artwork industry, it can process wooden craft, musical instrument.
It can also used in the decorative doors and windows processing etc.

Techncial specification

Number	Description	Parameter
1	X,Y,Z Working Area	1300mmx2500mmx200mm
2	Table Size	1450mm×2940mm
3	X,Y,Z Traveling Positioning  Accuracy	±0.03/300mm
4	X,Y,Z Repositioning Accuracy	±0.03mm
5	Table Surface	Vacuum and T-slot Combined (Option: T-slot Table)
6	Frame	Welded Structure
7	X, Y Structure	Rack and Pinion Drive, Hiwin Rail Linear Bearings
8	Z Structure	Hiwin Rail Linear Bearings and Ball Screw
9	Max. Power Consumption	3KW(Without Spindle)
10	Max. Rapid Travel Rate	33000mm/min
11	Max. Working Speed	25000mm/min
12	Spindle Power	3.0/4.5/6/7KW

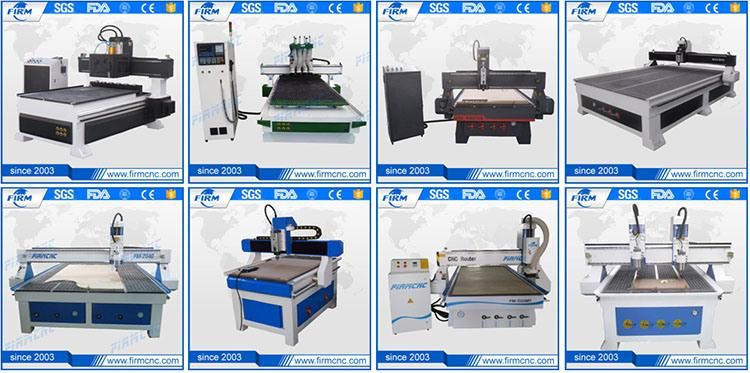

Ohter type cnc router machines

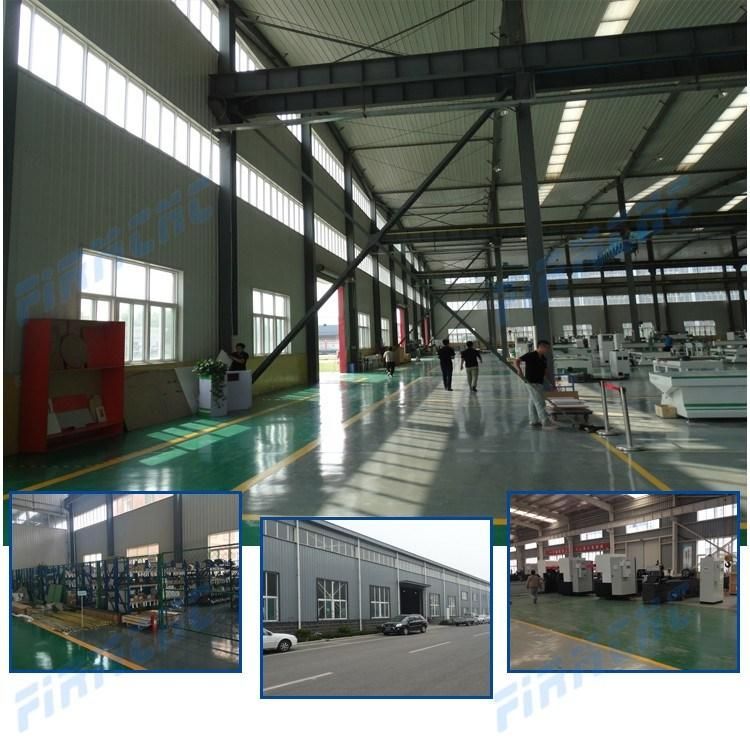

Factory show
