• Model NO.：FM1325
• Customized：Customized
• Condition：New
• Color：Customized
• Product Name：Hot Sale Wood Door Carving CNC Wood CNC Router
• Working Area：1300*2500*200mm
• Engraving Speed：8000~12000mm,Min
• Working Form：Full-Automatic
• Mechanical Accuracy：<0.03,300mm
• Data Transmission：PC Connect
• Spindle：Air Cooling Spindle
• Spindle Power：6000~24000rpm
• Motor：Stepper Motor
• Driver：Leadshine Driver
• Transport Package：Wooden Case
• Specification：CE, SGS, ISO
• Trademark：FIRMCNC
• Origin：China, Shandong, Jinan
• HS Code：8465990000
• Production Capacity：30 Sets,Month

Basic Info.

Model NO. FM1325 Customized Customized Condition New Color Customized Product Name Hot Sale Wood Door Carving CNC Wood CNC Router Working Area 1300*2500*200mm Engraving Speed 8000~12000mm/Min Working Form Full-Automatic Mechanical Accuracy <0.03/300mm Data Transmission PC Connect Spindle Air Cooling Spindle Spindle Power 6000~24000rpm Motor Stepper Motor Driver Leadshine Driver Transport Package Wooden Case Specification CE, SGS, ISO Trademark FIRMCNC Origin China, Shandong, Jinan HS Code 8465990000 Production Capacity 30 Sets/Month

Product Description

Door furniture cabinet machines cnc woodworking wood cutting

Main Feature
1.3.0KW constant water cooling spindle(optional HQD or HSD spindle), high precision, long life time, steady working, easy to start up.
2.Thicken square pipe structure, well welded,no distortion for whole structure.
3.Adopt Taiwan square orbit, double slippers. Bearing heavy, working steadily high precision, and long life time.
4.DSP controller system with USB interface, working without connecting with computer during working and easy to control.
5.This machine can engrave any design,support scanners,direct support ,Art CAM,Type3,Wen tai,carving and many other
G-code format generated by CAD/CAM
6.Adopt high speed step motor Max speed is 20M/MIN.
7.Dust collector (contain dust collector pump and dust collector pipes), for sucking away the dusts, such as wood dusks and so on.

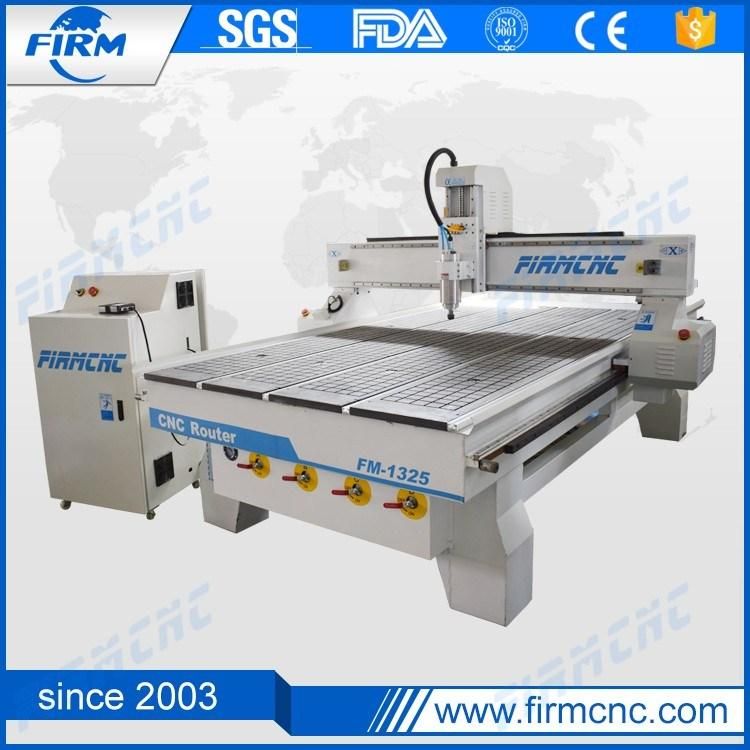

Technical specification

Brand	Firm
Model	FM-1325
Machine Size (mm)(W*L*thickness)	1900*3100*1800
Table size(mm)	1600*3100
Engraving area (W*L*thickness)(mm)	1300*2500*200
Working Form	Full-automatic
Spindle Power	3.0KW water cooling spindle
Spindle Rotate(rpm)	6000~24000
Motor Driver	Stepper motor (Chinese servo motor or imported  servo motor is optional)
Tool Diameter(mm)	Ø3.175,Ø4,Ø6, Ø12.7mm
Machine Structure	Industry square tube structure
Transmission System	Imported ball screw or high accuracy gear rack
X,Y,Z Rail	Imported square rail
Mechanical Accuracy	<0.03/300mm
Engraving Speed(mm/min)	8000~12000mm/min
Feeding Speed	manual
Data Transmission	PC connect
Support Format	G code or HPGL
Working Voltage	AC220V/50Hz or 380V/50Hz
Support Format	G Code or HPGL
Range of Application	Woodworking relief engrave ,Cutting , Hollow
Machine Net Weight	1200Kg

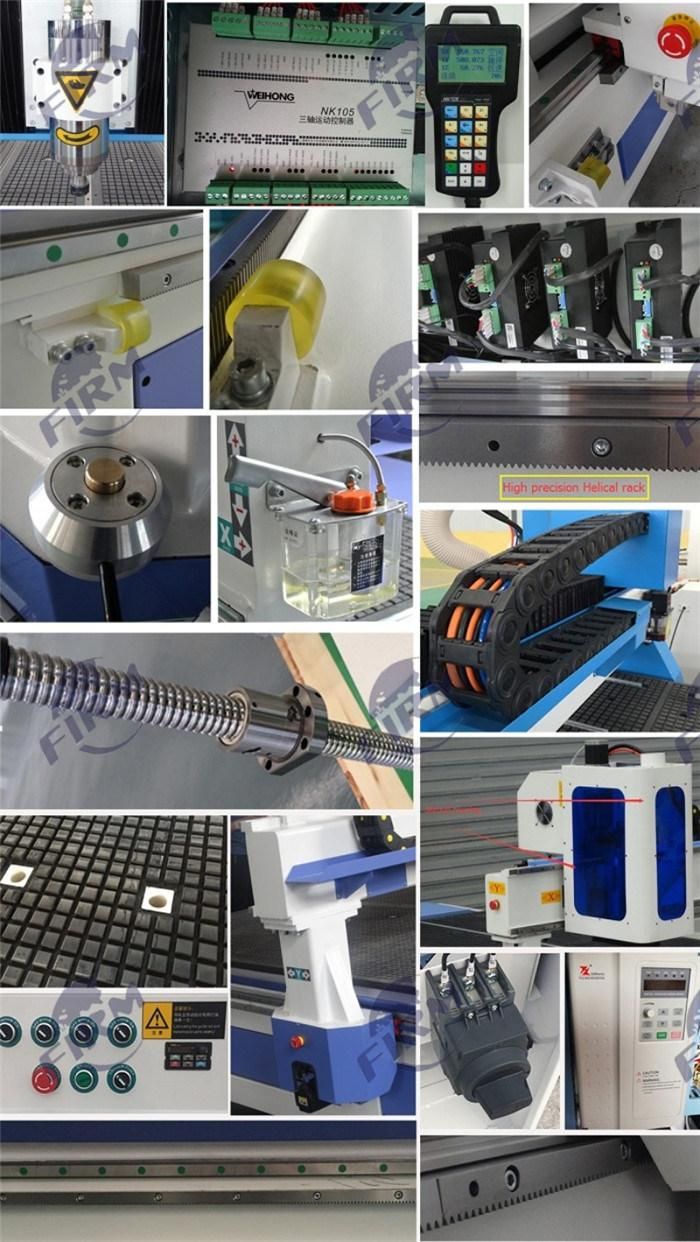

Main configuration

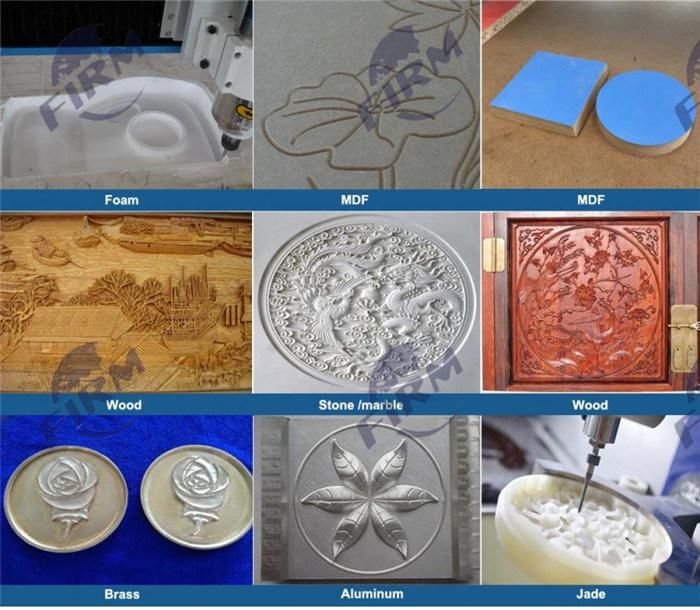

Application
1.Wood working :Solid wave board process,door of cabinet,wooden door,artistic wooden door ,no-paint door,avoid wind,process of the artistic window,
shoes cleaning machine,the cabinet of the playing machine and the board, mahjong table,computer table .
2 Advertising:Advertising board,Label design,Acrylic cutting,model, of the multi material decoration products.
3.Model industry:It can engrave on the steal materials such as copper, aluminum ,iron etc and  non-mental materials such as man-made marble,
sand, plastic board PVC materials, wood board etc.
4.Other field:It can engrave many image, embossment,and widely used in artistic industry.

How to Order Our Machine?
Before we can recommend you the best suitable machine, please kindly tell us:
1)  What materials will you work on?
2)  What is your Max.Size of your processing materials?( Length & Width )
3)  Do you mainly engrave or cut?If cut,What is your Max.Cutting thickness?
4)  Does your materials are cylinder?If YES, what's the Max.Diameter of it?
5)  If it is possible, could you send us your product samples' picture?It will help us better to
Understand.

Trade Items of Machine


MOQ	1 set
Package	Standard Plywood Box
Delivery Terms	FOB, CIF, EXW, Door to Door ect.
Delivery Time	15 working days after receiving payment
Payment Type	T/T, Paypal, Western Union and others
Supply Ability	200 sets/month
Port	Qingdao, China.

Packing&shipping:

Water-proof plastic film package with foam protection in each corner.
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading.

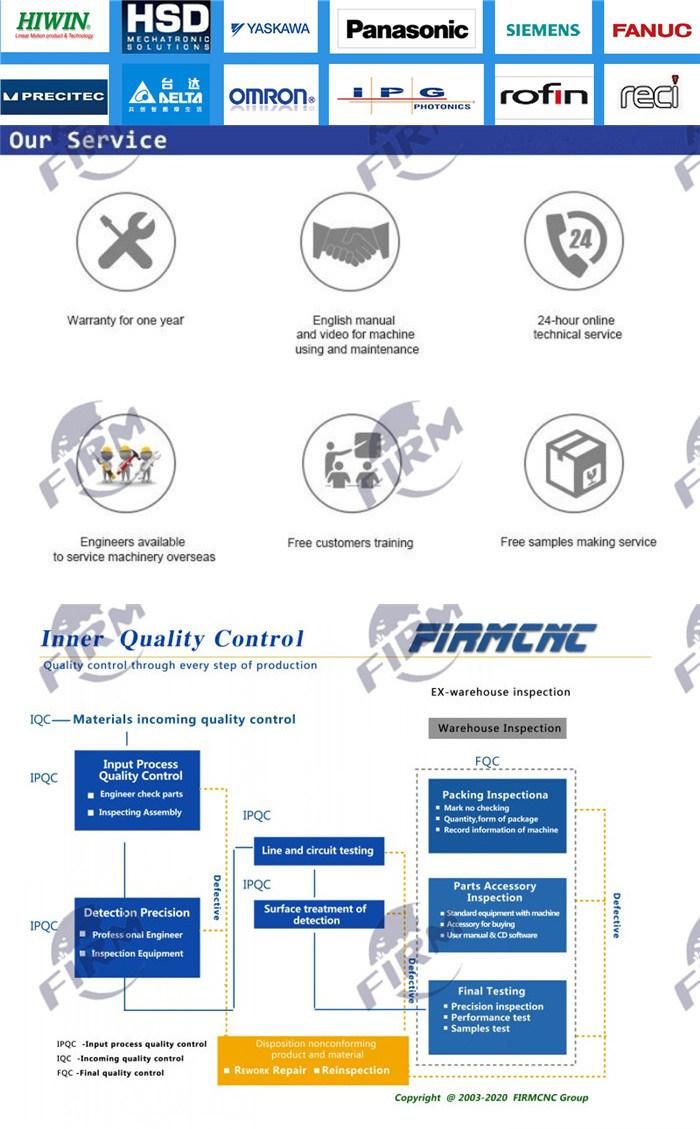

After sale service
1. 24 hour Technical support by phone, e-mail or MSN around the clock.
2. Friendly English version manual and operation video CD disk.
3.7-15 working days after down payment or full payment.
4. Machine will be adjusted before it is delivered; operation disk/CD was included.
5. Our technician can give you remote guide online (Skype or MSN) if you have any question.
6. Engineers available to service machinery overseas, seller and buyer discuss the charges.


Introduction of Company
Jinan Firm CNC Equipment Co., Ltd is situated in Jinan city, Shandong province.We are a
Professional and good reputation manufacturer of CNC router,laser engraving machine, CNC
Plasma cutter, laser cutting machine, laser marking machine in China to the new and existing
Customers that are spread throughout the South America, Middle East, Southeast Asia, Africa,
Europe and other counties of the world and the machines has passed the EU CE certificate.
The aim of Jinan Firm CNC Router is to continuously upgrade the technique, to help our
Customers produce the best quality and high precision products.


FAQ
1.Can you recommend a cnc router to me ?
Yes, In order to give you a suitable cnc router machine ,pls tell me the working area, materials for processing materials ?

2.Do you have operation manual and working video?
Yes, after we confirm order, operation manual will be send to you.

3.Does your company can processing my samples?
Yes, we can

4.If I bought machine, but don't know how to operation, what I can do?
Our engineer will teach you how to operation the machine through manual, video call or email, I still aso will help you .

5.How am I going to work on service parts on the machine? Example what if parts need to be replaced?
6.Does your engineer do aftersale service at abroad? how much cost?


JINAN FIRM CNC EQUIPMENT CO.,LTD
