• Model NO.：FM-1325
• Customized：Customized
• Condition：New
• Color：Customized
• Working Size：1300*2500*200mm
• Spindle Power：9kw Italy Hsd Spindle
• Spindle Rotate：6000~18000rpm
• Working Voltage：AC220V,50Hz or 380V,50Hz
• Guide：Taiwan Hiwin Linear Guide
• Transmission：Helical Rack and Pinion
• Motor：Stepper, Yaskawa Servo Optional
• Drive：Leadshine , Yaskawa
• Control System：DSP, Nc Studio
• Transport Package：Standard Export Woode Case
• Specification：CE, ISO, SGS
• Trademark：FIRMCNC
• Origin：China, Shandong, Jinan
• HS Code：84659900
• Production Capacity：100sets,Month

Basic Info.

Model NO. FM-1325 Customized Customized Condition New Color Customized Working Size 1300*2500*200mm Spindle Power 9kw Italy Hsd Spindle Spindle Rotate 6000~18000rpm Working Voltage AC220V/50Hz or 380V/50Hz Guide Taiwan Hiwin Linear Guide Transmission Helical Rack and Pinion Motor Stepper/ Yaskawa Servo Optional Drive Leadshine / Yaskawa Control System DSP/ Nc Studio Transport Package Standard Export Woode Case Specification CE, ISO, SGS Trademark FIRMCNC Origin China, Shandong, Jinan HS Code 84659900 Production Capacity 100sets/Month

Product Description

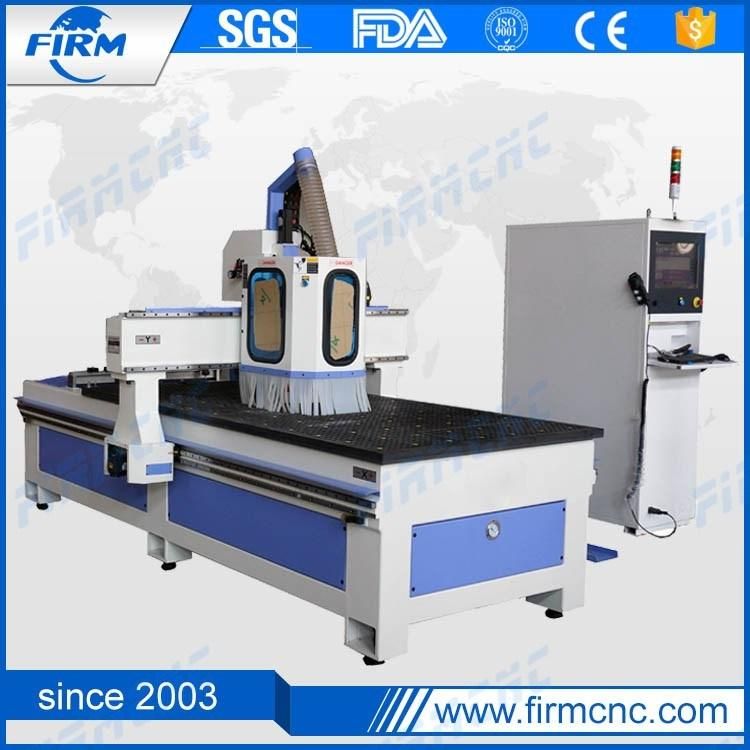

Auto tool changer cnc router /ATC woodworking machine in Stock

1/ circular auto too chager--6 tools / 8 tools
2/ linear auto tool changer--6 tools/ 8 tools

machine size: 13CBM
G.W: 1800KG
N.W: 1500KG
in order to shipping to you fast, please let me know your destination port.

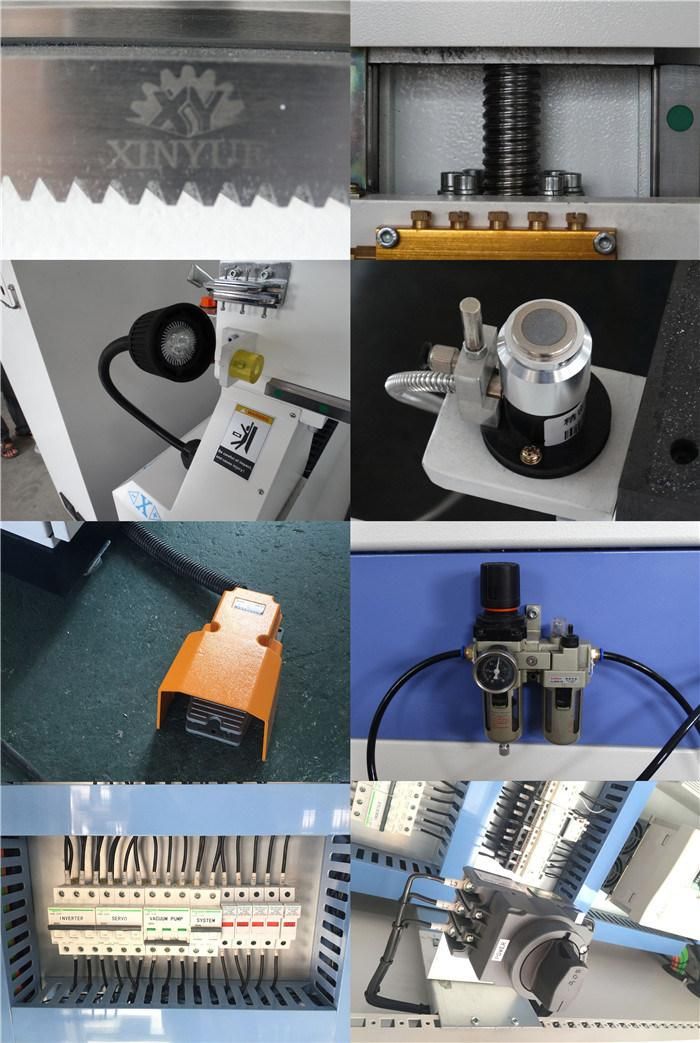

main features
1. 9KW air cooling auto tool change spindle, imported Italian HSD spindle motor optional (air cooled spindle 18000 rev/min)
2.Taiwan's high-precision H25 linear guide
3.Yaskawa servo motors, drives

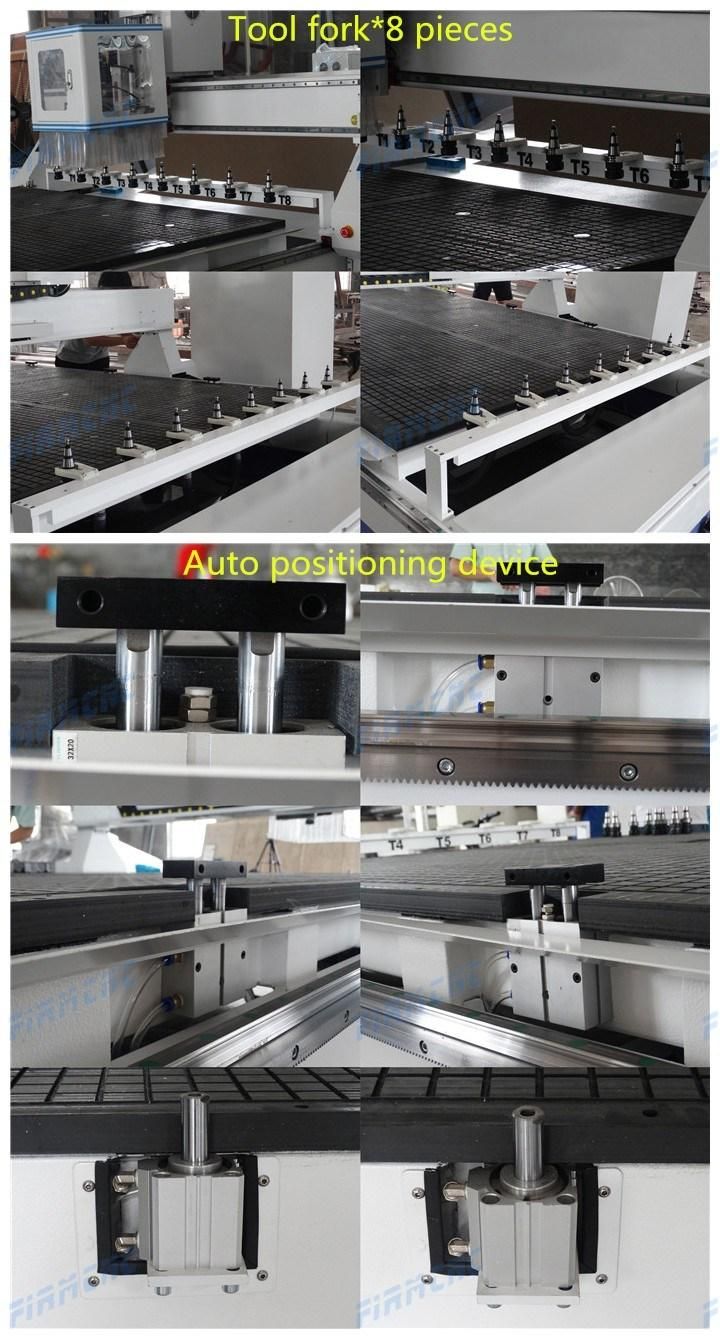

4. Intelligent ATC system,change tools fast and easily.more time-saving safety. can add 6 tools, 8 tools or 10 tools,  (Optional inline type ATC)
5.Vacuum inhaling table,largely improved working efficiency.
6..Industry steel square tube structure lathe.
5.High quality X,Y,Z ball screw or high accuracy gear rack transmission system,imported linear square rails.
7.X,Y,Z high quality dust cover, effectively prevent dust come into the inside of machine.
7. Professional CNC control system,compatible with many CAM software such as Type3,artcam,wentai.
8.auto oil lubricator, dust hood,self-lubrication,tool length measure, push up pins

Techncial specification:

Product	Description
X Y Z Working Area	1300*2500*200mm
Table size	2000*3000*1600mm
Machine Weight	1700kg
Servo Motor	Yaskawa - Japan
Taiwan Syntec controller	DSP/NK260/NK300/Taiwan syntec control system
HQD ATC Spindale -Air cooled	9kw
Tool holders	6 or 8
Tool size	ER32     3.175/4/6/8/12.7/16/20   Standard  12.7
# of collets with machine	8 collets
Rack and Pinion	Rack gear
Max Rapid Travel Rate	0-60m/min
Max working speed	1-35m/min
Z axis structure:	Steel
Working voltage	AC220v/ AC380v , 60hz, three  phase
Table Surface	Vacuum table
Auto Lubrication	included
Auto tool Calibration	Included
Sheet positioning pins	Included with foot pedal
Hard limit, electric limit	Included
Over travel limit	included
Emergency stop	included
Command languages	G code
Paint Color	Silver gray  (a little green)
Logos	Qi Lu Jing Diao
software	Type3/ ARTCAM
Tool box and manuals	For all components
Vacuum Pump - Power	10HP (5.5kw)  220 v 3-phase/ 380 v
Dust collector / Power	3kw 220V 3 phase
Guide rail	Square rail--linear guide rail
Other	Push up pins, self-lubrication, tool length measure

Application
Woodworking Applications:
waving board, cabinet door, solid wood door, craft wood door, no-paint door, folding screen, craft window, shoe polisher,
game machine cabinet,  Ma-jiang Table, computer table and panel type funiture.
Advertising Applications:
making advertising products made from Brand Board, Acrylic cutting, mould and some other materials processing.
Mould Area:
copper engraving, aluminum and iron engraving, and nonmetallic moulds, like: scagliola, sandstone, plastic board, PVC pipe, wood sheet etc.
Other Applications:
Art and craft fields, embossment, photo engraving and so on.

After sale service
1. 24 hour Technical support by phone, e-mail or MSN around the clock.
2. Friendly English version manual and operation video CD disk.
3.7-15 working days after down payment or full payment.
4. Machine will be adjusted before it is delivered; operation disk/CD was included.
5. Our technician can give you remote guide online (Skype or MSN) if you have any question.
6. Engineers available to service machinery overseas, seller and buyer discuss the charges.

Company information:
FIRMCNC Group located in Jinan,Shandong PR, Founded in 2003. Leader of laser marking machine appliance manufacture.
We are an all-round enterprice,which is comprehensive in R&D, manufacture, and sales on laser marking machine appliances.


Customers often ask
1.Can you recommend a plasma machine to me ?
Yes, In order to give you a suitable plasma machine,pls tell me the max working area, materials for processing and the thickness
for materials processing engraving or cutting. Then perfect suitable plasma machine will be recommended

2.Do you have operation manual and working video?
Yes, after we confirm order, operation manual will be send to you.

3.Does your company can processing my samples?
Yes, we can

4.If I bought machine, but don't know how to operation, what I can do?
Our engineer will teach you how to operation the machine through manual, video call or email, I still aso will help you .

5.How am I going to work on service parts on the machine? Example what if parts need to be replaced?
6.Does your engineer do aftersale service at abroad? how much cost?
