• Model NO.：FM1325
• Engraving Area：1300*2500*200
• Spindle Power：3.0kw Water Cooling Spindle
• Spindle Rotate(Rpm)：6000~24000
• Spindle：CS,Hanqi Water Cooling Spindle
• Square Rails：Taiwan Hiwin
• X,Y Axis Transmission：Helical Rack and Pinion
• Z Axis Transmission：Taiwan Tbi Ball Screw
• Transport Package：Wooden Box
• Specification：CE, ISO, SGS
• Trademark：FIRMCNC
• Origin：Jinan, China
• HS Code：84659900
• Production Capacity：5000 Sets,Year

Basic Info.

Model NO. FM1325 Engraving Area 1300*2500*200 Spindle Power 3.0kw Water Cooling Spindle Spindle Rotate(Rpm) 6000~24000 Spindle CS/Hanqi Water Cooling Spindle Square Rails Taiwan Hiwin X,Y Axis Transmission Helical Rack and Pinion Z Axis Transmission Taiwan Tbi Ball Screw Transport Package Wooden Box Specification CE, ISO, SGS Trademark FIRMCNC Origin Jinan, China HS Code 84659900 Production Capacity 5000 Sets/Year

Product Description

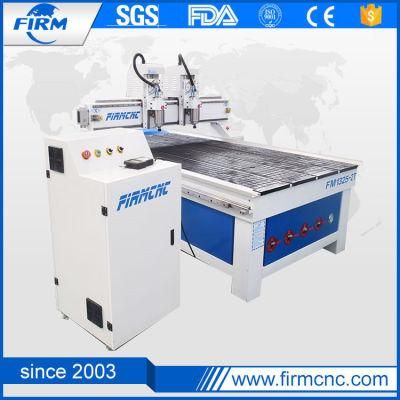

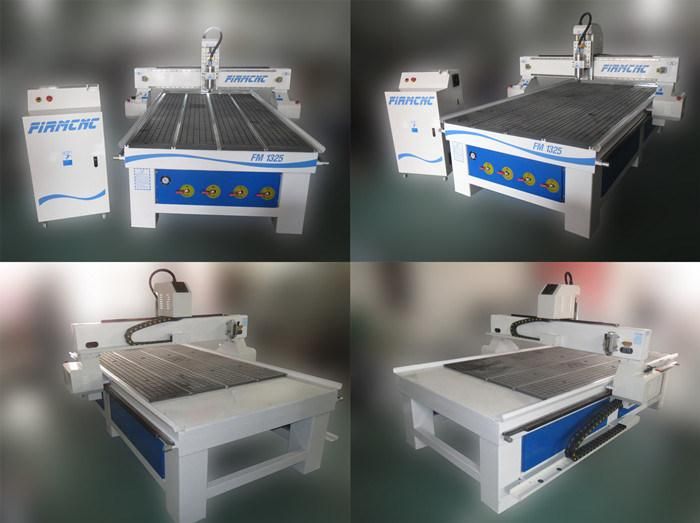

Hot Sale PVC Wood Cutting CNC Engraving Machine Price in India FM-1325

Advantages:

1. Free samples(I can help you process samples for free.

2.Advertising/artwork/woodworking

3.CE, SGS,ISO

4.High precision

5.High sensitivity

6.High efficiency

7. Warranty: 1 year
8.Door-to-door technical service and 24 hours technology online support

Technical Parameters:

No.	Description	Parameter
1	Working Area	1300mmx2500mmx200mm
2	Dimension(L*W*H)	1620mm×3300mm×1500mm
3	X,Y,Z Traveling Positioning  Accuracy	±0.02/300mm
4	X,Y,Z Repositioning Accuracy	±0.02mm
5	Table Surface	T-slot and vacuum combined table
6	Table Size	1420mm×3000mm
7	Inverter:	Chinese Fuling Inverter/Taiwan Delta Inverter
8	Spindle	3KW Chinese Hanqi water colling spindle
9	Limit switch	Japan Omron limit switch
10	Oil LubricationSystem	Manual
11	X, Y,Z Transmission	Taiwan Hiwin Square Rail and TBI Ball Screw
12	Max. Power Consumption	6KW
13	Max. Rapid Travel Rate	33000mm/min
14	Max. Working Speed	25000mm/min
15	Spindle Power	3KW(optional:2.2KW/3KW)
16	Spindle Speed	0-24000RPM
17	Motors	450B stepper
18	Working Voltage	220V/380V
19	Command Language	G Code
20	Operating System	DSP System/NC-studio
21	Computer Interface	USB
22	Collet	ER25
23	X,Y Resolution	<0.03mm
24	Software Compatibility	Artcam Software/Type3 Software
25	Running Environment  Temperature	0 - 45 Centigrade
26	Relative Humidity	30% - 75%
27	Packing Size	2120mmX3700mmX1900mm
28	N.W.	1500KG
29	G.W.	1600KG

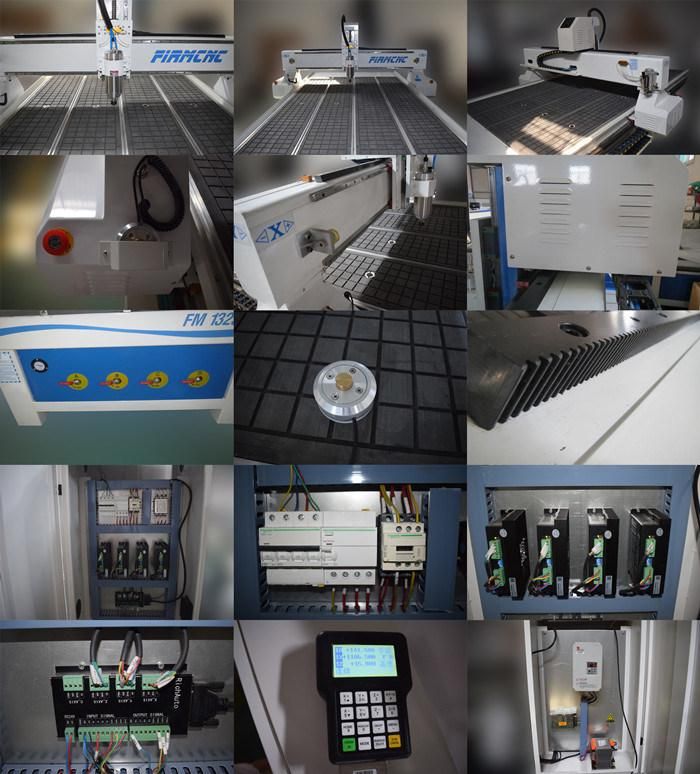

Details

Application Industry and Materials:

Advertising industury:Cnc router can engrave all kinds of signage,logo  products,trademarks,nameplates,badges,decorative gift,embossed
medals,certificates,souvenirs,photo frames,furniture decoration,PVC plates, PCB boards

(drilling and engraving),Double color boards,acrylic etc.

Woodworking Industry:Cnc router can be used for solid wood furniture,mahogany furniture,

MDF paint doors,solid wood doors,composite doors,cupboard doors and windows,beside

cabinets,folding screen etc.

Artwork industry: in the wood, bamboo, organic board, double color plate, crystal and other materials on a variety of exquisite patterns and text engraving.

Packing & shipment :

Save space as much as possible for container loading.

• Inside:Water-proof Plastic Film Package With Foam Protection
• Outside:Solid Seaworthy Wood Box Package
• Below: Steel Tube

Our partners:

Certificates:

FAQ:

1.How long about the machine's guarantee?

1 year

2.How about your after-sales service ?

Technical support by phone, WhatApp,Skype,e-mail or QQ around the clock.

3.How can we install the machine?

English version manual and operation video CD disk.

4.How about the payment terms?

30% T/T for deposit, 70%T/T paid before shipping. T/T, West Union, Paypal

5.Do you Arrange Shipment For The Machines?

Yes, dear customers, for FOB or CIF price, we will arrange shipment for you.

For EXW price, clients need to arrange shipment by themselves or their agents.
