4X8 FT Automatic 3D CNC Wood Carving Machine 1325 Wood Working CNC Router for Sale
Qingdao Zhongding Machinery Co., Ltd.- After-sales Service：Video Technical Support
- Warranty：1 Year
- Condition：New
- Certification：ISO, CE
- CNC or Not：CNC
- Voltage：380V
Base Info
- Model NO.：MJ1325
- Spindle Speed：24000rpm,Min
- Machining Accuracy：±0.04mm
- Feeding Size：1300*2500*200mm
- Spindle Power：3.2kw

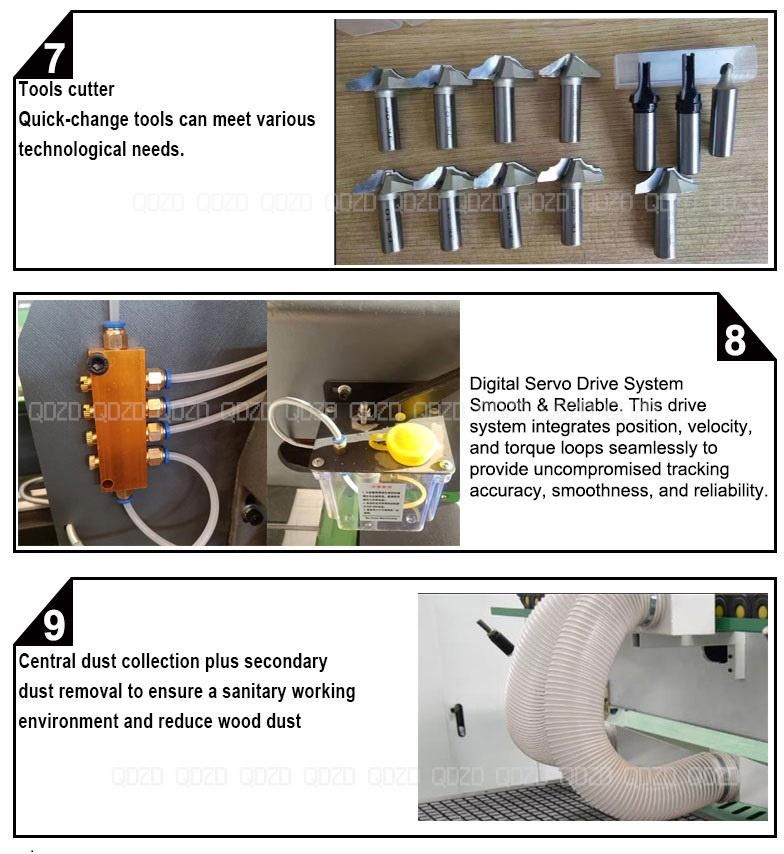

- Cutter：3-12.7mm
- Transport Package：Plywood Case
- Specification：4*8 ft
- Trademark：QDZD
- Origin：Qingdao
- HS Code：84659900
- Production Capacity：500 Set,Year
Description

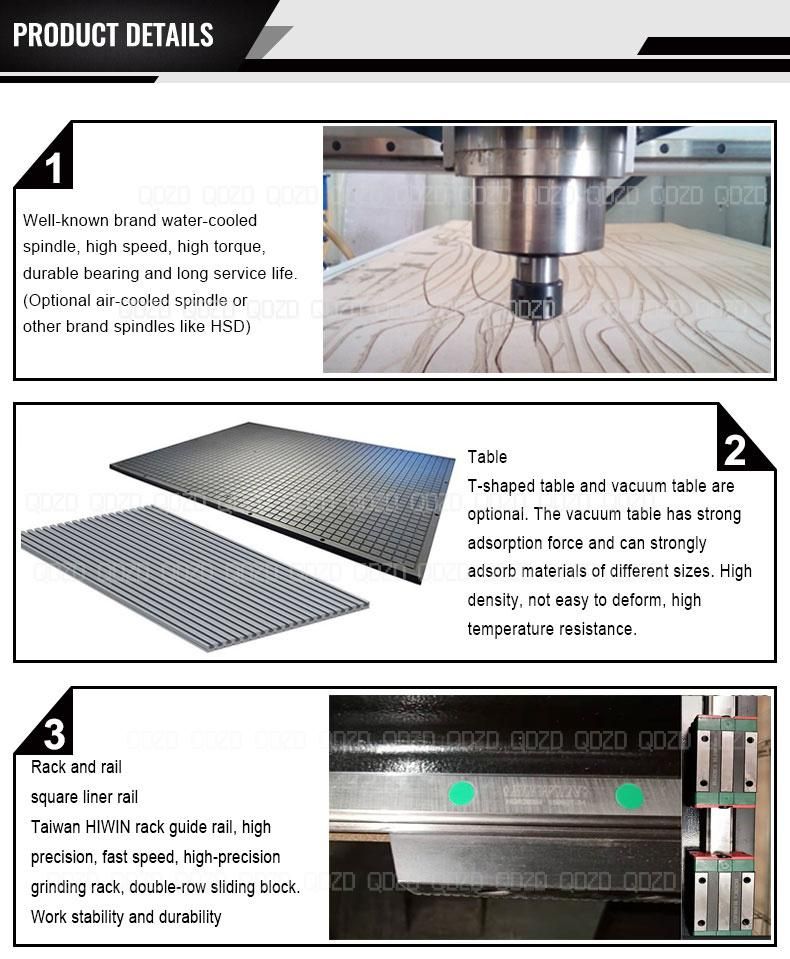

MJ1325 CNC ROUTERModel MJ1325 Range of work 1300x2500mm Working height 200mm Running speed 20m/min Processing speed 10m/min Driving mode 450B step motor drive Driver Leadshine 860 Spindle power 3.2kw water-cooled variable frequency spindle XY guideway and transmission 20 linear guideway, high precision rack drive Z axis guideway and drive 20 linear guideway, original tbi ball rod transmission Main shaft speed 24000rpm/min Working voltage 220v/50hz(380V/50hz) Support format *nc,G code,*uoo,*mmg,*plt Tool knife diameter ¢3.175mm ¢6mm ¢12.7mm Control system Dimension control system Oiling Manual oil injection Vac-sorb 5.5kw 380V Vacuum adsorption system (selection) Control cabinet Independent control cabinet (optional built-in control cabinet)
Advantage:

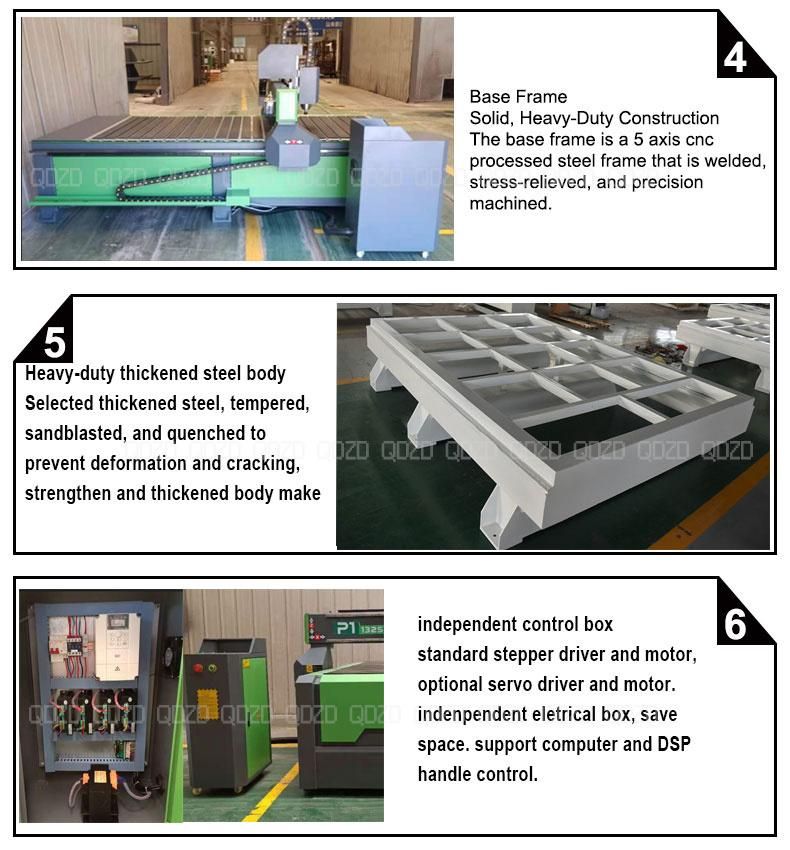

-Adopt the gantry structure, the guide rail support surface is stable, the rack drive mode, the transmission
is stable, guarantees the long time high speed movement does not deform, does not shake.
-The linear guideway and y axis are driven by double motors, which have large bearing redundancy and
long life. Using double rack transmission, the operation is simpler and the design is more humanized.
-A variety of software compatible, compatible with type3/artcam/castmate/ carved / Wentai and other
design and production software.
Application:
