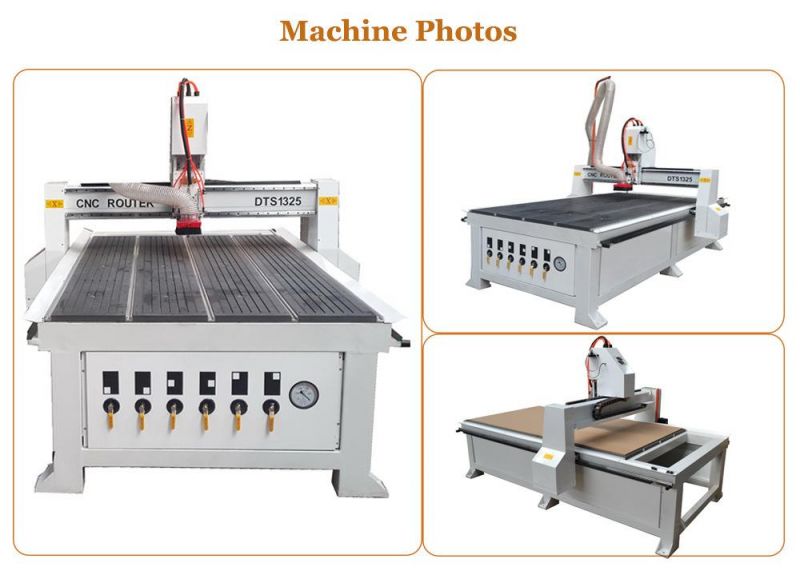

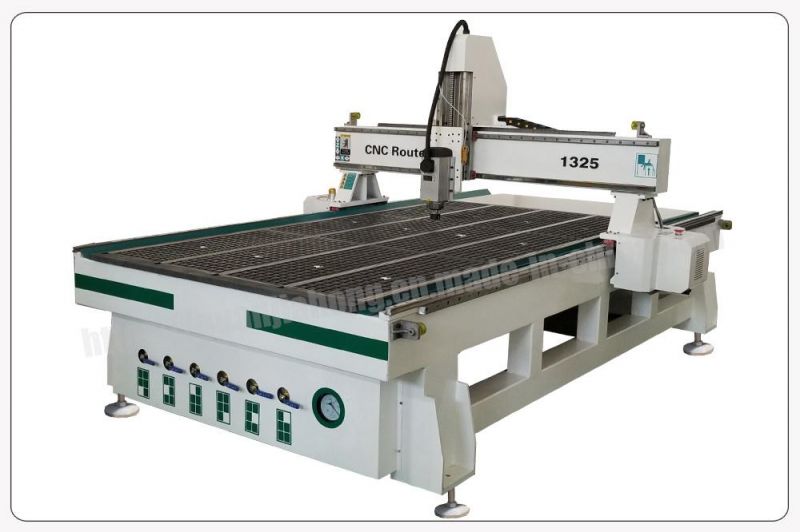

1325, Wood, MDF, Acrylic, EPS, Soft Metal, CNC Router CNC Engraving Machine
Jinan Guanjiahong CNC Machinery Co., Ltd.- After-sales Service:Lifetime
- Warranty:1 Year
- Condition:New
- Certification:CE
- CNC or Not:CNC
- Voltage:380V
Base Info
- Model NO.:1325
- Usage:Woodworking
- Engraving Machine Type:CNC Engraving Machine
- Power:High Power
- Drive Type:Stepper Drive
- Control:CNC
- Current:AC
- Table Size:1300*2500
- Transport Package:Plywood Case
- Specification:CE
- Trademark:DONGTONG
- Origin:Shandong China
- HS Code:84609090
- Production Capacity:50 Sets Per Month
Description
Basic Info.
Model NO. 1325 Usage Woodworking Engraving Machine Type CNC Engraving Machine Power High Power Drive Type Stepper Drive Control CNC Current AC Table Size 1300*2500 Transport Package Plywood Case Specification CE Trademark DONGTONG Origin Shandong China HS Code 84609090 Production Capacity 50 Sets Per MonthProduct Description
1325, Wood, MDF, Acrylic, EPS, Soft metal, CNC Router machine,from professional cnc router machine manufacturer.
Machine Feature:
1. Mode DT1325 machine is specially designed for advertisement. It has high Precision, fast speed, cost-effective.
2. By the way of seamless welding and vibrating treatment, the lathe bed steel Structure is firm, durable, strength steel and non-deformation.
3. Computer cabinets and Weihong control system make the machine have good Stability and high reliability.
4. Using automatic lubrication system, it's convenient for maintenance.
5. Owns more functions of power-off restoration, continuation on break point, working Time anticipation etc.
6. XYZ axis adopt high-precision linear and square rail from Yintai in Taiwan. High-Precision and durable no-clearance rolling ball screws for Z axis, it's
imported from Yintai brand in Taiwan, rack drive for X Y axis, high-precision, faster and better Efficiency.
Application:
1. Woodworking industry: All kinds of door, windows, cabinet, craft door, paint-free Door, screen, wave board processing,
2. Advertisement industry: Suitable for processing all kinds of design of rich and Colorful model, Such as labels. Architectural molds, badge, engraving
plate.Exhibition boards, doorplate. Direction board, decoration and so on.
3. Handcraft industry: Apply to engraving patterns and characters on all kinds of Materials, such as wood, bamboo, marble, organic board, double color
board.
4. Other industry: Relief carving, photograph craving, openwork engraving, plane Engraving, cutting and milling bottom etc.
If you have specific requirement for CNC router machine, customization is available.
Products Sample made by this machine
Technical Parameter:
NO | (Performance index) | (Parameter) | (Optional) | |
1 | Working area | X axis | 1300mm | |
Y axis | 2500mm | |||
Z axis | 150mm | |||
3 | Accuracy | Processing precision | 0.02mm | |
Repositioning precision | 0.02mm | |||
4 | Drove mode | X axis | Helical rack and pinion | |
Y axis | Helical rack and pinion | |||
Z axis | Ball screws | |||
5 | Speed | Max travel speed | 50000mm/min | |
Max engraving speed | 20000mm/min | |||
6 | Spindle(water-cooling) | Spindle power | 3KW | 0.8KW_3KW |
Spindle speed | 0_24000r/min | |||
7 | Running mode | stepper | Servo | |
8 | Operating voltage | AC220V/50HZ | ||
9 | Command code | G code | ||
10 | Operating system | NC STUDIO | ||
11 | Net weight | 1300KG |
More Types:
Technical support:
1. Technical support by phone, email or MSN/ Skype around the clock
2. Friendly English version manual.
3. Engineer available to service machinery overseas. but the buyer should pay the fee.
After-sale & guarantee service:
1. Under normal usage, 1 year for the whole machine and 6 months for spindle
2. Normal machine is properly adjusted before dispatch.
3. You will be able to get free training advice towards our machine in our factory.
4. You will also get free suggestion and consulting, technical support and service by email/fax/ tel
1325, Wood, MDF, Acrylic, EPS, Soft Metal, CNC Router CNC Engraving Machine
If you have specific requirment for 1325 cnc router machine, customization is available.
