• Model NO.：1325
• Customized：Customized
• Condition：New
• Color：Customized
• Ball Screw：PMI, Taiwan
• Guild Rail：Hiwin
• Control System：Nc Studio
• Invertor：Fuling
• Transport Package：Standard Exported Plywood Case
• Specification：CE
• Trademark：DONGTONG
• Origin：Shandong China
• HS Code：84609090
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. 1325 Customized Customized Condition New Color Customized Ball Screw PMI, Taiwan Guild Rail Hiwin Control System Nc Studio Invertor Fuling Transport Package Standard Exported Plywood Case Specification CE Trademark DONGTONG Origin Shandong China HS Code 84609090 Production Capacity 50 Sets Per Month

Product Description

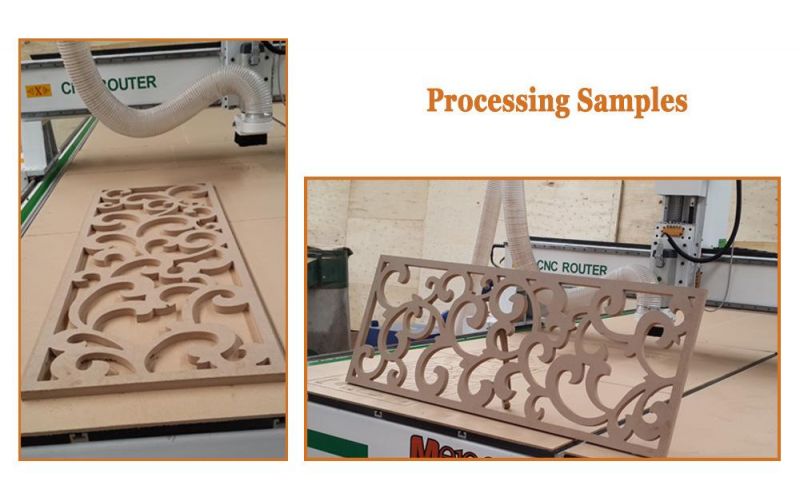

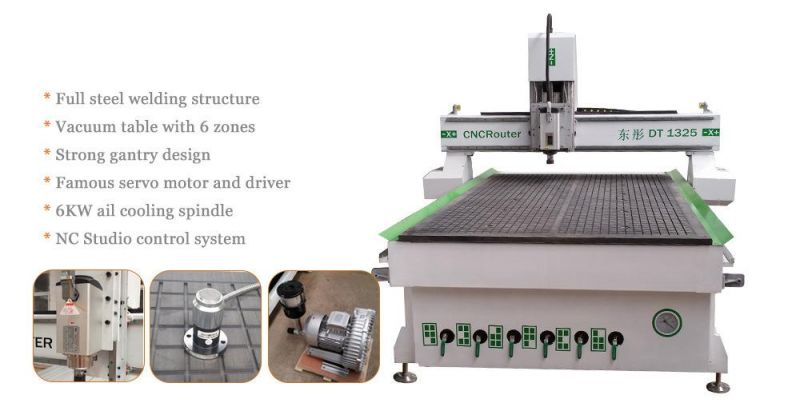

1325 Wood, acrylic, MDF, stone, foam,  soft metalCNC router machine from professional cnc router manufacturer.

1. Advanced control system NC STUDIO2. Compatible with software such as:
    TYPE3/ARTCAM/UG/PRO-E/UCANCAM/AUTOCAD/MASTERCAM3. Functions of power-off recovery, continuation on break point, time anticipation.
4. Excellent components: HIWIN guild rail and ball screws,low noise spindle5. Welding steel structure and 10mm gantry6. Powerful vacuum table divided to 6 zones, can adsorb different size materials.

NO			Parameter
1	Working area	X axis	1300mm
		Y axis	2500mm
		Z axis	180mm
2	Table size		1300mm*2500mm	Customized
3	Accuracy	Processing precision	0.02mm
		Repositioning precision	0.02mm
4	Drove mode	X axis	Helical rack and pinion
		Y axis	Helical rack and pinion
		Z axis	Ball Screws
5	Speed	Max travel speed	50000mm/min
		Max engraving speed	20000mm/min
6	Spindle	Spindle power	3KW	As request
		Spindle speed	0_24000r/min
7	Motor and driver		Stepper
8	Voltage		AC220V/50HZ	As request
9	Command code		G code
10	Operating system		NC STUDIO
11	Net weight		1300KG

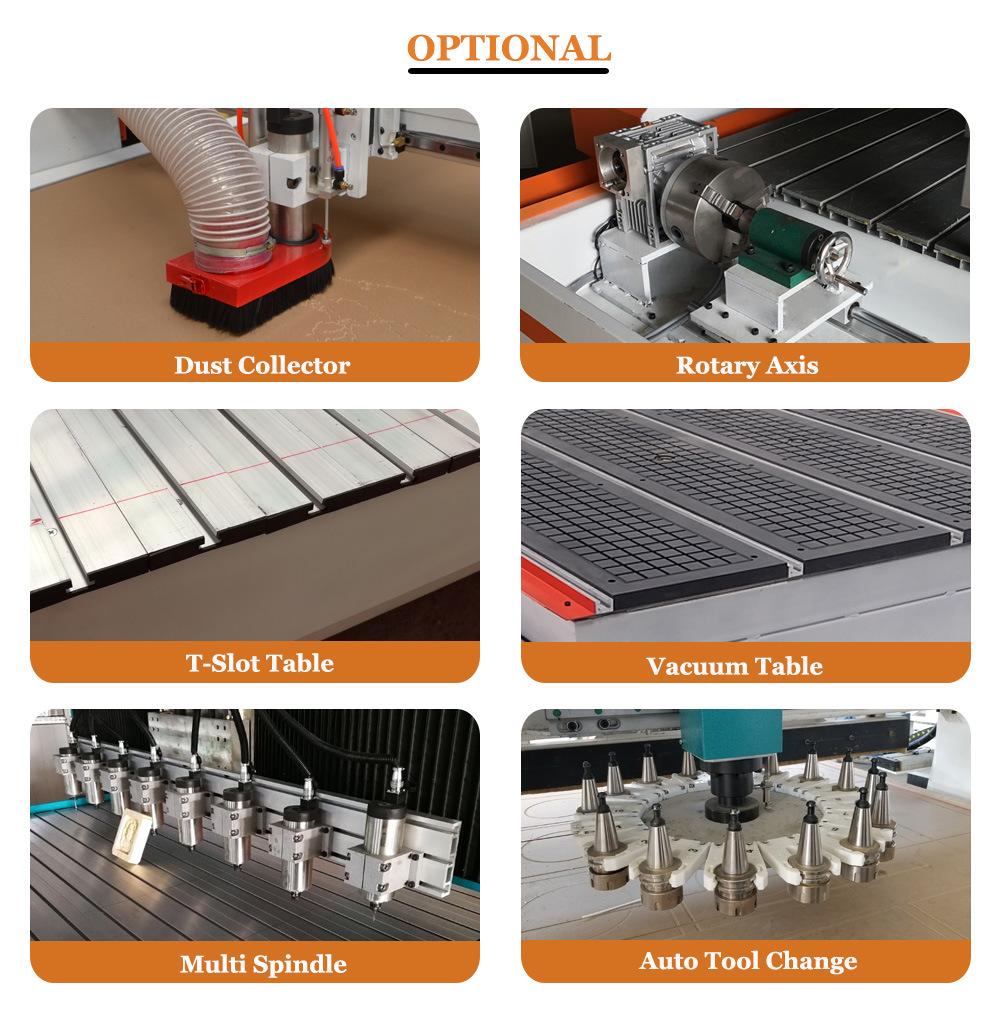

Configuration can be made as your request.

















1.Technical support by call, email or whats app
2. Friendly English version manual.
3. Engineer available to service machine overseas. Buyer should pay the fee.
4. Warranty period: 1 year for the whole machine and 6 months for spindle
5. Machine will be adjusted before dispatch.
6. Free training course in our factory.
7. Free suggestion and consulting, lifetime technical support .

If you have requirement for customized 1325 cnc router for wood engraving and cutting, please contact with us.
