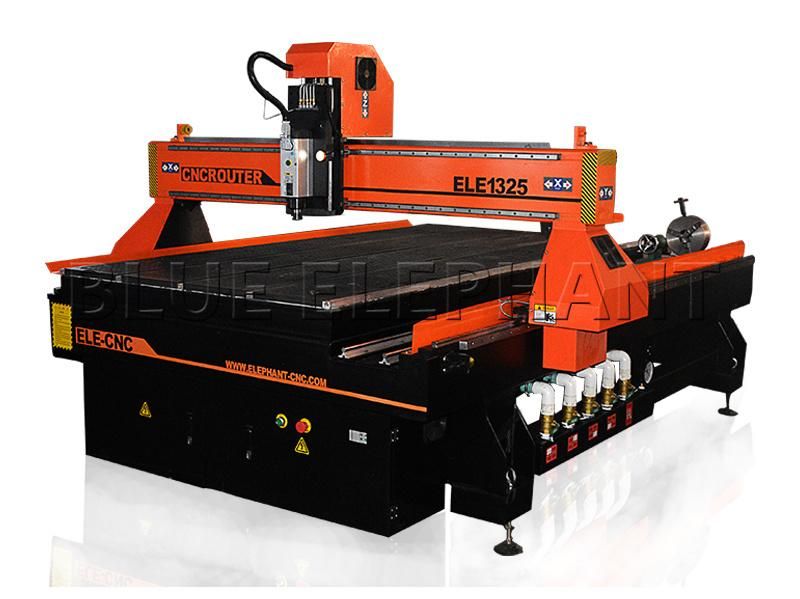

Best Price Making Money with CNC Router 3 Axis CNC Router with Vacuum Pump
Jinan Blue Elephant CNC Machinery Co., Ltd.- Type:Engraving Router
- Spindle Layout:Spindle Over
- Spindle Number:Single-Spindle
- Feed Mode:Mechanical
- Controlling Mode:CNC
- Certification:CE, ISO, SGS BV TUV
Base Info
- Model NO.:ELE1325
- Customized:Customized
- Condition:New
- Color:Customized
- Voltage:220V, 1pH, 50Hz (380V for Optional)
- Dimension(L*W*H):3200*2140*1850mm
- Working Area:1300*2500*200mm
- Control System:Mach3 Control System for 4 Axis
- Spindle:Italy Hsd Ari Cooling Spindle
- Spindle Power:3kw
- Structure:New Type Thicker and Bigger Heavy Duty Welded Fram
- Motor:FL118 Stepper Motor
- Driver:Yako2811 Big Driver
- Inverter:3.7kw Fuling Inverter
- Transport Package:Standard Export Wooden Case
- Specification:CE, ISO, SGS
- Trademark:BLUE ELEPHANT
- Origin:Shandong, China
- Production Capacity:200 Sets Per Month
Description
Basic Info.
Model NO. ELE1325 Customized Customized Condition New Color Customized Voltage 220V, 1pH, 50Hz (380V for Optional) Dimension(L*W*H) 3200*2140*1850mm Working Area 1300*2500*200mm Control System Mach3 Control System for 4 Axis Spindle Italy Hsd Ari Cooling Spindle Spindle Power 3kw Structure New Type Thicker and Bigger Heavy Duty Welded Fram Motor FL118 Stepper Motor Driver Yako2811 Big Driver Inverter 3.7kw Fuling Inverter Transport Package Standard Export Wooden Case Specification CE, ISO, SGS Trademark BLUE ELEPHANT Origin Shandong, China Production Capacity 200 Sets Per MonthProduct Description
Best Price Making Money with Cnc Router 3 Axis Cnc Router with Vacuum PumpAdvantages of 1325 cnc router 4 axis:
- 10~12mm thinkness heavy duty frame. Promise the machine working stable and durable. Have a longer work life.
- Original Italy HSD air cooling spindle.
- High soft shielded copper wires to protect against the static electricity. More safe and have a longer work life.
- All the manuals of the machine are in English.
Parameters of 1325 cnc router 4 axis:
Descriptions | Parameters |
Modle | ELE1325-4 |
Working area | 1300*2500*200mm |
Control system | Mach3 control system for 4 axis |
Spindle | 3kw Italy HSD ari cooling spindle |
Spindle speed | 0-18000RPM |
Motor | FL118 stepper motor |
Driver | Yako2811 driver |
Inverter | 3.7kw Fuling Inverter |
Table surface | T-slot and vacuum working table |
Structure | New type thicker and bigger heavy duty welded frame and gantry |
Rotary device | 200mm diameter rotary device |
Voltage | 220v, 1ph, 50Hz (380v for optional) |
Lubrication system | Manual lubrication system (automatic for optional) |
Transmission | X,Y rack and pinion drive; Z Taiwan TBI ball screw Taiwan HIWIN linear square rail 20# for X,Y,Z axis |
Traveling speed | 32m/min |
Working speed | 20m/min |
Collet | ER25 |

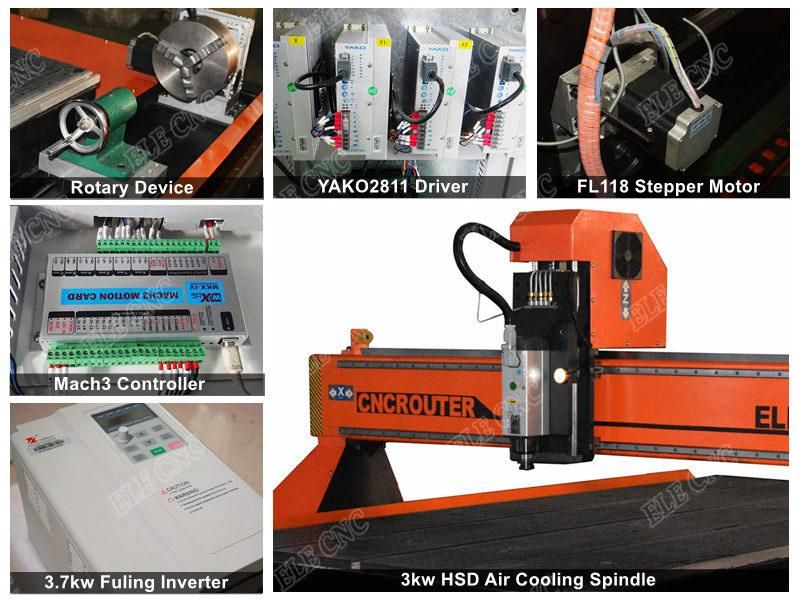

Product Details of 1325 cnc router 4 axis:
Applications
1. Wood furniture industry
Doors; Cabinets; Tables; Chairs.
Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry
Signage; Logo; Badges; Display board; Meeting sign board; Billboard
Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die industry
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.
4. Artwork and Decoration
wood crafts; gift box; jewelry box
5. Others
Relief sculpture and 3D engraving and Cylindrical object.

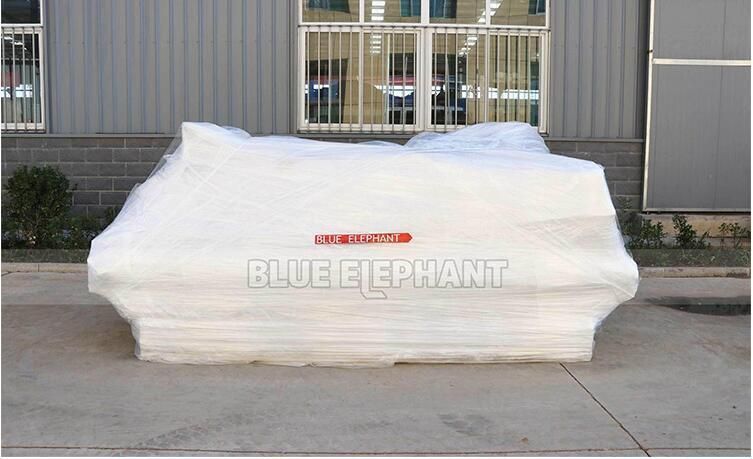

Packaging & Delivery:
Packaging Details:
Three layers---
-The innermost layer is EPE pearl cotton film package;
-The middle layer is wrapping up with environmental protection material ;
-And the outermost layer is winding up with PE stretch film.
They're very environmentally friendly.
If you need a wooden box, we will make a wooden box outside the machine.
Delivery Detail: Shipped in 15 working days after payment.
Our Service:
1, Within 7days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.

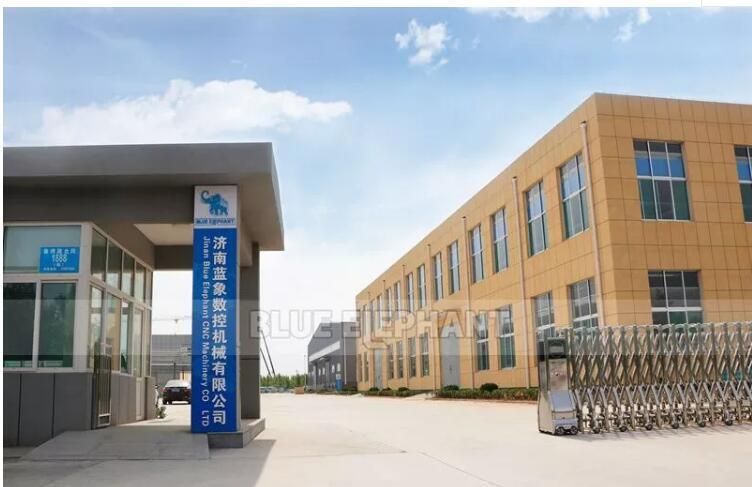

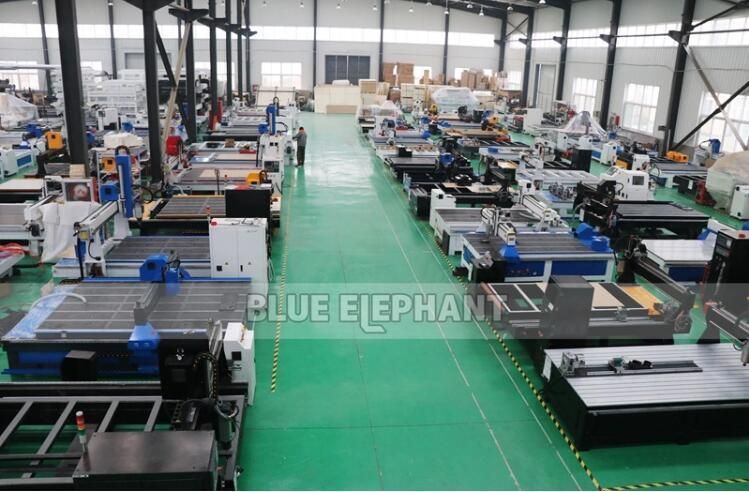

Welcome to our factory:
Jinan Blue Elephant CNC Machinery, the professional cnc router and laser cutting machine manufacturer in China, include ATC CNC router, Wood CNC Router, Stone CNC Router, Metal CNC Router, EPS CNC Router, 4 Axis CNC Router, 5 Axis CNC Router, Plasma Cutting Machine, Laser Cutting and Engraving Machine and so on, which have passed the CE, SGS, ISO9001 etc. Our cnc routers are widely used for advertising, woodworking, mould, stone, metal industry.
